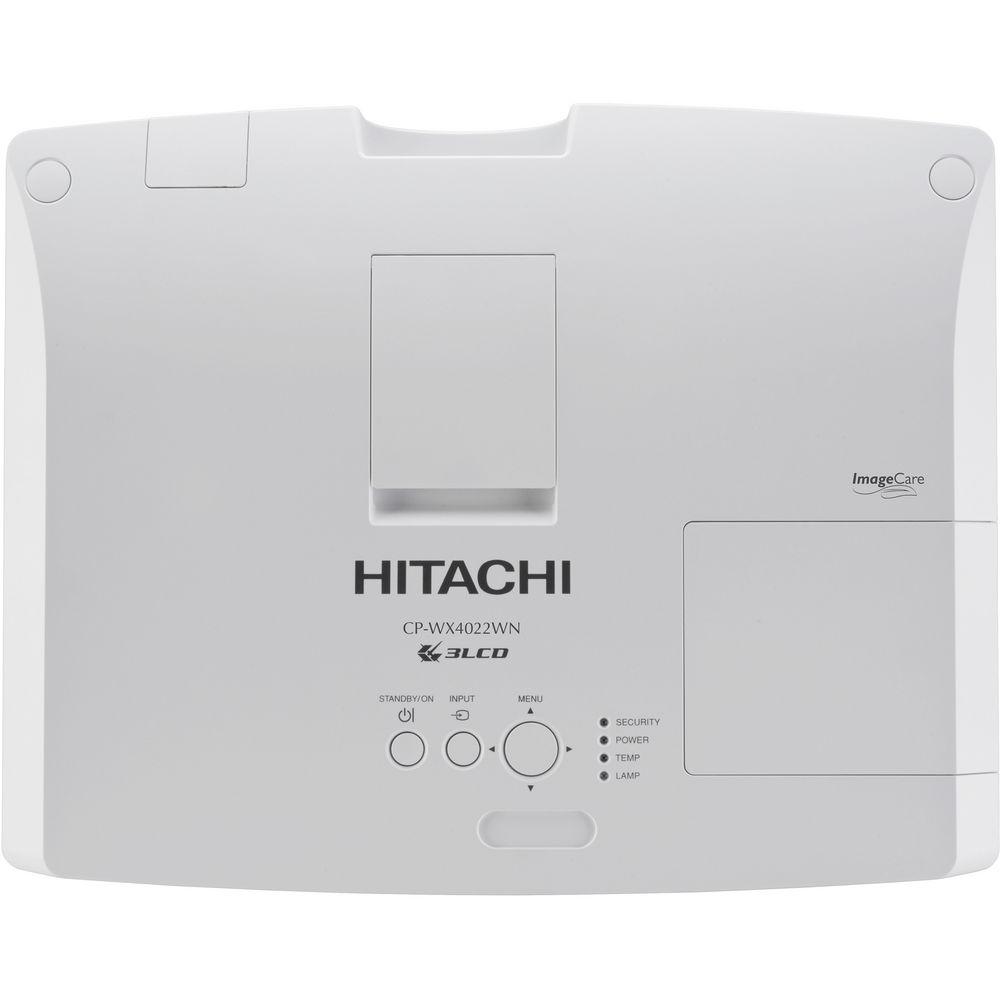

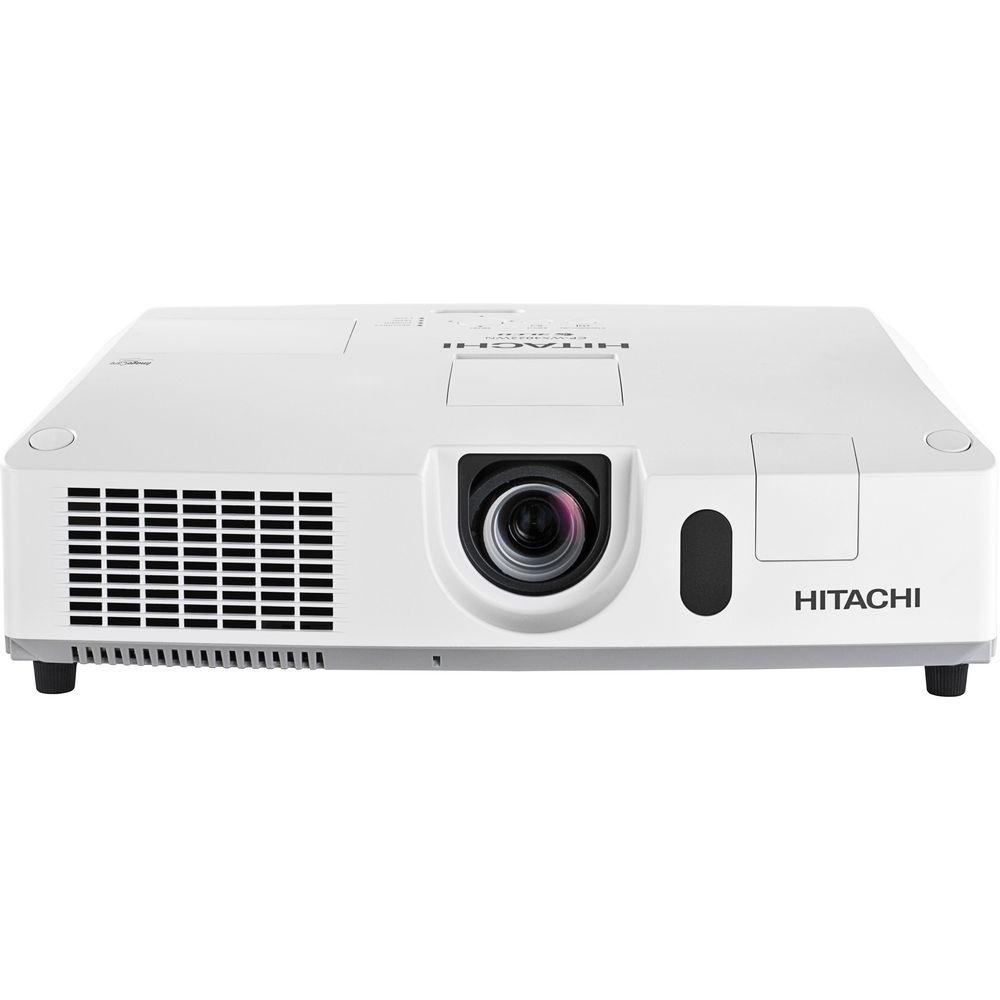

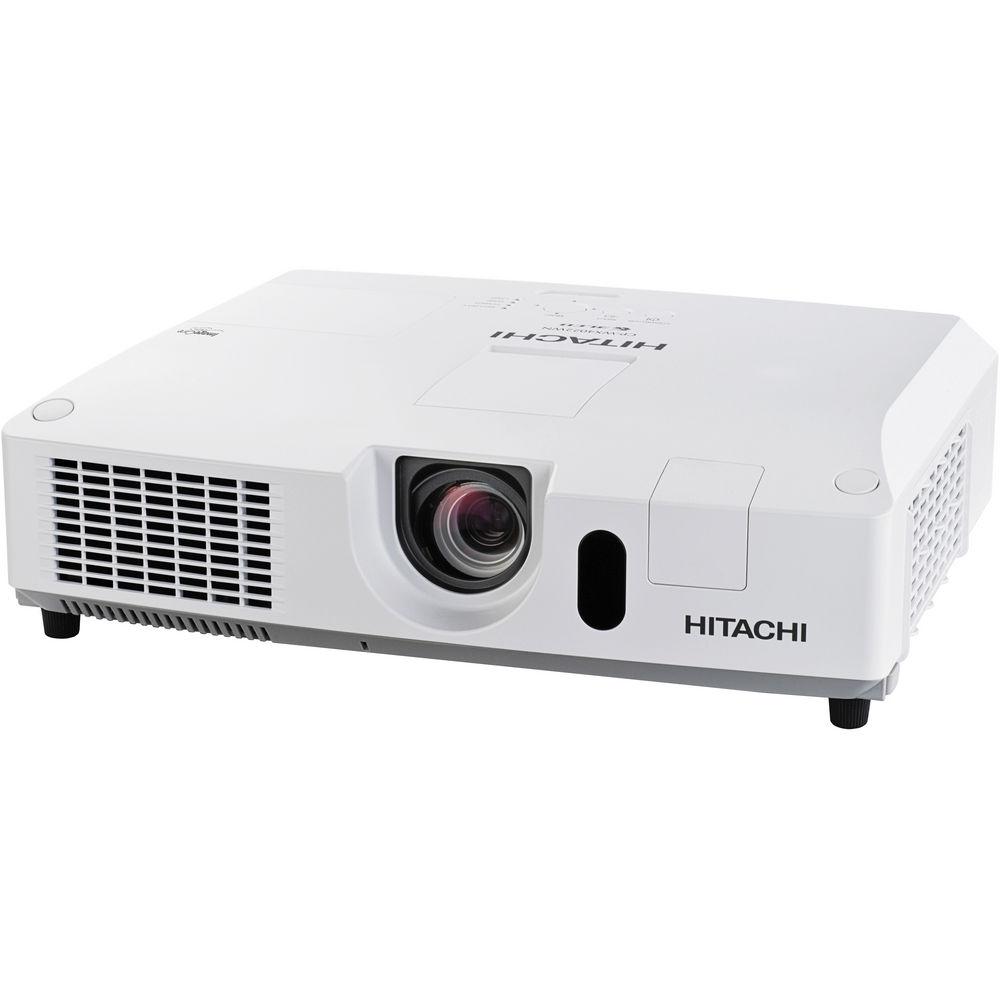

User Manual for Hitachi CP-WX4022WN 4000-Lumen WXGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Hitachi CP-WX4022WN 4000-Lumen WXGA 3LCD Projector
- Product category: Multimedia Projectors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Multimedia Projectors
 |
User manual for the Hitachi CP-WX4022WN 4000-Lumen WXGA 3LCD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|
Product description Present in rooms with ambient light with the Hitachi CP-WX4022WN 4000-Lumen WXGA 3LCD Projector. It features 4000 lumens of color and white brightness to overcome ambient light in many situations, and its 1280 x 800 WXGA resolution will help keep images and text clear at most viewing distances.
HDMI, VGA, S-Video, and composite video inputs help ensure compatibility with a multitude of source types. The VGA output can be used to daisy-chain multiple projectors or displays to show the same image source in multiple places. A built-in 16W speaker mitigates the need for an external sound system, though you can use one with the analog audio inputs and output. The projector is controllable via Ethernet, RS-232, or the included IR remote control. - Cloning Function
- Copy configuration settings from one CP-WX4022WN to others via a USB memory stick. Cloning can save most projector settings, including gamma and keystone.
- ImageCare Technology
- ImageCare is a lamp power control function designed to combine optimal picture performance with enhanced energy savings by decreasing energy usage while augmenting contrast ratio and lengthening lamp life to reduce maintenance costs.
- DICOM Simulation Mode
- The CP-WX4022WN offers a DICOM Simulation Mode that allows the projector to simulate the results of devices compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 standardized display function, for display of grayscale images. The DICOM Simulation Mode, which supports both Blue and Clear Base, adjusts the gradation between the minimum and the maximum luminance, so gradation is distributed optimally. This feature is optimized for displaying medical images such as X-rays, CAT scans, and MRIs, which makes the CP-WX4022WN useful for non-diagnostic purposes such as lectures, academic meetings, and hospital conferences. This feature is recommended for use in medical schools for training and educational use only.
- Intelligent Eco and Saver Modes
- These modes automatically change the brightness of the lamp according to the brightness level on the screen. They also automatically change lamp brightness if there is no change in the screen image for a set time. Along with ImageCare technology, the CP-WX4022WN can produce a quality image with enhanced energy savings.
- Perfect Fit 2
- Perfect Fit 2 enables you to adjust individual corners and sides of the image independent of one another. It also provides vertical and horizontal digital correction of either barrel or pincushion distortions, as well as geometric and complicated distortions, helping you fit the image to the screen quickly and easily.
- Stackable Design
- Using the lens shift and Perfect Fit 2, you can stack two projectors for nearly double the light output.
- Microphone Input
- A microphone can be plugged into the projector for more dynamic presentations. The microphone input even functions in standby mode.
- Network Control, Maintenance, and Security
- Embedded networking allows you to manage and control multiple projectors over your LAN. Features include event scheduling, centralized reporting, image transfer, and email alerts for reactive and routine maintenance.
- Computer-Less Presentation
- By using a USB memory stick or other storage device, you can project stored files without a computer. Your files will be displayed as thumbnails, and there is also a slideshow function. Supported file types include JPG, PNG, BMP, GIF, AVI, and MOV with frame rates under 12 fps at 640 x 480 resolution.
- PJMessenger
- The PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors, making it easy to send announcements out through multiple units.
- Present Content via LAN
- Hitachi's networking software allows you to send content directly from your computer to the projector via your LAN connection.
- Serial Number and Media Access Control Label
- A label is affixed to the side of the projector to provide easy access its model name, serial number, and MAC address while mounted in ceiling use.
- Transition Detector and Security Bar
- A security sensor located inside the projector recognizes when the projector has been movedl Moving the projector without using the correct PIN will disable the projector.
- Wireless Presentation Ready with Optional Adapter
- Connect the projector to a computer or network using the optional USBWL11N USB wireless adapter, which supports IEEE 802.11b/g/n.
- Projector Quick Connection iOS App
- The Hitachi iOS app offers projector control and the capability to display photos, document files, and website contents. It works over your LAN via the projector's RJ-45 port or an optional wireless adapter.
UPC: 050585153646 In the Box Hitachi CP-WX4022WN 4000-Lumen WXGA 3LCD Projector Remote Control Computer Cable Power Cord Lens Cap Security Label Limited 4-Year Warranty User Manual PDF 7.6mbcffdrvrtazcfzuxtczqsevwtruy Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi CP-WX4022WN 4000-Lumen WXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi CP-WX4022WN Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | White: 4000 Lumens
Color: 4000 Lumens | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 3000:1 | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Horizontal: 31.5 - 106 kHz
Vertical: 56 - 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.7x | | Throw Ratio | 1.5 - 2.5:1 | | | | Keystone Correction | Horizontal: ± 37.5°

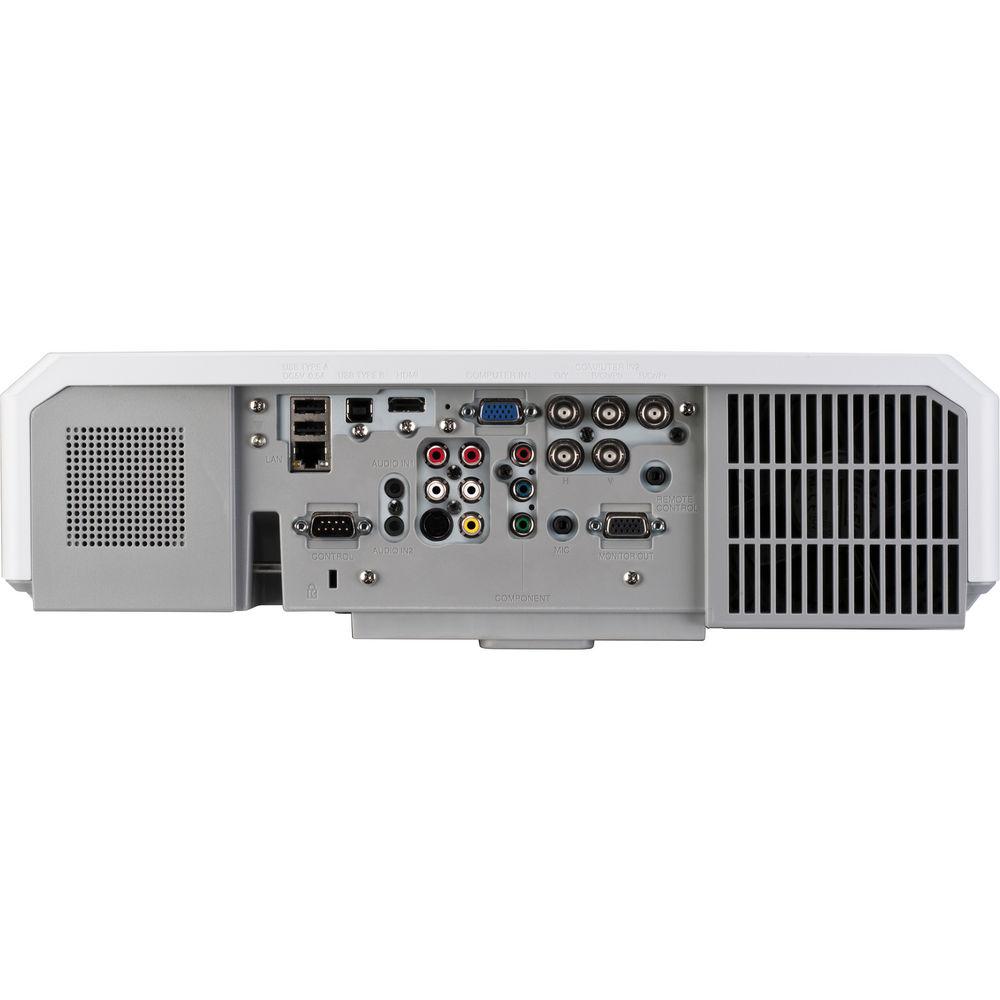

Vertical: ± 37.5° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
2 x USB Type-A Male (Input)
1 x USB Type-B Female (Input)
1 x 5BNC Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Component (3RCA) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x RCA Stereo (L/R) Audio (Output)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 245 W | | Expected Lamp Life | Full Brightness: 3000 Hours
Low Brightness: 5000 Hours | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Photo File Types | BMP, GIF, PNG | | Supported Video File Types | AVI, MOV | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 370 W | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Dimensions (W x H x D) | 15.8 x 4.1 x 12.5" / 401.3 x 104.1 x 317.5 mm | | Weight | 10.1 lb / 4.6 kg | | | | Package Weight | 16.35 lb | | Box Dimensions (LxWxH) | 21.89 x 16.614 x 7.48" |
