Hitachi CP-WX4042WN 4000-Lumen WXGA 3LCD Projector

Search your instruction manual in PDF to download

User Manual for Hitachi CP-WX4042WN 4000-Lumen WXGA 3LCD Projector

Click to enlarge the picture
Hitachi CP-WX4042WN 4000-Lumen WXGA 3LCD Projector Contents of the user manual for the Hitachi CP-WX4042WN 4000-Lumen WXGA 3LCD Projector
  • Product category: Multimedia Projectors Hitachi
  • Brand: Hitachi
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hitachi Multimedia Projectors

Hitachi CP-WX4042WN 4000-Lumen WXGA 3LCD Projector Hitachi CP-WX4042WN 4000-Lumen WXGA 3LCD Projector Hitachi CP-WX4042WN 4000-Lumen WXGA 3LCD Projector Hitachi CP-WX4042WN 4000-Lumen WXGA 3LCD Projector
User manual for the Hitachi CP-WX4042WN 4000-Lumen WXGA 3LCD Projector contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hitachi product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!



Product description

Brighten up your presentations with the Hitachi CP-WX4042WN 4000-Lumen WXGA 3LCD Projector. Its 4000 lumens of brightness, combined with the 10,000:1 contrast ratio, will help ensure that images will remain visible in most rooms, even with ambient light. The projector has RCA composite, two VGA, and two HDMI inputs. One HDMI input supports MHL for connecting compatible smartphones and tablets, while one VGA input doubles as an output to allow you to daisy-chain multiple projectors together for wired content mirroring. Its built-in 16W speaker can eliminate the need for an external sound system. The CP-WX4042WN is controllable via Ethernet or RS-232, AMX or Crestron control systems, or the included IR remote control.
    Accentualizer and HDCR
  • The Accentualizer is designed to make images look more realistic by enhancing shade, sharpness, and gloss for enhanced clarity. The HDCR function is designed to correct blurred images caused by ambient light and seemingly increase contrast, resulting in clearer images in bright rooms.
    Image Optimizer
  • The Image Optimizer is designed to maintain visibility of an image through automatic image correction in accordance with lamp consumption.
    MHL Connectivity
  • The HDMI2 input on the CP-WX4042WN supports Mobile High-Definition Link (MHL), allowing you to mirror the screen of your compatible smartphone or tablet.
    Saver Mode
  • Based on ImageCare technology, Saver Mode is designed to reduce the lamp brightness and power consumption to increase energy savings. This mode automatically activates when the projected image does not change in the preset time (one to thirty minutes). You can also activate Saver Mode manually with the included remote control.
    Intelligent Eco Mode
  • Also based on ImageCare technology, Intelligent Eco Mode automatically adjusts the lamp brightness according to the input signal level. The lamp brightness is reduced when a darker image is projected and returns to normal when a brighter image is projected, reducing unnecessary energy consumption from the lamp.
    Mic Input and 16W Internal Speaker
  • The CP-WX4042WN is equipped with a microphone input which can be used with the 3.5mm audio output, even with the projector in standby mode. A 16W speaker is also built-in to eliminate the need for an external speaker system.
    Schedule Setting
  • You can schedule routine and special projector events, including power on, power off, input selection, and other options.
    Perfect Fit
  • Perfect Fit allows you to adjust the position of the four corners and four sides of the image with the remote control to counteract distortions, such as pincushion or barrel effects.
    Designed for Easy Maintenance
  • The lamp door is on the op and the filter cover is on the side, so maintenance and replacement of these parts can be done easily.
    Multi-Projector Connectivity
  • You can project the same image from up to 12 projectors simultaneously. This is useful for meetings and lectures in large venues where a single screen might not be sufficient.
    Moderator Control Mode
  • Setting one computer from the multiple computers (up to 50) that are connected to the projector as the moderator (host) makes it possible for the moderator to project from all the computers (clients).
    Projector Quick Connection
  • Project images and documents and control the projector from a compatible smart device with the Projector Quick Connection app.
    Remote Projector Monitoring and Control
  • Hitachi's Projector Management Software (PJMan) gives you the ability to control, diagnose, and manage a single or group of Hitachi projectors.
    Email Alerts
  • Email notification is sent for routine maintenance and error conditions.
    Optional Wireless Capability
  • The CP-WX4042WN is capable of connecting with a wireless network with an optional USB wireless adapter that supports IEEE 802.11b/g/n. You can control the projector with a computer via the network and project the screen of the computer on which the LiveViewer software is installed.
    Additional Features
    • Horizontal and automatic vertical keystone correction
    • Computer-less presentation
    • USB display
    • Compatible with AMX Device Discovery and Crestron Room View
    • Network bridge
    • Auto Eco Mode
    • Audio pass-through
    • Direct power on/off
    • MyScreen
    • My Button
    • My Memory
    • Closed captioning
    • Security pin lock system
In the Box Hitachi CP-WX4042WN 4000-Lumen WXGA 3LCD Projector
  • Remote Control
  • 2 x AA Batteries
  • 6.6' VGA Cable
  • Lens Cover
  • Adapter Cover
  • Security Label
  • 5.9' Power Cord
  • Limited 3-Year Warranty on Projector
  • Limited 90-Day or 250-Hour Warranty on Lamp, Whichever Comes First
  • Limited 60-Day Warranty on Included Accessories
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hitachi CP-WX4042WN 4000-Lumen WXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hitachi CP-WX4042WN Specs

    Display System 3-Chip LCD
    Native Chip Resolution 1280 x 800 (WXGA)
    Supported Resolutions VGA
    SVGA
    XGA
    WXGA
    WXGA+
    SXGA
    SXGA+
    WSXGA+
    UXGA
    Full HD 1080p
    MAC16
    Max Brightness 4000 Lumens
    Aspect Ratio Native: 16:10
    Dynamic Contrast Ratio 10,000:1
    Scan Horizontal: 15 to 106 kHz
    Vertical: 50 to 120 Hz
    Focus Manual
    Optical Zoom Manual: 1.2x
    Projection Size 30 - 300" / 76.20 - 762.00 cm
    Ceiling Mountable Yes
    Built-In Speaker Yes (Mono)
    Speaker Power 16W
    Closed Captioning Yes

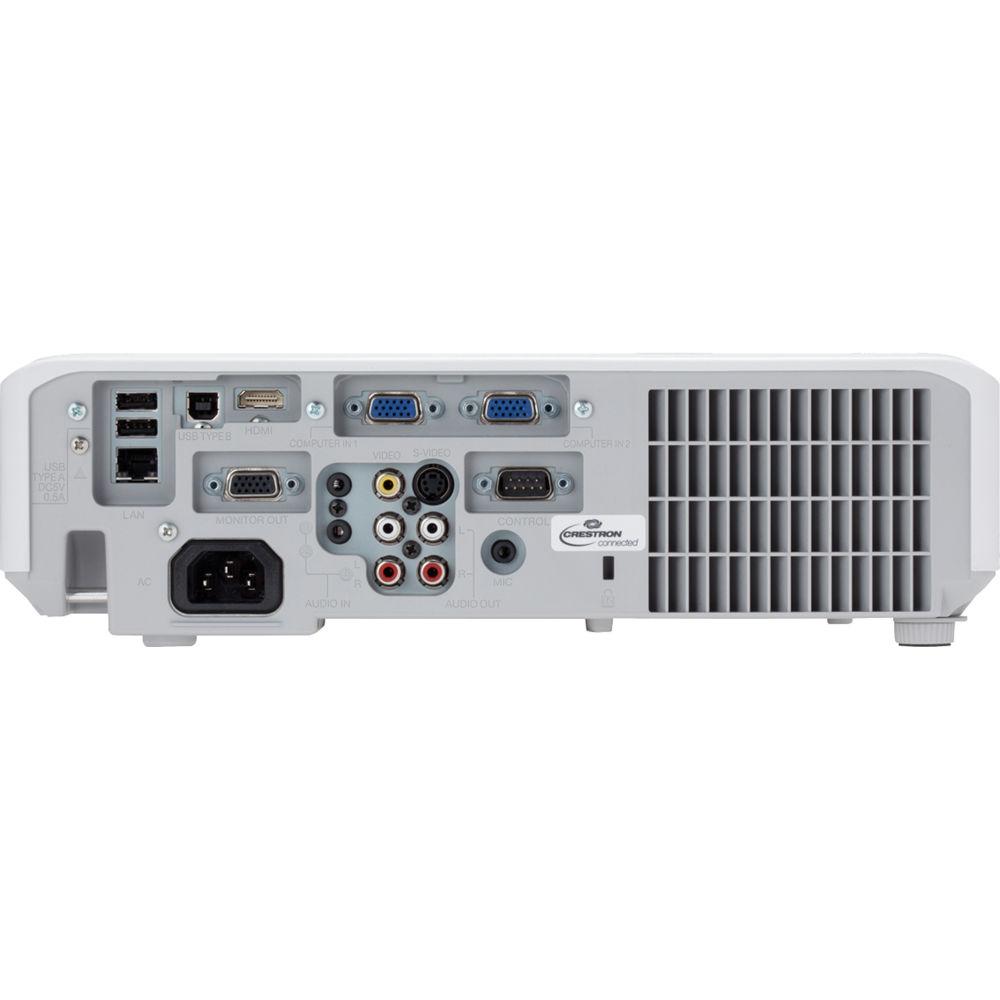

    Inputs/Outputs 1 x HDMI Audio/Video (Input)
    1 x HDMI with MHL Support Audio/Video (Input)
    1 x VGA (DE-15) Video (Input)
    1 x VGA (DE-15) Video (Input/Output)
    1 x Composite (RCA) Video (Input)
    1 x RCA Stereo (L/R) Audio (Input)
    2 x 1/8" (3.5 mm) Mini Audio (Input)
    1 x 1/8" (3.5 mm) Mini Microphone (Input)
    1 x 1/8" (3.5 mm) Mini Audio (Output)
    1 x Ethernet (RJ45) LAN (Input)
    2 x USB Type-A Female (Input)
    1 x USB Type-B Female (Input)
    1 x RS-232C (Unspecified Connector) Control (Input)
    Wireless LAN / Wi-Fi None
    Security Password Protection
    AC Input Power 120 to 240 VAC, 50 / 60 Hz
    Power Consumption Medium Brightness: 330 W
    Standby Mode (Lamp Off): <0.5 W
    Temperature Operating
    41 to 95°F (5 to 35°C)
    Humidity: 10 - 90%
    Dimensions (W x H x D) 12.6 x 3.3 x 9.6" / 320.0 x 85.0 x 245.0 mm Excluding protrusions
    12.7 x 3.7 x 9.6" / 323.0 x 95.0 x 245.0 mm Including protrusions
    Weight 6.6 lb / 3 kg Approximately
    Package Weight 10.25 lb
    Box Dimensions (LxWxH) 15.1 x 12.6 x 6.4"
