Product description The CP-WX8255A WXGA LCD Projector from Hitachi is geared up for simple and user-friendly functionality in any environment. With a convenient motorized lens shift, and a 360° vertical tilt angle, images can be seamlessly adjusted and moved at the touch of a button. Plus, with a wide range of optional lenses, the CP-WX8255A can adapt to any environment. - Quality, Reliability, and Installation Convenience
- With 5500 ANSI lumens brightness and WXGA 1280 x 800 resolution, the CP-WX8255A projector delivers. The projector features a high contrast ratio, long lamp life, a variety of lens options to accommodate your specific application, and is wireless presentation ready
- Center Lens Design
- This feature makes it easy to align the projector with the center of the screen for faster, hassle-free setup
- DICOM Simulation Mode
- Images in DICOM (Digital Imaging and Communications in Medicine) mode are reproduced with an advanced grayscale level. This mode is suitable for viewing grayscale medical images such as X-rays, and for training and educational purposes
- Drawing Function with Optional Tablet (TB-1)
- The wireless tablet and pen (sold separately) allows you to engage your audience by annotating over images shown on the projector
- Motorized Zoom, Focus, and Lens Shift Control
- This feature allows for greater range of installation possibilities. With the motorized function you can make fine adjustments through the included remote control or RS232/IP device (sold separately)
- Multiple Lens Options
- In addition to the included ML703 middle throw standard lens, four additional lenses are available and sold separately. They include the FL701 fixed, SL702 short throw, LL704 long throw, and the UL705 ultra-long throw
- Perfect Fit 2
- This feature enables the user to adjust individual corners and sides independent of one another. Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pin cushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to fit correctly to the screen in a quick and easy manner
- Picture By Picture
- This feature enables the content from 2 input sources to be displayed simultaneously, side-by-side on a single screen. With such flexibility, the input source can originate from different locations such as PC x 2 or video x 2, or PC x 1 and video x 1, with both images sharing equal screen size. This feature is also suitable for teleconferencing applications
- 360º Rotation
- Display rotation of 360º for creative applications and greater installation flexibility.
- Status Monitor
- With the status monitor, you'll have access in real time to projector diagnostics. Status updates include configuration information, maintenance history, as well as error and alarm messaging. For even greater user convenience, the status monitor can be accessed on the rear input panel or through the Hitachi network tools software (sold separately)
- Display via USB
- Simply plug-and-play using the USB port instead of the 15-pin D-sub VGA cable
- Network Control, Maintenance, and Security
- Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer, and email alerts for reactive and routine maintenance
- PC-Less Presentation
- By using a USB memory stick or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display. Additionally, there is also a slideshow function
- PJMessenger
- PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units
- Projection Distances
- The ML703 lens offers projection distances of 129 to 257" (327.66 to 652.78 cm) when projecting onto a 100" (254 cm) diagonal screen
- Present Content via LAN
- Hitachi's suite of networking software (sold separately) allows you to easily send content directly from your PC to the projector via your LAN connection
- Wireless Presentation Ready
- You can use a wireless network by connecting the projector to a computer using the USB wireless adapter part number USBWL11N (sold separately). The adapter supports the EEE802.11b/g and the 11n
- Approvals
- UL 60950-1 / cUL FCC part 15 subpart B class A

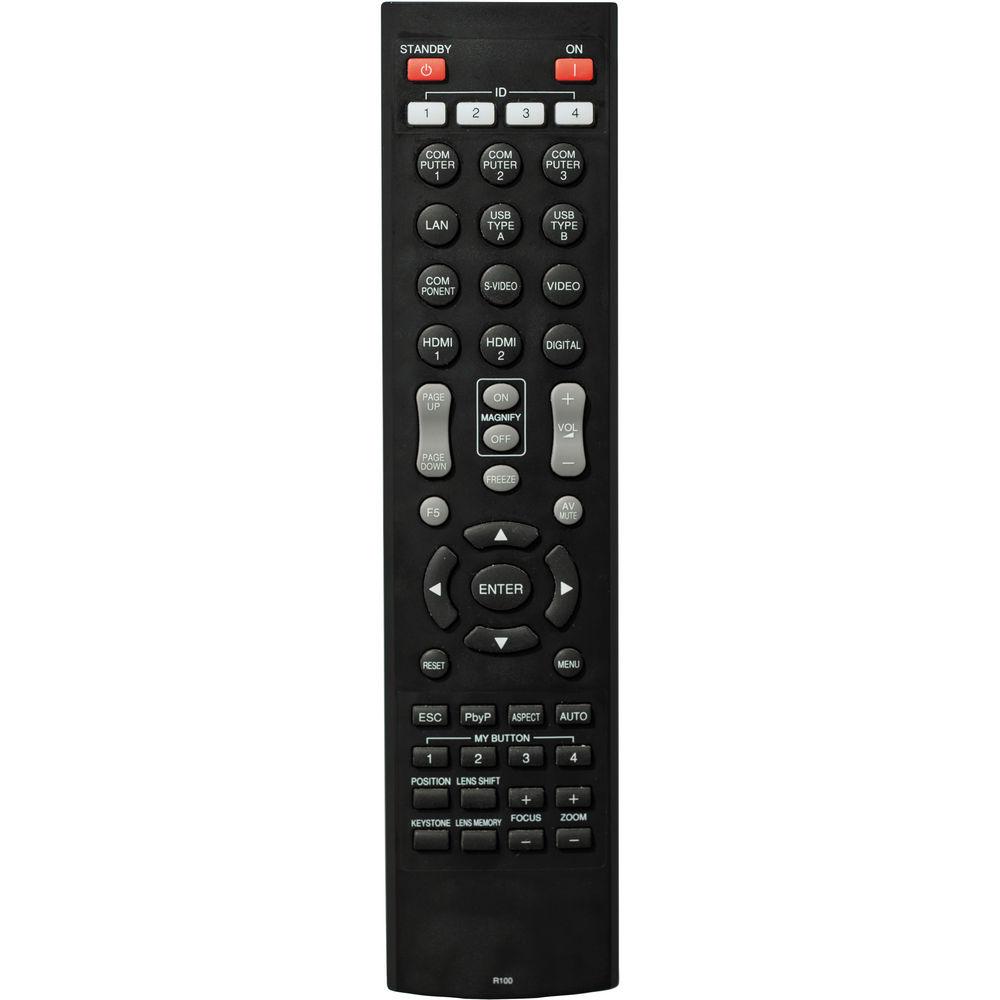

UPC: 050585153530 In the Box Hitachi CP-WX8255A WXGA LCD Projector Remote Control ML-703 Medium Throw Motorized Projector Lens baeezrwcbbr Lens Cover Adapter Cover Security Label Power Cord Computer Cable Limited 3-Year Warranty on Parts & Labor User Manual PDF 3.7mbbaeezrwcbbr Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi CP-WX8255A WXGA LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi CP-WX8255A Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | VGA - 640 x 480
SVGA - 800 x 600
XGA - 1024 x 768
WXGA - 1280 x 768
WXGA+ - 1440 x 900
SXGA - 1280 x 1024
WSXGA+ - 1680 x 1050
UXGA - 1600 x 1200 | | Max Brightness | 5500 Lumens | | Aspect Ratio | Native: 16:10
Native: 4:3
Supported: 16:9 | | Contrast Ratio | 3000:1 | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Horizontal: 31.5 - 106 kHz
Vertical: 56 - 120 Hz | | | | Focus | Manual | | Lens | f/1.6 - 2.9 (f = 24 - 48 mm) | | Optical Zoom | 2x | | Throw Ratio | 1.5 - 3.0:1 | | | | Keystone Correction | Vertical: ± 35°

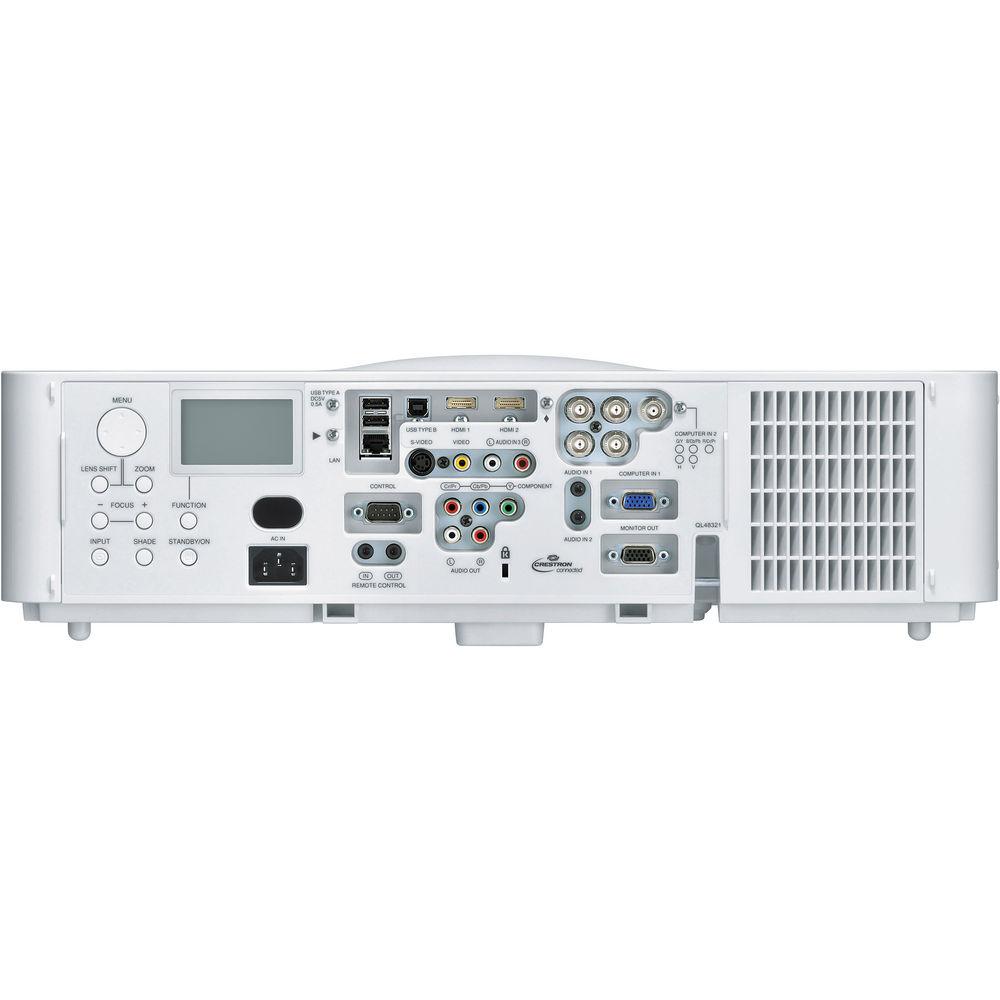

Horizontal: ± 35° | | Picture-in-Picture | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 5BNC Video
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Audio/Video (Input)
1 x Component (3BNC) Video (Input)
1 x Component (3RCA) Audio/Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x RCA Stereo (L/R) Audio (Output)
1 x Ethernet (RJ45) LAN
1 x RS-232C (Unspecified Connector) Control
2 x USB Type-A Male
1 x USB Type-B Female | | | | Lamp Power | 330 W | | Expected Lamp Life | Medium Brightness: 2500 Hours
Low Brightness: 3000 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 31 dB | | Security | Cable Lock Slot
Security Bar | | Supported Languages | English | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 480 W | | Temperature | Operating
32 to 113°F (0 to 45°C) | | Dimensions (W x H x D) | 19.6 x 5.3 x 15.6" / 497.8 x 134.6 x 396.2 mm Without lens | | Weight | 19.3 lb / 8.8 kg | | | | Package Weight | 26.95 lb | | Box Dimensions (LxWxH) | 26.5 x 21.7 x 9.0" |
