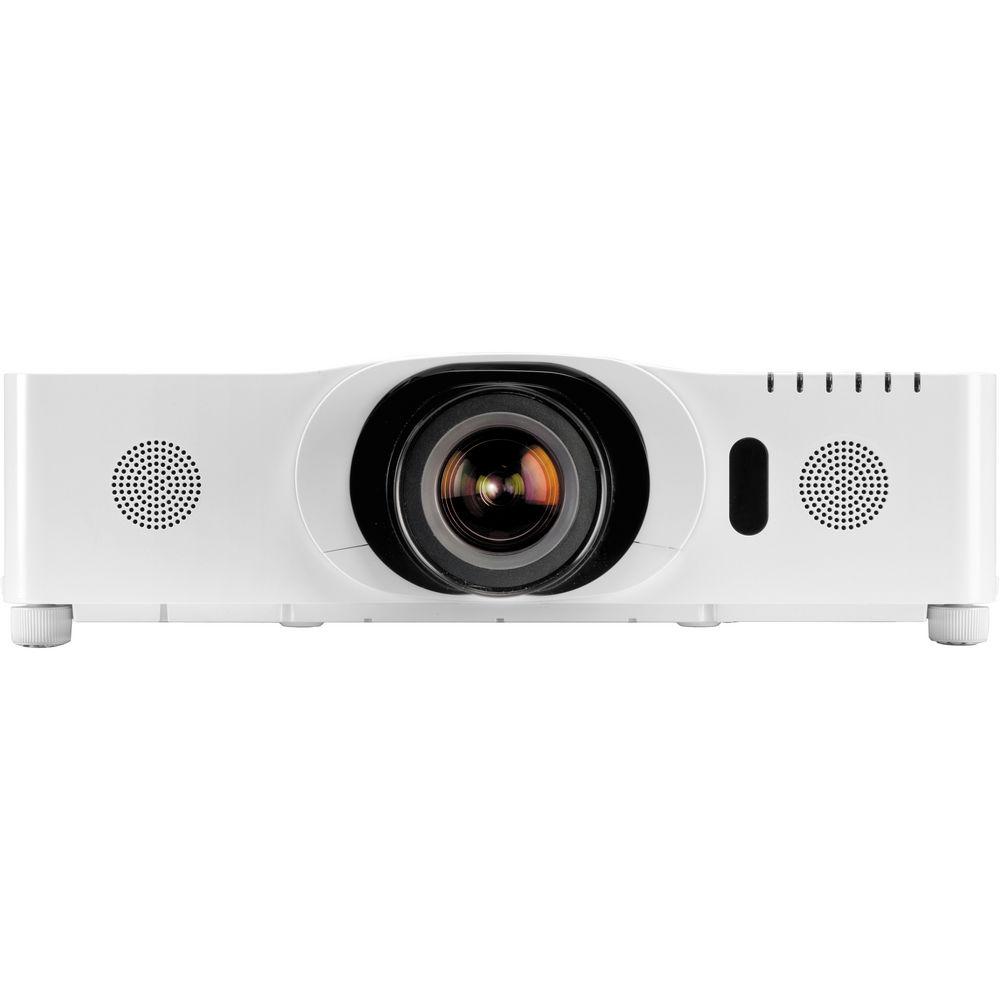

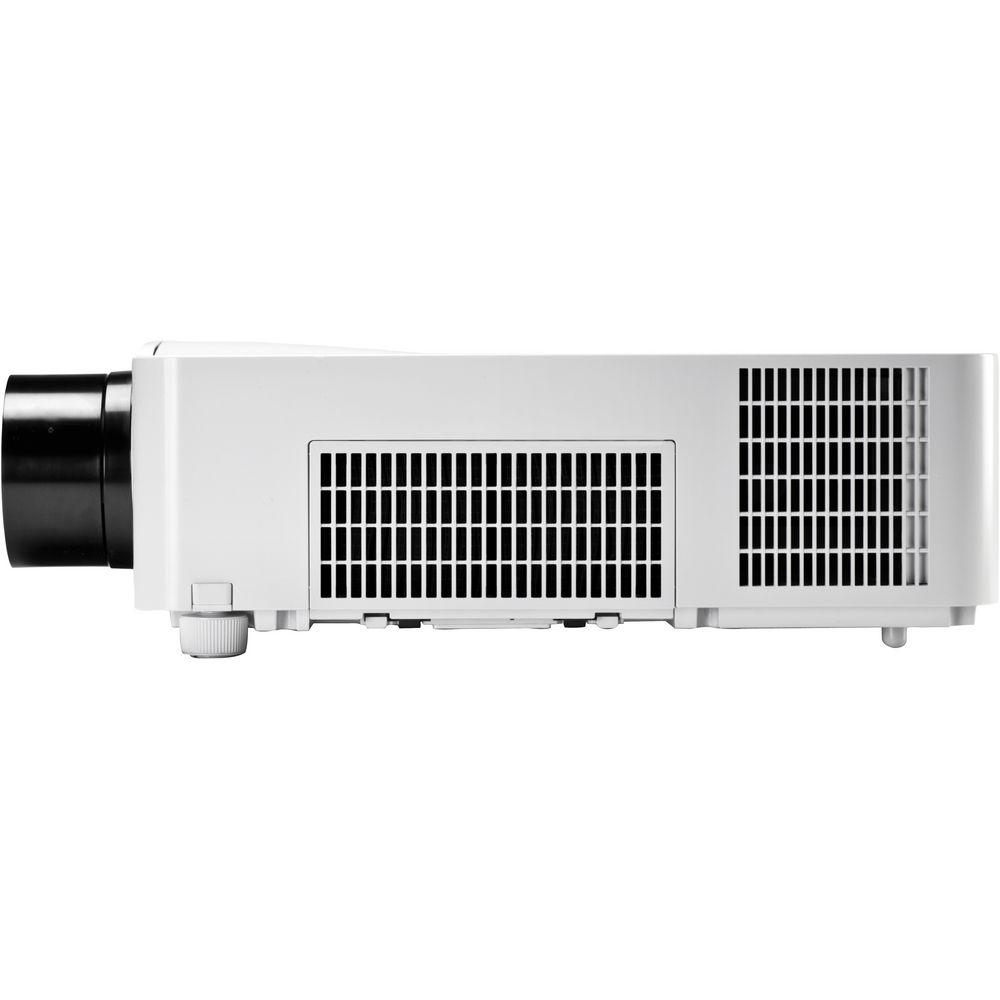

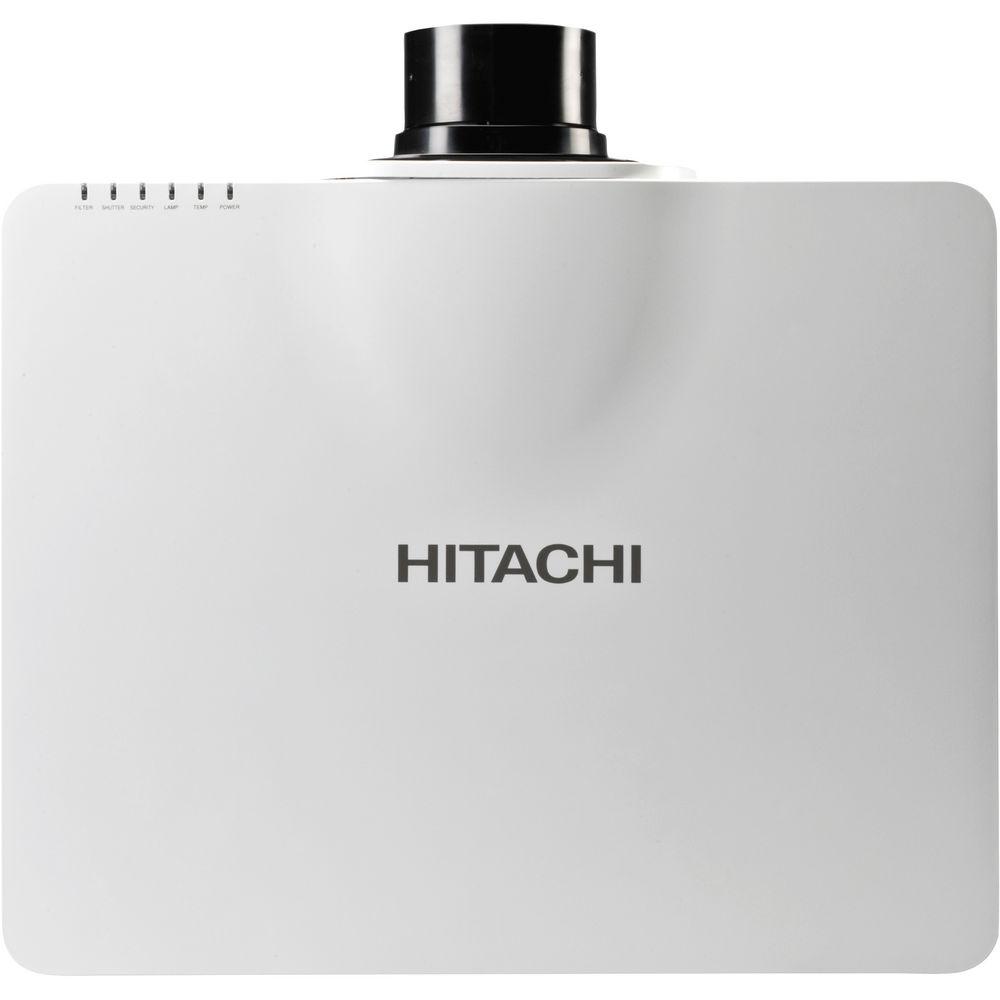

User Manual for Hitachi CP-WX8265 Installation LCD Projector Click to enlarge the picture
Contents of the user manual for the Hitachi CP-WX8265 Installation LCD Projector
- Product category: Multimedia Projectors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Multimedia Projectors
 |
User manual for the Hitachi CP-WX8265 Installation LCD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|
Product description The Hitachi’s CP-WX8265 Installation LCD Projector is easy to use and delivers clear and crisp images with WXGA 1280 x 800 resolution and brightness of 6,500 ANSI lumens. It is designed with a tough magnesium die cast body and provides maximum presentation impact in mid to large venue applications such as auditoriums and conference halls. It offers a versatile array of performance enhancing features along with advanced video display technology, providing bold, brilliant colors with crisp image clarity and uniformity. It features motorized zoom, focus, and superior lens shift, and a variety of lens options.Incorporating Hitachi’s leading-edge technology, the projector features Hitachi’s Accentualizer for advanced image processing, long lamp life, a variety of lens options to accommodate your specific application, and is wireless presentation compatible.Plus, embedded networking gives you the ability to manage and control multiple projectors over LAN (scheduling of events, centralized reporting, image transfer, and e-mail alerts). The Projector is designed for user-friendly operation and installation convenience. - Accentualizer
- Accentualizer is an image processing technology which enables you to show a clear picture even in high ambient lighting environments. The Accentualizer technology achieves good image clarity by enhancing sharpness, gloss, and shade.
- Center Lens Design
- This feature makes it easy to align the projector with the center of the screen for faster and trouble-free setup.
- DICOM Simulation Mode
- Images in DICOM (Digital Imaging and Communications in Medicine) Mode are reproduced with an advanced grayscale level. This mode is suitable for viewing grayscale medical images such as X-rays, and for training and educational purposes. These projectors are not approved medical devices. They should not be used for actual medical diagnosis.
- Motorized Zoom, Focus, and Lens Shift Control
- It allows for greater range of installation possibilities. With the 2 speed motorized function you can make fine adjustments through the remote control or RS232 / IP device.
- Multiple Lens Options
- There are a variety of lenses to use for this projector, all providing specified projector brightness. In addition to the one ML703 middle throw standard lens, 4 lenses are available: FL701 fixed, SL702 short throw, LL704 long throw, and UL705 ultra-long throw (all 4 sold separately).
- Perfect Fit 2
- It enables the user to adjust individual corners and sides independent of one another. Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pin cushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to fit correctly to the screen quickly and easily.
- Picture-By-Picture
- It enables the content from 2 input sources to be displayed simultaneously, side by side on one screen. You can use any 2 sources including 2 HDMI, with both images sharing equal screen size. The feature is suitable for teleconferencing applications.
- Picture-In-Picture
- It enables you to display one image inside another image using any 2 sources including 2 HDMI.
- Projector Quick Connection iPad App
- The iOS application offers full projector control and also provides the capability to display photos, document files, and web site content. It is available for iPad and iPhone devices. It works over LAN via the RJ-45 port or via USBWL11N wireless adapter (sold separately).
- 360° Rotation
- Display rotation of 360° for creative applications and greater installation flexibility.
- Status Monitor
- With Hitachi's status monitor, you'll have access in real time to projector diagnostics. Status updates include configuration information, maintenance history, as well as error and alarm messaging. For even greater user convenience, the status monitor can be accessed on the rear input panel or through the Hitachi network tools software (sold separately).
- Wired and Wireless Switcher Solutions
- Multifunctional switcher operates in conjunction with the receiver to provide expanded source selection and switching options for connected devices. The switcher (sold separately) that can provide 1080p 30 fps wireless via WHDI for both video and audio.
- Network Control, Maintenance, and Security
- Embedded networking gives you the ability to manage and control multiple projectors over LAN. Features include scheduling of events, centralized reporting, image transfer, and e-mail alerts for reactive and routine maintenance.
- PC-Less Presentation
- By using a USB memory stick (sold separately) or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display. Additionally there is also a slideshow function.
- PJMessenger
- PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units.
- Power Saving Standby Mode
- Power saving mode reduces the standby power consumption to less than 0.35W.
- Present Content via LAN
- Hitachi's suite of networking software (sold separately) allows you to easily send content directly from your PC to the projector via the LAN connection.
- Wireless Presentation Compatible
- You can connect the projector to a computer or your network using the USB wireless adapter (part number USBWL11N-sold separately). The adapter supports IEEE802.11b/g and the latest 11n.
In the Box Hitachi CP-WX8265 Installation LCD Projector Remote Control Power Cord Computer Cable Standard ML703 Lens Lens Cover Security Label Application CD Adapter Cover Limited 3-Year Warranty on Parts & Labor User Manual PDF 10.8mbbaeezrwcbbr Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi CP-WX8265 Installation LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi CP-WX8265 Specs | | | Display System | 3-Chip LCD | | Supported Resolutions | WXGA - 1280 x 800 | | Max Brightness | 6500 Lumens | | Aspect Ratio | Native: 16:10
Native: 16:9

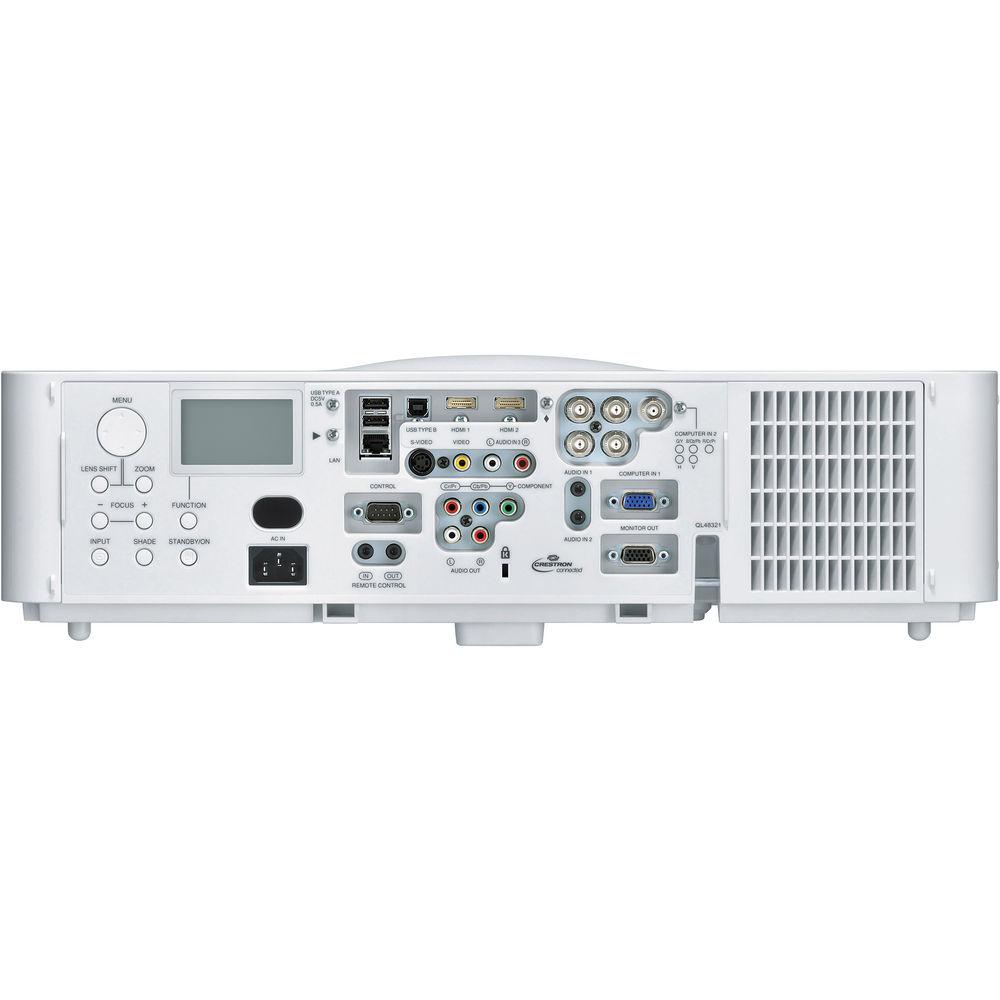

Supported: 4:3 | | Contrast Ratio | 3000:1 | | Color Depth | 8-Bit (16.78 Million Colors) | | | | Lens | f/1.6 - 2.9 (f = 24 - 48 mm) | | Throw Ratio | 1.5 - 3.0:1 | | | | Keystone Correction | Horizontal: ± 35° | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 5BNC Video
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
3 x Component (3RCA) Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Component (3BNC) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x RCA Stereo (L/R) Audio (Output)
1 x USB LAN (Input/Output)
2 x USB Audio/Video (Input/Output)
1 x 1/8" (3.5 mm) Mini Remote (Input/Output)
1 x Unspecified Signal (DE-9) Control (Input/Output) | | | | Lamp Power | 365 W | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 4000 Hours Actual lamp life will vary and is based on environmental conditions, operating mode, user settings, and usage. Hours of average lamp life are not guaranteed and do not constitute the product warranty. | | Fan Noise | Medium Brightness: 39 dB
Low Brightness: 29 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 500 W | | Temperature | Operating
32 to 113°F (0 to 45°C) | | Dimensions (W x H x D) | 19.6 x 5.3 x 15.6" / 497.8 x 134.6 x 396.2 mm without lens | | Weight | 19.4 lb / 8.80 kg |
