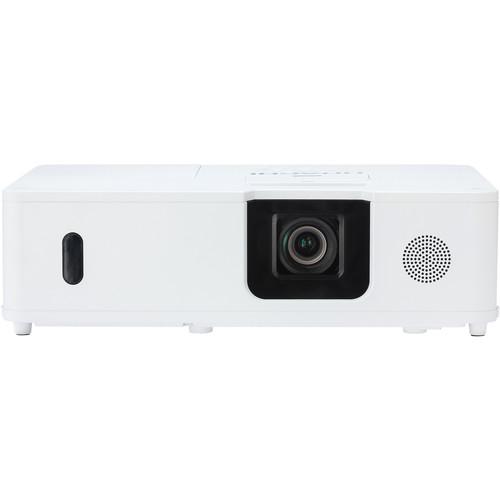

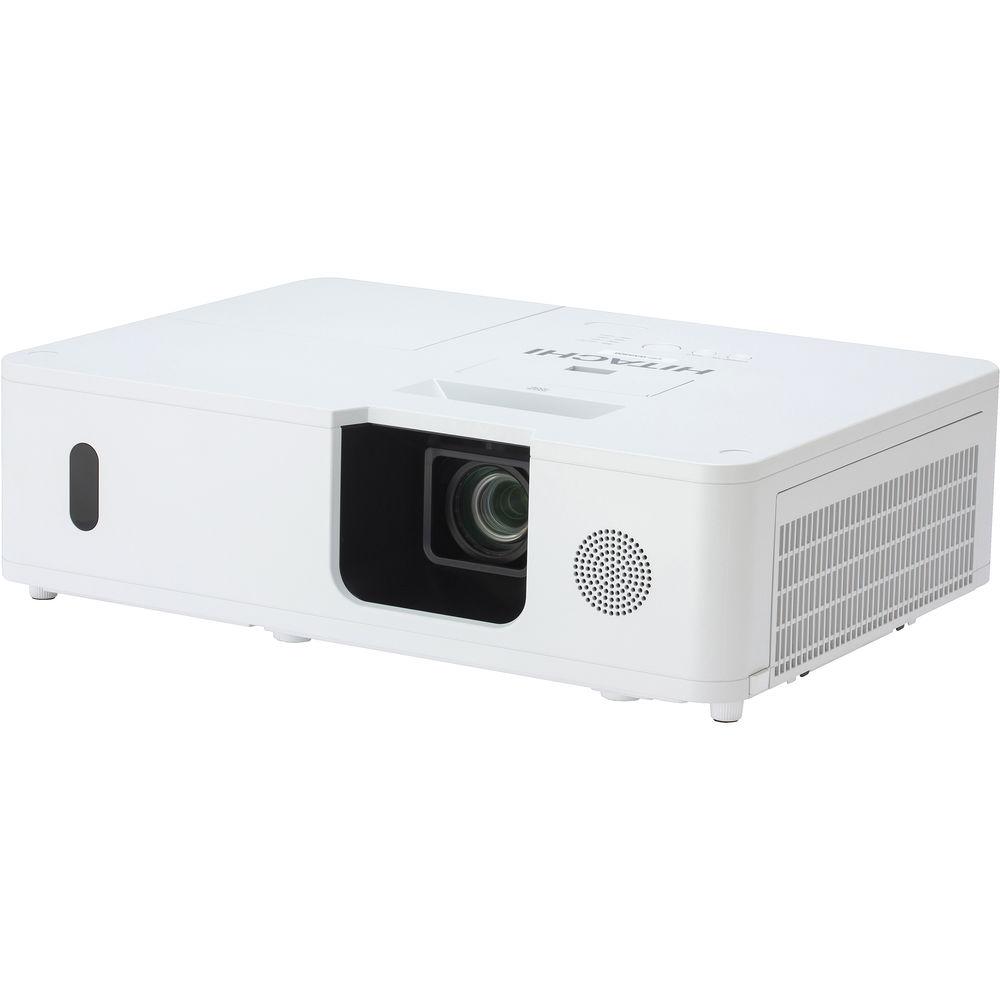

User Manual for Hitachi CP-X5550 5500-Lumen XGA LCD Projector Click to enlarge the picture
Contents of the user manual for the Hitachi CP-X5550 5500-Lumen XGA LCD Projector
- Product category: Multimedia Projectors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Multimedia Projectors
 |
User manual for the Hitachi CP-X5550 5500-Lumen XGA LCD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|

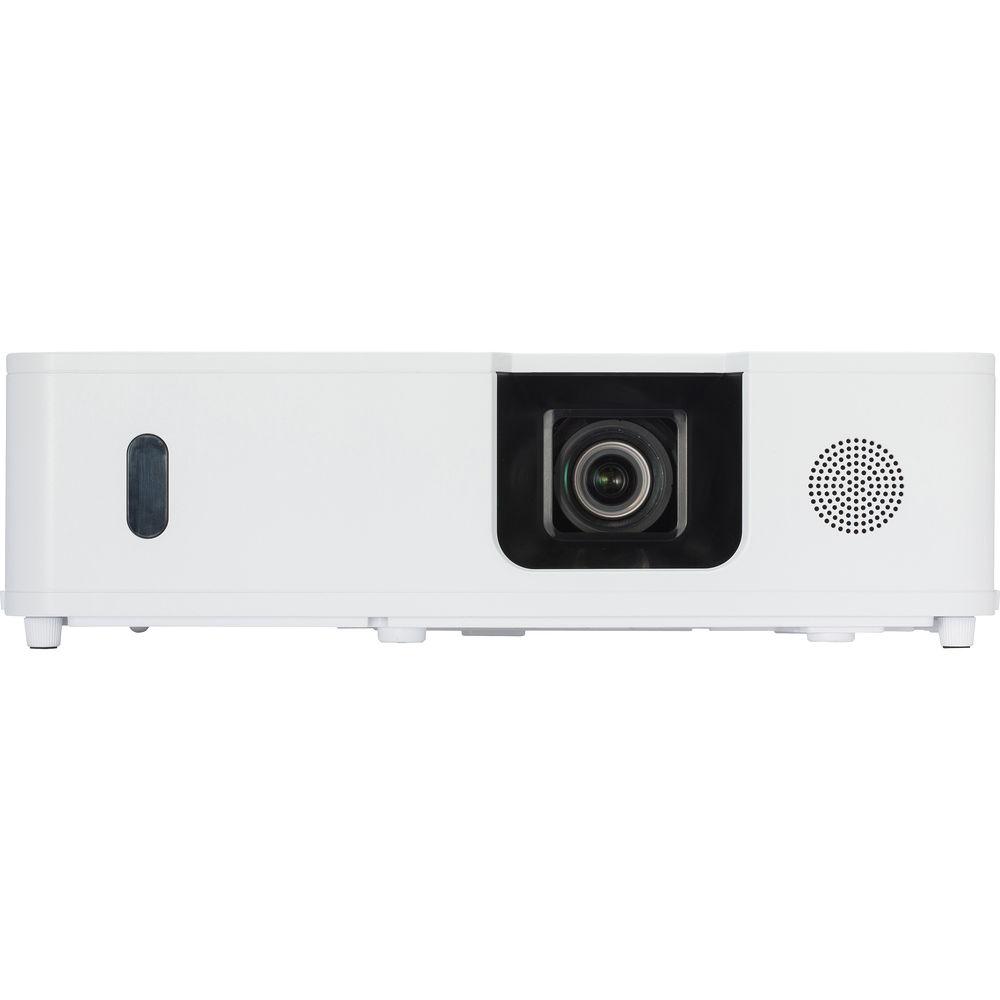

Product description The CP-X5550 5500-Lumen XGA LCD Projector from Hitachi combines XGA 1024 x 768 resolution with 5500 ANSI lumens of white/color light for great visuals. It is easily stackable, enabling you to achieve added brightness by placing one projector on top of another to project the same image from both. Incorporating Hitachi's technology, the CP-X5550 features an image-enhancing combination of Accentualizer, High Dynamic Contrast Range (HDCR), and Image Optimizer, all of which contribute to the overall visual experience. Hitachi's Intelligent Eco and Saver Modes with ImageCare combine optimal picture performance with maximum energy savings for a lower cost of ownership. - Accentualizer
- Hitachi's technology makes the picture look more real by enhancing sharpness, gloss, and shade to make pictures as clear as pictures on a flat-panel device. You can also adjust the effects by three levels according to your surroundings, so colors of projected images are the actual colors of the objects they represent.
- Warping
- Warping is possible from your computer by using the specialized application. Projection is possible on spherical surfaces and surfaces with corners, as well as conventional flat screens.
- DICOM Simulation Mode
- The DICOM (Digital Imaging and Communications in Medicine) Simulation Mode projects grayscale images which approximate DICOM Part 14 specifications. This mode is suitable for viewing grayscale medical images, such as X-rays, for training and educational purposes. 1
Please Note: These projectors are not medical devices and are not compliant with the DICOM standard, and neither the projector nor the DICOM Simulation Mode should be used for medical diagnosis. close - HDCR (High Dynamic Contrast Range)
- Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing the contrast occurs. This results in clear images, even in bright rooms.
- Image Optimizer
- The Image Optimizer automatically adjusts HDCR and Accentualizer to improve visibility as lamp brightness dims over time.
- Edge Blending
- Projectors are equipped with the Edge Blending function that achieves the seamless projection of one image using multiple projectors. The 5000 series comes with various blending functions. Instant blending lets you easily perform blending processing without the use of any special equipment. With automatic blending, you can use a camera to quickly perform high precision blending processing automatically. 2
Please Note: Requires installation of a specialized application to your computer. close - Picture by Picture and Picture in Picture
- The projector supports images from two input signals at the same time. Picture by Picture (PbP) enables you to compare two images side by side. Picture in Picture (PiP) enables you to display one image within another image. These functions are handy when you need to compare two sets of data or other material.
- Easily Stackable
- Using the lens shift and the perfect fit you can easily stack two units for twice the light output.

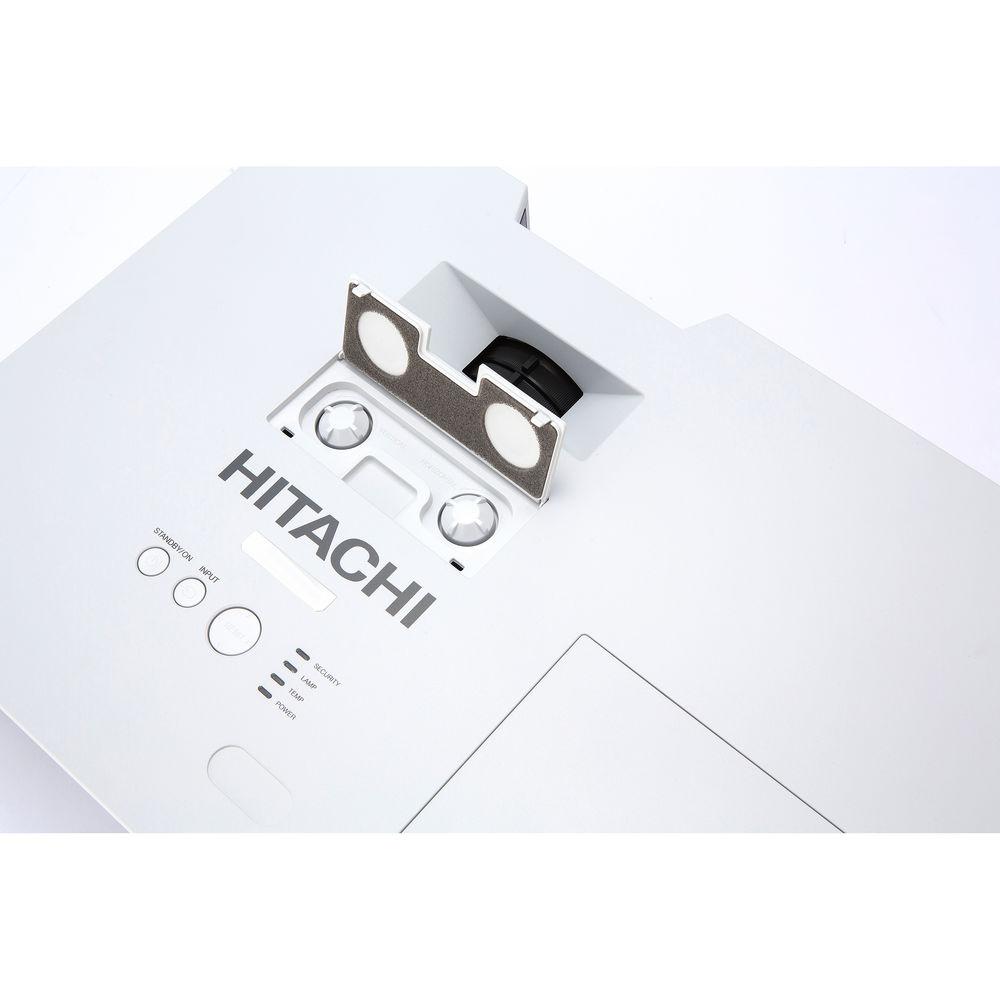

- H Lens Shift
- For ease of installation, H Lens Shift allows you to move the image without having to physically move the projector.
- HDMI-Out
- When sharing content on multiple screens by multiple projectors, HDMI-Out is used to bring the content signal from one projector to another.
- Network Control, Maintenance, and Security
- Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer, and email alerts for reactive and routine maintenance.
- Perfect Fit
- Enables the user to adjust individual corners and sides independent of one another. Perfect Fit provides vertical and horizontal digital correction of either barrel or pincushion distortions. This feature helps correct geometric and complicated distortions. It allows the projected image to fit correctly to the screen quickly and easily.
- Picture Shift
- Picture Shift enables the user to fit or align contents to the screen by shifting the content area vertically.
- PJMessenger
- PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units.
- Projector Quick Connection App for Mobile Devices
- Hitachi's iOS application offers full projector control and also provides the capability to display photos, documents, and web content. The software is available for iPad, iPhone, and Android devices. It works over your LAN via your RJ-45 port, or via an optional USBWL11N wireless adapter.
- Wired and Wireless Switcher Solutions
- Multifunctional switcher operates in conjunction with the receiver to provide expanded source selection and switching options for connected devices. The switcher is sold as an optional accessory that can provide 1080p30 wireless via WHDI, for both video and audio.
- Wireless Presentation Compatible
- You can connect the projector to a computer or your network using the optional USB wireless adapter (part number USBWL11N). The adapter supports IEEE802.11n/b/g.
- Other Features
-
- XGA 1024 x 768 resolution
- 5500 ANSI lumens white/color output
- Contrast ratio of 10,000:1
- Lamp life of 4,000 hours in standard mode and 6,000 hours in Eco mode
In the Box Hitachi CP-X5550 5500-Lumen XGA LCD Projector Remote Control with Batteries Security Label Computer Cable Application CD Power Cord Limited 3-Year Warranty Brochure PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi CP-X5550 5500-Lumen XGA LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi CP-X5550 Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1024 x 768 (XGA) | | Max Brightness | 5500 Lumens | | Aspect Ratio | Native: 4:3
Native: 14:9
Supported: 16:9
Supported: 16:10 | | Contrast Ratio | 10000:1 | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Horizontal: 15 to 106 kHz
Vertical: 50 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.6x | | Throw Distance | 114 - 181" / 289.56 - 459.74 cm | | Throw Ratio | 1.4 - 2.3:1 | | Projection Size | 31 - 548" / 78.74 - 1391.92 cm | | | | Keystone Correction | Vertical: ± 30°

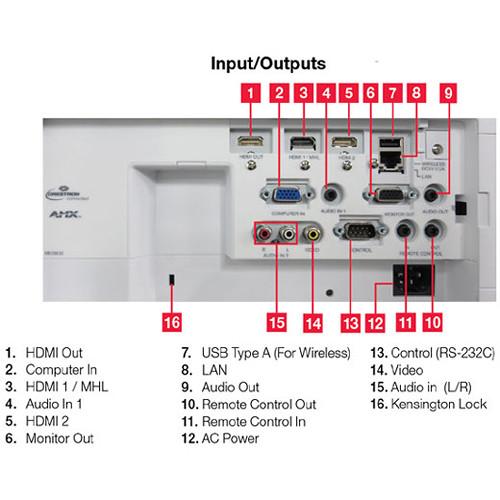

Horizontal: ± 30° | | Picture-in-Picture | Yes | | | | Inputs/Outputs | 3 x HDMI Audio/Video
3 x VGA (DE-15) Video
1 x Composite (RCA) Video
1 x RCA Stereo (L/R) Audio
2 x 1/8" (3.5 mm) Mini Audio
1 x Unspecified Signal (DE-9) Control
1 x USB Type-A Female | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Lamp Power | 300 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 6000 Hours | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 440 W 420 W @ 220 to 240 VAC | | Temperature | Operating
32 to 95°F (0 to 35°C) | | Dimensions (W x H x D) | 18.1 x 13.1 x 5.4" / 46.0 x 33.3 x 13.7 cm excluding protruding parts | | Weight | 14.00 lb / 6.35 kg approximately | | | | Box Dimensions (LxWxH) | 22.0 x 18.8 x 9.7" |
