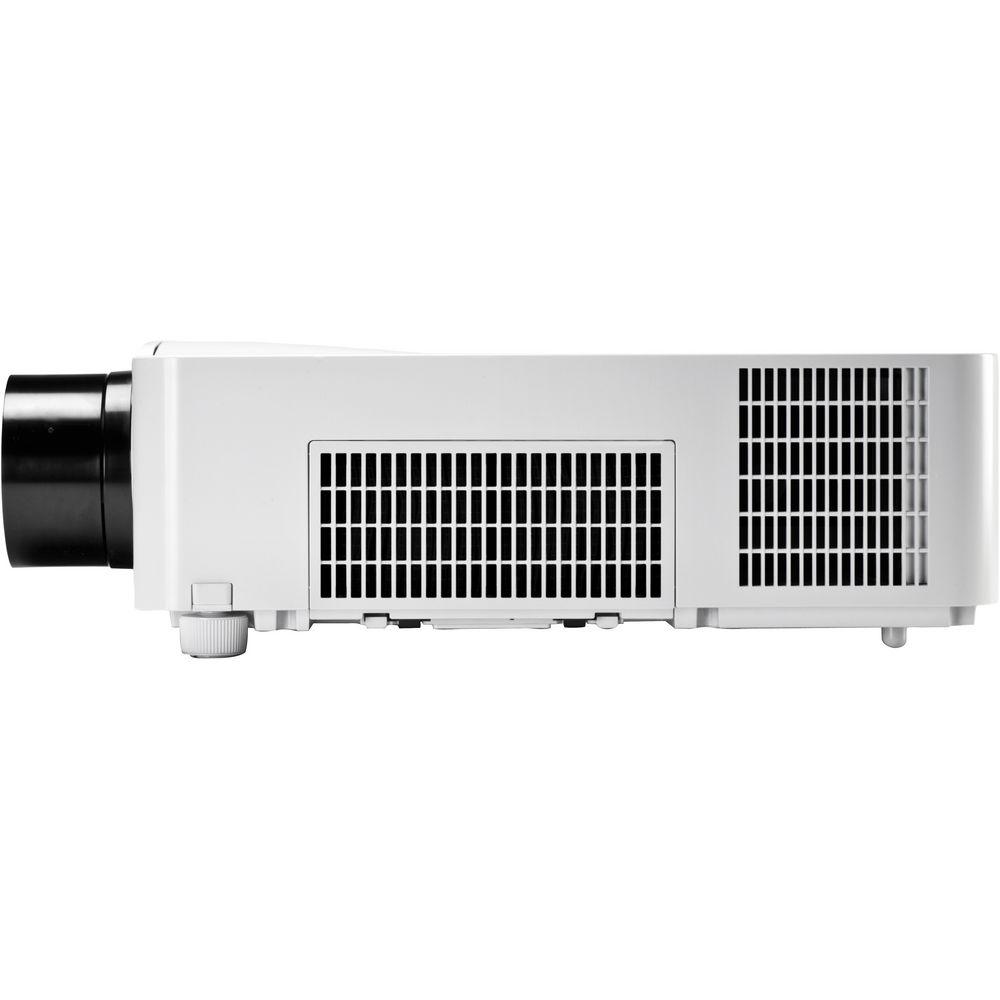

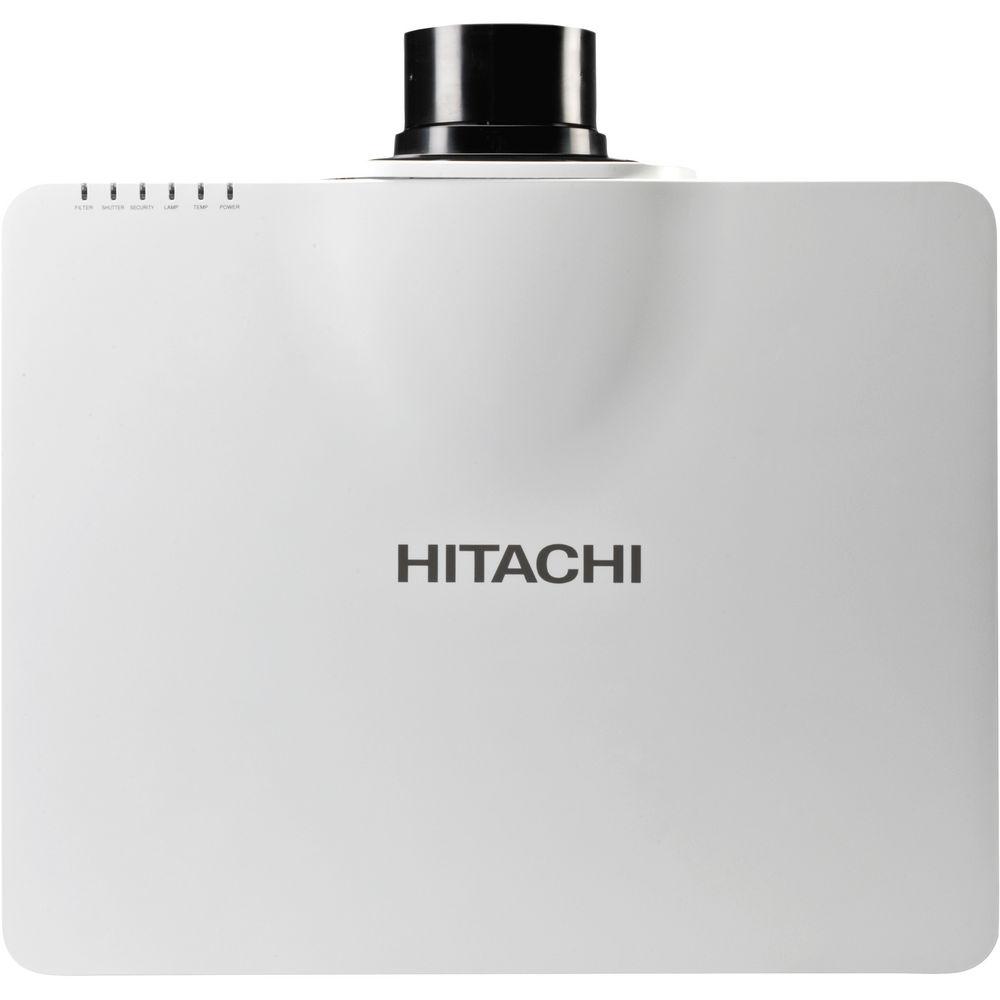

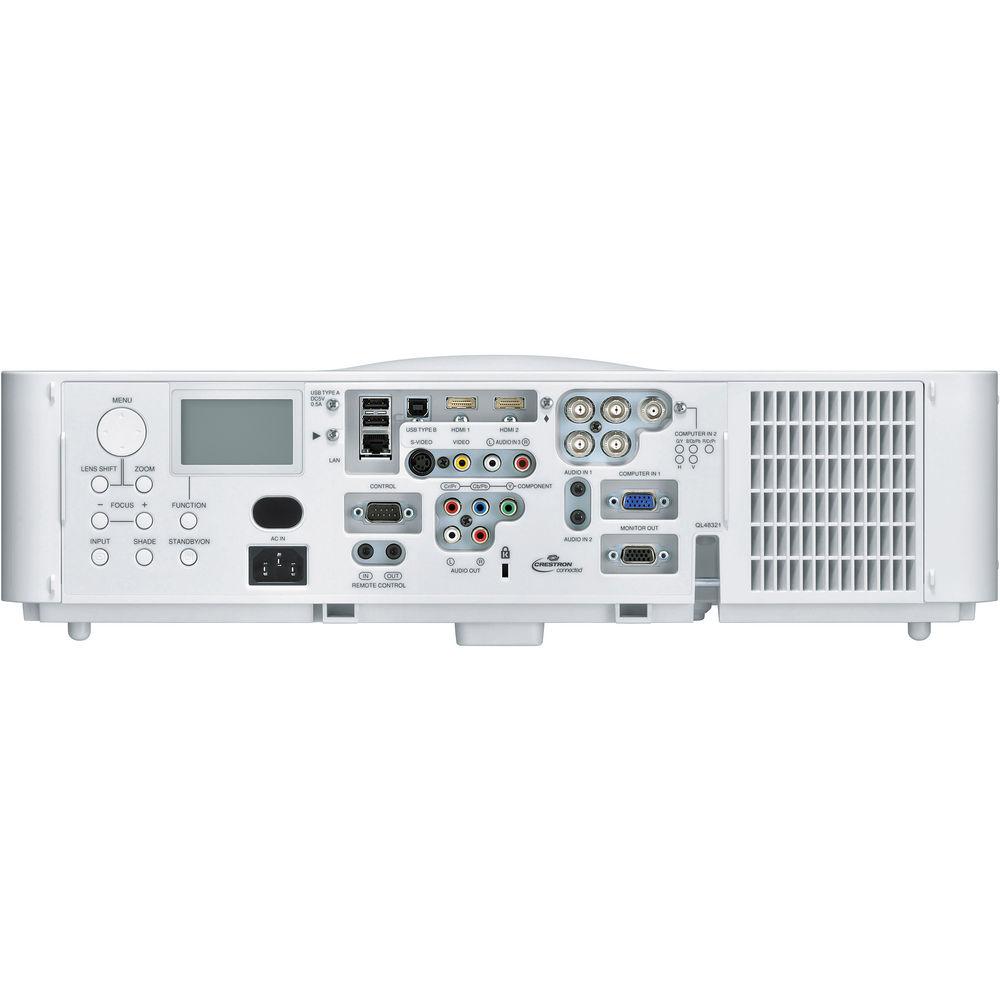

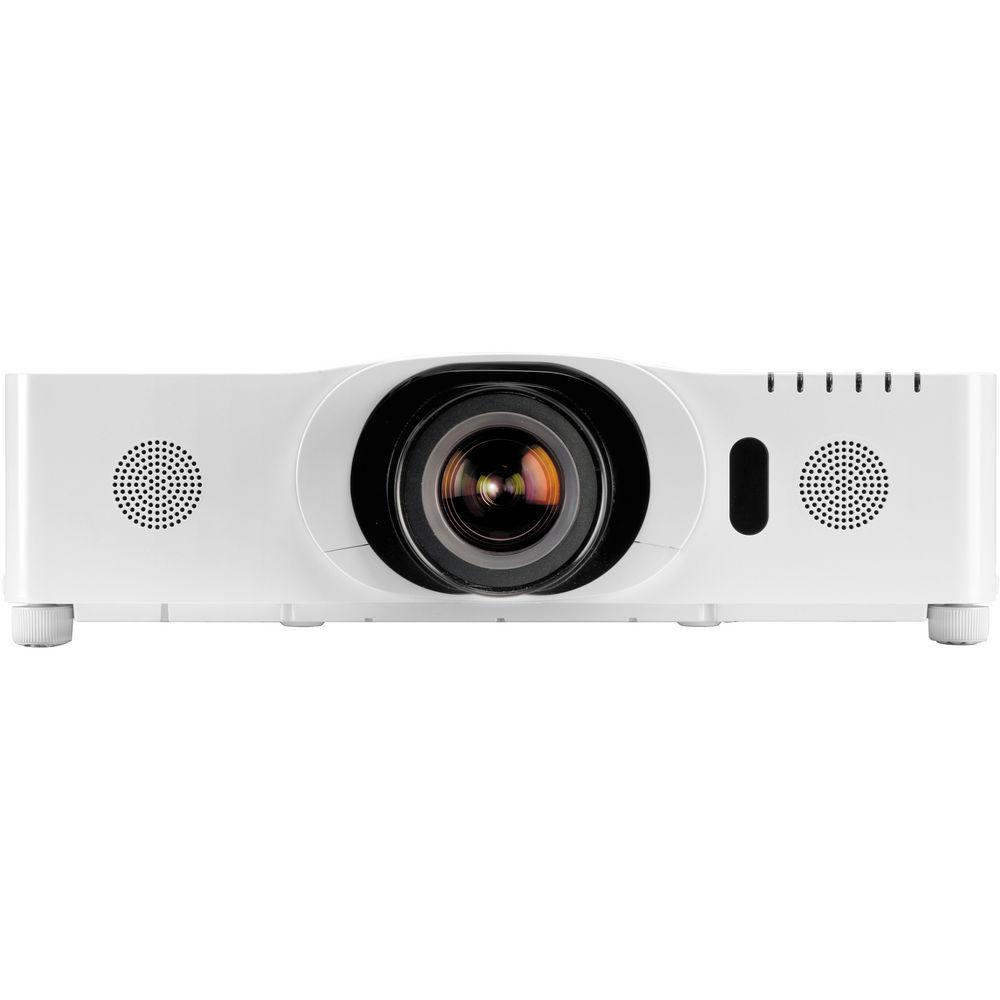

User Manual for Hitachi CP-X8170 LCD Projector Click to enlarge the picture
Contents of the user manual for the Hitachi CP-X8170 LCD Projector
- Product category: Multimedia Projectors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Multimedia Projectors
|
User manual for the Hitachi CP-X8170 LCD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|
Product description The Hitachi CP-X8170 LCD Projector is designed to provide maximum presentation impact in mid to large venue applications. This installation-friendly projector offers a versatile array of innovative, performance-enhancing features along with advanced video display technology providing bold, brilliant colors with exceptional image clarity and uniformity. Plus, with motorized zoom, focus, and superior lens shift, and a variety of lens options, the CP-X8170 projector ranks high in installation flexibility. The CP-X8170 projector features a tough magnesium die-cast body that makes it durable.With 7,000 ANSI lumens brightness and XGA 1024 x 768 resolution, the CP-X8170 projector delivers dynamic images. Incorporating leading-edge technology, this projector features the Accentualizer for advanced image processing, long lamp life, a variety of lens options to accommodate your specific application, and is wireless presentation compatible. Additionally, embedded networking gives you the ability to manage and control multiple projectors over your LAN (scheduling of events, centralized reporting, image transfer, and email alerts). - 3LCD
- A sophisticated technology utilizes 3 chips to deliver vibrant, true-to-life, and consistent images for demanding audiences.
- Hybrid Filter
- The Hybrid Filter lasts long and significantly reduces the overall cost of ownership.
- Security Features
- Advanced security features include multi-level pin-lock, transition detector, steel security bar, kensington lock, and prominent security labels.
- Blackboard/Whiteboard Mode
- Projecting onto colored or shiny backgrounds can make images appear either dull or uncomfortably bright. This mode ensures optimal brightness whether the screen is black, green, or shiny white.
- Low TCO
- Significantly extended maintenance intervals resulting from long-life parts reduce the total cost of ownership.
- Vertical Projection
- Images can be projected at 90° up or down, opening up a whole new range of applications.
- Advanced Networking
- Manage and control multiple projectors over LAN. Turn the projector On and Off, schedule email alerts, and monitor projectors all via the network.
- AMX Device Discovery
- When integrated with an AMX Controller, the relevant communication modules and drivers are downloaded to the projector automatically.
- HDMI
- Get high quality images by connecting an A/V equipment to the projector with HDMI (High-Definition Multimedia Interface).
- Long Life Lamp
- Using Eco Mode, lamp life is extended to more than 6,000 hours - equivalent to the projector being used for 3 hours a day over a period of 10 years.
- Template Function
- This feature allows you to project different patterns of lines and grids onto a whiteboard, blackboard, or flip chart, making writing and drawing easier.
- Virtually Maintenance Free
- The easy-to-use projector requires minimal maintenance. Long-life parts significantly extend the maintenance intervals, reducing cost and any inconvenience.
- Daytime Mode
- It can be hard to see a projected picture when the sun is shining brightly. Projections are always vivid and colorful in a bright environment with Daytime Mode.
- Quick On/Off
- Plug in, turn on, and present. The Quick On/Off feature and automatic resolution equals fast set-up.
- Input Source Naming
- Personalize devices and inputs to the projector for easy recognition.
- Ultra Quiet
- The internal fan functions quietly with a low noise level of 29 dB. Thus, the audience would hear the presenter, not the operating noise of the projector.
- My Button
- Assign custom functions or common tasks to a programmable button on your remote control.
- Centralized Reporting Function
- Using a single PC, create HTML reports for a group of networked projectors to simplify maintenance requirements.
- Audio Pass Through
- When all you need is sound and not pictures, this convenient feature lets you hear the projector's speakers whilst the rest is on stand-by helping to preserve lamp life.
- Vertical Keystone Correction
- Correct misaligned images automatically with vertical keystone correction.
- Progressive Scan
- Typically with moving images, each frame of video is shown in 2 halves - odd and even lines. Progressive Scan enables every line of a video frame to be displayed simultaneously, resulting in crisp, smooth motion, and reduced flicker and judder.
- On Screen Display (OSD)
- The menu is easy to use. Navigating through the different options is simple, whilst settings are clearly named.
- Energy Efficiency Saver
- ECO conscious with focus on low energy consumption.
- Accentualizer
- Accentualizer is an advanced image processing technology that displays a clear picture even in high ambient lighting environments. Accentualizer technology achieves detailed image clarity by enhancing sharpness, gloss, and shade.
- Center Lens Design
- This feature makes it easy to align the projector with the center of the screen for fast and trouble-free setup.
- DICOM Simulation Mode
- Images in DICOM (Digital Imaging and Communications in Medicine) mode are reproduced with an advanced grayscale level. This mode is suitable for viewing grayscale medical images such as X-rays, and for training and educational purposes. 1
Please Note: This projector is not an approved medical device. It should not be used for actual medical diagnosis. close - Motorized Zoom, Focus, and Lens Shift Control
- It allows for greater range of installation possibilities. With the 2 speed motorized function you can make fine adjustments through the remote control or RS-232/IP device.
- Multiple Lens Options
- There are a variety of lenses to use for this projector, all providing specified projector brightness. In addition to the one ML703 middle throw standard lens, 4 lenses (sold separately) are available: FL701 fixed, SL702 short throw, LL704 long throw, and UL705 ultra-long throw.
- Perfect Fit 2
- The Perfect Fit 2 enables you to adjust individual corners and sides independent of one another. It provides vertical and horizontal digital correction of either barrel or pin cushion distortions. This feature helps correct geometric and complicated distortions. Furthermore, it allows the projected image to fit correctly to the screen quickly and easily.
- Picture-by-Picture
- This function enables the content from 2 input sources to be displayed simultaneously, side-by-side on a single screen. You can use any 2 sources including 2 HDMI, with both images sharing equal screen size. The feature is suitable for teleconferencing applications.
- Picture-In-Picture
- It enables you to display 1 image inside another image using any 2 sources including 2 HDMI.
- Projector Quick Connection iPad App
- The iOS application offers full projector control and also provides the capability to display photos, document files, and website contents. Available for iPad and iPhone devices, this application works over your LAN via your RJ-45 port or via an USBWL11N wireless adapter (sold separately).
- 360º Rotation
- Display rotation of 360º for creative applications and greater installation flexibility.
- Status Monitor
- You can access projector diagnostics in real time with the status monitor. Status updates include configuration information, maintenance history, as well as error and alarm messaging. For even greater user convenience, the status monitor can be accessed on the rear input panel or through the network tools software.
- Wired and Wireless Switcher Solutions
- Multifunctional switcher operates in conjunction with the receiver to provide expanded source selection and switching options for connected devices. The switcher is sold separately as an accessory that can provide 1080p 30 fps wireless via WHDI for both video and audio.
- Network Control, Maintenance, and Security
- Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer, and e-mail alerts for reactive and routine maintenance.
- PC-Less Presentation
- By using a USB memory stick or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display. Additionally, there is also a slideshow function.
- PJMessenger
- PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units.
- Present Content via LAN
- The suite of networking software allows you to easily send content directly from your PC to the projector via your LAN connection.
- Wireless Presentation Compatible
- Connect the projector to a computer or your network using the USB wireless adapter (part number USBWL11N; sold separately). The adapter supports IEEE802.11b/g and 11n.
- Approvals
- Supports UL 60950-1 / cUL, FCC Part 15 subpart B class A approvals.
UPC: 050585153653 In the Box Hitachi CP-X8170 LCD Projector Remote Control Power Cord Computer Cable Standard ML703 Lens Lens Cover Security Label Adapter Cover Limited 3-Year Warranty on Parts & Labor User Manual PDF 10.8mbatzwxasvztydrfafaycauzbequy Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi CP-X8170 LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi CP-X8170 Specs | Display System | 3-Chip LCD | Native Chip Resolution | 1024 x 768 (XGA) | Supported Resolutions | VGA SVGA XGA WXGA WXGA+ SXGA SXGA+ UXGA MAC16 | Max Brightness | 7000 Lumens | Aspect Ratio | Native: 4:3 Native: 16:9 Native: 16:10 | Contrast Ratio | 3000:1 | Color Depth | 8-Bit (16.78 Million Colors) | Scan | Horizontal: 31.5 - 106 kHz Vertical: 56 - 120 Hz | | Lens | f/1.6 - 2.9 (f = 24 - 48 mm) | Optical Zoom | Powered: 2x | Throw Ratio | 1.5 - 3:1 | | Keystone Correction | Horizontal: ± 35° Horizontal: ± 35° | | Inputs/Outputs | 2 x HDMI Audio/Video (Input) 1 x VGA (DE-15) Video (Input) 1 x 5BNC Video (Input) 1 x S-Video (4-Pin DIN) Video (Input) 1 x Composite (RCA) Video (Input) 3 x Component (3RCA) Video (Input) 2 x 1/8" (3.5 mm) Mini Audio (Input) 1 x RCA Stereo (L/R) Audio (Input) 1 x RCA Stereo (L/R) Audio (Output) 1 x Ethernet (RJ45) LAN (Input) 2 x USB Type-A Female (Input) 1 x USB Type-B Female (Input) 1 x Unspecified Signal (DE-9) Control (Input) 1 x 1/8" (3.5 mm) Mini Control (Input/Output) | | Lamp Power | 365 W | Expected Lamp Life | Low Brightness: 2500 Hours Medium Brightness: 2000 Hours | Fan Noise | Low Brightness: 33 dB Medium Brightness: 39 dB | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | Power Consumption | Medium Brightness: 500 W | Temperature | Operating 32 to 113°F (0 to 45°C) | Dimensions (W x H x D) | 19.6 x 5.3 x 15.6" / 49.8 x 13.5 x 39.6 cm | Weight | 19.4 lb / 8.8 kg | | Package Weight | 26.55 lb | Box Dimensions (LxWxH) | 26.5 x 22.0 x 9.0" |
