User Manual for Hitachi DK-H100 Multi-Format Compact HDTV SD Box Camera Click to enlarge the picture
Contents of the user manual for the Hitachi DK-H100 Multi-Format Compact HDTV SD
- Product category: Industrial & Multi-Purpose Cameras Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Industrial & Multi-Purpose Cameras
 |
User manual for the Hitachi DK-H100 Multi-Format Compact HDTV SD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|

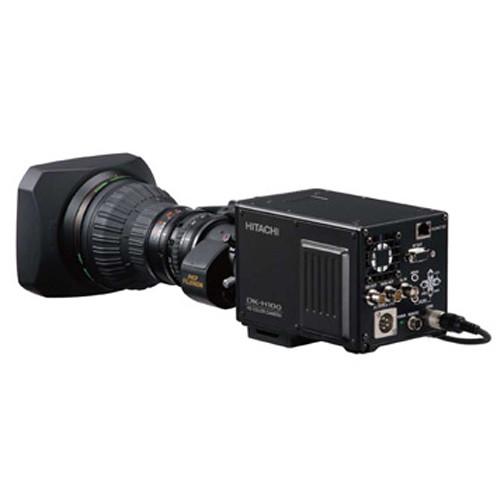

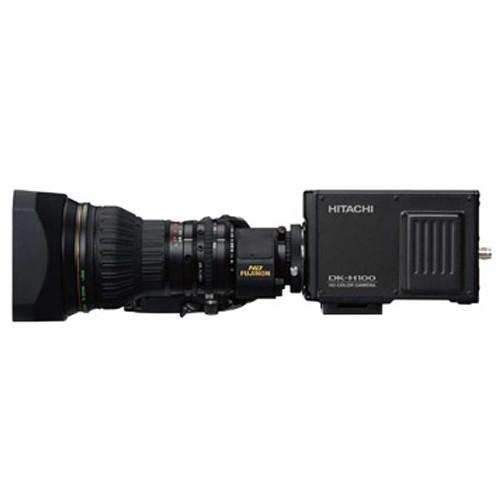

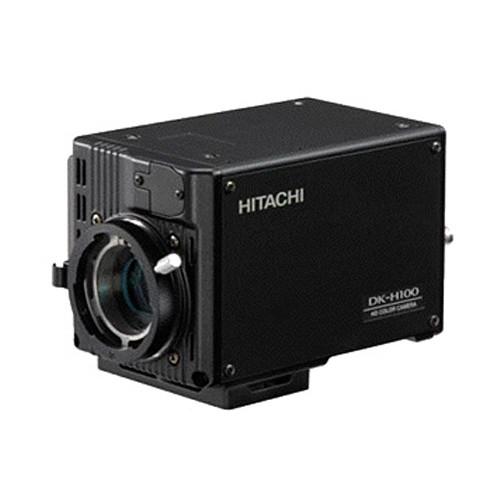

Product description The DK-H100 Multi-Format Compact HDTV/SD Box Camera from Hitachi features 2/3", 2.3 million pixels CCD with micro lenses and digital multi speed signal processing circuits that provide horizontal resolution performance of 1100 TVL (luminance channel). This camera offers sharp and clean HD images, thanks to its 14-bit A/D converters and the digital processing technology. It achieves high sensitivity and a low vertical smear specifications. High dynamic range and color fidelity can be achieved by employing 14-bit analog-to-digital converters on the RGB CCDs' outputs. - 2.3 million pixels native 1080i 3-CCD
- Suitable for graphic stands point of view and remote observation applications
- Less than 60 dB signal-to-noise ratio measured on the HD-SDI (1080i) output
- Five preset shutter speeds
- You can lock scan the camera video to images from asynchronous computer monitors, video walls, or projectors without flicker
- Automatic Electronic Shutter (AES) maintains the video level with a fixed lens f-stop
- Knee saturation and auto-knee
- 12-vector and linear matrix masking
- Automatic skin tone detail circuits
- Variable detail boost frequency
- Gray scale automatic setup
- Automatic shading correction
- Full auto and ECC (Electric Color Compensating) filter
- Eight scene files are provided to store and recall functions such as gain, detail, masking, gamma, and other settings
- White balance memories are provided for each scene files for a total of nine memories by the remote control panel
- Menu access is provided for iris level (fine adjustment) and iris peak/average selection
- Computer controlled real-time auto-white balance
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi DK-H100 Multi-Format Compact HDTV SD Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi DK-H100 Specs | CCD | 2/3", IT-CCD | | Total Pixels | 2010 x 1120, 2.3 million pixels | | Effective Pixels | 1920 x 1080 | | Aspect Ratio | 16:9 (HD/SD), 4:3 (SD) switchable | | Signal Format | TV: 1080/59.94i, 1080/50i, 480/59.94i, and 576/50i | | Support HD Resolution | 1100 TVL | | Sensitivity | Standard: 2000 lux / f/10 (1080/59.94i), 2000 lux / f/11 (1080/50i) 3200K, 89.9% reflectance | | Minimum Illumination | 0.002 lux (f/1.4 / 72 dB) | | S/N Ratio | HD: Typical 60 dB (HD-SDI output decode Y channel band: 27.5 MHz) | | Filter | ECC Filter: 3200K, 4300K, 5600K, 6300K, 8000K | | Shutter | PRESET:
1/100, 1/250, 1/500, 1/1000, 1/2000 second (59.94i)
1/60, 1/250, 1/500, 1/1000, 1/2000 second (50i)
Lock Scan
1/59.94 to 1/10000 second, 1.07 (36 dB) to 0.03 second (6 dB), (59.94i)
1/50.00 to 1/10000 second, 1.28 (36 dB) to 0.04 second (6 dB), (50i) | | Gain Selection | L (Low): -3/0 dB
M (Medium): 0 to 33 dB, 3 dB steps
H (High): 3 to 36 dB, 3 dB steps | | Power Consumption | 17 W (12 VDC) approximately | | Input Signals | Genlock: Tri-level sync / BB | | Output Signal | HD-SDI: SMPTE274M 0.8 V p-p/1.5 Gbps

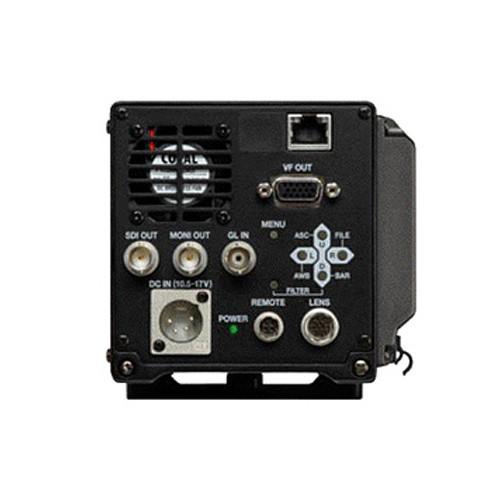

SD-SDI: SMPTE259M-C 0.8 V p-p/270 Mbps | | Connectors | Serial data / RS-232C interface (Remote1 4-pin connector)
RJ45 TCP/IP control | | Dimensions | Excluding Protrusions: 3.9 x 4.1 x 6.1" (99 x 105 x 155 mm) | | Weight | 3.3 lb (1.5 kg) |
