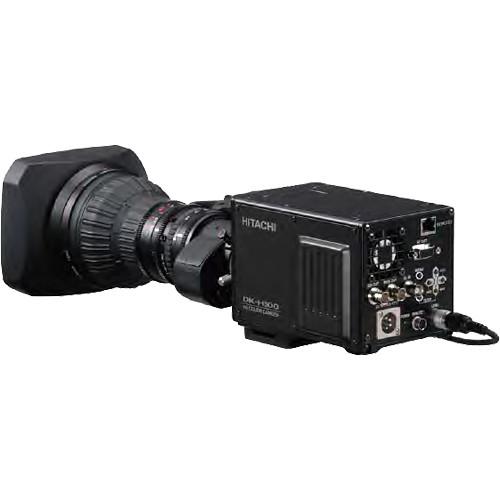

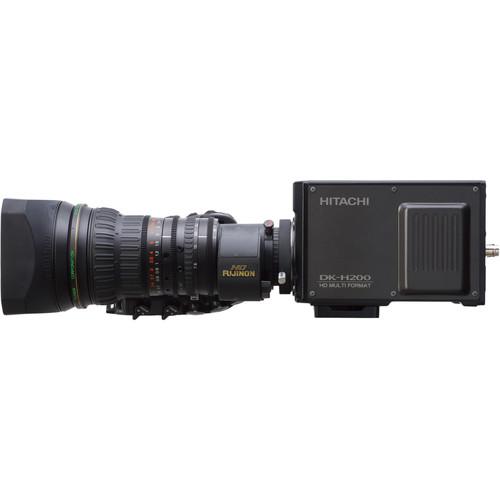

Product description The DK-H200 Multi-Format Compact HDTV Box Camera from Hitachi features 2.6 million pixels 3-MOS sensor. This camera offers sharp and clean HD images, thanks to its digital processing technology. The low-noise circuit technology provides a signal to noise ratio of 60 dB. The standard sensitivity is f/12 (59.94 Hz), f/13 (50 Hz) at 2000 lux. It can be increased by master gain and long exposure mode to reproduce dark images with a minimum illumination of 0.002 lux at f/1.4. The built-in Automatic Exposure System (AES), Automatic Gain Control (AGC), and automatic iris maintain the video level even with rapidly changing light intensity. The Full-time Auto White balance (FAW) corrects in real-time for color temperature variations due to changing types of lighting conditions on the scene object. - 2.6 million pixels 2/3" native 1080p MOS image sensor
- Frame rate (50 Hz, 59.94 Hz, 60 Hz)
- Lens chromatic aberration of magnification is reduced by digital processing with supporting lenses
- Knee saturation and auto-knee
- 12-vector and linear matrix masking
- Gray scale automatic setup
- Focus assist indicator can be displayed on VF Out and viewfinder for easy focusing
- Scene file is provided to store and recall functions such as gain, detail, masking, gamma, and other settings
- Lens file is provided to store and recall such as white shading, iris speed, iris open limit, and iris close limit
- ECC (Electric Color Compensating) filter
- IRIS control is available from on screen menu
- Peak/average rate selection for auto level control
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi DK-H200 Multi-Format Compact HDTV Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi DK-H200 Specs | Image Sensor | 2/3", MOS image sensor | | Total Pixels | 2270 x 1144, 2.6 million pixels | | Effective Pixels | 1920 x 1080 | | Signal Format | 1080p, 1080i, 720p | | Optical Filter | 1 x motorized filter wheel ND (CLEAR, 1/4 ND, 1/16 ND, 1/64 ND) | | ECC | 3200K, 4300K, 5600K, 6300K, 8000K | | Support HD Resolution | 1100 TVL | | S/N Ratio | HD: 60 dB (HD-SDI output decode Y channel) | | Sensitivity | 1080/59.94p, 59.94i, 60p, 60i: f/12 @ 2000 lux, 3200K, 89.9% reflectance
1080/50p, 50i: f/13 @ 2000 lux, 3200K, 89.9% reflectance | | Minimum Illumination | 0.002 lux (at f/1.4, 36 dB video gain 36 dB frame accumulation mode) | | Gain Selection | L (Low): -3/0 dB
M (Medium): 0/3/6/9/12/15/18/21 dB
H (High): 3/6/9/12/15/18/21/24/27/30/33/36 dB | | Modulation Depth | Minimum 50% (16:9 @ 27.5 MHz) | | Shutter | Preset Mode:
1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 second (59.94p, 59.94i, 60p, 60i)
1/60, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 second (50p, 50i)
VAR Scan Mode:
1/60.15 to 1/9633, 1.07 to 0.03 second (59.94p, 59.94i, 60p, 60i)
1/50.17 to 1/11250, 1.28 to 0.04 second (50p, 50i)
AES Mode:
Automatic video level control by shutter speed | | Power Consumption | 18 W (12 VDC) approximately | | Temperature | Operation: 14 to 113°F (-10 to 45°C)

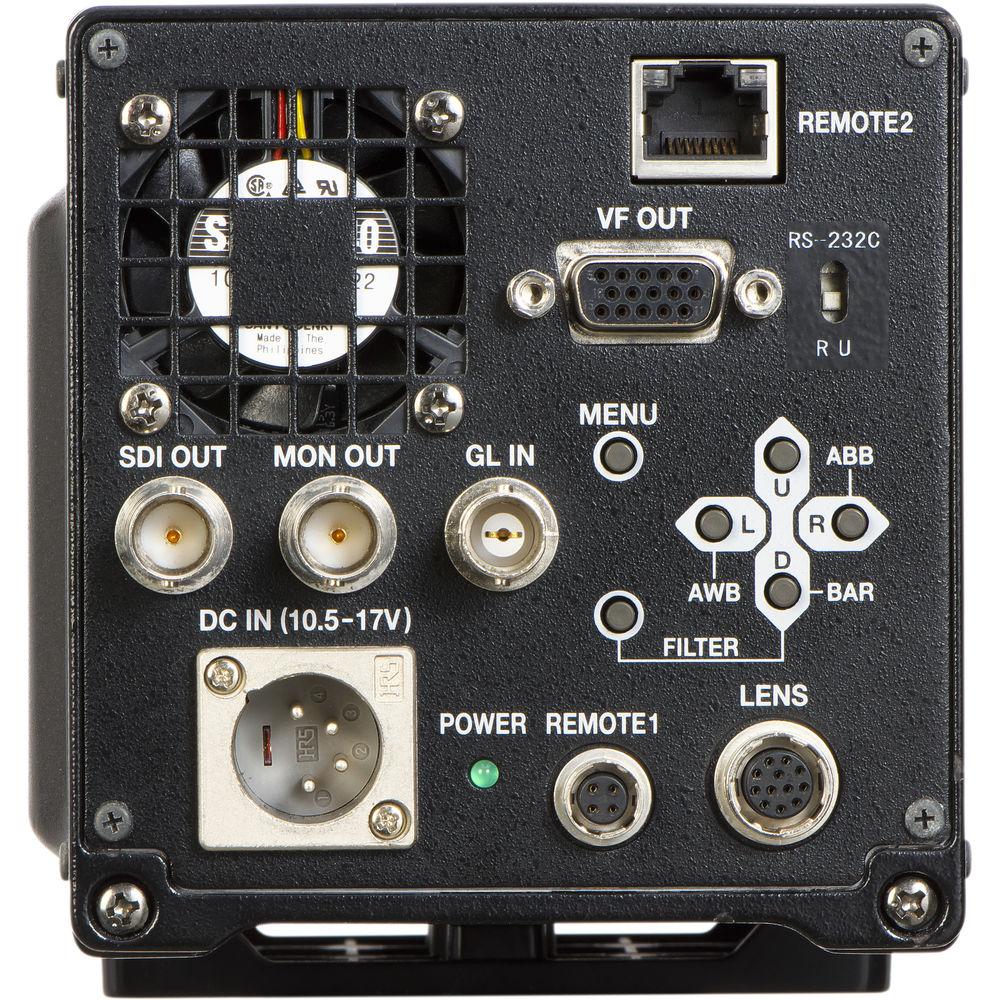

Storage: -4 to 140°F (-20 to 60°C) | | Input Signals | Genlock: BNC for tri-level sync or black burst | | SDI Output | MON OUT: 1 x BNC HD-SDI out (Character ON/OFF)
SDI OUT: 1 x BNC HD-SDI out | | Remote Control | 1:4-pin multi connector for remote control unit
2:8-pin RJ45 connector for 10BASE-T/100BASE-T | | Lens Control | 12-pin multi lens connector | | Output | 15-pin D-SUB connector for VF | | Power Supply Input | 4-pin XLR connector 12 VDC (10.5 to 17 V) | | Dimensions | Excluding Protrusions: 3.9 x 4.1 x 6.1" (99 x 105 x 155 mm) | | Weight | 2.9 lb (1.3 kg) |
