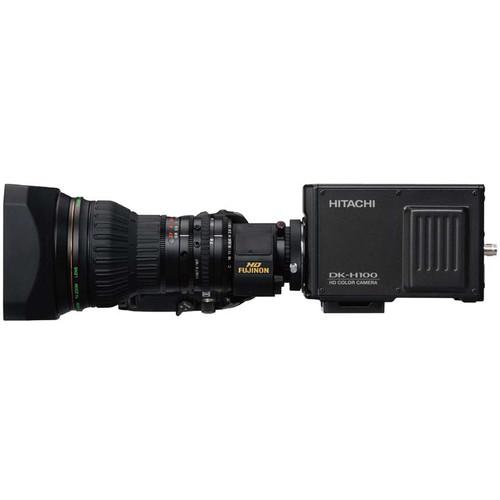

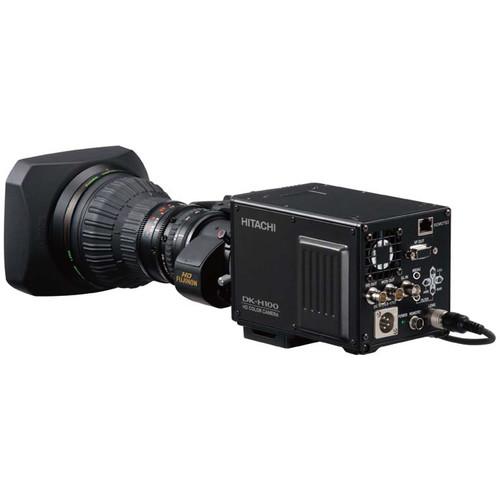

Product description The Hitachi DK-H100 Multi-Format Compact HDTV/SD Box Camera Package includes a Fujifilm eXceed Series XA20sX8.5BMD Standard Remote Control Lens.

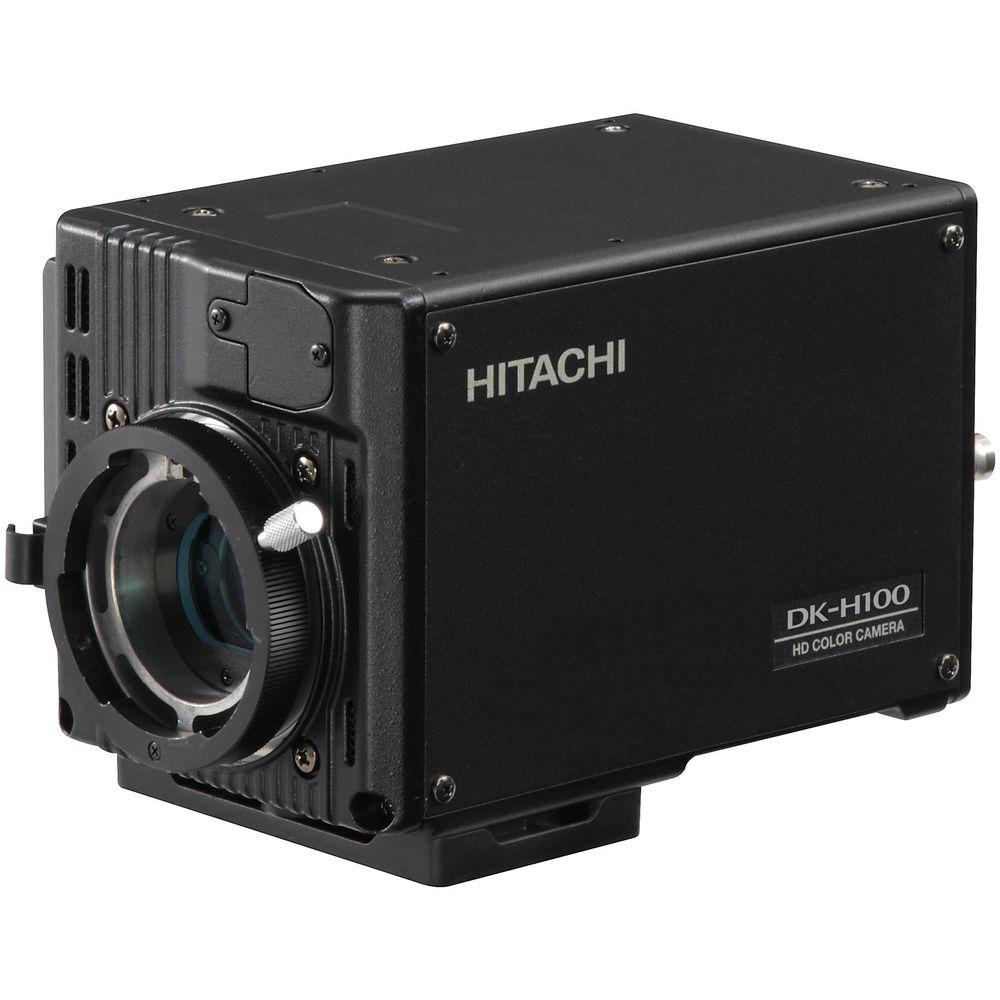

The DK-H100 Multi-Format Compact HDTV/SD Box Camera from Hitachi features a 2/3", 2.3 million pixels CCD with micro lenses and digital multi speed signal processing circuits that provide horizontal resolution performance of 1100 TVL (luminance channel). This camera offers sharp and clean HD images, thanks to its 14-bit A/D converters and the digital processing technology. It achieves high sensitivity and a low vertical smear specification. High dynamic range and color fidelity can be achieved by employing 14-bit analog-to-digital converters on the RGB CCDs' outputs.
The Fujifilm eXceed Series 8.5-170mm f/1.8-2.7 Standard Remote Control Lens is a 20x zoom lens for 2/3" cameras. The lens features macro and Innerfocus with 20x zoom ratio. In the Box Hitachi DKH100 Box Camera and Fujifilm XA20sX8.5BMD Standard Lens Camera Package Limited 1-Year Warranty on Standard Remote Control Lens Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi DKH100 Box Camera and Fujifilm XA20sX8.5BMD Standard Lens Camera Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi DK-H100 Specs | | | CCD | 2/3", IT-CCD | | Total Pixels | 2010 x 1120, 2.3 million pixels | | Effective Pixels | 1920 x 1080 | | Aspect Ratio | 16:9 (HD/SD), 4:3 (SD) switchable | | Signal Format | TV: 1080/59.94i, 1080/50i, 480/59.94i, and 576/50i | | Support HD Resolution | 1100 TVL | | Sensitivity | Standard: 2000 lux / f/10 (1080/59.94i), 2000 lux / f/11 (1080/50i) 3200K, 89.9% reflectance | | Minimum Illumination | 0.002 lux (f/1.4 / 72 dB) | | S/N Ratio | HD: Typical 60 dB (HD-SDI output decode Y channel band: 27.5 MHz) | | Filter | ECC Filter: 3200K, 4300K, 5600K, 6300K, 8000K | | Shutter | PRESET:
1/100, 1/250, 1/500, 1/1000, 1/2000 second (59.94i)
1/60, 1/250, 1/500, 1/1000, 1/2000 second (50i)
Lock Scan
1/59.94 to 1/10000 second, 1.07 (36 dB) to 0.03 second (6 dB), (59.94i)
1/50.00 to 1/10000 second, 1.28 (36 dB) to 0.04 second (6 dB), (50i) | | Gain Selection | L (Low): -3/0 dB
M (Medium): 0 to 33 dB, 3 dB steps

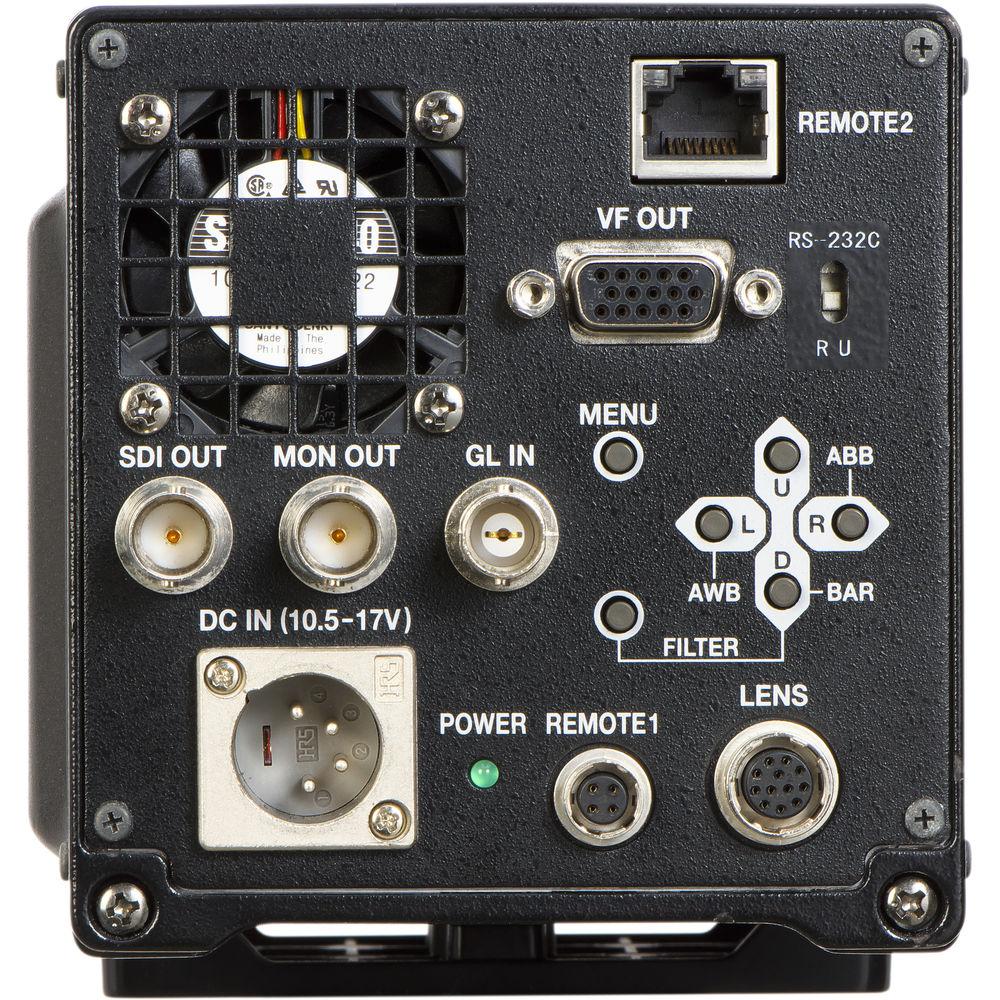

H (High): 3 to 36 dB, 3 dB steps | | Power Consumption | 17 W (12 VDC) approximately | | Input Signals | Genlock: Tri-level sync / BB | | Output Signal | HD-SDI: SMPTE274M 0.8 V p-p/1.5 Gbps
SD-SDI: SMPTE259M-C 0.8 V p-p/270 Mbps | | Connectors | Serial data / RS-232C interface (Remote1 4-pin connector)
RJ45 TCP/IP control | | Dimensions | Excluding Protrusions: 3.9 x 4.1 x 6.1" (99 x 105 x 155 mm) | | Weight | 3.3 lb (1.5 kg) | | | | Camera Format | 2/3" | | Focal Length | 8.5 to 170mm | | Zoom Range | 20 × | | Maximum Relative Aperture | 1:1.8 (8.5 to 113mm)
1:2.7 (170mm) | | M.O.D. from Image Plane | 3.6' (1.1 m) | | M.O.D. from Front of Lens | 2.9' (0.9 m) | | Object Dimensions at M.O.D. (16:9) | 8.5mm: 36 x 20.1" (910 × 511 mm)
170mm: 1.8 x 1.02" (47 × 26 mm) | | Angular Field of View (16:9) | 8.5mm: 58°51' × 35°11'
170mm: 3°14' × 1°49' | | Filter Thread | M82 x 0.75 | | Dimensions | Ø3.3 x 7.11" (Ø85 x 180.8 mm) | | Weight | 3.26 lb (1.48 kg) |
