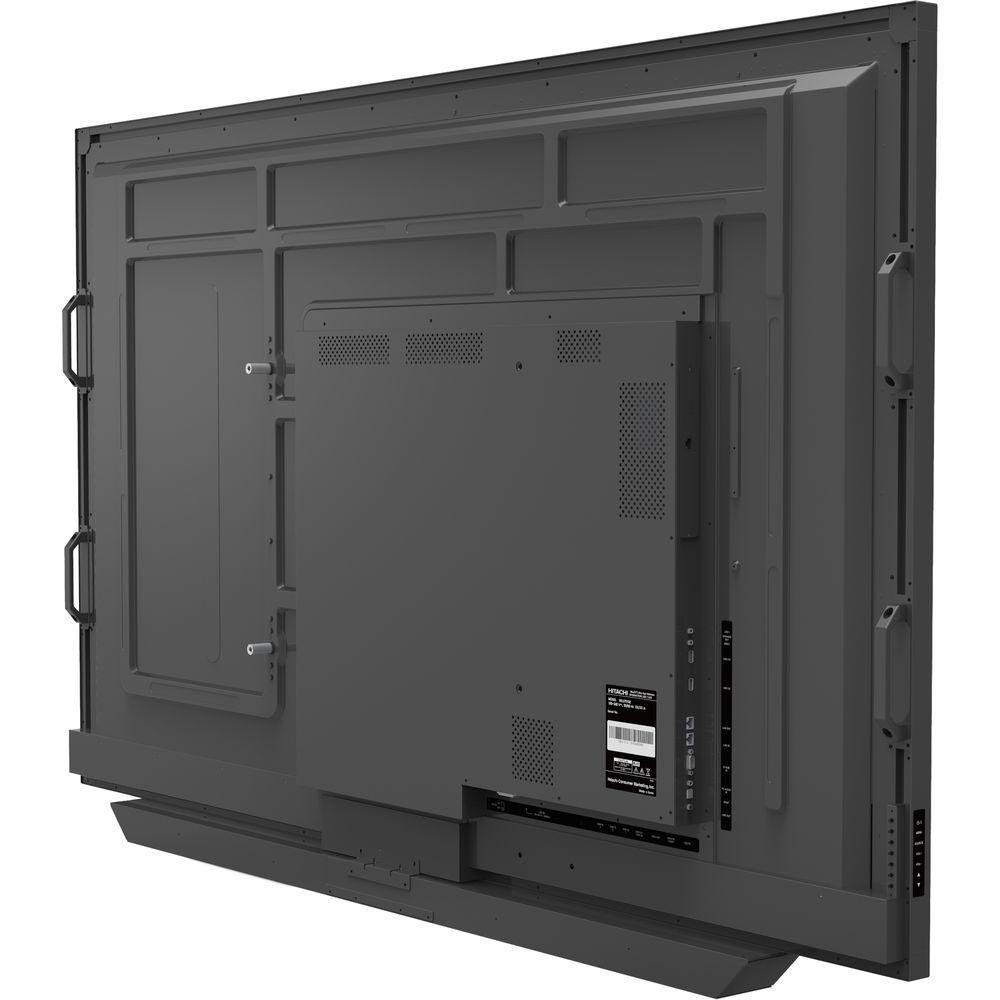

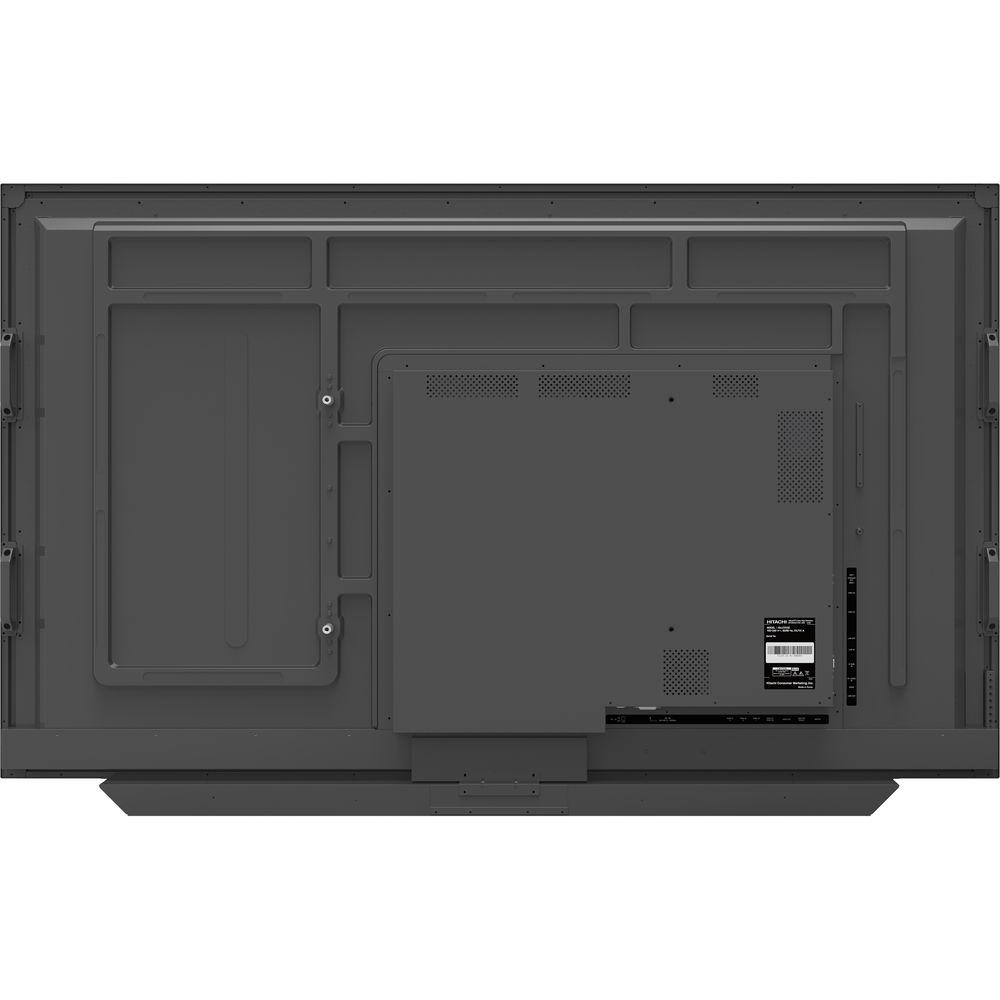

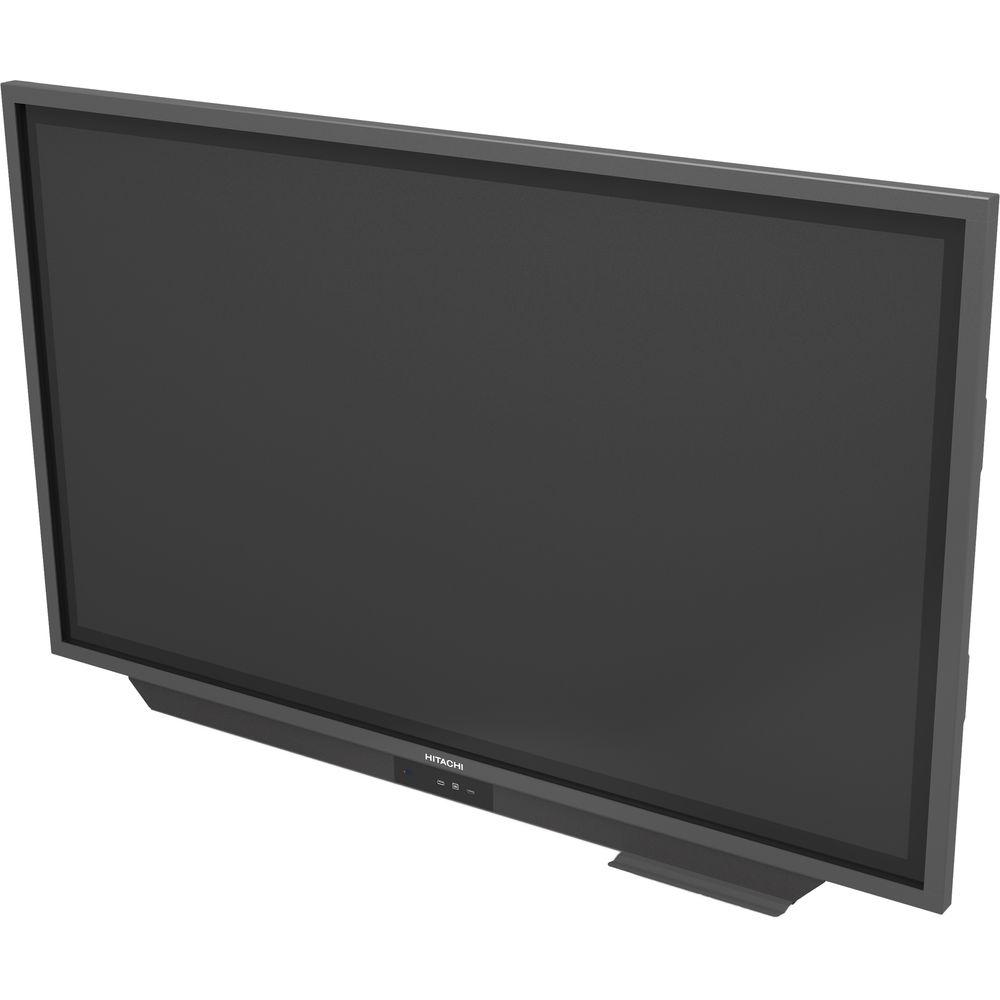

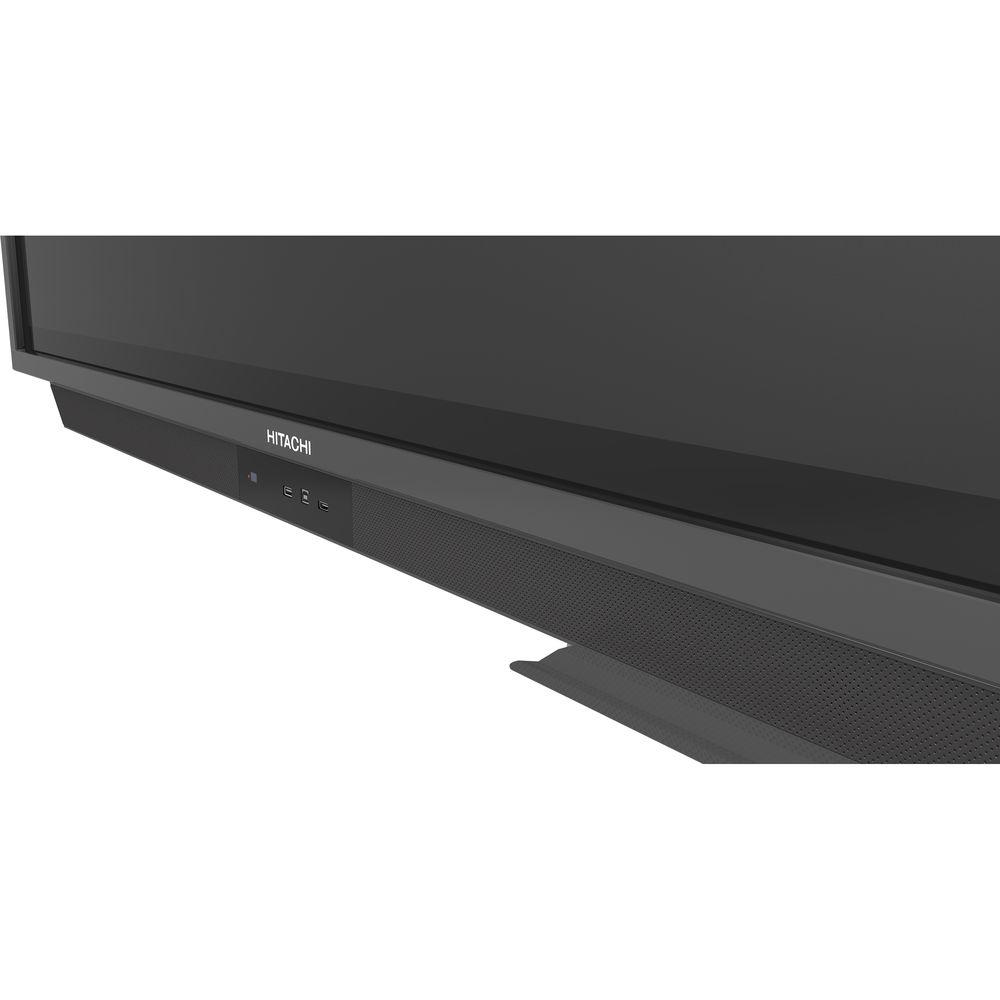

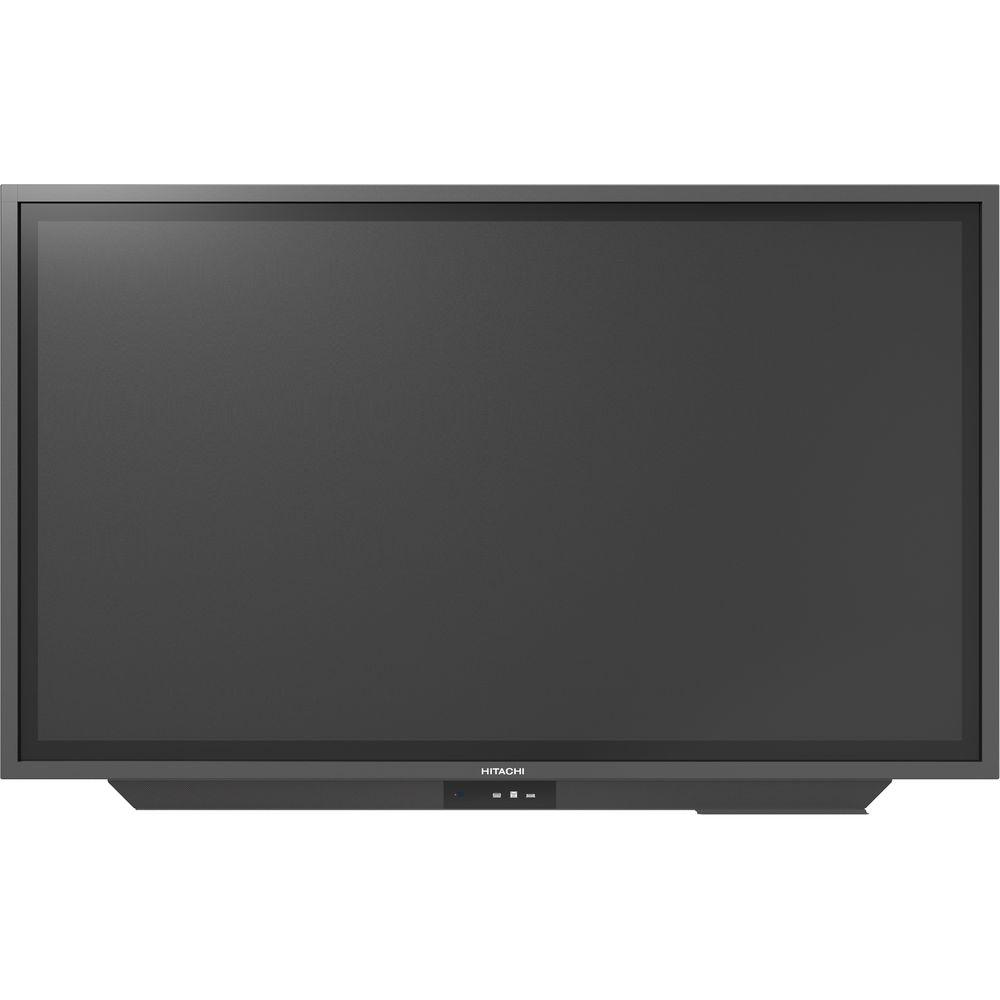

Product description The HILU75202 75" UHD Interactive LED Flat Panel Display from Hitachi features a native UHD 4K (3840 x 2160) resolution and 1000:1 contrast ratio with 170° viewing angles and a bright LED anti-glare screen. It is equipped with 20-point simultaneous touch capabilities and 20W front-facing stereo speakers making it suitable for boardrooms, classrooms, lecture theaters, foyers, and consultation rooms.
The HILU75202 is compatible with both Windows and Mac operating systems and includes PC-less writing function, a LAN port for control, OPS slot, and front HDMI and USB inputs. Four carrying handles on the rear make it easy to move around. In the Box Hitachi HILU75202 75" UHD Interactive LED Flat Panel Display 2 x Touch Pens Detachable Magnet Pen Tray Remote Controller & Batteries HDMI Cable USB Cable Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi HILU75202 75" UHD Interactive LED Flat Panel Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi HILU75202 Specs | | | Panel Type | LED | | Diagonal Size | 74.52" / 189.3 cm | | Maximum Display Resolution | 3840 x 2160 (UHD) | | Brightness | 350 cd/m² | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Contrast Ratio | 1000:1 | | Display Color | 1.07 billion (10-bit) | | Response Time | 6.5 ms | | Frame Rate | 60 Hz | | Installation | Landscape | | | | Touch Surface | 64.9 x 36.5" / 164.8 x 92.6 cm | | Touch Method | Infrared blocking detection method
Detection Tool: Hand or other solid object | | Accuracy | ±2 mm | | Response Time | <12 ms | | Touch Point | Windows: 20 points
Windows Painter: 10 points
Mac with Driver Software: 4 points
Mac without Driver Software: 1 point
Android: 6 points | | Operating Systems | Windows 7, 8, 10
Mac 10.10-10.12 | | PC Connectors | USB | | | | Connectors | Front:
1 x HDMI input
1 x USB Type-B
1 x USB Type-A
Back:
4 x HDMI input (1 for OPS slot)
1 x HDMI pass-through output
1 x DisplayPort input
1 x USB Type-B
1 x RJ45, LAN
1 x AC, power input
1 x 9-pin Sub-D, RS-232C
2 x L/R 3.5 mm, speaker output
1 x USB 2.0
1 x USB 3.0
1 x RJ45, LAN output
1 x RJ45, LAN input
1 x 15-pin Sub-D, VGA input
1 x 3.5 mm, PC audio input
1 x S/PDIF
1 x 3.5 mm, line output | | Slot | 1 x OPS slot | | | | Power Requirement | 110 to 240 VAC, 50/60 Hz | | Power Consumption | 438 W
Standby Mode: <0.5 W | | Speaker Output | 20 W + 20 W Stereo, 8 Ohms | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% RH | | | | Languages | English / Francais / Deutsch / Spanish / Portugues /Italiano / Danish / Swedish / Norwegian / Suomi / Russian / Polish /Turkish / Hungarian / Chesky / Korean / Japanese / Chinese /Arabic / Greek / Dutch | | VESA Mount | 600 x 400 mm, M8 screw | | Front Glass | Anti-glare tempered glass 4.0t | | Dimensions | 46.3 x 43.8 x 3.8" / 177.6 x 111.3 x 9.7 cm | | Weight | 143 lb / 65 kg |
