User Manual for Hitachi HILU86101 86" UHD Interactive LED Flat Panel Display Click to enlarge the picture
Contents of the user manual for the Hitachi HILU86101 86" UHD Interactive LED
- Product category: Commercial Monitors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Commercial Monitors
 |
User manual for the Hitachi HILU86101 86" UHD Interactive LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|

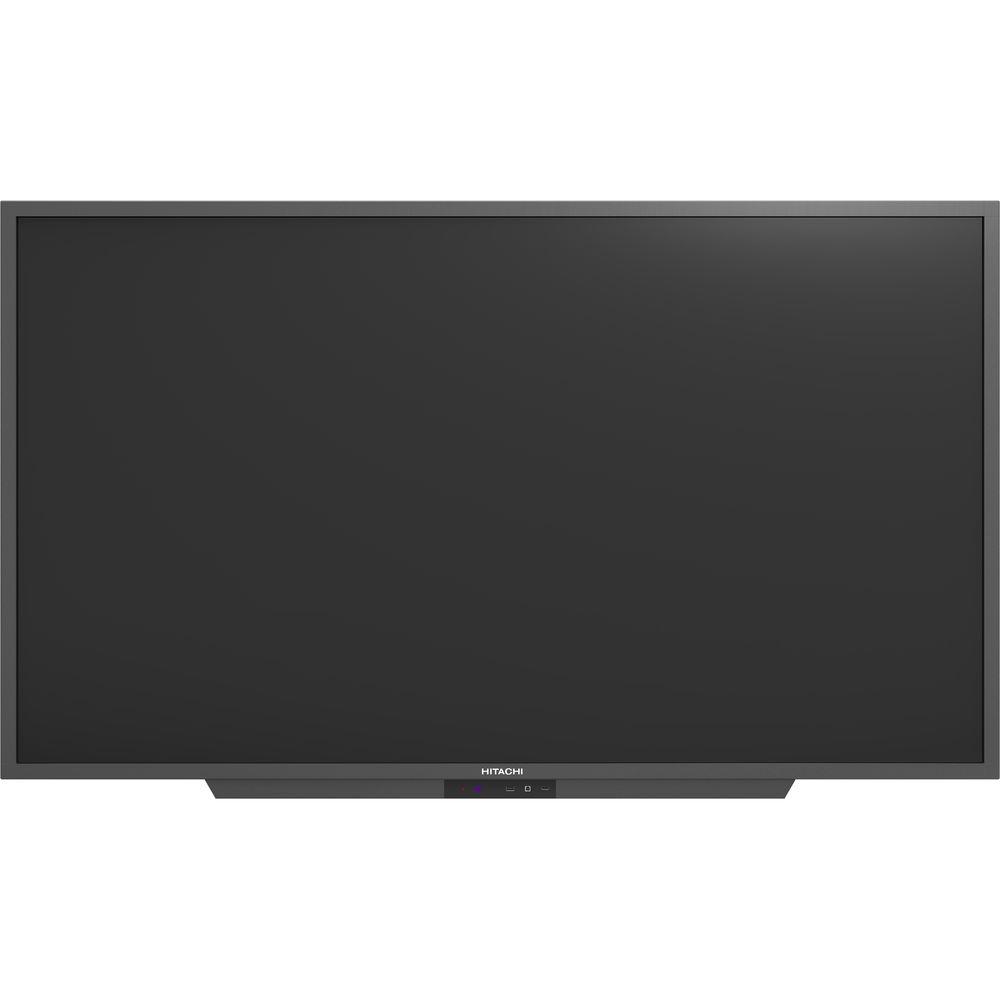

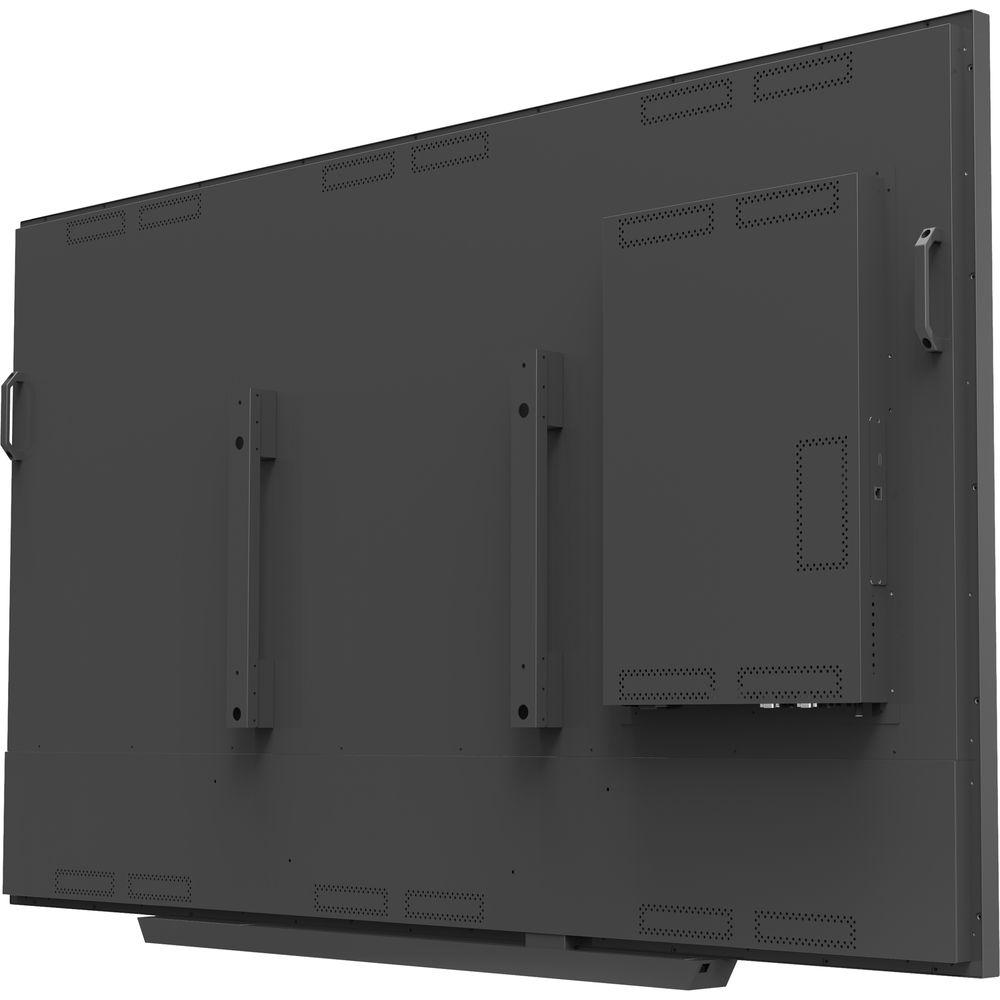

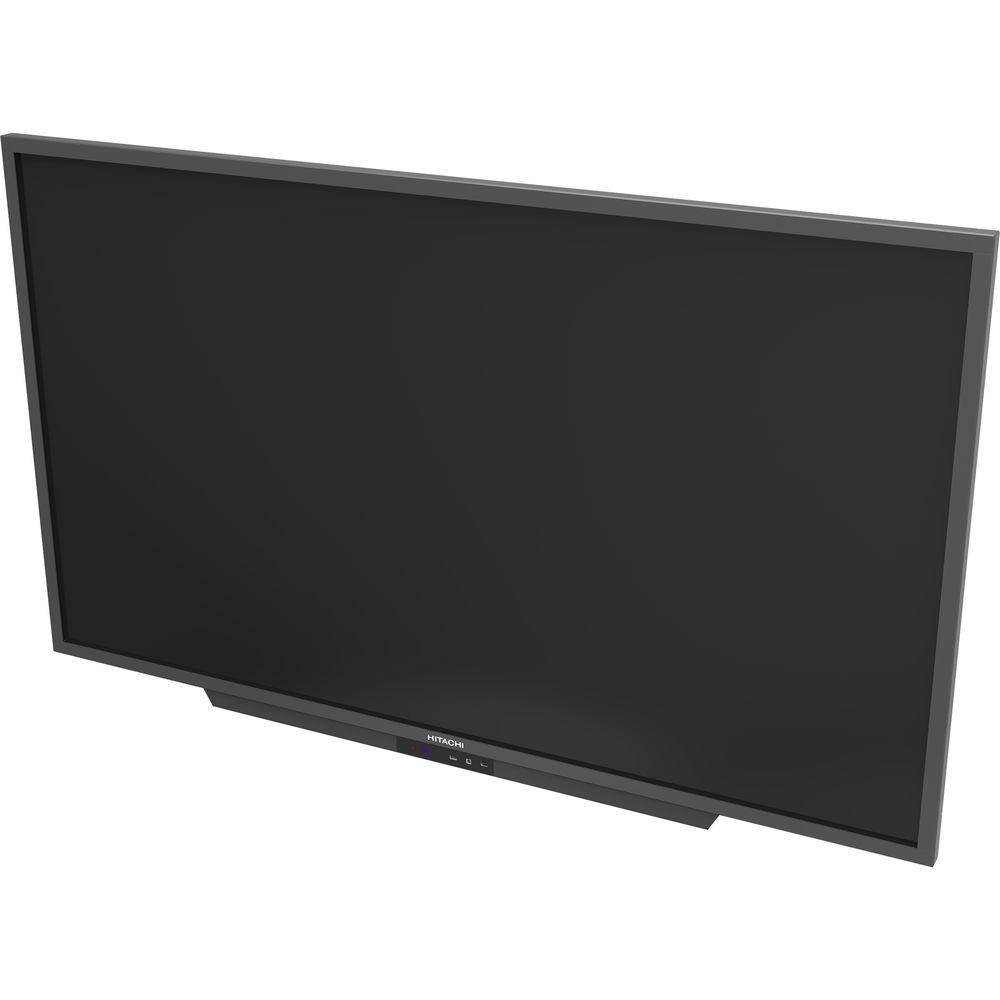

Product description The HILU86101 86" UHD Interactive LED Flat Panel Display from Hitachi features a native UHD 4K (3840 x 2160) resolution and 1200:1 contrast ratio with 178° viewing angles and a bright LED anti-glare screen. It is equipped with 10-point simultaneous touch capabilities and 20W front facing stereo speakers making it suitable for boardrooms, classrooms, lecture theaters, foyers, and consultation rooms.
The HILU86101 is compatible with both Windows and Mac operating systems and includes a LAN port for control, OPS slot, magnetic stylus pens, and front HDMI and USB inputs. In the Box Hitachi HILU86101 86" UHD Interactive LED Flat Panel Display 2 x Touch Pens Remote Controller & Battery HDMI Cable USB Cable Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi HILU86101 86" UHD Interactive LED Flat Panel Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi HILU86101 Specs | | | Panel Type | LED | | Diagonal Size | 85.6" / 217.4 cm | | Maximum Display Resolution | 3840 x 2160 (UHD) | | Brightness | 410 cd/m² | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Contrast Ratio | 1200:1 | | Display Color | 1.07 billion (10-bit) | | Response Time | 8 ms | | Frame Rate | 60 Hz | | Installation | Landscape | | | | Touch Surface | 74.6 x 42.0" / 189.5 x 106.6 cm | | Touch Method | Infrared blocking detection method
Detection Tool: Hand or other solid object | | Accuracy | ±2 mm | | Response Time | <12 ms | | Touch Point | 10 points | | Operating Systems | Windows 7, 8, 10
Mac 10.10-10.12 | | PC Connectors | USB | | | | Connectors | Front:
1 x HDMI input
1 x USB Type-B input
1 x USB Type-A input
Back:
4 x HDMI inputs (1 for OPS slot)
1 x HDMI output
1 x DisplayPort input
1 x 15-pin Sub-D, VGA input
1 x 3.5 mm, audio input
1 x 3.5 mm, audio line output
1 x 9-pin Sub-D, RS232C
2 x 3.5 mm, L/R stereo speaker output
1 x USB Type-A
1 x USB Type-B | | Slot | 1 x OPS slot | | | | Power Requirement | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 333 W
Standby Mode: <0.5 W | | Speaker Output | 20 W + 20 W Stereo, 8 Ohms | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% RH | | | | Languages | English and Japanese | | Certifications | QAS, RCM, CB, RoHS, FCC, NRTL | | VESA Mount | 600 x 400 mm, M8 screw | | Front Glass | Anti-glare tempered glass 4.0t | | Dimensions | 77.6 x 47.1 x 4.3" / 197.1 x 119.7 x 10.9 cm | | Weight | 213.8 lb / 97 kg |
