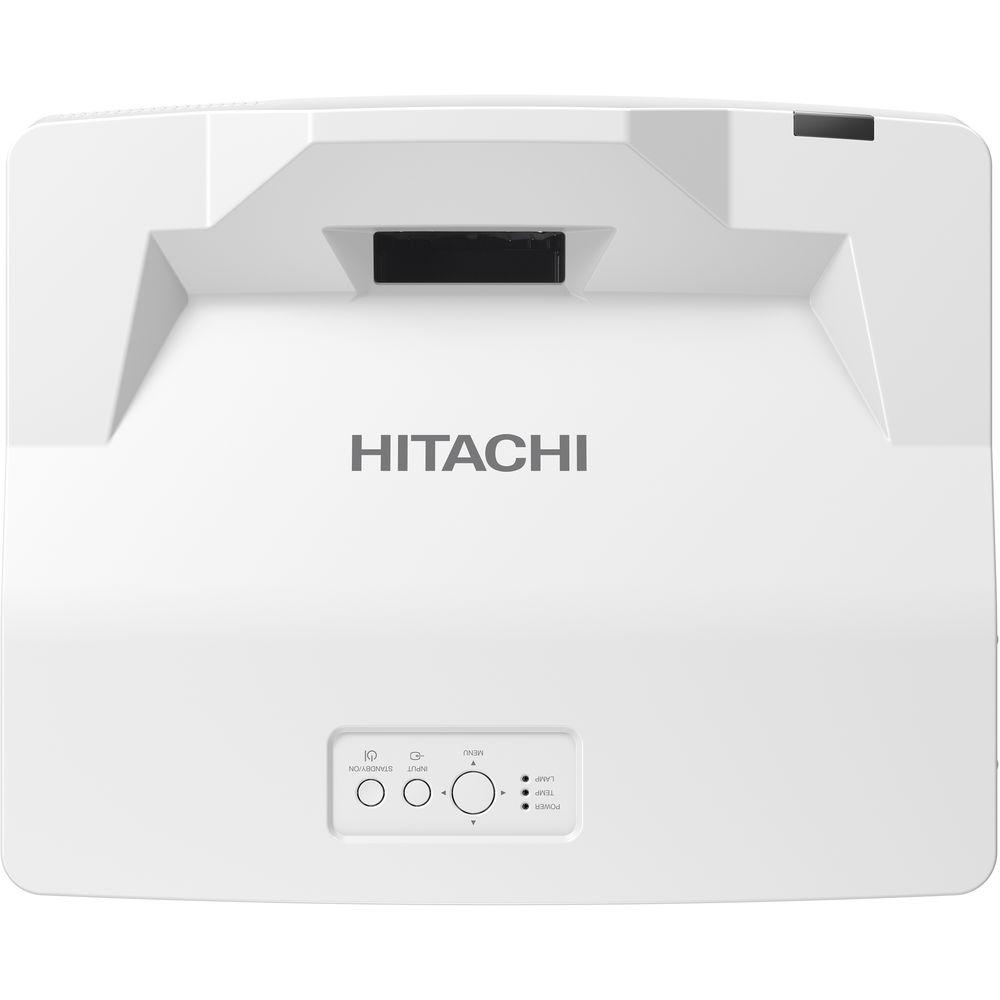

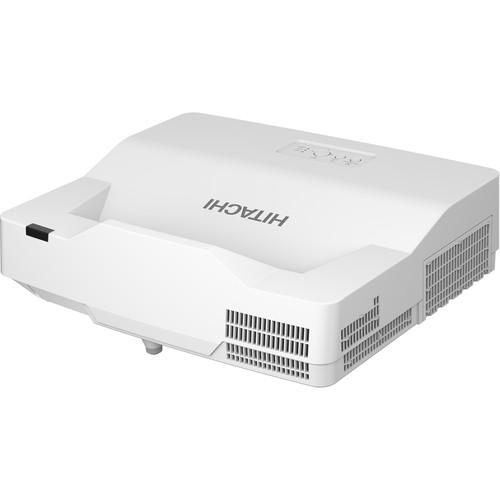

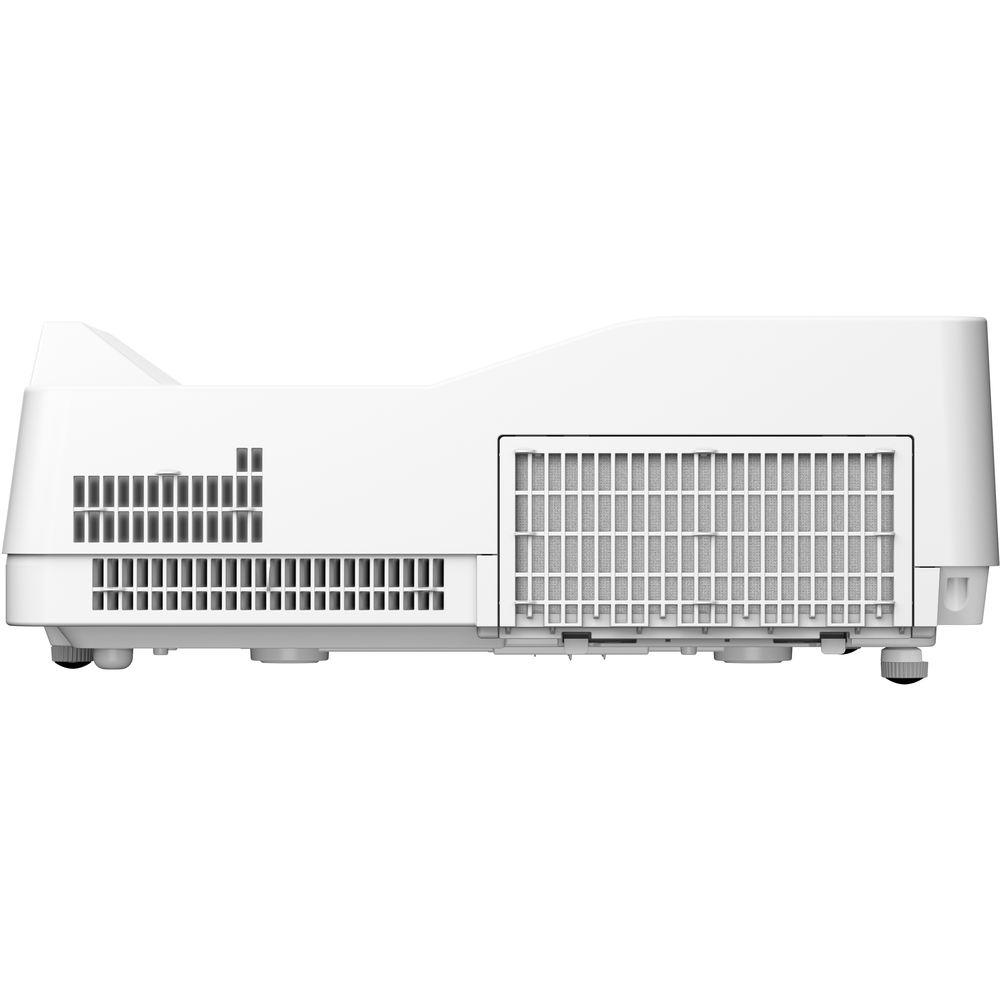

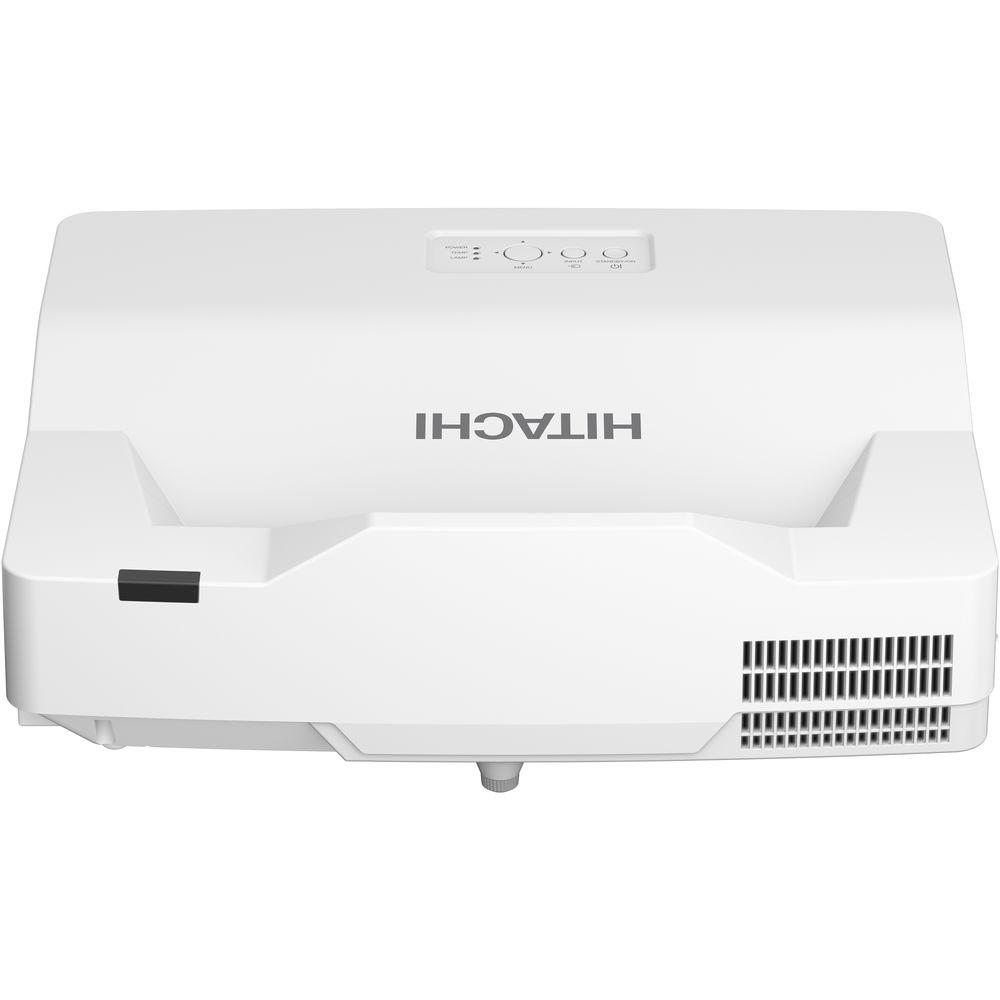

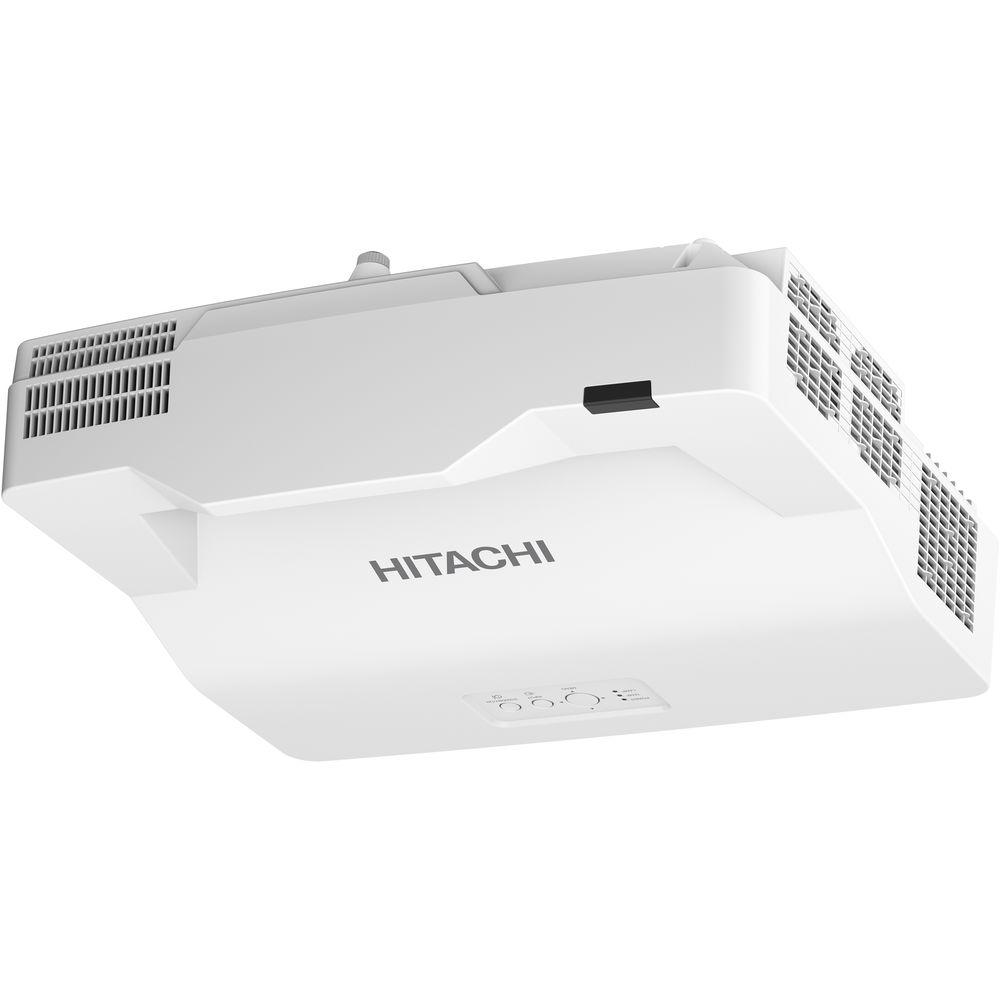

Product description The LP-AW4001 4200-Lumen WXGA Ultra-Short Throw 3LCD Projector from Hitachi has the ability to project large images in tight spaces. It produces 4200 lumens of brightness along with a 500,000:1 contrast ratio. This 3LCD system has a WXGA 1280 x 800 native resolution and a long life of up to 20,000 hours. You can use this projector to project up to a 130" image with a 0.3:1 ultra-short throw ratio.

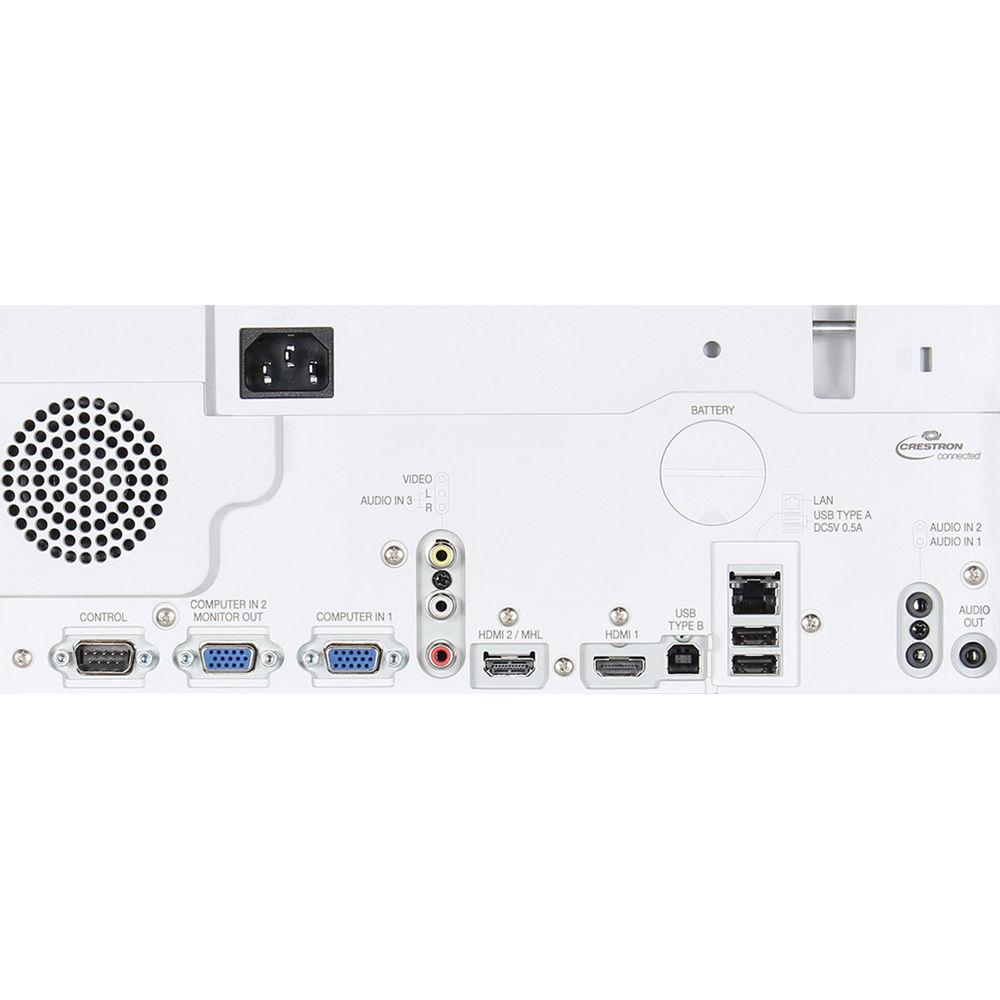

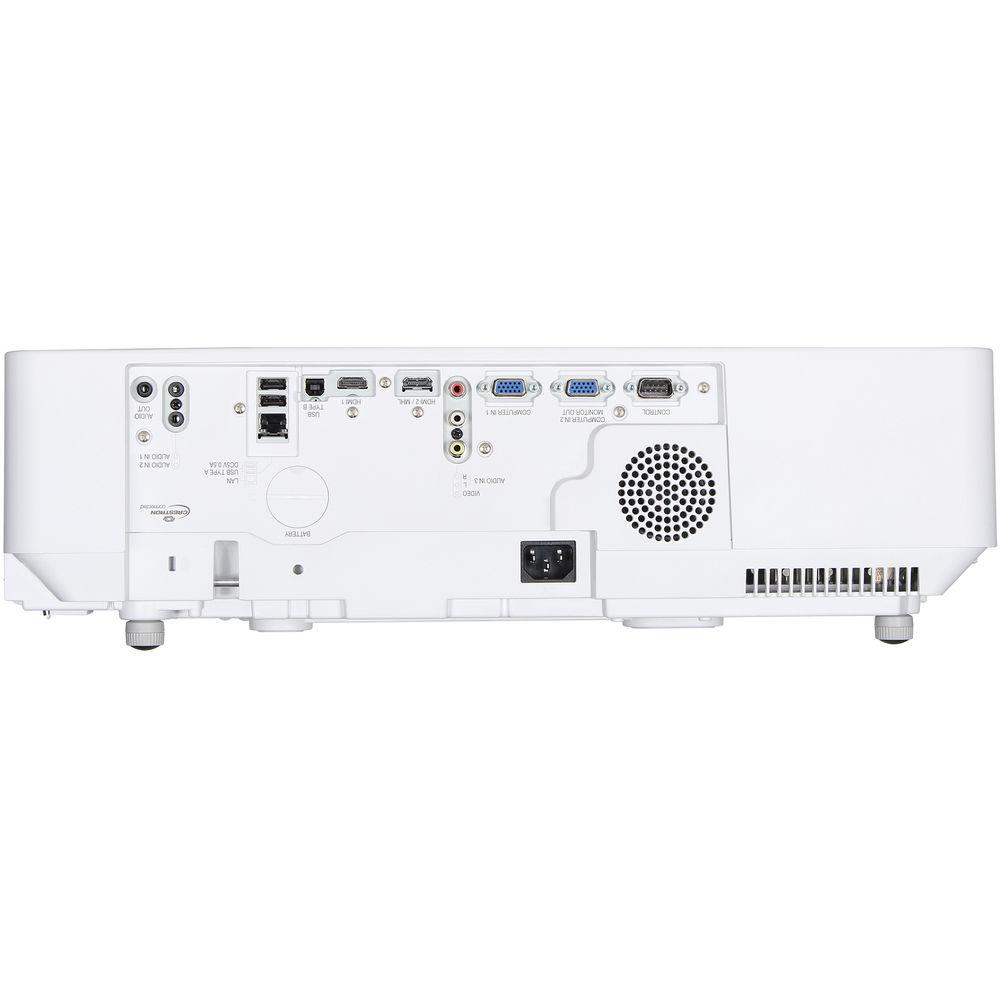

The LP-AW4001 offers a variety of connectivity options including two VGA, two HDMI, a composite, and three USB inputs. This allows you to connect sources such as PCs, Blu-ray players, and streaming devices. The projector has a built-in 16-Watt speaker to eliminate the need for a separate speaker system. It is controllable via Ethernet, RS-232, or the included remote control. - Picture Modes: Normal, Cinema, Dynamic, Whiteboard, DICOM SIM, User-1, User-2, and User-3
- Picture Adjustments: Perfect fit, frame lock, HDCR, image optimizer, magnify, mirror image, and up-side down image
- Environmentally friendly, contains no mercury lamp
In the Box Hitachi LP-AW4001 4200-Lumen WXGA Ultra-Short Throw 3LCD Projector HL03037 Remote Control Power Cable Computer Cable Adapter Cover Mounting Hardware 2 x HDMI Cable Holders Cable Tie Set 2 x AA Batteries Limited 5-Year or 20,000 Hours Warranty, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi LP-AW4001 4200-Lumen WXGA Ultra-Short Throw 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi LPAW4001 Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | VGA
SVGA
XGA
WXGA
WXGA+
SXGA
SXGA+
UXGA | | Max Brightness | 4200 Lumens | | Contrast Ratio | 500000:1 | | | | Focus | Manual Powered | | Throw Distance | 19.213 - 38.504" / 48.8 - 97.8 cm | | Throw Ratio | 0.3:1 | | Projection Size | 60 - 130" / 152.40 - 330.20 cm | | | | Keystone Correction | Vertical: ± 5°
Horizontal: ± 5° | | Digital Zoom | 1.35x | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | | | Inputs/Outputs | 3 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output) | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Video Input
1 x HDMI with MHL Support (HDMI Type-A) Video Input
2 x VGA (DE-15) Video Input
1 x Composite (RCA) Video Input
2 x VGA (DE-15) Video Output
1 x Composite (RCA) Video Output
1 x RS-232 (DE-9) Control Input
1 x Ethernet (RJ45) LAN Input
2 x USB 2.0 (USB Type-A) Data Input
1 x USB 2.0 (USB Type-B) Control Input | | Memory Card Slot | None | | | | Light Source | Lamp | | Expected Lamp Life | Full Brightness: 20,000 Hours | | Fan Noise | Full Brightness: 34 dB
Medium Brightness: 28 dB | | Security | Keypad Lock
Padlock
Password Protection | | Supported Languages | Arabic
Brazilian Portuguese
Croatian
Czech
Danish
Dutch
English
Estonian
Finnish
French
German
Greek
Hebrew
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Slovak
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 350 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 20.2 x 16.7 x 6.1" / 51.2 x 42.4 x 15.5 cm | | Weight | 16.75 lb / 7.6 kg | | | | Package Weight | 22.445 lb | | Box Dimensions (LxWxH) | 26.6 x 21.7 x 9.0" |
