User Manual for Hitachi LP-WU6500 5000-Lumen WUXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Hitachi LP-WU6500 5000-Lumen WUXGA DLP Projector
- Product category: Multimedia Projectors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Multimedia Projectors
 |
User manual for the Hitachi LP-WU6500 5000-Lumen WUXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|

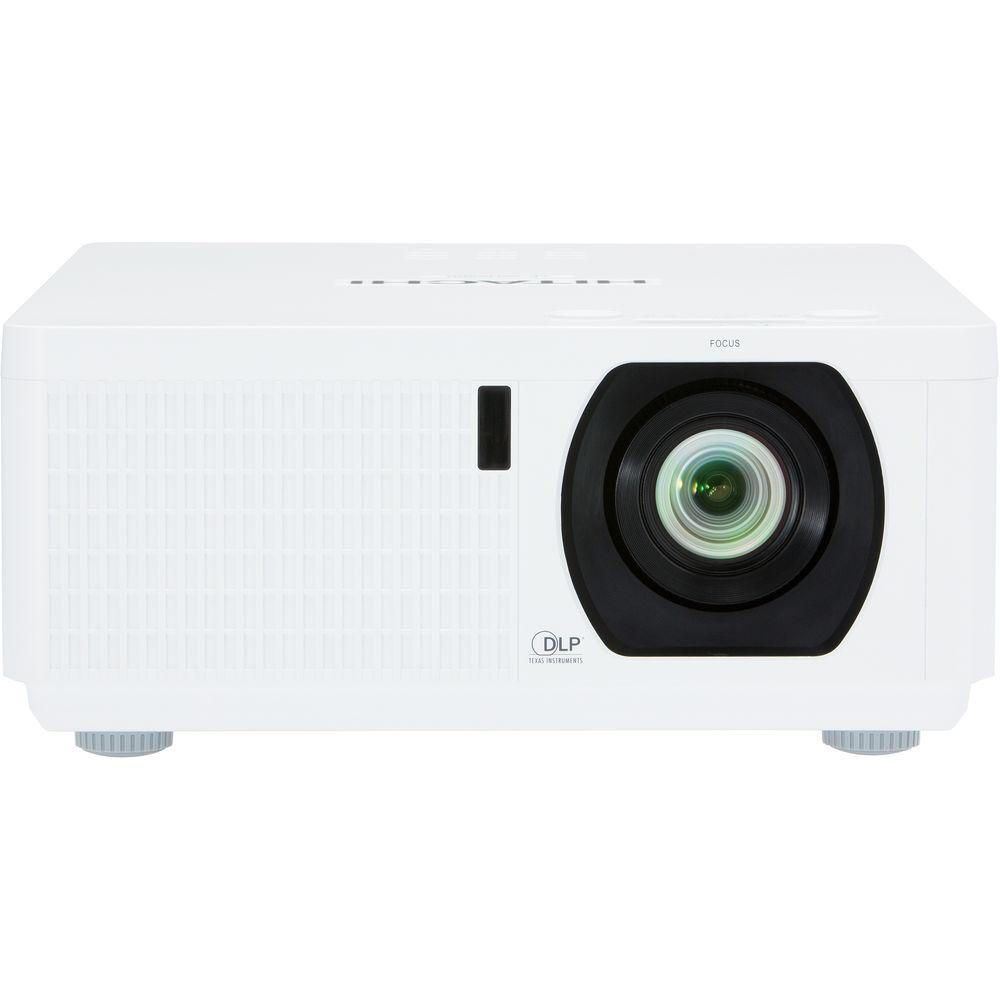

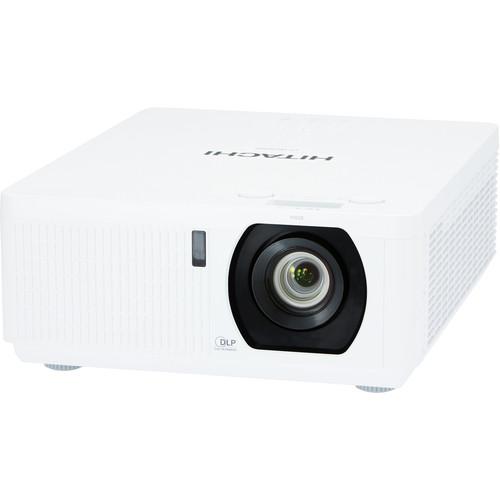

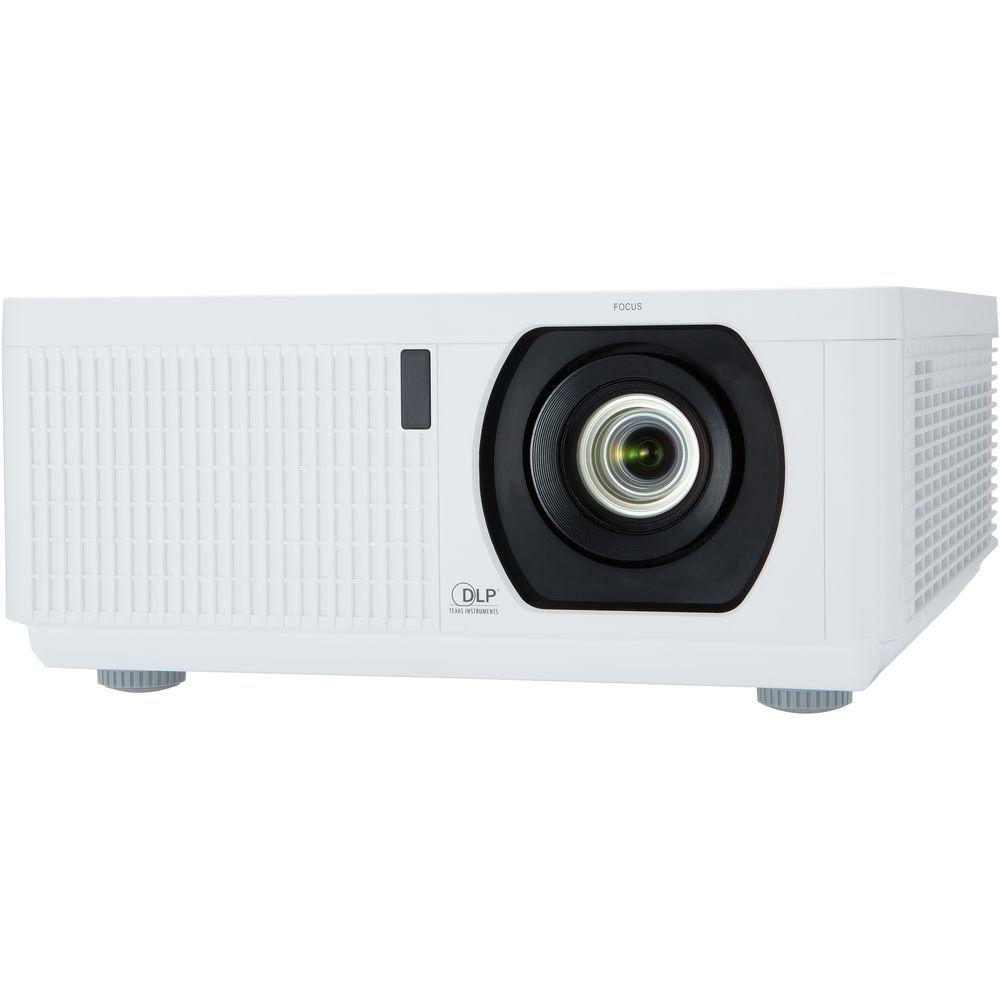

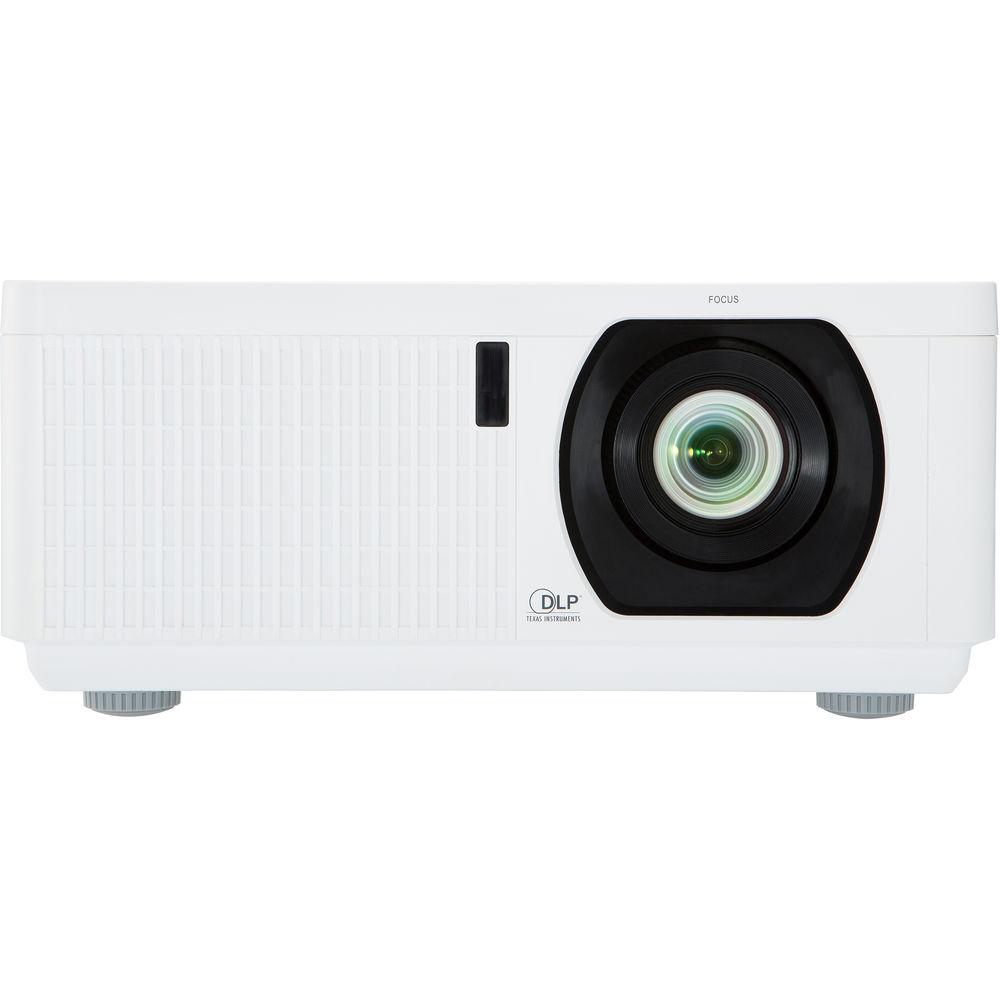

Product description The LP-WU6500 5000-Lumen WUXGA DLP Projector from Hitachi offers a brightness rating of 5000 ANSI lumens and resolution of 1920 x 1200 WUXGA. It uses a laser phosphor light source that offers up to 20,000 hours of maintenance-free operation. The projector also features one HDBaseT and three HDMI digital inputs. The Laser Power Level Control helps to tune the brightness of images according to the brightness of the surrounding environment and can also match brightness of images projected side by side.

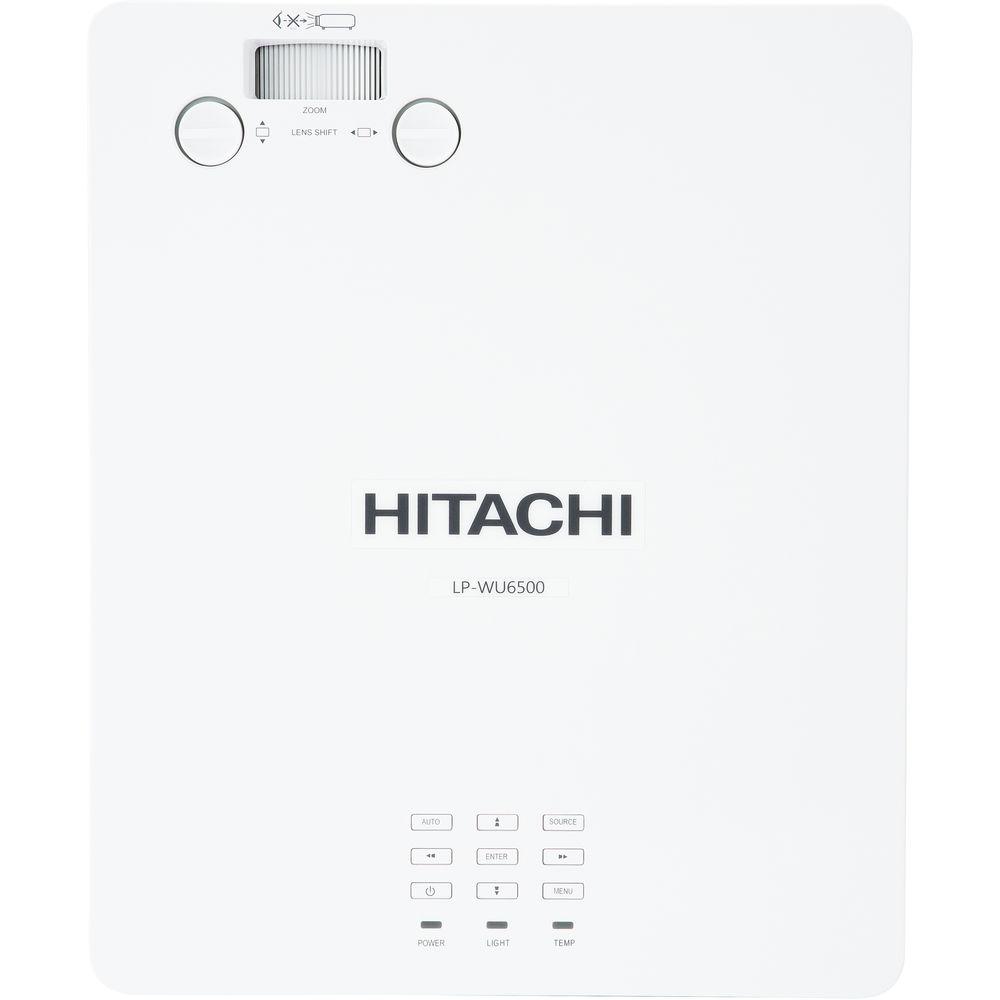

The air tight structure of the optical engine makes it possible to minimize dust particles entering which could eventually lead to a decrease in brightness. This construction gives the projector resistance to the effects of dust and enables the projector to be used in a wide variety of environments. The Lens shift can adjust the position of an image on the screen by turning the adjusters manually. This adjustment is useful for adjusting the image position without causing keystone distortion.
The projector features a DICOM (Digital Imaging and Communications in Medicine) Simulation Mode. This mode simulates the DICOM standard, which is a standard applicable to digital communications in medicine, and is useful for displaying medical images such as X-rays for training and educational purposes. - Laser phosphor light source
- MHL (Mobile High-Definition) compatibility allows users to mirror their phone/tablet screen with the projector display and is compatible with all apps
|
Upload User Manual
Have you got an user manual for the Hitachi LP-WU6500 5000-Lumen WUXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi LP-WU6500 Specs | | | Display System | 1-Chip DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | VGA
SVGA
XGA
WXGA
WSXGA+
SXGA
SXGA+
WSXGA+
UXGA
WUXGA
MAC16
VGA480
Full HD 1080p | | Max Brightness | 5000 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 20000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 85 kHz | | | | Focus | Manual | | Optical Zoom | Manual: 1.65x | | Throw Distance | 59 - 483" / 149.86 - 1226.82 cm | | Throw Ratio | 1.15 - 1.9:1 | | Projection Size | 60 - 300" / 152.40 - 762.00 cm | | | | Keystone Correction | Horizontal: ± 25°

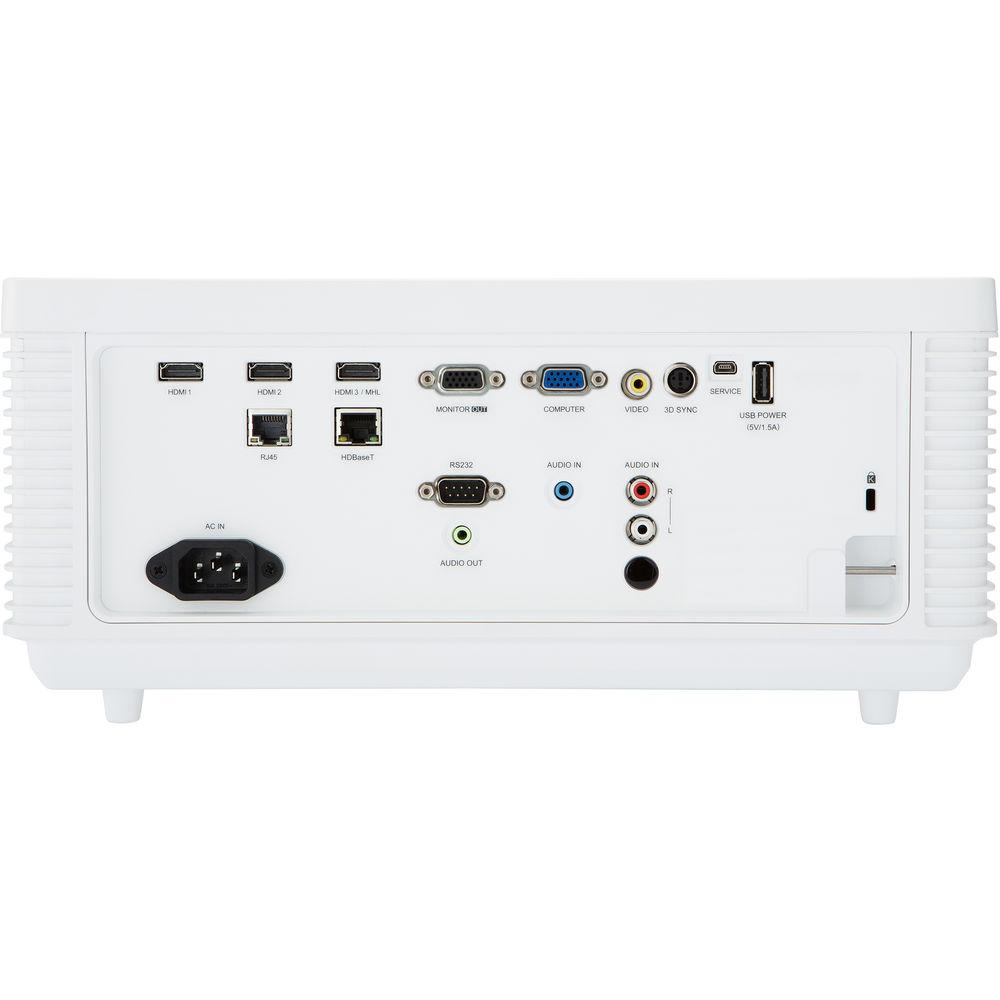

Vertical: ± 30° | | Built-In Speaker | Yes | | Speaker Power | 10W | | | | Inputs/Outputs | 1 x HDBaseT (RJ45) Video (Input)
3 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
2 x RCA Stereo (L/R) Audio (Input)
2 x RCA Stereo (L/R) Audio (Output)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x Ethernet (RJ45) Control (Input)
1 x HDBaseT (RJ45) Control (Input)
1 x USB Type-A Female (Input)
1 x RS-232C (Unspecified Connector) Control/Service (Input)
1 x VESA 3D Sync Control (Input) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | AC Input Power | 130 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 460 W | | Dimensions (W x H x D) | 14.2 x 17.2 x 5.8" / 36.1 x 43.7 x 14.7 cm | | Weight | 23.1 lb / 10.5 kg |
