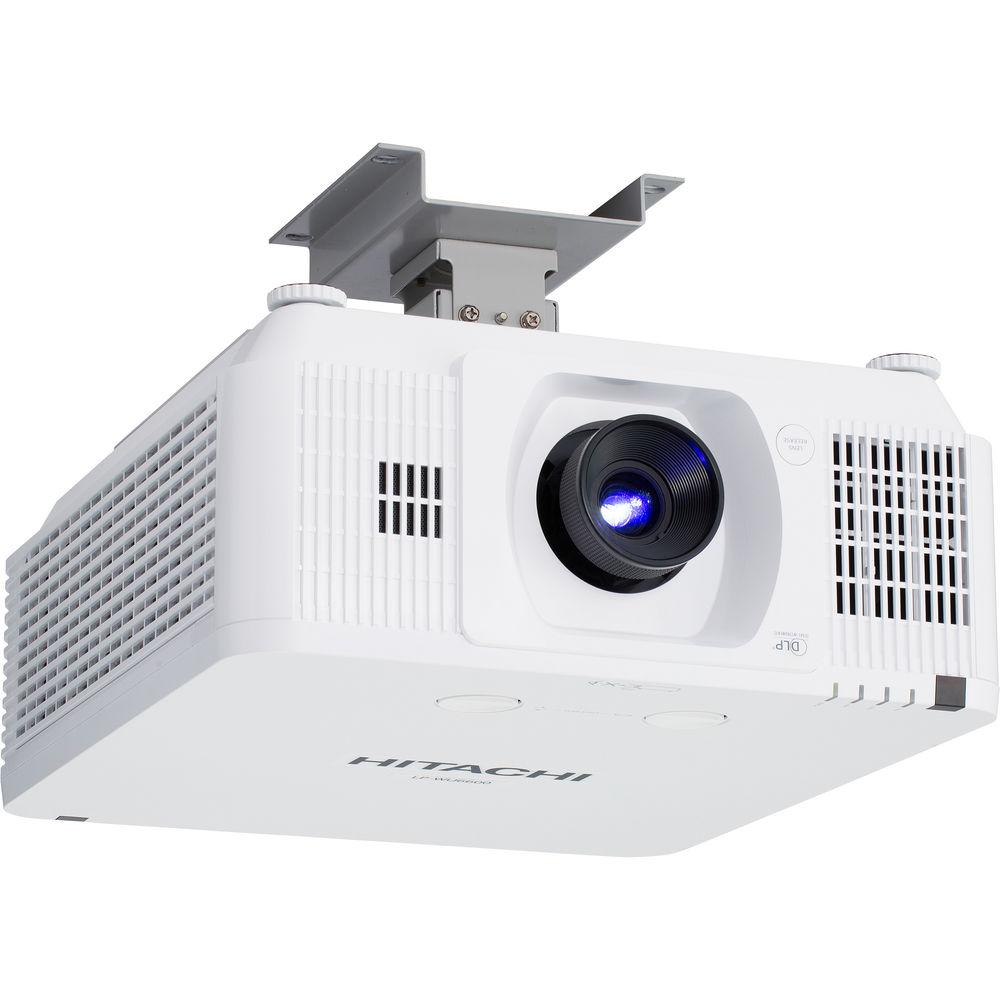

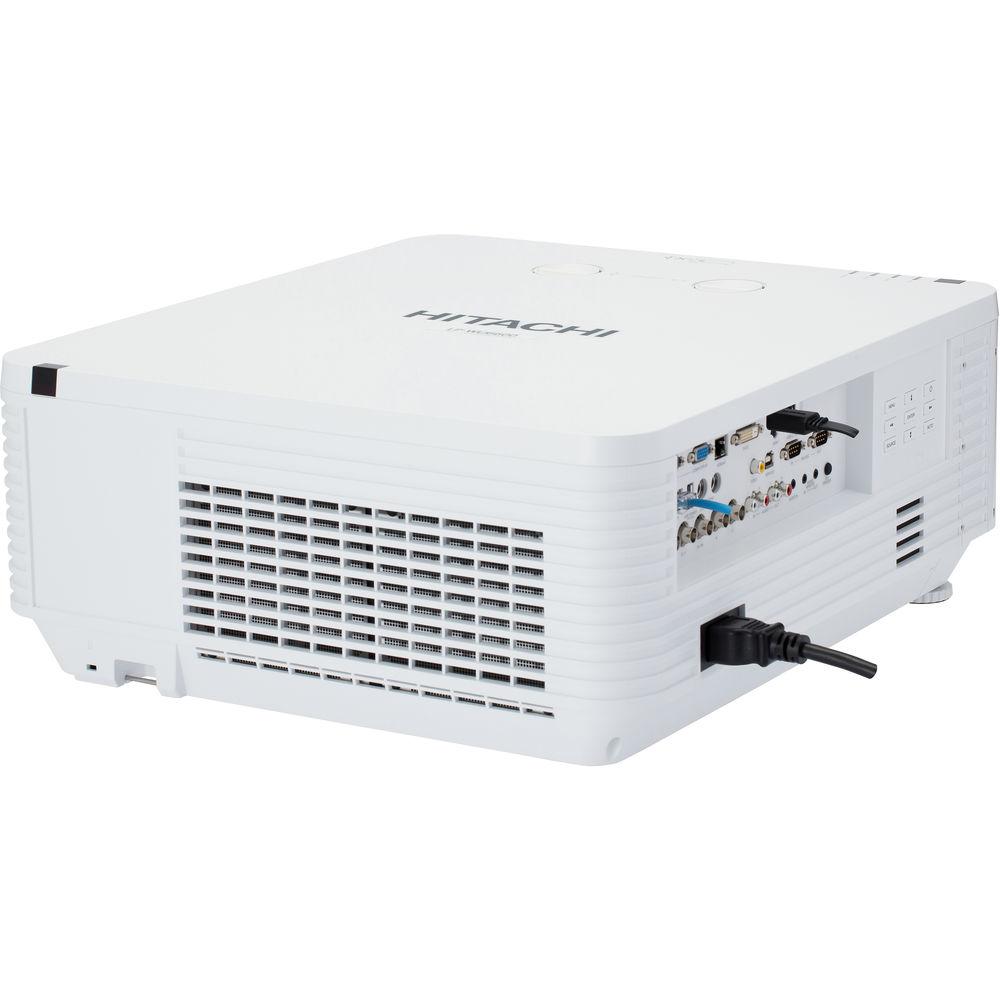

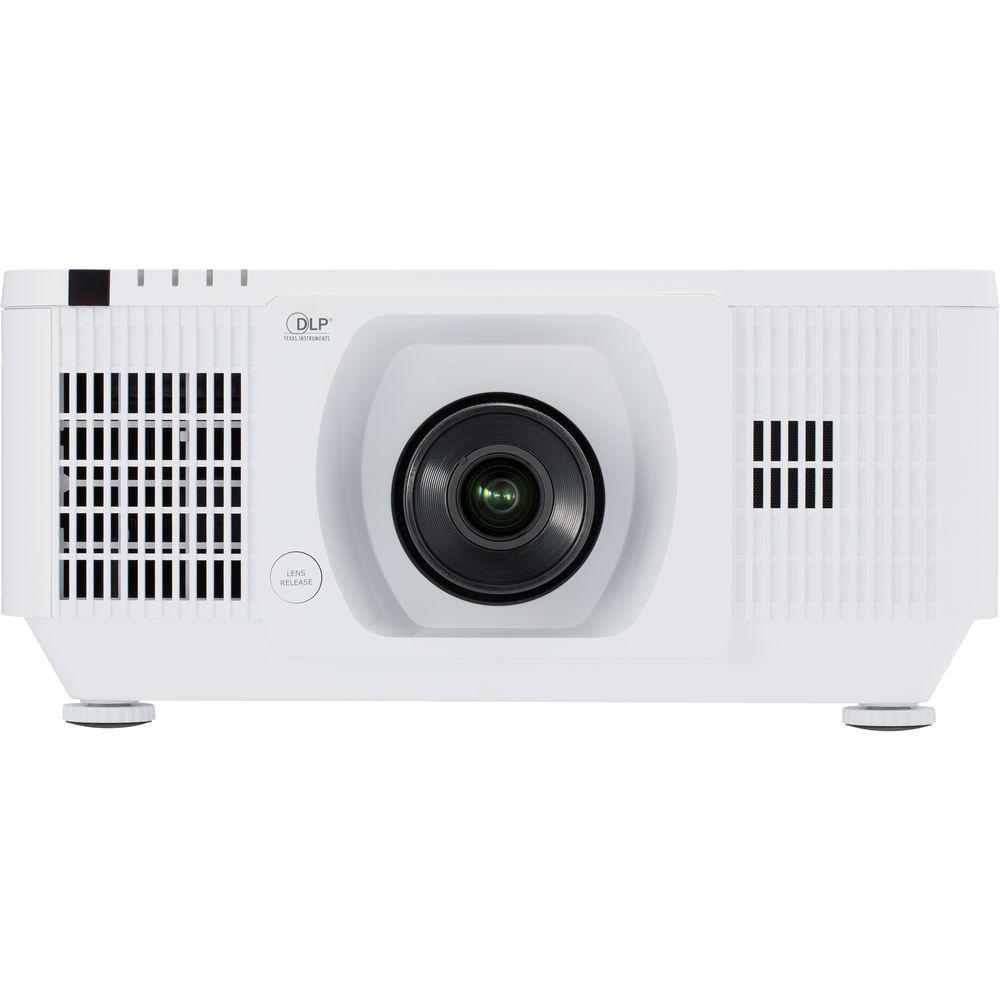

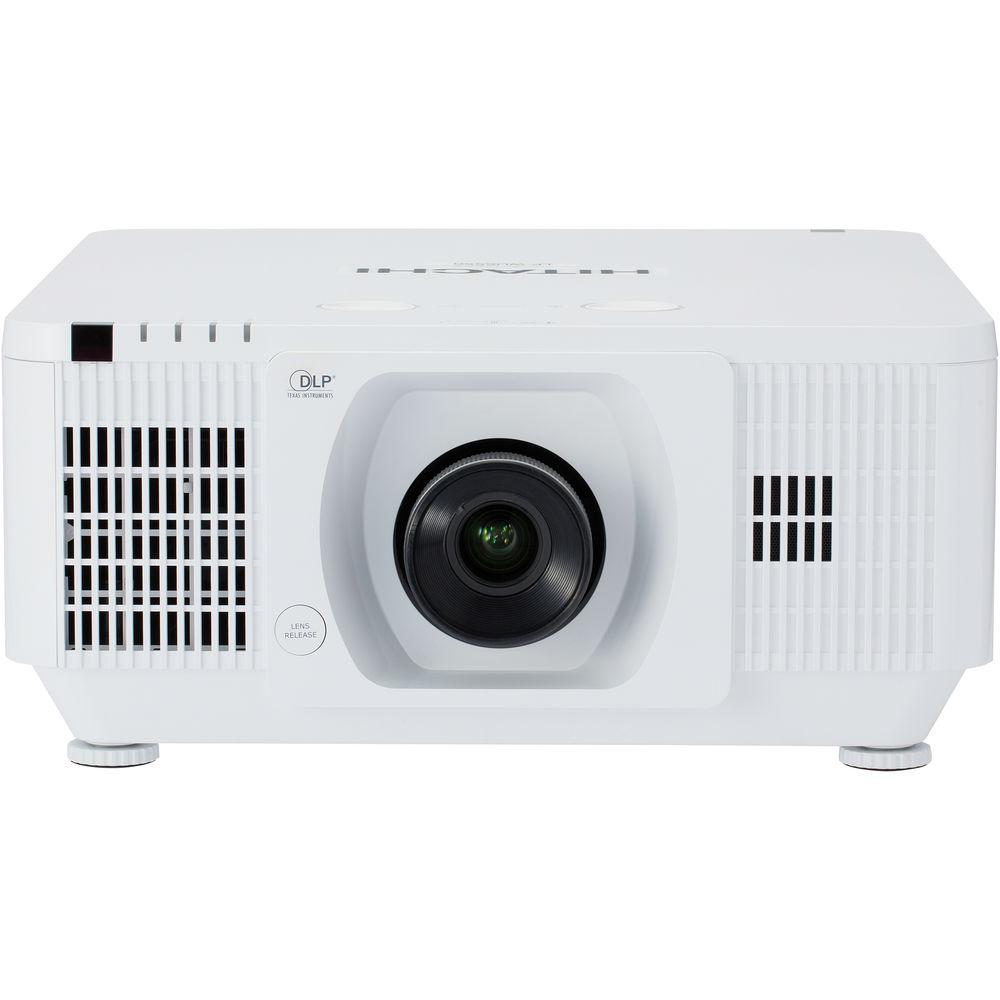

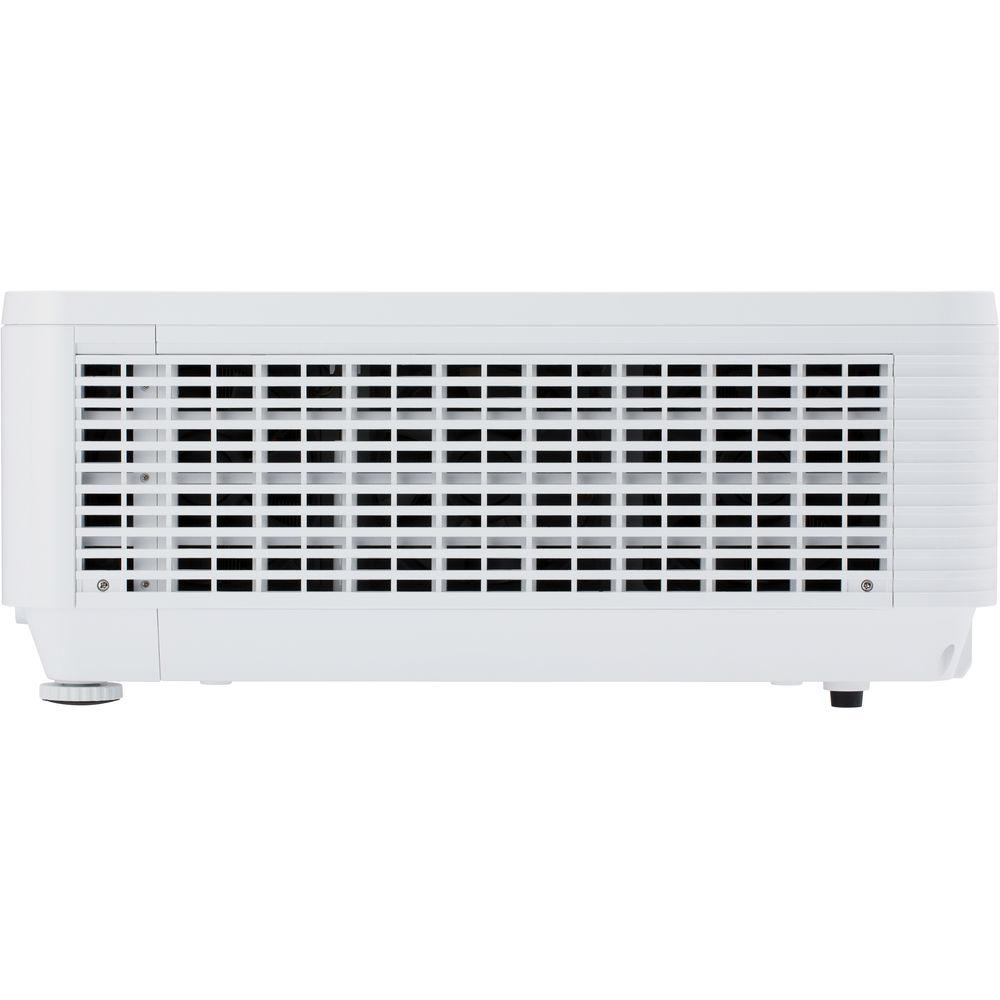

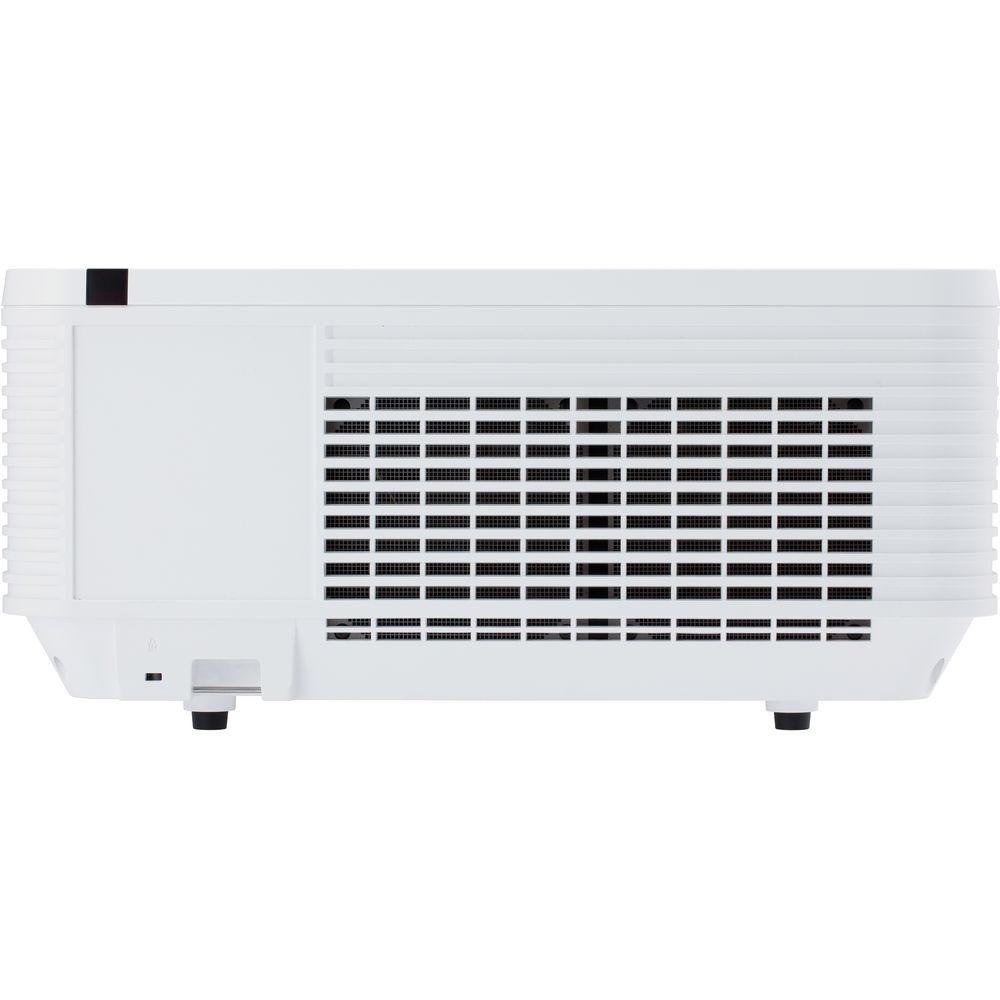

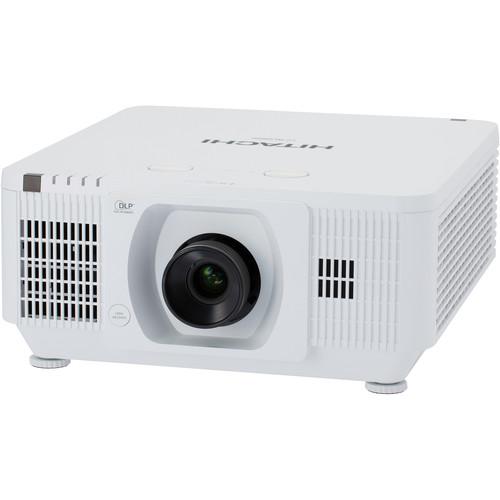

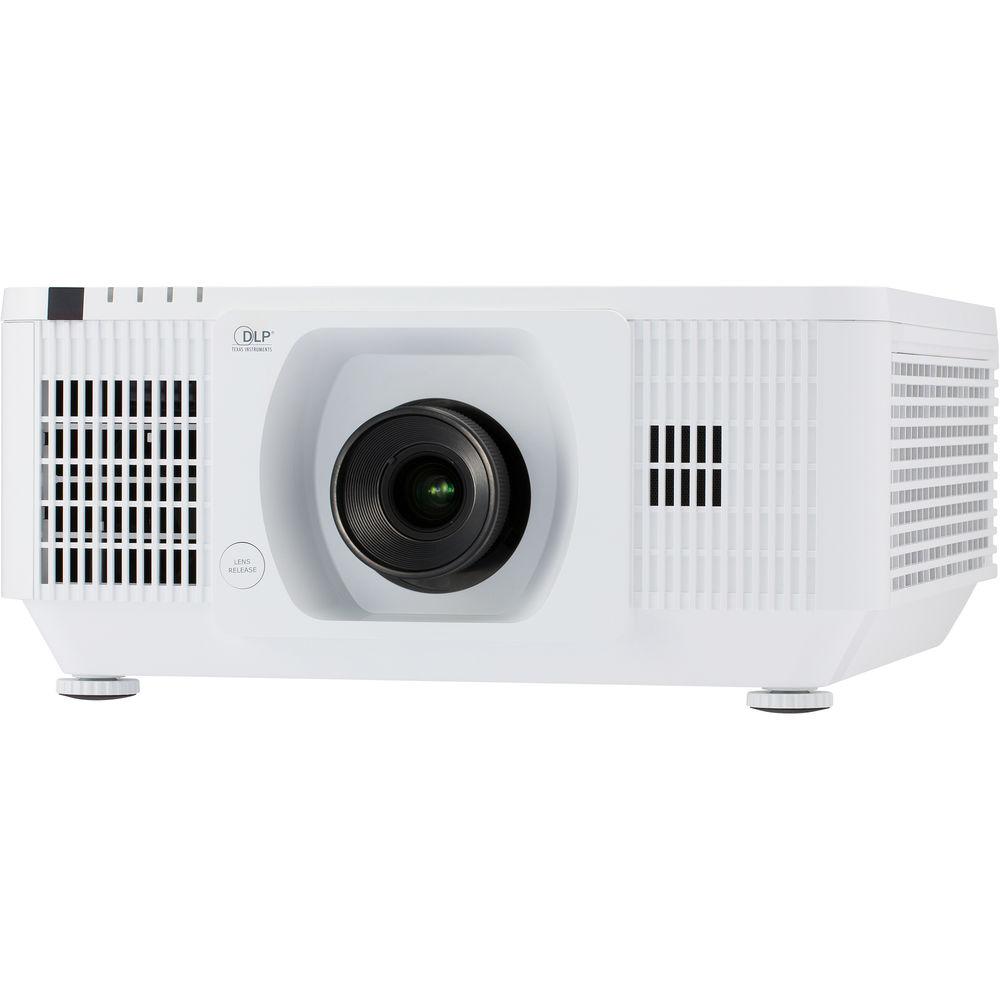

User Manual for Hitachi LP-WU6600 6000-Lumen WUXGA DLP Laser Projector with ML-64 Long Throw Lens Click to enlarge the picture
Contents of the user manual for the Hitachi LP-WU6600 6000-Lumen WUXGA DLP Laser
- Product category: Multimedia Projectors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Multimedia Projectors
 |
User manual for the Hitachi LP-WU6600 6000-Lumen WUXGA DLP Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|
Product description The LP-WU6600 6000-Lumen WUXGA DLP Laser Projector from Hitachi features 6000 ANSI lumens of brightness and a 1920 x 1200 WUXGA resolution. A built-in 12W speaker eliminates the need for an external sound system. The included ML-64 long throw lens has a 1.93-2.9 (WUXGA) throw ratio. Lastly, the lens is capable for projecting large images, and the 481" maximum diagonal display ensures that even in a large venue, everyone will be able to see your presentation. - With an approximate light source of 20,000 hours, the laser projector series is suitable for venues such as museums and restaurants
- DICOM (Digital Imaging and Communications in Medicine) Simulation Mode is suitable to project grayscale medical images such as X-rays, for training and educational purposes
- Color reproduction range is wide compared to lamp light projectors
- Dust-resistant sealed engine gives the projector resistance to the effects of dust and enables the projector to be used in a wide variety of environments
- Display rotation of 360° and portrait projection for creative applications and installation flexibility

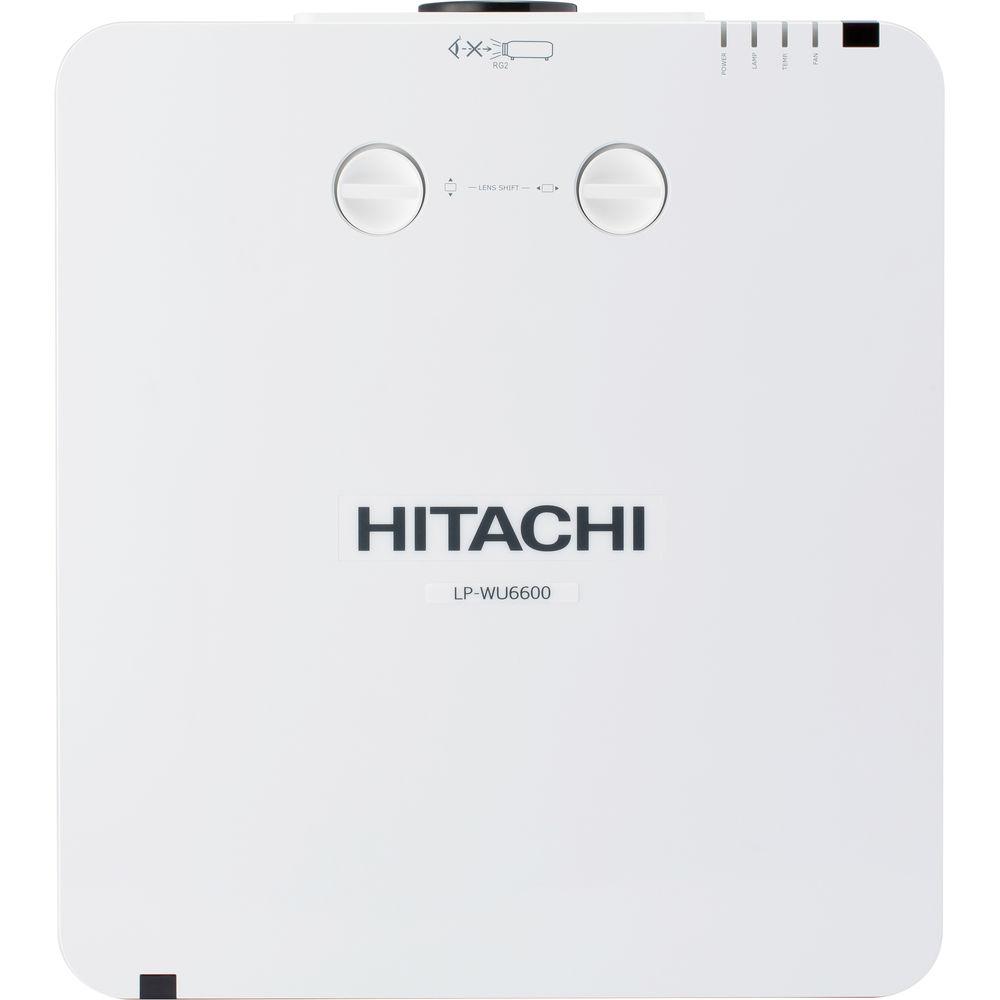

- Lens shift can adjust the position of image on the screen by turning the adjusters manually. This adjustment is useful to fit the image to the position without causing keystone distortion
- MHL (Mobile High-Definition) allows you to mirror your phone/tablet screen with the projector display
- Phosphor wheel with heat-resistant material to withstand high output from the laser light source
- Component Video: 480i, 480p, 576i, 720p, 1080i, 1080p
HDMI: 480p, 720p, 1080i, 1080p, Computer signal TMDS clock 27 to 162 MHz - Approvals: UL 60950-1 / cUL FCC Part 15 subpart B class A
In the Box Hitachi LP-WU6600 6000-Lumen WUXGA DLP Laser Projector with ML-64 Long Throw Lens Remote Control Power Cord 2 x AA Batteries RGB Cable Wire Remote Cable 2 x 3D Sync Cable Mount Cap ML-64 Long Throw Lens Limited 3-Year Warranty on Projector & 20,000 Hours on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi LP-WU6600 6000-Lumen WUXGA DLP Laser Projector with ML-64 Long Throw Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi LP-WU6600-ML64 Specs | | | Display System | 1-Chip DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 6000 Lumens
4670 Lumens | | Aspect Ratio | Native: 16:10
Supported: 4:3
Supported: 16:9 | | Contrast Ratio | 20000:1 | | DLP Link 3D | Yes | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 85 Hz | | | | Lens Shift | Horizontal: ± 5%
Vertical: to 15%
Vertical: + 55% | | Throw Distance | 161 - 243" / 408.94 - 617.22 cm | | Throw Ratio | 1.93 - 2.9:1 | | Projection Size | 32.1 - 481.1" / 81.53 - 1221.99 cm | | | | Keystone Correction | Horizontal: ± 25°

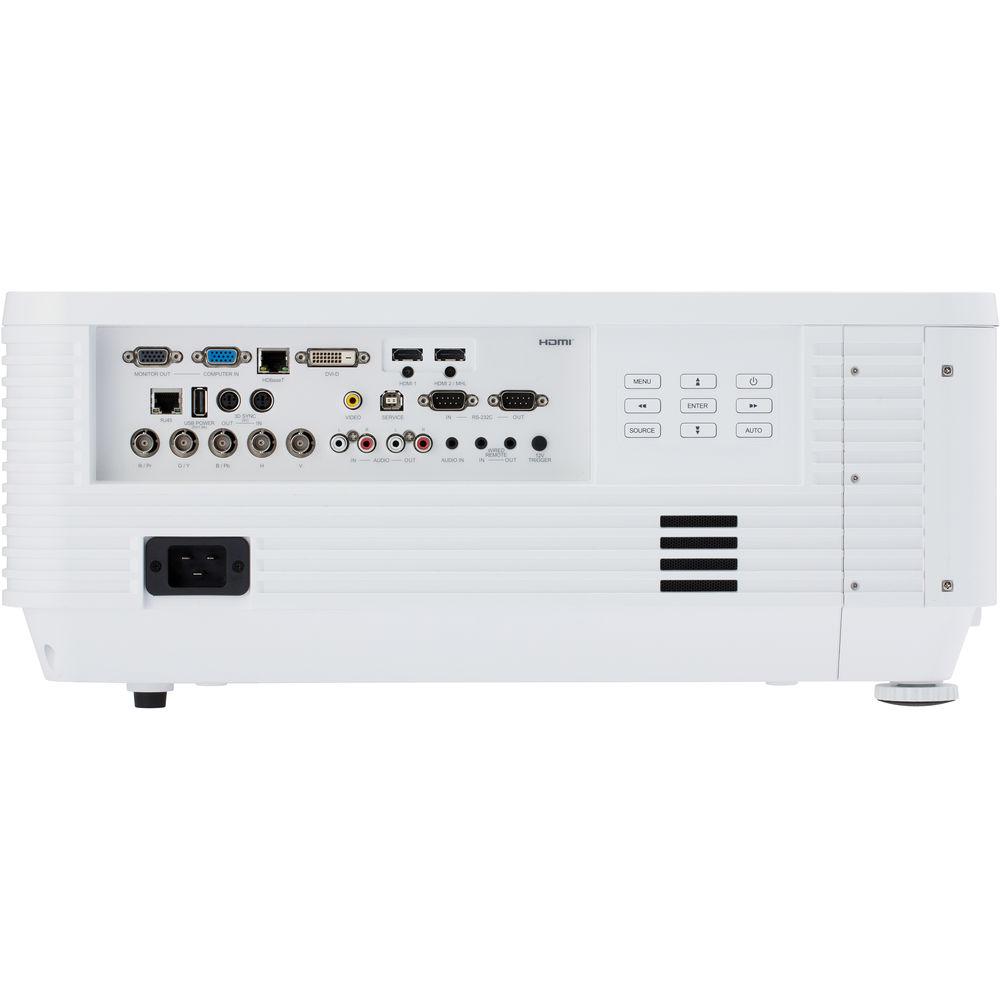

Vertical: ± 30° | | | | Inputs/Outputs | 1 x HDMI Video (Input)
1 x HDMI with MHL Support Video (Input)
1 x DVI-D Video (Input)
1 x HDBaseT (RJ45) Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 5BNC Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x RCA Stereo (L/R) Audio (Output)
1 x Unspecified Signal (DE-9) Control (Input/Output)
1 x USB Type-A Male
1 x USB Type-B Female
1 x 12 V Trigger Audio/Video
1 x 1/8" (3.5 mm) Mini Remote (Input/Output)
1 x VESA 3D Sync Video (Input/Output) | | | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Power Consumption | Medium Brightness: 650 W | | Dimensions (W x H x D) | 18.5 x 8.7 x 20.5" / 47.0 x 22.1 x 52.1 cm | | Weight | 54.5 lb / 24.7 kg approximately |
