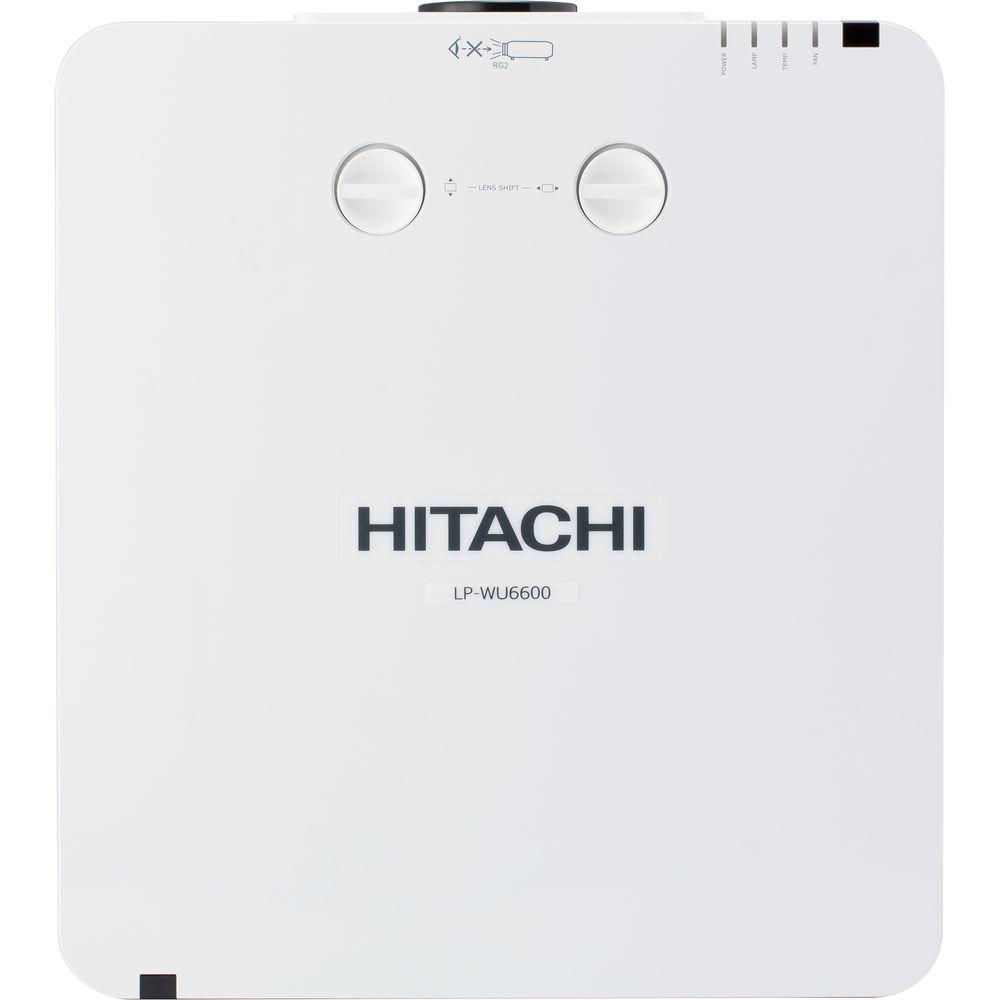

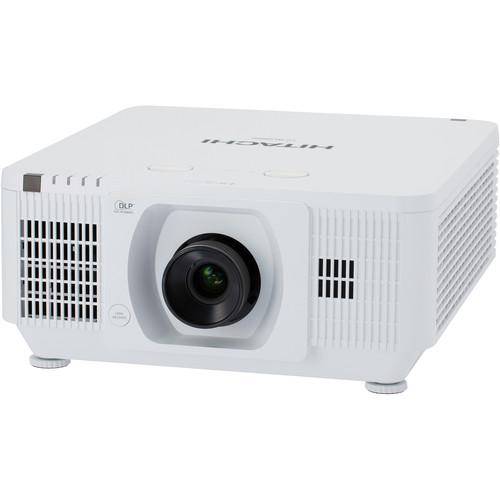

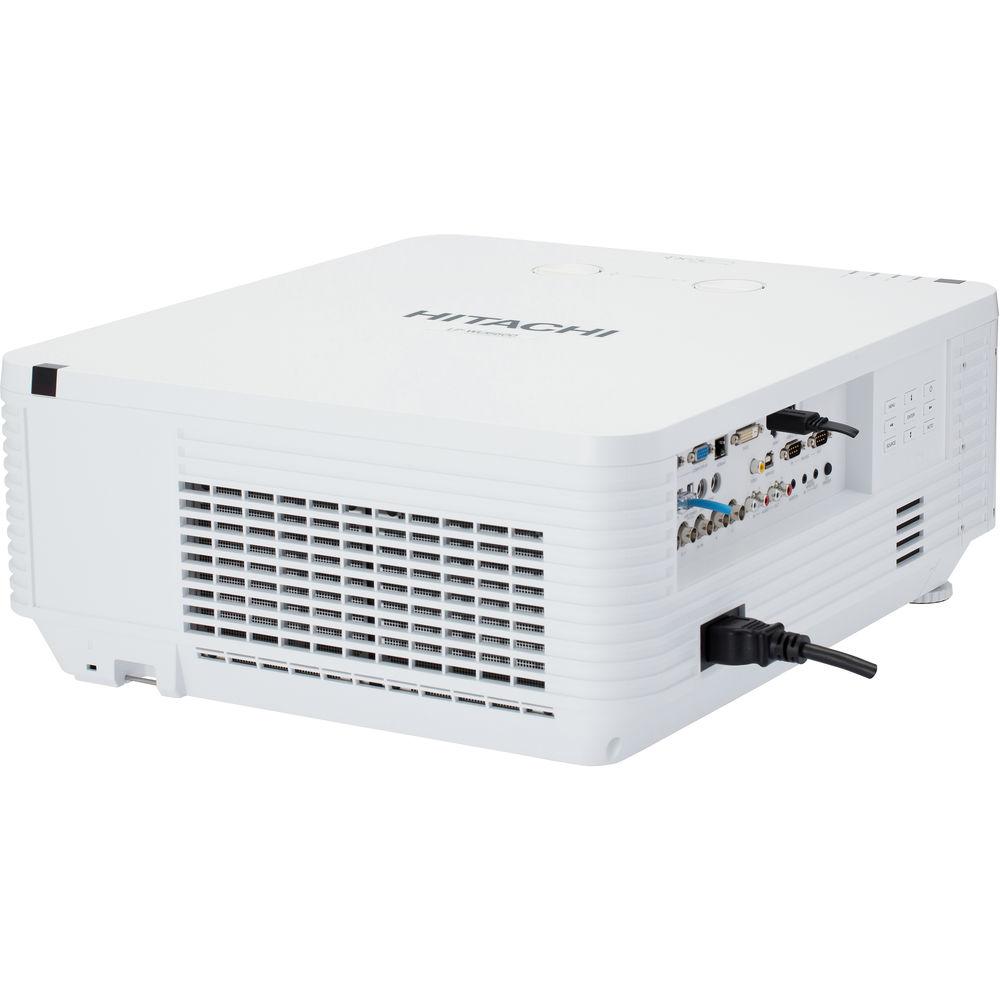

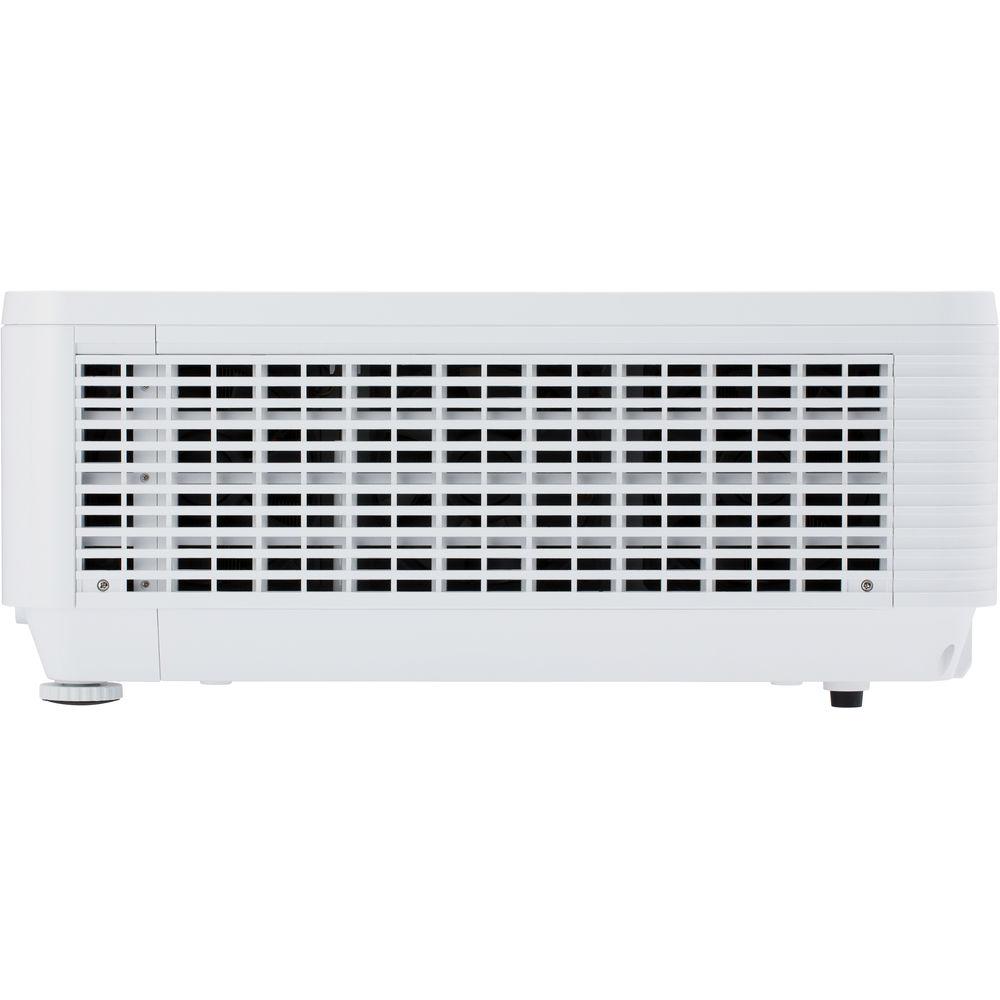

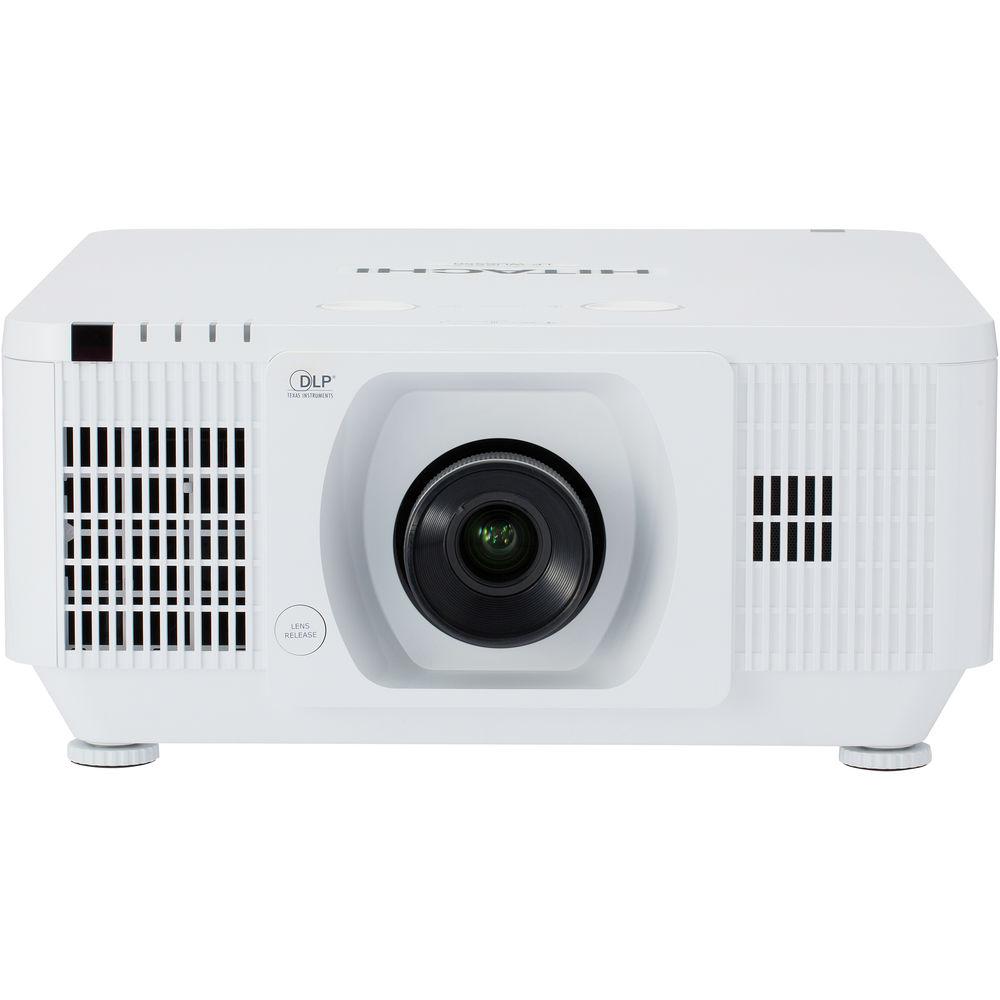

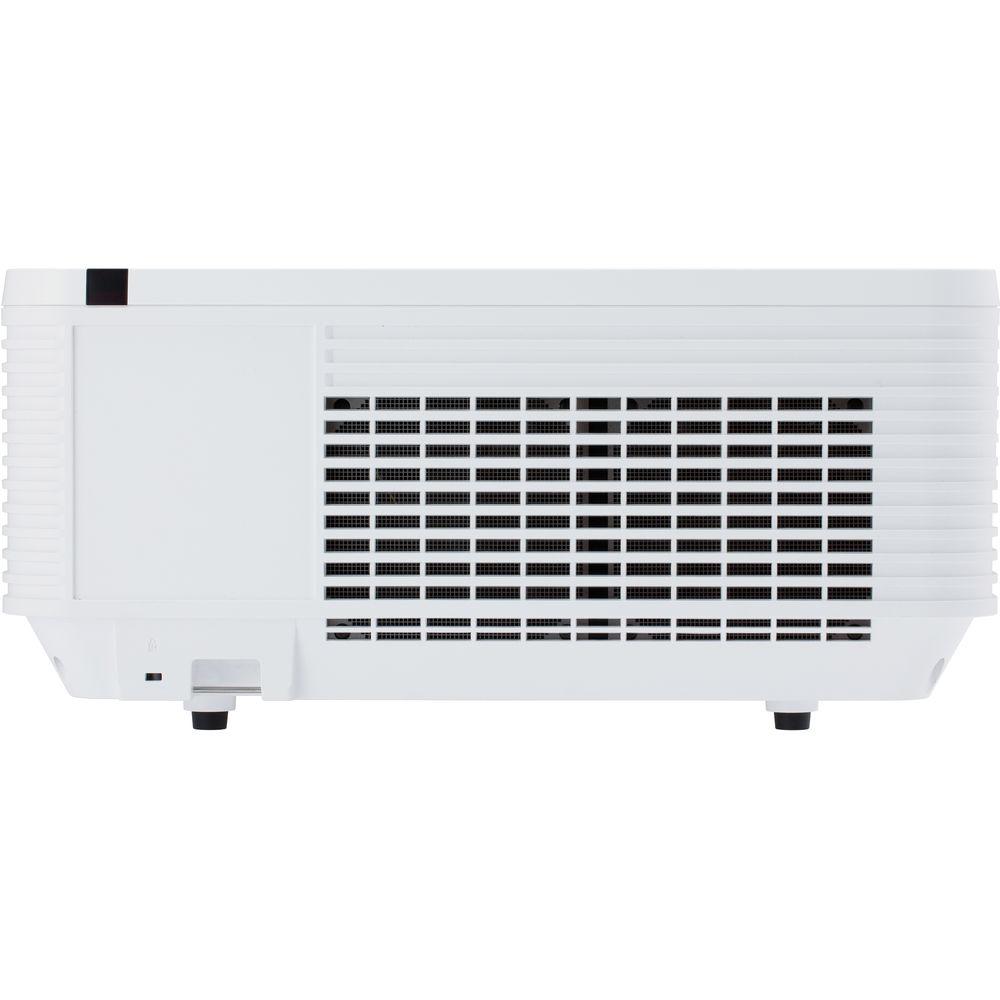

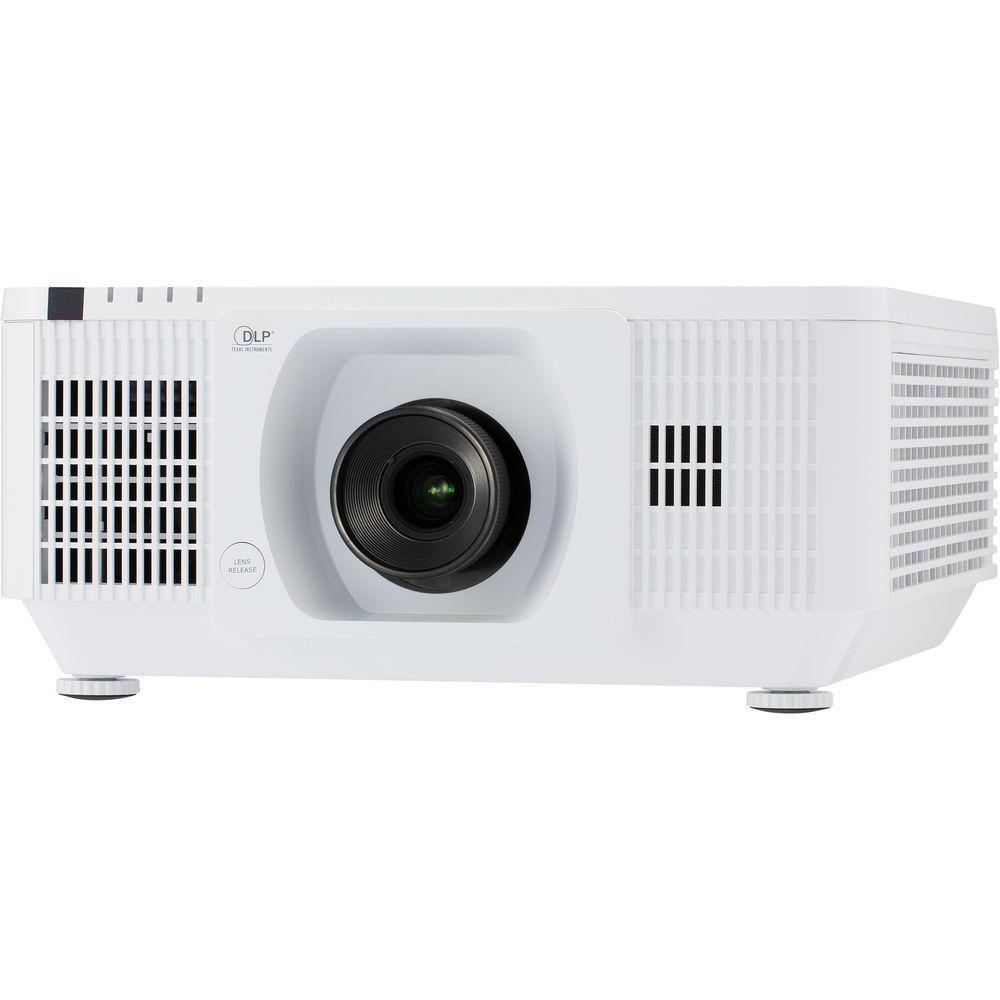

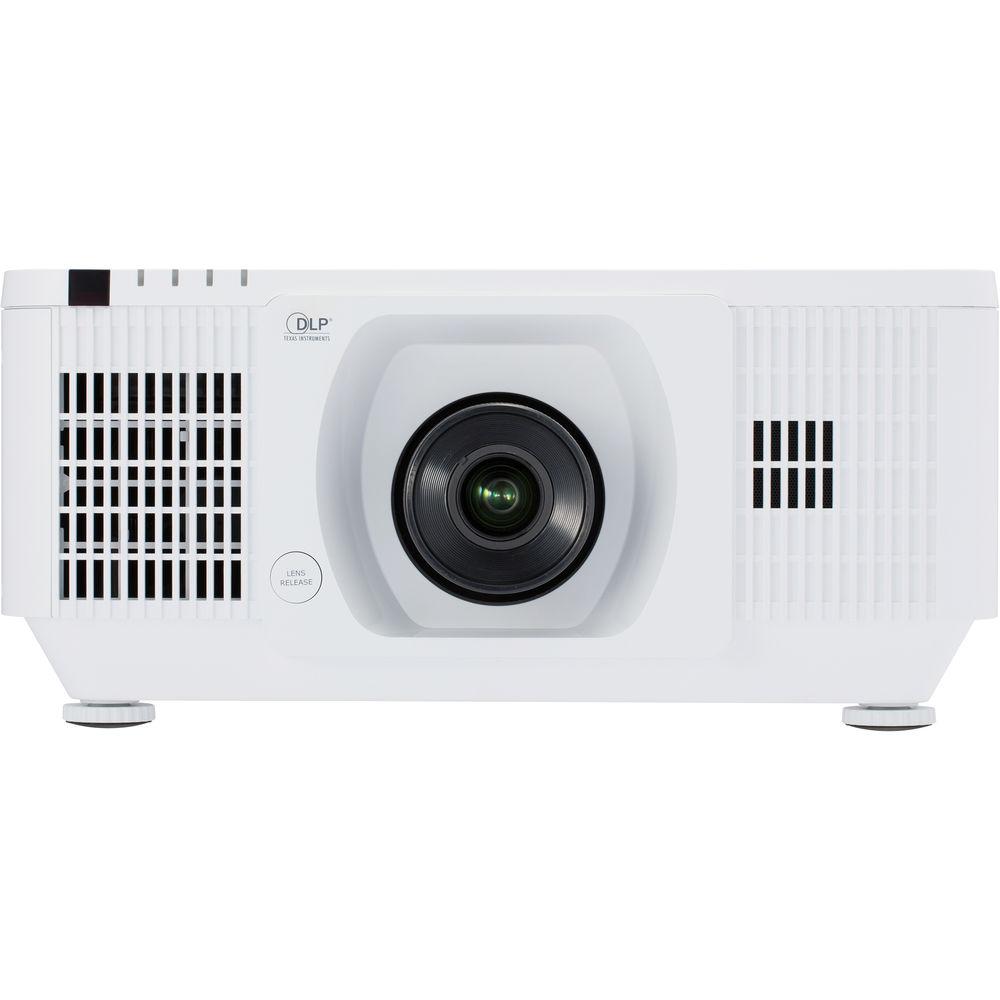

User Manual for Hitachi LP-WU6600 6000-Lumen WUXGA DLP Laser Projector with SL-63 Standard Lens Click to enlarge the picture
Contents of the user manual for the Hitachi LP-WU6600 6000-Lumen WUXGA DLP Laser
- Product category: Multimedia Projectors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Multimedia Projectors
 |
User manual for the Hitachi LP-WU6600 6000-Lumen WUXGA DLP Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|

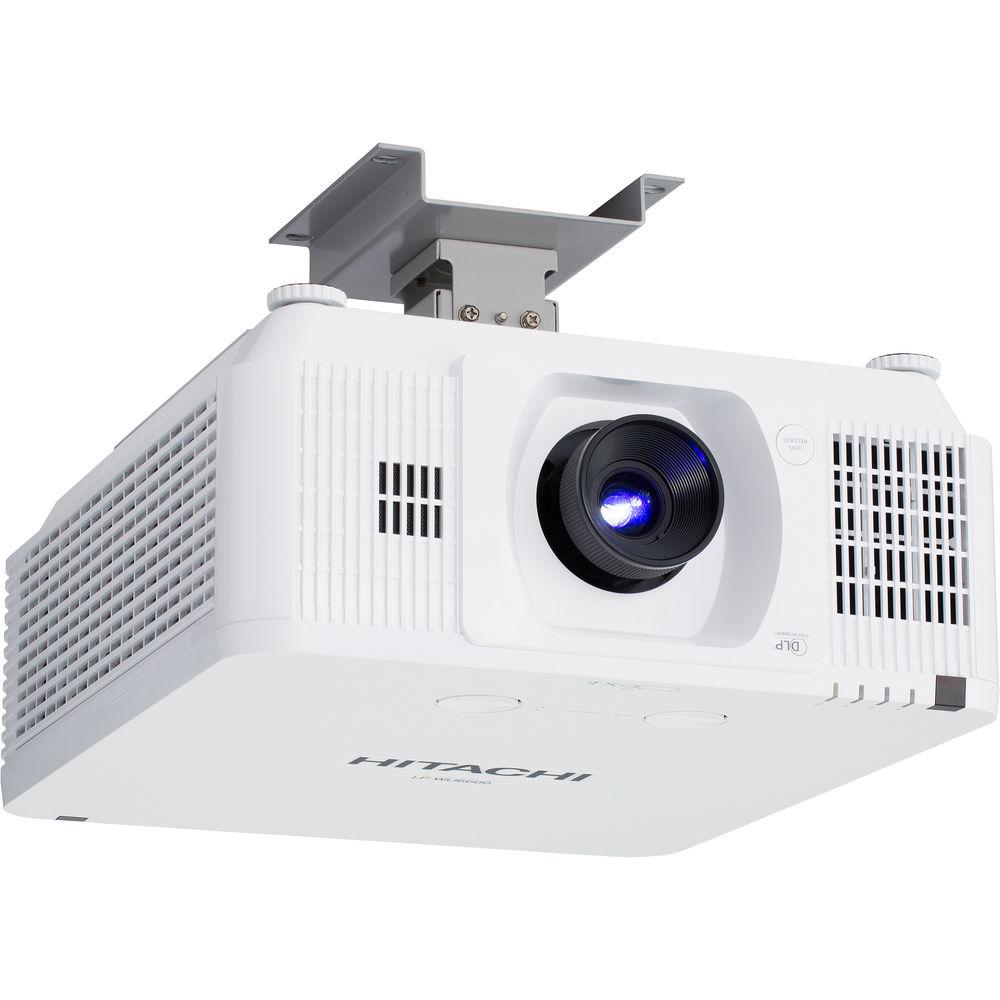

Product description The LP-WU6600 6000-Lumen WUXGA DLP Laser Projector from Hitachi features 6000 ANSI lumens of brightness and a 1920 x 1200 WUXGA resolution. A built-in 16W speaker eliminates the need for an external sound system. The included SL-63 standard lens has a 1.54-1.93 (WUXGA) throw ratio. Lastly, the lens is capable for projecting large images and the 211" maximum diagonal display ensures that even in a large venue, everyone will be able to see your presentation. - Lens Projection Distance
- 11 to 14' (3.4 to 4.3 m) projection distance for 100" screen (Full Screen) projector's front panel to screen
- Distance to Width Ratio
- 1.54 (Wide), 1.93 (Tele)
- Picture Modes
- Game / Movie / Vivid / TV / RGB / DICOM SIM
Laser mode (normal, eco, eco plus, dimming, extreme dimming, custom light)
Mirror reverse image, up-side down image
Blanking by remote control In the Box Hitachi LP-WU6600 6000-Lumen WUXGA DLP Laser Projector with SL-63 Standard Lens Wired Remote for LP-WU3500, CP-X5550, CP-WX5505, CP-WU5500, and CP-WU5505 Projectors SL-63 Standard Lens Limited 5-Year Warranty on Projector & 10,000 Hours on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi LP-WU6600 6000-Lumen WUXGA DLP Laser Projector with SL-63 Standard Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi LP-WU6600-SL63 Specs | | | Display System | 1-Chip 0.67" DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 6000 Lumens
4670 Lumens | | Aspect Ratio | Native: 16:10
Supported: 16:19 | | Contrast Ratio | 20000:1 | | DLP Link 3D | Yes | | | | Focus | Manual | | Throw Ratio | 1.54 - 1.93:1 | | Projection Size | 37 - 211" / 93.98 - 535.94 cm | | | | Keystone Correction | Horizontal: ± 25°

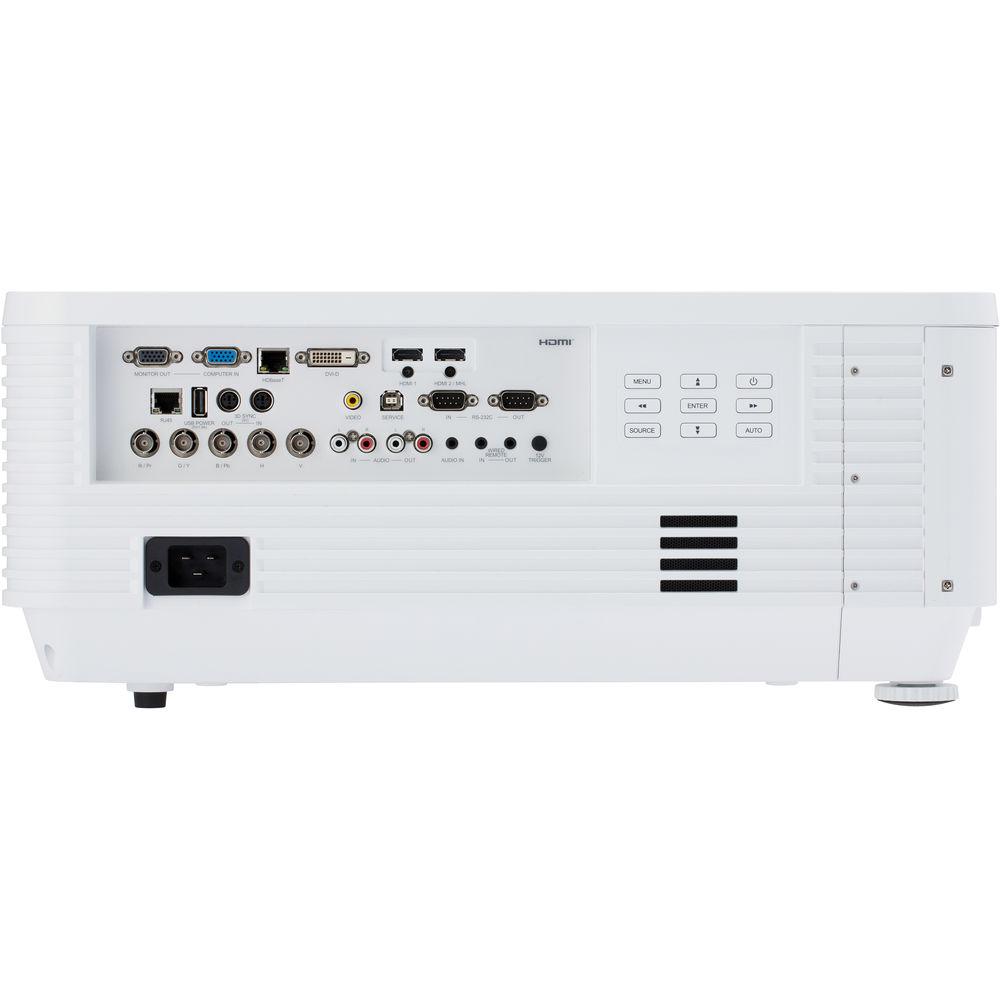

Vertical: ± 30° | | | | Inputs/Outputs | 2 x HDMI Video (Input)
1 x DVI-D Video (Input)
1 x HDBaseT (RJ45) Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 5BNC Video (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x RCA Stereo (L/R) Audio (Output)
1 x Unspecified Signal (DE-9) Control
1 x USB Type-A Male
1 x USB Type-B Female
1 x 12 V Trigger Audio/Video
1 x 1/8" (3.5 mm) Mini Remote (Input/Output)
1 x VESA 3D Sync Video (Input/Output) | | | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 35 dB
Low Brightness: 33 dB | | Supported Languages | Arabic
Canadian French
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hebrew
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | Power Consumption | Medium Brightness: 700 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 20.4 x 8.7 x 18.5" / 517.0 x 220.0 x 470.0 mm | | Weight | 52.91 lb / 24 kg |
