User Manual for Hitachi LP-WU6600 6000-Lumen WUXGA LED Projector Click to enlarge the picture
Contents of the user manual for the Hitachi LP-WU6600 6000-Lumen WUXGA LED Projector
- Product category: Multimedia Projectors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Multimedia Projectors
 |
User manual for the Hitachi LP-WU6600 6000-Lumen WUXGA LED Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|

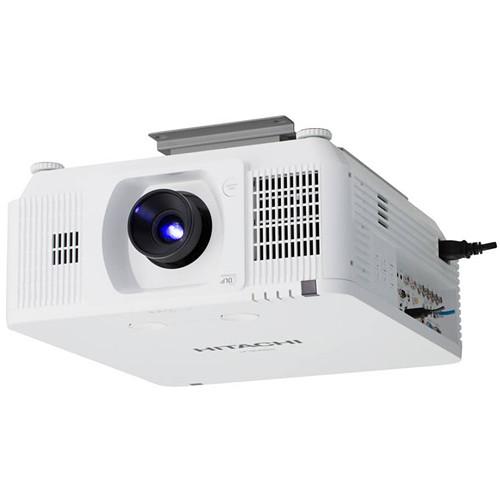

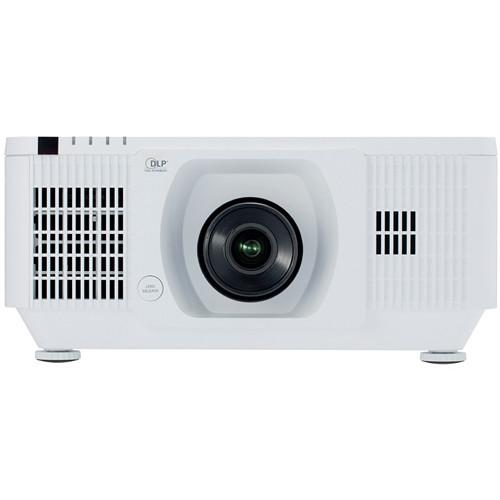

Product description The LP-WU6600 6000-Lumen WUXGA LED Projector from Hitachi features 6000 ANSI lumens of brightness and a 1920 x 1200 WUXGA resolution. The laser diode light source offers approximately 20,000 hours of operation time. It can provide 24/7 use for digital signage applications and is a suitable for large auditoriums, conference rooms, museums, and concert or stage productions. - Laser Light Source
- Light source combines blue laser diodes and phosphor which can achieve 6000 lumens of brightness. The projection image is bright and clear, with vivid color. With an approximate light source of 20,000 hours, the laser projector series is suitable for other venues such as museums and restaurants.
- DICOM Simulation Mode
- The DICOM (Digital Imaging and Communications in Medicine) Simulation Mode projects grayscale images which approximate DICOM Part 14 specifications. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.
- Wide Range of Color Reproduction
- The color reproduction range is wide compared to lamp light projectors and projects colored images.
- Dust Resistant Sealed Engine
- The air tight structure of the optical engine makes it possible to minimize dust particles entering which could eventually lead to a decrease in brightness. This construction gives the projector resistance to the effects of dust and enables the projector to be used in a wide variety of environments.
|
Upload User Manual
Have you got an user manual for the Hitachi LP-WU6600 6000-Lumen WUXGA LED Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi LP-WU6600 Specs | | | Display System | DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 6000 Lumens | | Aspect Ratio | Native: 16:10 4:3 / 16:9 compatible | | Contrast Ratio | 20000:1 Dynamic black on | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 85 Hz | | | | Keystone Correction | Horizontal: ± 25°

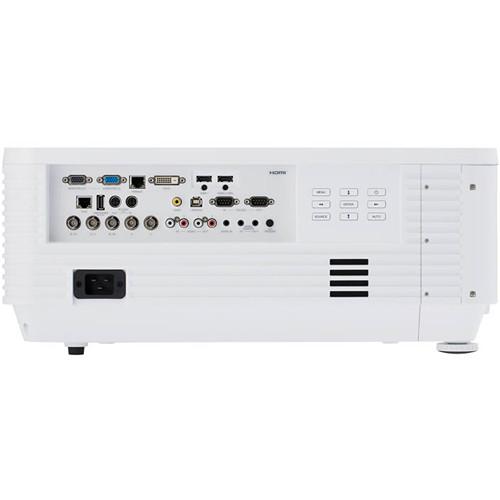

Vertical: ± 30° | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x DVI-D Video (Input)
1 x HDBaseT (RJ45) Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 5BNC Video (Input)
2 x Ethernet (RJ45) LAN
1 x 1/8" (3.5 mm) Mini Audio (Input/Output)
1 x 1/8" (3.5 mm) Mini Remote (Input/Output)
2 x Unspecified Signal (DE-9) Control (Input/Output)
1 x 12 V Trigger Video 3D Sync: 1 x VESA 3-pin (Input/Output) | | Wireless LAN / Wi-Fi | None | | | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Power Consumption | Medium Brightness: 650 W | | Temperature | Operating
32 to 95°F (0 to 35°C)
Operating
32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 18.6 x 8.7 x 20.5" / 47.2 x 22.1 x 52.1 cm | | Weight | 54.5 lb / 24.7 kg Approximately |
