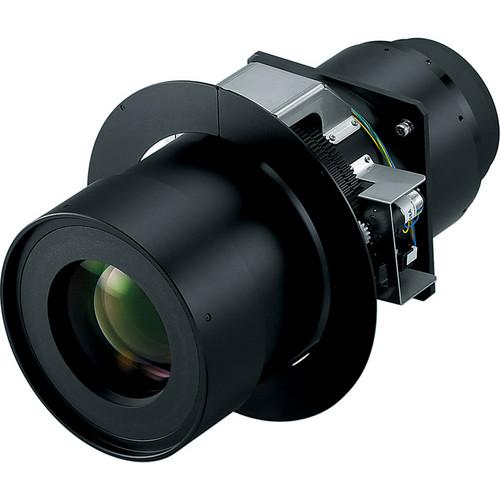

User Manual for Hitachi UL-806 Ultra Long-Throw Zoom Lens Click to enlarge the picture
Contents of the user manual for the Hitachi UL-806 Ultra Long-Throw Zoom Lens
- Product category: Projector Lenses Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Projector Lenses
|
User manual for the Hitachi UL-806 Ultra Long-Throw Zoom Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|
Product description The Hitachi UL-806 Ultra Long-Throw Zoom Lens works with the Hitachi CP-X10000, CP-WX11000 and CP-SX12000 liquid-crystal panel projectors. It's compatible with both XGA and WXGA resolutions, which increases its versatility. The UL-806 is built for large venues where the throw distance needs to be very long and the image size can vary from large to small. It features a motorized focus and zoom, with a zoom ratio of 1:1.8. It also has vertical and horizontal lens shift for moving the image up or down and left or right, which increases flexibility when installing your projector.The highlight of the UL-806 is its ultra long-throw ratio of 1:5.0 - 9.2 and its impressive maximum diagonal projection size of 700". The ultra long-throw ratio is ideal for projecting well-defined, vivid images from a distance and even smaller sized images projected from far away will be sharp and clear. However, its real strength is projecting large images and the 700" maximum for a diagonal display ensures that even in large venues, everyone will be able to see your presentation. - Ultra Long-Throw Ratio
- Ideal for projecting smaller, sharper images from a further distance away, the UL-806 is a perfect lens for large venues. You'll be able to hide away your projector in the back of a large, expansive room. With the UL-806, moving the projector further away from the screen won't affect the picture quality
- Motorized Zoom
- The UL-806 is a motorized zoom lens with a 1:1.8 zoom ratio. Its focal length is 136 - 247 mm
- Vertical & Horizontal Lens Shift
- Vertical lens shift allows the projector to optically move the image up and down so the projector will always be properly placed, even in varying installation scenarios. Horizontal lens shift works the same way for side-to-side movement. Unlike digital keystone correction, lens shift doesn't degrade the image quality
- XGA & WXGA Aspect Ratio
- The UL-806 works with both 4:3 and 17:10 aspect ratios. It has the ability to adapt to a widescreen resolution, which is great for whiteboards and large venues that have widescreens
- Impressive Projection Size
- The UL-806 is capable of projecting a 700" diagonal image. This, combined with its long-throw capability, makes it an ideal lens for larger venues
UPC: 050585161153 In the Box Hitachi UL-806 Ultra Long-Throw Zoom Lens Blind Sheet Lens Cap Option Lens Guide Lens Replacement Guide Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi UL-806 Ultra Long-Throw Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi UL-806 Specs | | | Lens Type | Long-Throw, Zoom | | Motorized | Yes | | | | Throw Ratio | 5.0 to 9.2:1 | | Aperture | f/2.3 to 3.5 | | Focal Length | f = 136 to 247mm | | Throw Distance | 155 to 5638" / 3.9 to 143.2 m | | Projection Size | 40 to 700" / 1.0 to 17.8 m | | Aspect Ratio | 4:3
17:10 | | Lens Shift Ratio |
Vertical: 3.7:-1 to -1:3.7 (XGA)
Horizontal: 13:-1 to -1:13 (XGA)
Vertical: 2.3:-1 to -1:2.3 (WXGA)
Horizontal: 10:-1 to -1:10 (WXGA) | | Zoom Ratio | 1.8 | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 14.5 x 10.0 x 9.2" |
