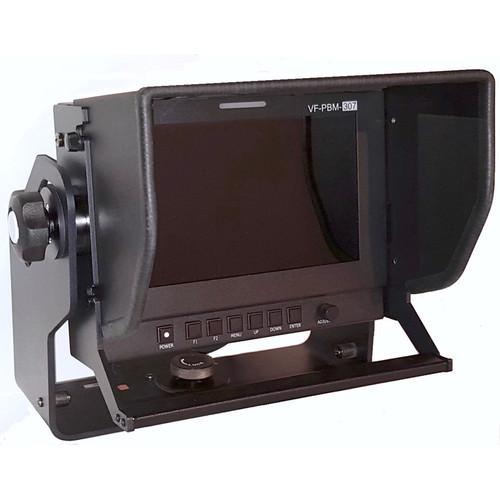

Product description The VF-PBM307 7" HD Color Viewfinder from Hitachi has a TFT LCD display with a 400 cd/m2 brightness output and a native resolution of 1024 x 600. It supports 1080p, 1080i, 720p, 480i/576i, and 480p/576p signals, which are all scaled to the monitor's native resolution. The viewfinder features mono/color display modes and LCD dimming control. The VF-PBM307 has three user-programmable memories to store and recall operational settings. - Features backlit compensation
- Viewfinder power on/off button
- Preset and user-programmable color temperature (User, Var, 11,000K, 9300K, 6500K, 5400K, and 3200K)
- Manual dimming level control
- Tally LED function (front to green/red/amber, back to red)
- Switchable aspect ratio: 16:9, 4:3
- Supports overscan, zero-scan, and pixel-to-pixel
- Picture magnification (2x, 3x, 4x, 5x)
- Preset gamma selection (user-selectable gamma curves)
- Graphic-based on-screen display (OSD) and six languages (Unicode system)
- Preset and user-programmable markers
- EBU action/graphics, preset safety zones
- Selectable color for safety, marker, and crosshair center markers
- Auto-calibration K-10 (Klein)
- Programmable characters for indicating tally-on condition, camera ID, and cameraperson's name
- Component(YPbPr) input with active loop-through out
- Mechanical mount provided with 1/4"-20 threaded hole for use only with Hitachi-supplied AT-90, AT-500, and AT-750 viewfinder mounts
In the Box Hitachi VF-PBM307 7" HD Color Viewfinder VC-90A VF-Cable Input Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi VF-PBM307 7" HD Color Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi Plura VF-PBM-307 Specs | Panel | 7" / 17.8 cm LCD | | Resolution | 1024 x 600 | | Contrast Ratio | 900:1 | | Aspect Ratio | Switchable: 16:9, 4:3 | | Brightness | 400 cd/m2 | | Viewing Angle | Right/Left: 165° (typical)
Up/Down: 165° (typical) | | Supported Signals | Component (YPbPr/RGB):
1080p, 1080i
720p
576p, 576i
480p, 480i | | Maximum Analog Input Level | 1 Vpp (Y with sync), 0.7 Vpp (PbPr) | | Dimensions | 5.7 x 7.6 x 2.4" / 14.5 x 19.3 x 6.1 cm | | Weight | Not specified by the manufacturer | | | | Package Weight | 11.25 lb | | Box Dimensions (LxWxH) | 18.0 x 11.0 x 5.5" |
