User manual
HIVE LIGHTING 2-Hornet 200-C PAR Spot

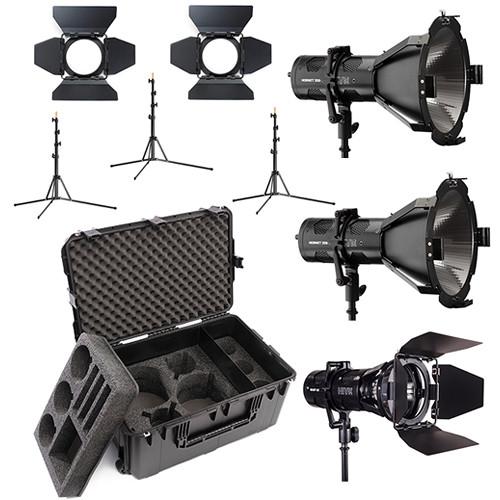

User Manual for HIVE LIGHTING 2-Hornet 200-C PAR Spot LED, 1-Wasp 100-C 3-Light Kit with Hard Rolling Case

• Product category: LED Lights HIVE LIGHTING
• Brand: HIVE LIGHTING
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HIVE LIGHTING LED Lights

Product description

• Hornet 200-C PAR Spot Omni-Color LED Light The Hornet 200-C PAR Spot Omni-Color LED Light from Hive is a versatile 2.6 lb LED light source that measures 9" in length and 4" in diameter, making it a great choice for tight spaces with minimal support requirements. The light has a 22? PAR spot reflector that makes it an ideal choice for selective lighting or for long throw work. The beam can be further modified by the included 4-way barndoors.Control is the key word in the construction of the 200-C. Hive uses what they call Perfect S.H.O.T controls which is an umbrella term for complete control and adjustment of every aspect of light output. Part of the success of the system is due to the use of 7 LED-chip blending. Instead of the traditional 3 colors, Hive uses red, amber, lime, cyan, green, blue, and sapphire for nearly infinite color combinations with a high CRI/TLCI rating of 98 and 97. Color can be adjusted from a very warm amber 1650K to an icy blue 8000K. But control doesn't stop there. There's 360-degree hue adjustment around the color wheel as well as 0-100% saturation control. The 200-C can also be dimmed from 0-100%. While of course you can make all these adjustments manually, you can also make them remotely via your smartphone or onboard wired or wireless DMX. Thanks to its 100-240 VAC power supply, the 200-C is ready for worldwide use but it will also run on optional batteries when mains power is unavailable
  Perfect S.H.O.T. Controls
  • The 200-C has 0-100% saturation adjustment, 360° hue control, output control from 0-100%, and color temperature control from 1650 to 8000K for nearly infinite combinations for precise color balance.
  7-Color Chip
  • The 200-C uses red, amber, lime, cyan, blue, green, and sapphire LEDs instead of the traditional 3-color system to achieve a high CRI/TLCI of 98/97 to render colors faithfully with no output loss or color degradation.
  Low Power Draw, Battery or AC Power
  • The Wasp 200-C uses just 150W to produce light output comparable to a 650-1000W incandescent. Its 9" length and multiple mounting points allow for easy rigging to cameras, drones, practicals, stages, and sets. The 200-C can run off a battery or universal wall power.
  Control
  • The 200-C's functions can be controlled manually (locally) or remotely via your smartphone or DMX.
  Small and Lightweight
  • The 200-C is 9" long and weighs 2.6 lb.
  UPC: 856211006931
• Wasp 100-C Omni-Color LED Light Kit The Wasp 100-C Studio PAR Spot LED Light from Hive is a lightweight, versatile LED source with a small form factor and superior performance features. The light has a 22°, highly polished reflector and 4-way barndoors, making it a great choice for selective lighting or long throw work. Among the available optional accessories includes a 180° flood reflector for wider coverage. The 100-C has a standard yoke with a 5/8" receiver for stand mounting.Control is the key word in the construction of the 100-C. Hive uses what they call Perfect S.H.O.T controls which is an umbrella term for complete control and adjustment of every aspect of light output. Part of the success of the system is due to the use of 5-chip LED blending. Instead of the traditional 3 colors, Hive uses Red, Amber, Lime, Cyan, and Sapphire for nearly infinite color combinations with a high CRI/TLCI rating of 98 and 97. Color can be adjusted from a very warm amber 1650K to an icy blue 8000K. But control doesn't stop there. There's 360° hue adjustment around the color wheel as well as 0-100% saturation control. The 100-C can also be dimmed from 0-100%. Once you've grown accustomed to the 100-C's features, you'll want to take it everywhere, and thanks to its 100-240 VAC power supply, you can. The 100-C comes with the previously mentioned 22° reflector, a power supply mounting bracket, and a set of 4-leaf barndoors.
  Perfect S.H.O.T. Controls
  • The 100-C has 0-100% saturation adjustment, 360° hue control, output regulation from 0-100%, and color temperature control from 1650 to 8000K for near infinite combinations to get a precise balance.
  5-Chip Color Blending
  • The 100-C uses red, amber, lime, cyan, and sapphire LEDs instead of the traditional 3-color system to achieve a high CRI (98) and TLCI (97) to render colors faithfully with no output loss or color degradation.
  Small and Light
  • The 100-C is 7.5" long and weighs just 5 lb.
  UPC: 856211006894

• 4-Way Barndoors

• Universal Power Supply

• PAR Spot Reflector

• Stand Mount

• Limited 2-Year Warranty

• PAR Reflector for Wasp 100-C Light

• Wasp 100-C Universal AC Power Supply

• Wasp 100-C 4-Leaf Barndoors

• Standard Yoke with 5/8" Receiver

• Limited 1-Year Warranty

Also Includes

• 3 x Light Stand
• Hard Rolling Case
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Hornet 200-C PAR Spot Omni-Color LED Light

  Beam Angle	22°
  Color Temperature	1650 to 8000K
  Color Accuracy Standard	CRI 98 TLCI 97
  Cooling System	Passive
  Dimming	Yes, 0 to 100% (Continuous)
  Display	LCD
  Housing Material	Aluminum
  Photometrics	22°: 1100 fc / 11,836 lux at 5' / 1.5 m 275 fc / 2959 lux at 10' / 3 m
  Fixture Dimensions	4.0 x 9.0" / 10.2 x 22.9 cm
  Fixture Weight	2.6 lb / 1.18 kg

  Power Input Connector	4-Pin XLR
  DMX Connector	5-Pin XLR

  Fixture Mount	None
  Accessory Mount	None

  Yoke Material	Aluminum
  Yoke Type	Yoke/Bracket

  Remote Control Type	DMX, Wi-Fi

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	24 to 36 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	150 W

  Box Dimensions (LxWxH)	18.0 x 12.5 x 12.0"

• Wasp 100-C Omni-Color LED Light Kit

  Beam Angle	22 to 180°
  Color Temperature	1650 to 8000K
  Color Accuracy Standard	TLCI 97 CRI 98
  Cooling System	None
  Dimming	Yes, 0 to 100% (Continuous)
  Display	LCD
  Housing Material	Aluminum
  Photometrics	49 fc / 527.2 lux at 15' / 4.57 m
  Fixture Dimensions	Spot: 4.0 x 7.5" / 10.2 x 19.1 cm (Including Yoke)
  Fixture Weight	5 lb / 2.27 kg (Including Receiver)

  Power Input Connector	4-Pin XLR
  DMX Connector	None

  Reflector Mount	Bowens S-Type
  Lens Diameter	5" / 12.7 cm

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Yoke Material	Aluminum
  Yoke Type	Yoke/Bracket

  Remote Control Type	Wi-Fi

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 28 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	100 W

  Box Dimensions (LxWxH)	14.8 x 9.4 x 9.3"
