User Manual for HIVE LIGHTING Bee 50-C PAR Spot Omni-Color LED Light Click to enlarge the picture
Contents of the user manual for the HIVE LIGHTING Bee 50-C PAR Spot
- Product category: LED Lights HIVE LIGHTING
- Brand: HIVE LIGHTING
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HIVE LIGHTING LED Lights
|
User manual for the HIVE LIGHTING Bee 50-C PAR Spot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HIVE LIGHTING product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HIVE LIGHTING user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HIVE LIGHTING product will considerably shorten its lifespan!
|

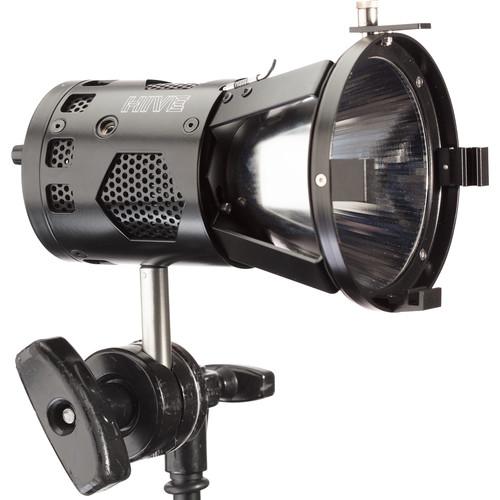

Product description The black Bee 50-C PAR Spot Omni-Color LED Light from Hive is a versatile 1.5 lb LED light source that measures just 5" in length and 4" in diameter making it a great choice for tight spaces with minimal support requirements. The light has a 22-degree PAR spot reflector that makes it an ideal choice for selective lighting or for long throw work. The beam can be further modified by the included 4-way barndoors. Control is the key word in the construction of the 50-C. Hive uses what they call Perfect S.H.O.T controls which is an umbrella term for complete control and adjustment of every aspect of light output. Part of the success of the system is due to the use of 5 LED chip blending. Instead of the traditional 3 colors, Hive uses Red, Amber, Lime, Cyan, and Sapphire for nearly infinite color combinations with a high CRI/TLCI rating of 98 and 97. Color can be adjusted from a very warm amber 1650K to an icy blue 8000K. But control doesn't stop there. There's 360-degree hue adjustment around the color wheel as well as 0-100% saturation control. The 50-C can also be dimmed from 0-100%. While of course you can make all of these adjustments manually, you can also make them remotely via your smartphone or onboard wired or wireless DMX. Thanks to its 100-240 VAC power supply, the 50-C is ready for worldwide use but it will also run on optional batteries when mains power is unavailable - Perfect S.H.O.T. Controls
- The 50-C has 0-100% saturation adjustment, 360° hue control, output control from 0-100%, and color temperature control from 1650 to 8000K for nearly infinite combinations for precise color balance.
- Color Blending
- The 50-C uses red, amber, lime, cyan and sapphire LEDs instead of the traditional 3 color system to achieve a high CRI/TLCI of 98/97 to render colors faithfully with no output loss or color degradation.
- Low Power Draw, Battery or AC Power
- The Bee 50-C uses just 40W to produce light output comparable to a 300W incandescent. Its 5" length and multiple mounting points allow for easy rigging to cameras, drones, practicals, stages, and sets. The 50-C can run off a battery or universal wall power.
- Control
- The 50-C's functions can be controlled manually (locally) or remotely via your smartphone or DMX.
- Small and Lightweight
- The 50-C is 5" long and weighs just 1.5 lb.
UPC: 856211006870 In the Box HIVE LIGHTING Bee 50-C PAR Spot Omni-Color LED Light (Black) Bee 50-C Light Engine 4-Way Barndoors Universal Power Supply PAR Spot Reflector 1/4"- 20 Baby Pin 1/4"- 20 Baby Pin Receiver Limited 1-Year Warranty User Manual PDF 633.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the HIVE LIGHTING Bee 50-C PAR Spot Omni-Color LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHIVE LIGHTING Bee 50-C Specs | | | Beam Angle | 22° | | Color Temperature | 1650 to 8000K | | Color Accuracy Standard | CRI 98
TLCI 97 | | Cooling System | None | | Dimming | Yes, 0 to 100% (Continuous) | | Display | LCD | | Housing Material | Aluminum | | Photometrics | 22°:
293 fc / 3153 lux at 5' / 1.5 m
73 fc / 786 lux at 10' / 3 m | | Fixture Dimensions | 4.0 x 5.0" / 10.2 x 12.7 cm | | Fixture Weight | 1.5 lb / 0.68 kg | | | | Power Input Connector | 4-Pin XLR | | DMX Connector | 5-Pin XLR | | | | Lens Diameter | 4" / 10.16 cm | | | | Fixture Mount | None | | Accessory Mount | None | | | | Yoke Material | Aluminum | | Yoke Type | Yoke/Bracket | | | | Remote Control Type | DMX, Wi-Fi | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 18 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 40 W | | | | Power Supply Output | 12 VDC, 18 A | | | | Package Weight | 6.17 lb | | Box Dimensions (LxWxH) | 18.0 x 12.6 x 12.4" |
