HIVE LIGHTING Bee 50-C PAR Spot,

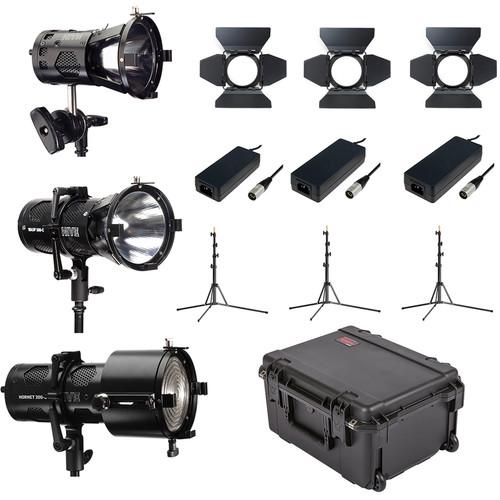

User Manual for HIVE LIGHTING Bee 50-C PAR Spot, Wasp 100-C PAR Spot, Hornet 200-C Fresnel 3-Lght Kit with Case

• Product category: LED Lights HIVE LIGHTING
• Brand: HIVE LIGHTING
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HIVE LIGHTING LED Lights

Product description

• Bee 50-C PAR Spot Omni-Color LED Light (Black) The black Bee 50-C PAR Spot Omni-Color LED Light from Hive is a versatile 1.5 lb LED light source that measures just 5" in length and 4" in diameter making it a great choice for tight spaces with minimal support requirements. The light has a 22-degree PAR spot reflector that makes it an ideal choice for selective lighting or for long throw work. The beam can be further modified by the included 4-way barndoors. Control is the key word in the construction of the 50-C. Hive uses what they call Perfect S.H.O.T controls which is an umbrella term for complete control and adjustment of every aspect of light output. Part of the success of the system is due to the use of 5 LED chip blending. Instead of the traditional 3 colors, Hive uses Red, Amber, Lime, Cyan, and Sapphire for nearly infinite color combinations with a high CRI/TLCI rating of 98 and 97. Color can be adjusted from a very warm amber 1650K to an icy blue 8000K. But control doesn't stop there. There's 360-degree hue adjustment around the color wheel as well as 0-100% saturation control. The 50-C can also be dimmed from 0-100%. While of course you can make all of these adjustments manually, you can also make them remotely via your smartphone or onboard wired or wireless DMX. Thanks to its 100-240 VAC power supply, the 50-C is ready for worldwide use but it will also run on optional batteries when mains power is unavailable
  Perfect S.H.O.T. Controls
  • The 50-C has 0-100% saturation adjustment, 360° hue control, output control from 0-100%, and color temperature control from 1650 to 8000K for nearly infinite combinations for precise color balance.
  Color Blending
  • The 50-C uses red, amber, lime, cyan and sapphire LEDs instead of the traditional 3 color system to achieve a high CRI/TLCI of 98/97 to render colors faithfully with no output loss or color degradation.
  Low Power Draw, Battery or AC Power
  • The Bee 50-C uses just 40W to produce light output comparable to a 300W incandescent. Its 5" length and multiple mounting points allow for easy rigging to cameras, drones, practicals, stages, and sets. The 50-C can run off a battery or universal wall power.
  Control
  • The 50-C's functions can be controlled manually (locally) or remotely via your smartphone or DMX.
  Small and Lightweight
  • The 50-C is 5" long and weighs just 1.5 lb.
  UPC: 856211006870
• Wasp 100-C Omni-Color LED Light Kit The Wasp 100-C Studio PAR Spot LED Light from Hive is a lightweight, versatile LED source with a small form factor and superior performance features. The light has a 22°, highly polished reflector and 4-way barndoors, making it a great choice for selective lighting or long throw work. Among the available optional accessories includes a 180° flood reflector for wider coverage. The 100-C has a standard yoke with a 5/8" receiver for stand mounting.Control is the key word in the construction of the 100-C. Hive uses what they call Perfect S.H.O.T controls which is an umbrella term for complete control and adjustment of every aspect of light output. Part of the success of the system is due to the use of 5-chip LED blending. Instead of the traditional 3 colors, Hive uses Red, Amber, Lime, Cyan, and Sapphire for nearly infinite color combinations with a high CRI/TLCI rating of 98 and 97. Color can be adjusted from a very warm amber 1650K to an icy blue 8000K. But control doesn't stop there. There's 360° hue adjustment around the color wheel as well as 0-100% saturation control. The 100-C can also be dimmed from 0-100%. Once you've grown accustomed to the 100-C's features, you'll want to take it everywhere, and thanks to its 100-240 VAC power supply, you can. The 100-C comes with the previously mentioned 22° reflector, a power supply mounting bracket, and a set of 4-leaf barndoors.
  Perfect S.H.O.T. Controls
  • The 100-C has 0-100% saturation adjustment, 360° hue control, output regulation from 0-100%, and color temperature control from 1650 to 8000K for near infinite combinations to get a precise balance.
  5-Chip Color Blending
  • The 100-C uses red, amber, lime, cyan, and sapphire LEDs instead of the traditional 3-color system to achieve a high CRI (98) and TLCI (97) to render colors faithfully with no output loss or color degradation.
  Small and Light
  • The 100-C is 7.5" long and weighs just 5 lb.
  UPC: 856211006894
• Hornet 200-C Adjustable Fresnel Omni-Color LED Light The Hornet 200-C Adjustable Fresnel Omni-Color LED Light from Hive is a versatile 2.6 lb LED light source that measures 9" in length and 4" in diameter, making it a great choice for tight spaces with minimal support requirements. The light has a 15-50? beam spread for flooding out a silk or for long throw work and selective lighting. The beam can be further modified by the included 4-way barndoors.Control is the key word in the construction of the 200-C. Hive uses what they call Perfect S.H.O.T controls which is an umbrella term for complete control and adjustment of every aspect of light output. Part of the success of the system is due to the use of 7 LED-chip blending. Instead of the traditional 3 colors, Hive uses red, amber, lime, cyan, green, blue, and sapphire for nearly infinite color combinations with a high CRI/TLCI rating of 98 and 97. Color can be adjusted from a very warm amber 1650K to an icy blue 8000K. But control doesn't stop there. There's 360-degree hue adjustment around the color wheel as well as 0-100% saturation control. The 200-C can also be dimmed from 0-100%. While of course you can make all these adjustments manually, you can also make them remotely via your smartphone or onboard wired or wireless DMX. Thanks to its 100-240 VAC power supply, the 200-C is ready for worldwide use but it will also run on optional batteries when mains power is unavailable
  Perfect S.H.O.T. Controls
  • The 200-C has 0-100% saturation adjustment, 360° hue control, output control from 0-100%, and color temperature control from 1650 to 8000K for nearly infinite combinations for precise color balance.
  7-Color Chip
  • The 200-C uses red, amber, lime, cyan, blue, green, and sapphire LEDs instead of the traditional 3-color system to achieve a high CRI/TLCI of 98/97 to render colors faithfully with no output loss or color degradation.
  Low Power Draw, Battery or AC Power
  • The Wasp 200-C uses just 150W to produce light output comparable to a 650-1000W incandescent. Its 9" length and multiple mounting points allow for easy rigging to cameras, drones, practicals, stages, and sets. The 200-C can run off a battery or universal wall power.
  Control
  • The 200-C's functions can be controlled manually (locally) or remotely via your smartphone or DMX.
  Small and Lightweight
  • The 200-C is 9" long and weighs 2.6 lb.
  UPC: 856211006757
• Lightweight Travel Stand for Bee 50-C, Wasp 100-C & Hornet 200-C Lights (7') The five-section Lightweight Travel Stand for Bee 50-C, Wasp 100-C, and Hornet 200-C Lights from Hive rises to a maximum height of 7' and can support lights or gear weighing up to 6 lb. The stand's reverse folding leg design allows it to fold down to a compact 19.5", for space-saving storage and transport.
• Hard Rolling Case for Three Wasp 100-C LED Lights (Black) Store, transport, and protect up to 3 Wasp 100-C LED lights with the black Hard Rolling Case from HIVE LIGHTING. The case features an ambient pressure equalization valve, gasket seal, custom-cut foam interior, trigger-release latches, and padlock hasps for optional, user-supplied locks. For strength and durability, the case is constructed from molded, high-strength polypropylene copolymer resin that is resistant to corrosion and impact. Designed to military standards, the case has MIL-STD-648C and IP67 waterproof, airtight submersible certifications. Carry the case with the cushion grip handles, or roll with the telescoping handle and built-in wheels.
  • • Built-in pull handle and wheels
    • High-strength polypropylene copolymer resin
    • UV, solvent, corrosion and fungus resistant (MIL-STD-810F)
    • Gasket seal makes these cases watertight (MIL-STD-C-4150J)
    • Automatic ambient pressure equalization value (MIL-STD-648C & IP67)
    • Continuous molded-in hinge
    • Trigger-release latch system
    • Rubber over-molded cushion grip handle
    • Locking loop to accept a customer-supplied lock

• Bee 50-C Light Engine

• 4-Way Barndoors

• Universal Power Supply

• PAR Spot Reflector

• 1/4"- 20 Baby Pin

• 1/4"- 20 Baby Pin Receiver

• Limited 1-Year Warranty

• PAR Reflector for Wasp 100-C Light

• Wasp 100-C Universal AC Power Supply

• Wasp 100-C 4-Leaf Barndoors

• Standard Yoke with 5/8" Receiver

• Limited 1-Year Warranty

• 4-Way Barndoors

• Universal Power Supply

• Adjustable Fresnel

• Stand Mount

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Bee 50-C PAR Spot Omni-Color LED Light (Black)

  Beam Angle	22°
  Color Temperature	1650 to 8000K
  Color Accuracy Standard	CRI 98 TLCI 97
  Cooling System	None
  Dimming	Yes, 0 to 100% (Continuous)
  Display	LCD
  Housing Material	Aluminum
  Photometrics	22°: 293 fc / 3153 lux at 5' / 1.5 m 73 fc / 786 lux at 10' / 3 m
  Fixture Dimensions	4.0 x 5.0" / 10.2 x 12.7 cm
  Fixture Weight	1.5 lb / 0.68 kg

  Power Input Connector	4-Pin XLR
  DMX Connector	5-Pin XLR

  Lens Diameter	4" / 10.16 cm

  Fixture Mount	None
  Accessory Mount	None

  Yoke Material	Aluminum
  Yoke Type	Yoke/Bracket

  Remote Control Type	DMX, Wi-Fi

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 18 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	40 W

  Power Supply Output	12 VDC, 18 A

  Box Dimensions (LxWxH)	18.0 x 12.6 x 12.4"

• Wasp 100-C Omni-Color LED Light Kit

  Beam Angle	22 to 180°
  Color Temperature	1650 to 8000K
  Color Accuracy Standard	TLCI 97 CRI 98
  Cooling System	None
  Dimming	Yes, 0 to 100% (Continuous)
  Display	LCD
  Housing Material	Aluminum
  Photometrics	49 fc / 527.2 lux at 15' / 4.57 m
  Fixture Dimensions	Spot: 4.0 x 7.5" / 10.2 x 19.1 cm (Including Yoke)
  Fixture Weight	5 lb / 2.27 kg (Including Receiver)

  Power Input Connector	4-Pin XLR
  DMX Connector	None

  Reflector Mount	Bowens S-Type
  Lens Diameter	5" / 12.7 cm

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Yoke Material	Aluminum
  Yoke Type	Yoke/Bracket

  Remote Control Type	Wi-Fi

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 28 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	100 W

  Box Dimensions (LxWxH)	14.8 x 9.4 x 9.3"

• Hornet 200-C Adjustable Fresnel Omni-Color LED Light

  Beam Angle	15 to 50°
  Color Temperature	1650 to 8000K
  Color Accuracy Standard	CRI 98 TLCI 97
  Cooling System	Passive
  Dimming	Yes, 0 to 100% (Continuous)
  Display	LCD
  Housing Material	Aluminum
  Photometrics	22°: 1100 fc / 11,836 lux at 5' / 1.5 m 275 fc / 2959 lux at 10' / 3 m
  Fixture Dimensions	4.0 x 9.0" / 10.2 x 22.9 cm
  Fixture Weight	2.6 lb / 1.18 kg

  Power Input Connector	4-Pin XLR
  DMX Connector	5-Pin XLR

  Lens Type	Fresnel

  Fixture Mount	None
  Accessory Mount	None

  Yoke Material	Aluminum
  Yoke Type	Yoke/Bracket

  Remote Control Type	DMX, Wi-Fi

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	24 to 36 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	150 W

  Box Dimensions (LxWxH)	18.0 x 11.6 x 11.6"

• Lightweight Travel Stand for Bee 50-C, Wasp 100-C & Hornet 200-C Lights (7')

  Load Capacity	6 lb / 2.72 kg
  Mounting Options	5/8" Stud
  Number of Sections	5
  Column Diameter	1.12" / 2.84 cm
  Maximum Working Height	7' / 2.1 m
  Collapsed Height	19.5" / 49.5 cm
  Leg Shape	Rectangular
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Material	Aluminum
  Weight	2.4 lb / 1.1 kg
  Warranty Length	Limited 1-Year Warranty

• Hard Rolling Case for Three Wasp 100-C LED Lights (Black)

  Interior Dimensions	20.5 x 15.5 x 10" / 52.1 x 39.4 x 25.4 cm
  Padding	Foam

  Closure Type	Latch
  Carry and Transport Options	Handle Telescoping Handle
  Material of Construction	Polypropylene

  Box Dimensions (LxWxH)	32.0 x 24.0 x 16.0"
