User Manual for HIVE LIGHTING Bee Plasma Flood Light Kit with AC Power Supply Click to enlarge the picture
Contents of the user manual for the HIVE LIGHTING Bee Plasma Flood Light
- Product category: HMI & Plasma Lights HIVE LIGHTING
- Brand: HIVE LIGHTING
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HIVE LIGHTING HMI & Plasma Lights
|
User manual for the HIVE LIGHTING Bee Plasma Flood Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HIVE LIGHTING product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HIVE LIGHTING user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HIVE LIGHTING product will considerably shorten its lifespan!
|

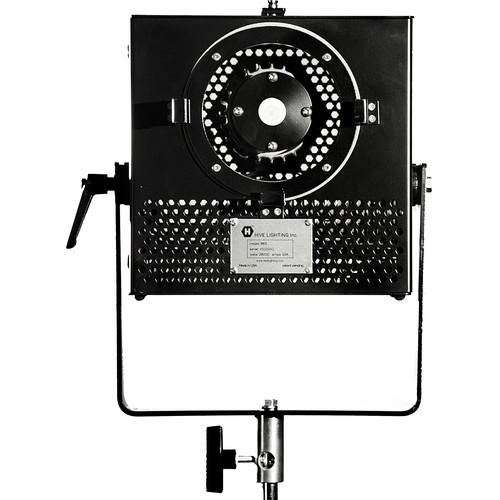

Product description A versatile single light kit characterized by a unique lighting technology, the Bee Plasma Flood Light Kit with AC Power Supply from Hive Lighting pairs one Bee light head with a 15' header cable, a multi-voltage 90-300 VAC AC power supply, a five-piece scrim set, and a four-leaf barndoor set.
The Bee Plasma Flood light is an open-face style light that utilizes a single plasma bulb to produce a broad 100° beam angle. It features a CRI of 94 and has a nominal, daylight-balanced, correlated color temperature of 5600K, which can be adjusted from 4600-7000K using an on-board dial. Ideal for both still and movie applications, this light is also flicker free, vibration and impact resistant, and the single point source bulb has been tested for a lifespan of 30,000 hours. - Bee Plasma Flood Light The variable color temperature Bee Plasma Flood Light from Hive Lighting is an open face-style lighting solution. Using a single unique plasma lamp (the micro-star), the Bee employs an innovative reflector system that achieves a 100-degree flood beam angle that fits optional square, rectangular and octagonal softboxes, photo umbrellas, and a traditional glass Fresnel lens, making it a tool for both motion and still image production. The Bee LEP (Light Emitting Plasma) light source is capable of producing 2x output of LED sources, 4x the brightness of fluorescents and 5x the power of incandescent sources, all from a single point source bulb. Its relatively light weight of 10 lb makes transport easy and setup and breakdown a snap.Professional and convenience features include color temperature that's variable from 4600 - 7000K (CCT), a long lamp life of 30,000 hours and flicker-free performance at any setting. Power options include a multi-voltage AC/DC power supply as well as 2 single output and 2 double output 90-277 VAC power supplies. A 15' header cable is included with the light. One of the above mentioned power supplies must be purchased separately for use of the Bee.
- Bee 5-Piece Scrim Set This Bee 5-Piece Scrim Set from Hive Lighting allows you to selectively reduce the light intensity of the Bee Plasma Light. The kit contains two single scrims, two double scrims, one 1/2 single scrim, one 1/2 double scrim and a scrim bag. Scrim diameter is 6.5". The set also fits the Wasp light fixture.
- 4-Leaf Barndoor for Bee Plasma Flood Light The 4-Leaf Barndoor for Bee Plasma Flood Light from Hive Lighting is a light modifier that mounts onto fixture and allows you to direct the light's output to areas that you want illuminated and keep it from areas that you don't.
In the Box Bundle Items Bee Plasma Flood Light yfxcaaysauxevfdveyau Bee 5-Piece Scrim Set 4-Leaf Barndoor for Bee Plasma Flood Light
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the HIVE LIGHTING Bee Plasma Flood Light Kit with AC Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bee Plasma Flood Light
| Light Source | Single source Plasma, 30,000 hr. lamp life | | Output | 276 W | | Color Temperature | Variable: 4600 - 7000 K | | CRI | 94+ @ 5600K CCT (nominal daylight) | | Beam Angle | 14 - 50° (Half peak angle) | | Photometrics | At 5600K
300 fc @ 5.0' (1.52 m)
75 fc @ 10' (3.0 m)
33 fc @ 15' (4.57 m)
19 fc @ 20' (5.8 m) | | Dimming | Yes | | Flicker Free | 450 MHz cycle, 225,000,000 fps | | Operating Voltage | With optional AC/DC power supply: 90-277 VAC, 50/60 Hz or 18-38 VDC
With choice of 4 optional AC only power supplies: 90-300 VAC, 50/60 Hz | | Power Consumption | 2.3 A (120 VAC) / 9.8 A (28 VDC) | | Operating Conditions | Minimum: -31°F (-35°C)
Maximum: 110°F (43°C)
Maximum altitude: 30,000' (9144 m) | | Mount | Baby 5/8" (16 mm) TVMP connector | | Dimensions | 10.5 x 6.5 x 11" / 266 x 165 x 280 mm
8.5" (215 mm) From pin receiver to yoke mount
Accessory size: 6. 6 or 6.5" / 170 or 165 mm | | Weight | 10.5 lb / 4.75 kg | | | | Box Dimensions (LxWxH) | 23.0 x 18.5 x 12.0" | - Bee 5-Piece Scrim Set
- 4-Leaf Barndoor for Bee Plasma Flood Light
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
