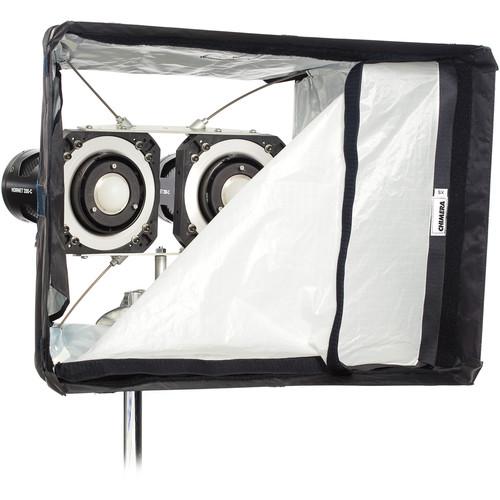

Product description The Hornet 200-C 2-Light Softbox Kit with Flight Case was created by Hive Lighting for traveling image-makers who require a small lightweight kit with extensive color options. The kit includes two Hornet 200-C Bi-Color Open Face LED Lights, a 16 x 22" softbox, and a Double Bracket to mount it to the two lights. A Hard Rolling Flight Case is also included for storage and transport. - Hornet 200-C Open Face Omni-Color LED Light The Hornet 200-C Open Face Omni-Color LED Light from Hive is a versatile 2.6 lb LED light source that measures 9" in length and 4" in diameter, making it a great choice for tight spaces with minimal support requirements. The 200-C can accept PAR reflectors. This fixture-only version of the light has a 180-degree beam angle for very wide coverage.Control is the key word in the construction of the 200-C. Hive uses what they call Perfect S.H.O.T controls which is an umbrella term for complete control and adjustment of every aspect of light output. Part of the success of the system is due to the use of 7 LED-chip blending. Instead of the traditional 3 colors, Hive uses red, amber, lime, cyan, green, blue, and sapphire for nearly infinite color combinations with a high CRI/TLCI rating of 98 and 97. Color can be adjusted from a very warm amber 1650K to an icy blue 8000K. But control doesn't stop there. There's 360-degree hue adjustment around the color wheel as well as 0-100% saturation control. The 200-C can also be dimmed from 0-100%. While of course you can make all these adjustments manually, you can also make them remotely via your smartphone or onboard wired or wireless DMX. Thanks to its 100-240 VAC power supply, the 200-C is ready for worldwide use but it will also run on optional batteries when mains power is unavailable
- Perfect S.H.O.T. Controls
- The 200-C has 0-100% saturation adjustment, 360° hue control, output control from 0-100%, and color temperature control from 1650 to 8000K for nearly infinite combinations for precise color balance.
- 7-Color Chip
- The 200-C uses red, amber, lime, cyan, blue, green, and sapphire LEDs instead of the traditional 3-color system to achieve a high CRI/TLCI of 98/97 to render colors faithfully with no output loss or color degradation.
- Low Power Draw, Battery or AC Power
- The Wasp 200-C uses just 150W to produce light output comparable to a 650-1000W incandescent. Its 9" length and multiple mounting points allow for easy rigging to cameras, drones, practicals, stages, and sets. The 200-C can run off a battery or universal wall power.
- Control
- The 200-C's functions can be controlled manually (locally) or remotely via your smartphone or DMX.
- Small and Lightweight
- The 200-C is 9" long and weighs 2.6 lb.
UPC: 856211006047 - C-Series Double Bracket The Hive Lighting C-Series Double Bracket allows you to gang and support two 50-C, 100-C, or 200-C LED lights. The bracket has a 5/8" pin for stand mounting.
- 16 x 22" Rectangular Softbox (Extra Small) Dramatically soften the output of your Wasp or Bee plasma light with this extra small Hive 16 x 22" Rectangular Softbox, which was produced by Chimera Lighting. This modifier features a soft silver interior which will direct light forward through the removable inner baffle and front diffuser, effectively increasing the light's size. It also has a recessed front that will help limit light spill while also enabling the attachment of accessories, such as fabric grids. Additionally, this softbox is compatible with most 6.5" and 6-5/8" four-point speed rings. UPC: 856211006863
- Hard Rolling Case for Two Wasp 100-C LED Lights (Black) Store, transport, and protect up to 2 Wasp 100-C LED lights with the black Hard Rolling Case from HIVE LIGHTING. The case features an ambient pressure equalization valve, gasket seal, custom-cut foam interior, trigger-release latches, and padlock hasps for optional, user-supplied locks. For strength and durability, the case is constructed from molded, high-strength polypropylene copolymer resin that is resistant to corrosion and impact. Designed to military standards, the case has MIL-STD-648C and IP67 waterproof, airtight submersible certifications. Carry the case with the cushion grip handles.
-
- Built-in pull handle and wheels
- High-strength polypropylene copolymer resin
- UV, solvent, corrosion and fungus resistant (MIL-STD-810F)
- Gasket seal makes these cases watertight (MIL-STD-C-4150J)
- Automatic ambient pressure equalization value (MIL-STD-648C & IP67)
- Continuous molded-in hinge
- Trigger-release latch system
- Rubber over-molded cushion grip handle
- Locking loop to accept a customer-supplied lock
-
In the Box Bundle Items 2 x Hornet 200-C Open Face Omni-Color LED Light vtxdzrfttdccurcxbssdczftcewczxrz C-Series Double Bracket vtxdzrfttdccurcxbssdczftcewczxrz 16 x 22" Rectangular Softbox (Extra Small) Hard Rolling Case for Two Wasp 100-C LED Lights (Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the HIVE LIGHTING Hornet 200-C 2-Light Softbox Kit with Flight Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Hornet 200-C Open Face Omni-Color LED Light
| | | Beam Angle | 180° | | Color Temperature | 1650 to 8000K | | Color Accuracy Standard | CRI 98
TLCI 97 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% (Continuous) | | Display | LCD | | Housing Material | Aluminum | | Photometrics | 22°:
1100 fc / 11,836 lux at 5' / 1.5 m
275 fc / 2959 lux at 10' / 3 m | | Fixture Dimensions | 4.0 x 9.0" / 10.2 x 22.9 cm | | Fixture Weight | 2.6 lb / 1.18 kg | | | | Power Input Connector | 4-Pin XLR | | DMX Connector | 5-Pin XLR | | | | Fixture Mount | None | | Accessory Mount | None | | | | Yoke Material | Aluminum | | Yoke Type | Yoke/Bracket | | | | Remote Control Type | DMX, Wi-Fi | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 to 36 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 150 W | | | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 10.0" | - C-Series Double Bracket
| Connector | 5/8" / 16 mm pin | - 16 x 22" Rectangular Softbox (Extra Small)
| Shape | Rectangular | | Size | 16 x 22" / 41 x 56 cm | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Accepts Grids | Yes | | Compatibility | 6.5" & 6-5/8" four-point speed rings | - Hard Rolling Case for Two Wasp 100-C LED Lights (Black)
| | | Interior Dimensions | 19 x 14.5 x 8" / 48.3 x 36.8 x 20.3 cm | | Padding | Foam | | | | Closure Type | Latch | | Carry and Transport Options | Handle | | Material of Construction | Polypropylene | | | | Box Dimensions (LxWxH) | 21.9 x 17.0 x 10.5" |
