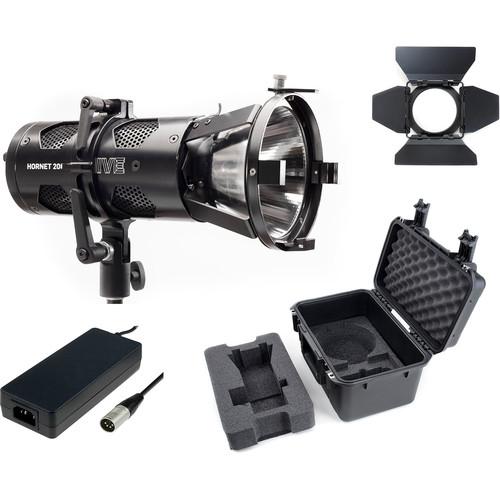

User Manual for HIVE LIGHTING Hornet 200-C Flood Omni-Color Light with Travel Case Click to enlarge the picture
Contents of the user manual for the HIVE LIGHTING Hornet 200-C Flood Omni-Color
- Product category: LED Lights HIVE LIGHTING
- Brand: HIVE LIGHTING
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HIVE LIGHTING LED Lights
|
User manual for the HIVE LIGHTING Hornet 200-C Flood Omni-Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HIVE LIGHTING product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HIVE LIGHTING user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HIVE LIGHTING product will considerably shorten its lifespan!
|
Product description Hive has put together this Hornet 200-C Flood Omni-Color Light with Travel Case for location shooters who need to brave rough handling during shipping coupled with harsh weather upon arrival. The kit includes the Hornet 200-C Omni-Color Open Face Fixture featuring 7-Color Chip technology and an interchangeable flood reflector. For secure transport Hive includes a waterproof, submersible, hard polypropylene resin case with a custom foam interior. - Hornet 200-C Flood Omni-Color LED Light The Hornet 200-C Flood Omni-Color LED Light from Hive is a versatile 2.6 lb LED light source that measures 9" in length and 4" in diameter, making it a great choice for tight spaces with minimal support requirements. The flood reflector is a good choice for all-around use. Other reflectors, a Leko spot, and a Fresnel attachment are available separately.Control is the key word in the construction of the 200-C. Hive uses what they call Perfect S.H.O.T controls which is an umbrella term for complete control and adjustment of every aspect of light output. Part of the success of the system is due to the use of 7 LED-chip blending. Instead of the traditional 3 colors, Hive uses red, amber, lime, cyan, green, blue, and sapphire for nearly infinite color combinations with a high CRI/TLCI rating of 98 and 97. Color can be adjusted from a very warm amber 1650K to an icy blue 8000K. But control doesn't stop there. There's 360-degree hue adjustment around the color wheel as well as 0-100% saturation control. The 200-C can also be dimmed from 0-100%. While of course you can make all these adjustments manually, you can also make them remotely via your smartphone or onboard wired or wireless DMX. Thanks to its 100-240 VAC power supply, the 200-C is ready for worldwide use but it will also run on optional batteries when mains power is unavailable
- Perfect S.H.O.T. Controls
- The 200-C has 0-100% saturation adjustment, 360° hue control, output control from 0-100%, and color temperature control from 1650 to 8000K for nearly infinite combinations for precise color balance.
- 7-Color Chip
- The 200-C uses red, amber, lime, cyan, blue, green, and sapphire LEDs instead of the traditional 3-color system to achieve a high CRI/TLCI of 98/97 to render colors faithfully with no output loss or color degradation.
- Low Power Draw, Battery or AC Power
- The Wasp 200-C uses just 150W to produce light output comparable to a 650-1000W incandescent. Its 9" length and multiple mounting points allow for easy rigging to cameras, drones, practicals, stages, and sets. The 200-C can run off a battery or universal wall power.
- Control
- The 200-C's functions can be controlled manually (locally) or remotely via your smartphone or DMX.
- Small and Lightweight
- The 200-C is 9" long and weighs 2.6 lb.
- Hard Carrying Case for Single Wasp 100-C LED Light (Black) Store, transport, and protect your Wasp 100-C LED light with the black Hard Carrying Case from HIVE LIGHTING. The case features an ambient pressure equalization valve, gasket seal, custom-cut foam interior, trigger-release latches, and padlock hasps for optional, user-supplied locks. For strength and durability, the case is constructed from molded, high-strength polypropylene copolymer resin that is resistant to corrosion and impact. Designed to military standards, the case has MIL-STD-648C and IP67 waterproof, airtight submersible certifications. Carry the case with the cushion grip handle.
-
-
- High-strength polypropylene copolymer resin
- UV, solvent, corrosion and fungus resistant (MIL-STD-810F)
- Gasket seal makes these cases watertight (MIL-STD-C-4150J)
- Automatic ambient pressure equalization value (MIL-STD-648C & IP67)
- Continuous molded-in hinge
- Trigger-release latch system
- Rubber over-molded cushion grip handle
- Locking loop to accept a customer-supplied lock
-
UPC: 856211006733 In the Box Bundle Items Hornet 200-C Flood Omni-Color LED Light eaxxyxcfuc Hard Carrying Case for Single Wasp 100-C LED Light (Black) Data Sheet -Hornet 200-c PDF 843kb Table of Contents
|
Upload User Manual
Have you got an user manual for the HIVE LIGHTING Hornet 200-C Flood Omni-Color Light with Travel Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Hornet 200-C Flood Omni-Color LED Light
| | | Cooling System | Passive | | Dimming | Yes, 0 to 100% (Continuous) | | Housing Material | Aluminum | | Photometrics | 22°:
1100 fc / 11,836 lux at 4.92' / 1.5 m
22°:
274.9 fc / 2959 lux at 9.84' / 3 m | | Fixture Dimensions | 4.0 x 9.0" / 10.2 x 22.9 cm | | Fixture Weight | 2.6 lb / 1.18 kg | | | | Power Input Connector | 4-Pin XLR | | DMX Connector | 5-Pin XLR | | | | Remote Control Type | DMX, Wi-Fi | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 to 36 VDC | | Power Source | AC Adapter, External Battery | | | | Box Dimensions (LxWxH) | 14.3 x 10.8 x 10.4" | - Hard Carrying Case for Single Wasp 100-C LED Light (Black)
| | | Interior Dimensions | 13.5 x 9.5 x 6.5" / 34.3 x 24.1 x 16.5 cm | | Padding | Foam | | | | Closure Type | Latch | | Carry and Transport Options | Handle | | Material of Construction | Polypropylene | | | | Box Dimensions (LxWxH) | 14.0 x 11.7 x 7.6" |
