HIVE LIGHTING Wasp 100-C LED Open

User Manual for HIVE LIGHTING Wasp 100-C LED Open Face 2-Light Kit

• Product category: LED Lights HIVE LIGHTING
• Brand: HIVE LIGHTING
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HIVE LIGHTING LED Lights

Product description

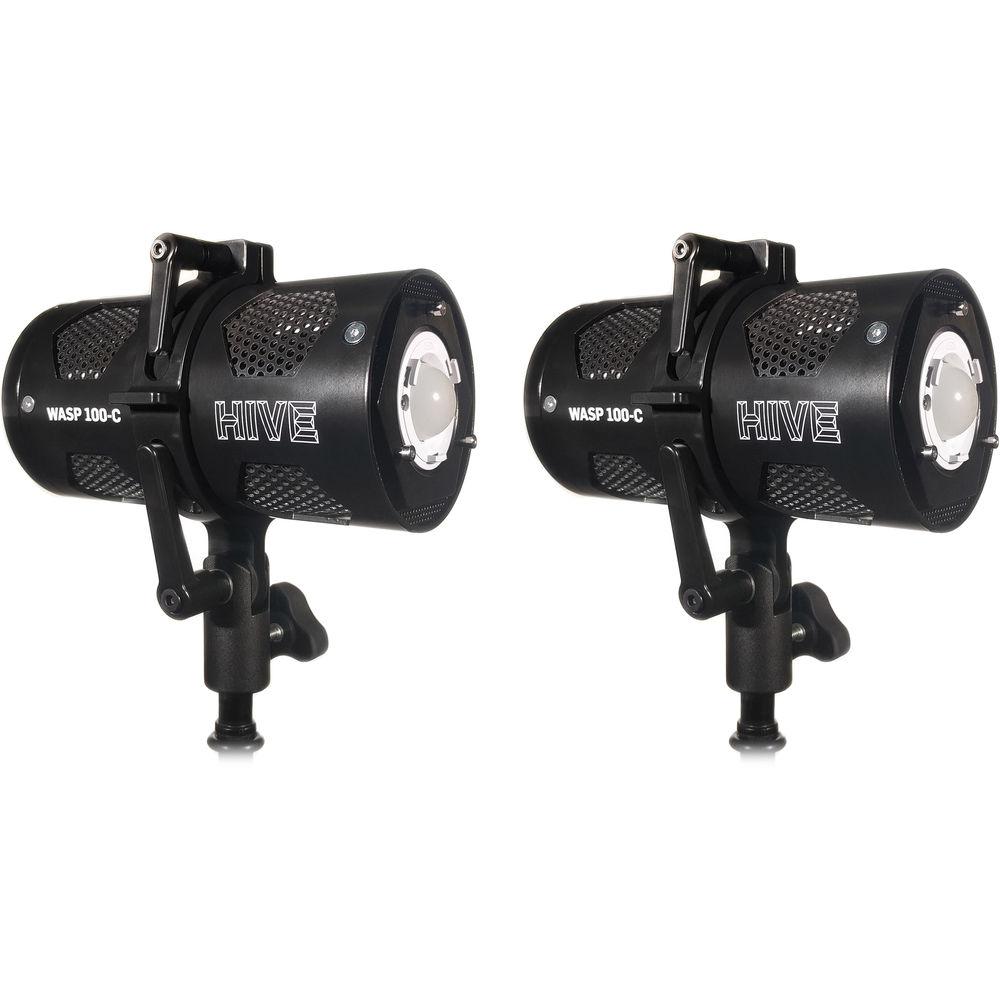

• Wasp 100-C Open Face LED Light Designed with ease of use in mind, this model of the Wasp 100-C LED Light from HIVE LIGHTING comes with an open face that exposes the bulb for a simple, minimalistic design. This fixture offers full-fledged control over the color and intensity of your light in an economic package that only consumes 85W. You can adjust its settings on the control panel in the back, via a DMX panel, or even through a smartphone thanks to a downloadable app and Bluetooth connection. The Wasp-100C has 360-degree hue control, and both its dimming and saturation can be regulated from 0 to 100% for completely customizable lighting. A white light control mode is available, offering color temperatures from 1650K to 8000K so you can shoot outdoors or indoors during any time of day. With up to 98 CRI, the light renders a variety of colors faithfully despite its flexibility. The Wasp 100-C accepts 100-240 VAC, 50/60 Hz input via its included power supply, or 12-28 VDC through a 4-pin XLR with the use of optional accessories.
  • • Full color customization, with 0 to 100% saturation and 360-degree hue controls
    • White light control mode for color temperatures between 1650K and 8000K
    • 0 to 100% dimming
    • Can be controlled via built-in knobs, with a DMX board, or through smartphone with downloadable app and a Bluetooth connection
    • Up to 98 CRI for faithful color rendering
    • Economical, consuming only 85W of power during use
    • Accepts 100-240 VAC from power supply, and can run on 12-28 VDC with optional accessories

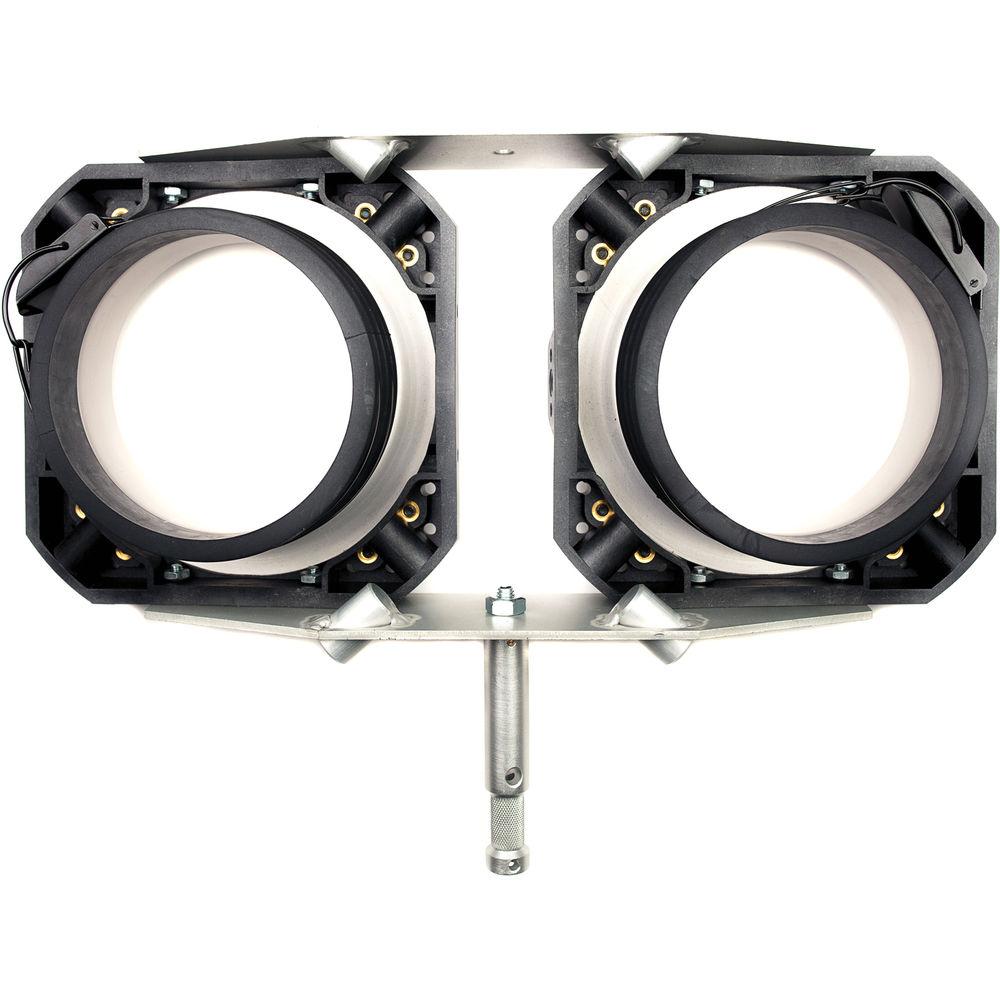

• C-Series Double Bracket The Hive Lighting C-Series Double Bracket allows you to gang and support two 50-C, 100-C, or 200-C LED lights. The bracket has a 5/8" pin for stand mounting.

• Power Supply

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Also Includes

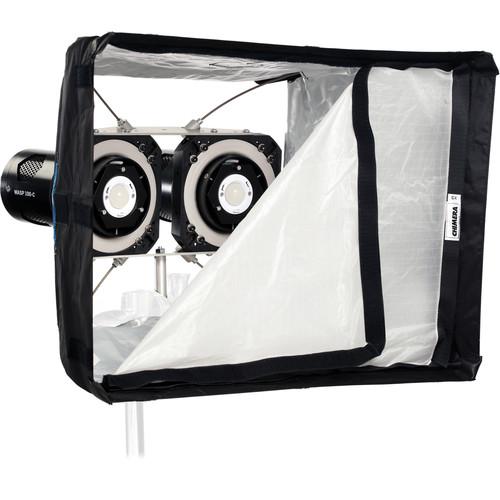

• Softbox (XS)
• C-Series Double Bracket
• Hard Rolling Flight Case
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Wasp 100-C Open Face LED Light

  CRI Rating	Up to 98
  Lens	None
  Color Range	360-degree hue control
  Color Temperature	1650 to 8000K
  Dimming	0 to 100%
  Saturation	0 to 100%
  Mounting	Baby 5/8" (16 mm) Receiver
  LED Lifetime	50,000 hours
  Input Ports	USB 4-pin XLR DMX In and Out
  Power Input	Power Supply: 100-240 VAC, 50/60 Hz 4-pin XLR: 12-28 VDC
  Power Consumption	85 W
  Operating Temperature	-31 to 104°F (-35 to 40°C)
  Diameter	Face: 5" (12.7 cm) Body: 3.9" (10 cm)
  Length	7.5" (19 cm)
  Weight	5.1 lb (2.3 kg)

• C-Series Double Bracket

  Connector

  5/8" / 16 mm pin
