User Manual for HIVE LIGHTING Wasp 100-C LED Spot Light Kit with Stand and Custom Foam Case Click to enlarge the picture
Contents of the user manual for the HIVE LIGHTING Wasp 100-C LED Spot
- Product category: LED Lights HIVE LIGHTING
- Brand: HIVE LIGHTING
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HIVE LIGHTING LED Lights
 |
User manual for the HIVE LIGHTING Wasp 100-C LED Spot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HIVE LIGHTING product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HIVE LIGHTING user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HIVE LIGHTING product will considerably shorten its lifespan!
|
Product description The Wasp 100-C LED Spot Light Kit with Stand and Custom Foam Case from Hive is a lightweight, versatile light source with a small form factor. The kit comes with a stand, case, Wasp 100-C LED Head with 22° reflector, Medium, Wide, and Super-Wide lenses, as well as a set of 4-way barndoors.Hive uses S.H.O.T controls that ensure complete control and adjustment of every aspect of light output. It uses five-LED chip blending and red, amber, lime, cyan, and sapphire colors with a high CRI/TLCI rating of 98 and 97. Color can be adjusted from a very warm amber 1650K to an icy blue 8000K. There's a 360° hue adjustment around the color wheel as well as 0-100% saturation control. The 100-C can also be dimmed from 0-100%. While you can make all of these adjustments manually, you can also make them remotely via your smartphone or onboard DMX. - Perfect S.H.O.T. Controls
- The 100-C has 0-100 saturation adjustment, 360° hue control, output regulation from 0-100%, and color temperature control from 1650 to 8000K
- 5-Chip Color Blending
- The 100-C uses red, amber, lime, cyan, and sapphire LEDs instead of the traditional three-color system to achieve a high CRI (98) and TLCI (97) to render colors with no output loss or color degradation
- Control
- The 100-C's functions can be controlled manually (locally) or remotely via your smartphone or DMX
- Small and Light
- 100-C is 6" long and weighs just 5 lb

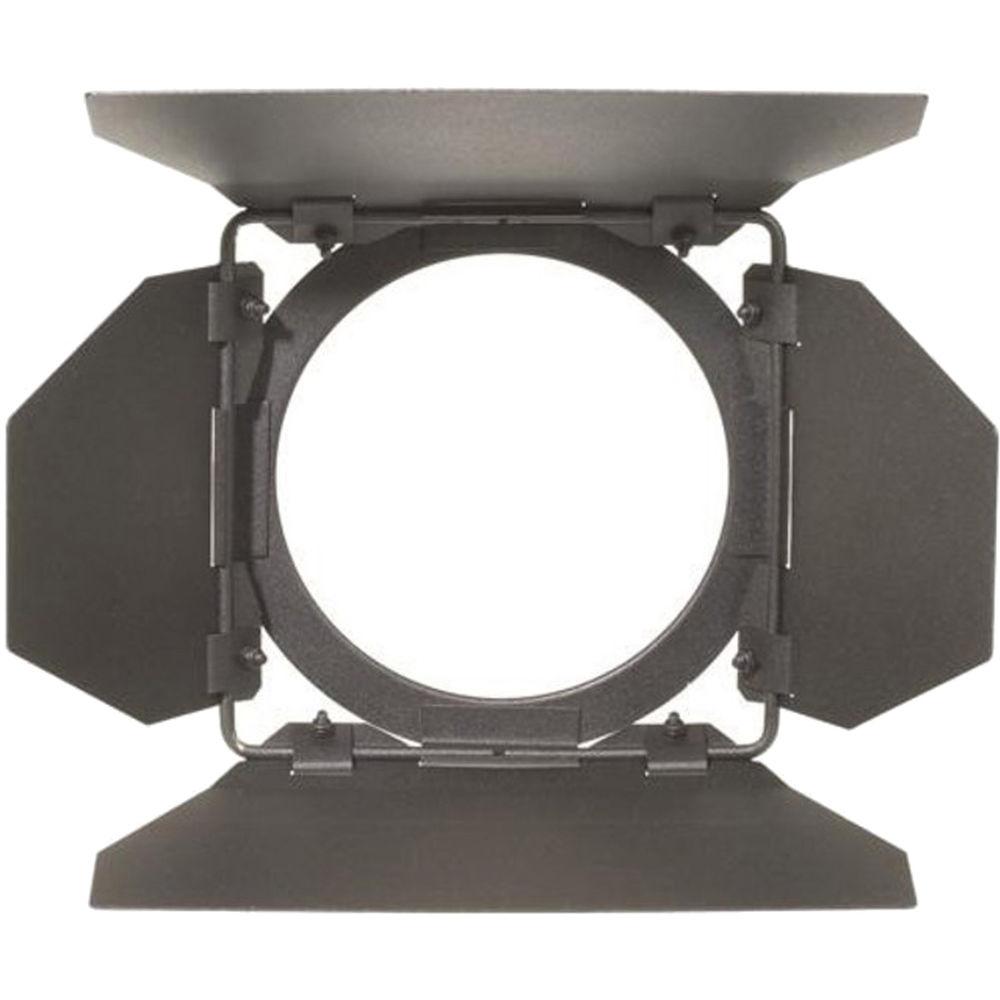

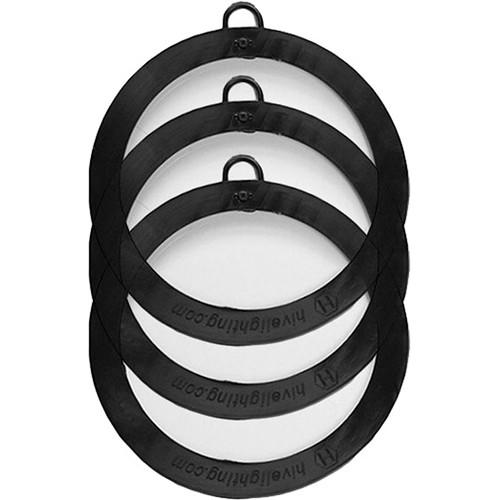

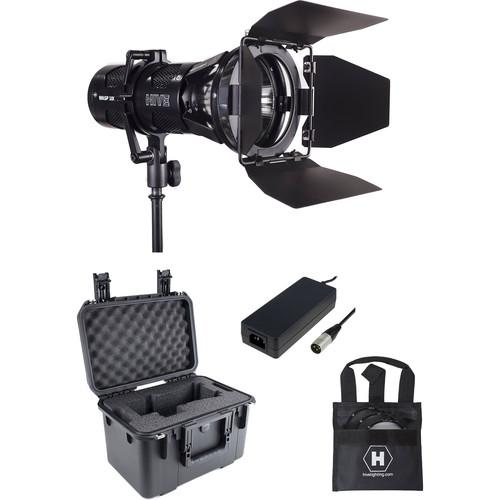

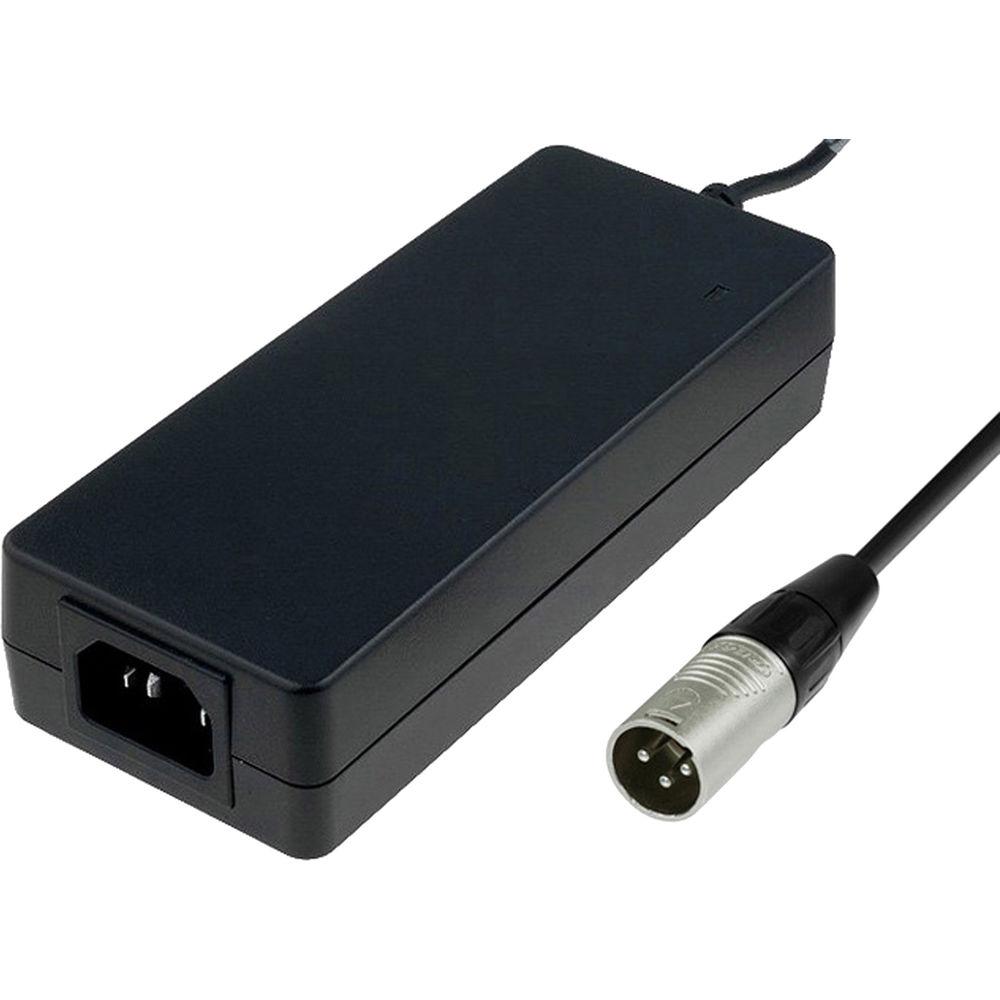

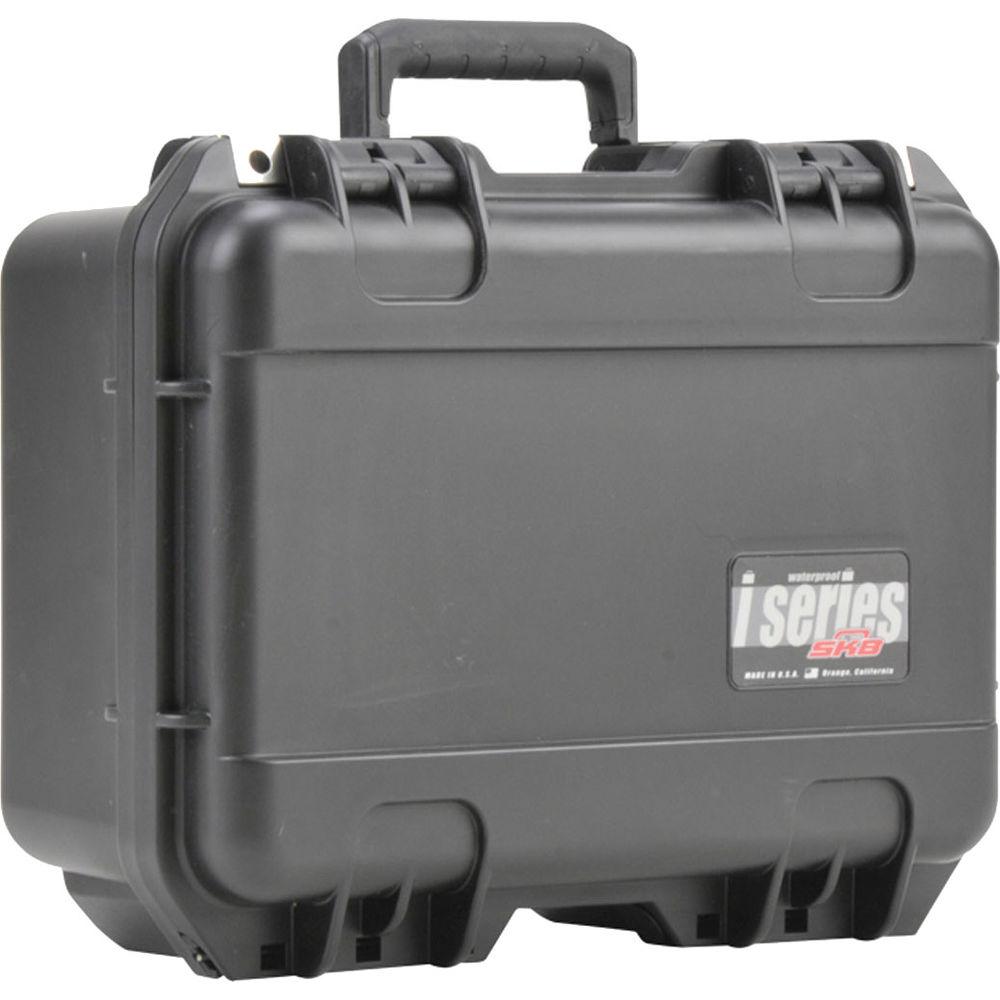

In the Box HIVE LIGHTING Wasp 100-C LED Spot Light Kit with Stand and Custom Foam Case Wasp 100-C LED Head 22° Reflector Power Supply (100-240 VAC) Medium Lens Wide Lens Super-Wide Lens Four-Leaf Barndoors Stand Case Limited 1-Year Warranty Spec sheet PDF 6.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the HIVE LIGHTING Wasp 100-C LED Spot Light Kit with Stand and Custom Foam Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHIVE LIGHTING Wasp 100-C Specs | Light Source | LED | | Rating | 650 W tungsten equivalent | | Power Consumption | 100 W | | Color Temperature | 1650 to 8000 K
360° hue control
0-100% saturation control | | CRI / TLCI | 98 / 97 | | Dimming | 0 - 100% | | Photometrics | With Reflector
1600 fc / 17,222 lux at 2.5' (0.7 m)
400 fc / 4306 lux at 5.0' (1.5 m)
100 fc / 1076 lux at 10' (3.0 m)
50 fc / 538 lux at 15' (4.6 m)
25 fc / 269 lux at 20' (6.1 m) | | Voltage | 100 to 240 VAC, 50/60 Hz | | Control | Manual, DMX, smartphone | | Mounting | Baby 5/8" (16 mm) receiver | | Connectors | 5-pin DMX In
5-pin DMX Out
Power: 4-pin XLR | | Dimensions | Length: 6.0" (140 mm)
Diameter: 4.0" (10 cm) | | Weight | 5 lb (2.3 kg) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
