User Manual for HIVE LIGHTING Wasp 100-C Omni-Color LED Light Kit Click to enlarge the picture
Contents of the user manual for the HIVE LIGHTING Wasp 100-C Omni-Color LED
- Product category: LED Lights HIVE LIGHTING
- Brand: HIVE LIGHTING
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HIVE LIGHTING LED Lights
 |
User manual for the HIVE LIGHTING Wasp 100-C Omni-Color LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HIVE LIGHTING product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HIVE LIGHTING user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HIVE LIGHTING product will considerably shorten its lifespan!
|

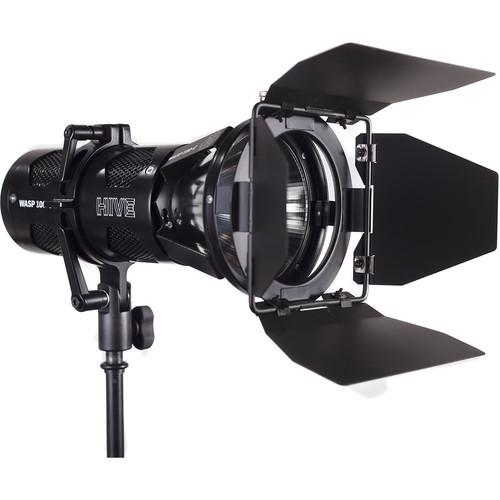

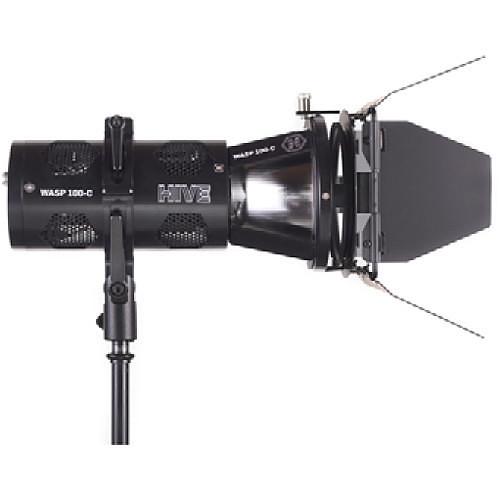

Product description The Wasp 100-C Studio PAR Spot LED Light from Hive is a lightweight, versatile LED source with a small form factor and superior performance features. The light has a 22°, highly polished reflector and 4-way barndoors, making it a great choice for selective lighting or long throw work. Among the available optional accessories includes a 180° flood reflector for wider coverage. The 100-C has a standard yoke with a 5/8" receiver for stand mounting.Control is the key word in the construction of the 100-C. Hive uses what they call Perfect S.H.O.T controls which is an umbrella term for complete control and adjustment of every aspect of light output. Part of the success of the system is due to the use of 5-chip LED blending. Instead of the traditional 3 colors, Hive uses Red, Amber, Lime, Cyan, and Sapphire for nearly infinite color combinations with a high CRI/TLCI rating of 98 and 97. Color can be adjusted from a very warm amber 1650K to an icy blue 8000K. But control doesn't stop there. There's 360° hue adjustment around the color wheel as well as 0-100% saturation control. The 100-C can also be dimmed from 0-100%. Once you've grown accustomed to the 100-C's features, you'll want to take it everywhere, and thanks to its 100-240 VAC power supply, you can. The 100-C comes with the previously mentioned 22° reflector, a power supply mounting bracket, and a set of 4-leaf barndoors. - Perfect S.H.O.T. Controls
- The 100-C has 0-100% saturation adjustment, 360° hue control, output regulation from 0-100%, and color temperature control from 1650 to 8000K for near infinite combinations to get a precise balance.
- 5-Chip Color Blending
- The 100-C uses red, amber, lime, cyan, and sapphire LEDs instead of the traditional 3-color system to achieve a high CRI (98) and TLCI (97) to render colors faithfully with no output loss or color degradation.
- Small and Light
- The 100-C is 7.5" long and weighs just 5 lb.
UPC: 856211006894 In the Box HIVE LIGHTING Wasp 100-C Omni-Color LED Light Kit PAR Reflector for Wasp 100-C Light Wasp 100-C Universal AC Power Supply Wasp 100-C 4-Leaf Barndoors Standard Yoke with 5/8" Receiver Limited 1-Year Warranty Data Sheet PDF 6.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the HIVE LIGHTING Wasp 100-C Omni-Color LED Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHIVE LIGHTING Wasp 100-C Specs | | | Beam Angle | 22 to 180° | | Color Temperature | 1650 to 8000K | | Color Accuracy Standard | TLCI 97
CRI 98 | | Cooling System | None | | Dimming | Yes, 0 to 100% (Continuous) | | Display | LCD | | Housing Material | Aluminum | | Photometrics | 49 fc / 527.2 lux at 15' / 4.57 m | | Fixture Dimensions | Spot: 4.0 x 7.5" / 10.2 x 19.1 cm (Including Yoke) | | Fixture Weight | 5 lb / 2.27 kg (Including Receiver) | | | | Power Input Connector | 4-Pin XLR | | DMX Connector | None | | | | Reflector Mount | Bowens S-Type | | Lens Diameter | 5" / 12.7 cm | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Yoke Material | Aluminum | | Yoke Type | Yoke/Bracket | | | | Remote Control Type | Wi-Fi | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 28 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 14.8 x 9.4 x 9.3" |
