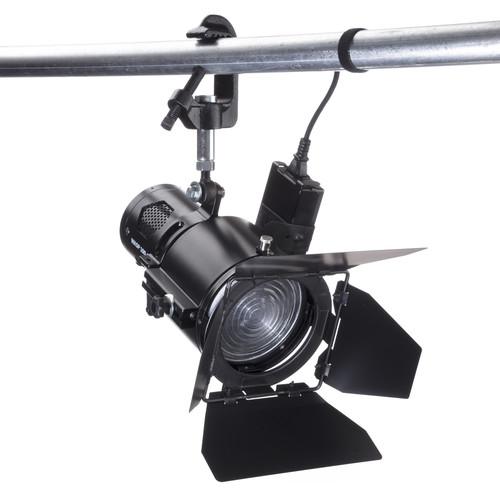

Product description The Wasp 100-C Studio Adjustable Fresnel LED Light from Hive is a lightweight, versatile LED source with a small form factor and superior performance features. The light has a 15-50-degree beam spread for flooding out a silk or for long throw work and selective lighting. The beam can be further modified by the included 4-way barndoors. The 100-C has a bracket to hold the power supply, a studio yoke, and a C-clamp for attachment to a pipe or overhead grid.Control is the key word in the construction of the 100-C. Hive uses what they call Perfect S.H.O.T controls which is an umbrella term for complete control and adjustment of every aspect of light output. Part of the success of the system is due to the use of 5 LED chip blending. Instead of the traditional 3 colors, Hive uses Red, Amber, Lime, Cyan, and Sapphire for nearly infinite color combinations with a high CRI/TLCI rating of 98 and 97. Color can be adjusted from a very warm amber 1650K to an icy blue 8000K. But control doesn't stop there. There's 360-degree hue adjustment around the color wheel as well as 0-100% saturation control. The 100-C can also be dimmed from 0-100%. While of course you can make all of these adjustments manually, you can also make them remotely via your smartphone or onboard DMX. Once you've grown accustomed to the 100-C's features, you'll want to take it everywhere, and thanks to its 100-240 VAC power supply, you can. - Perfect S.H.O.T. Controls
- The 100-C has 0-100% saturation adjustment, 360° hue control, output regulation from 0-100%, and color temperature control from 1650 to 8000K for near infinite combinations to get you your precise balance.
- 5-Chip Color Blending
- The 100-C uses red, amber, lime, cyan and sapphire LEDs instead of the traditional 3 color system to achieve a high CRI (98) and TLCI (97) to render colors faithfully with no output loss or color degradation.
- Control
- The 100-C's functions can be controlled manually (locally) or remotely via your smartphone or DMX.
- Small and Light
- The 100-C is 7.5" long and weighs just 5 lb.

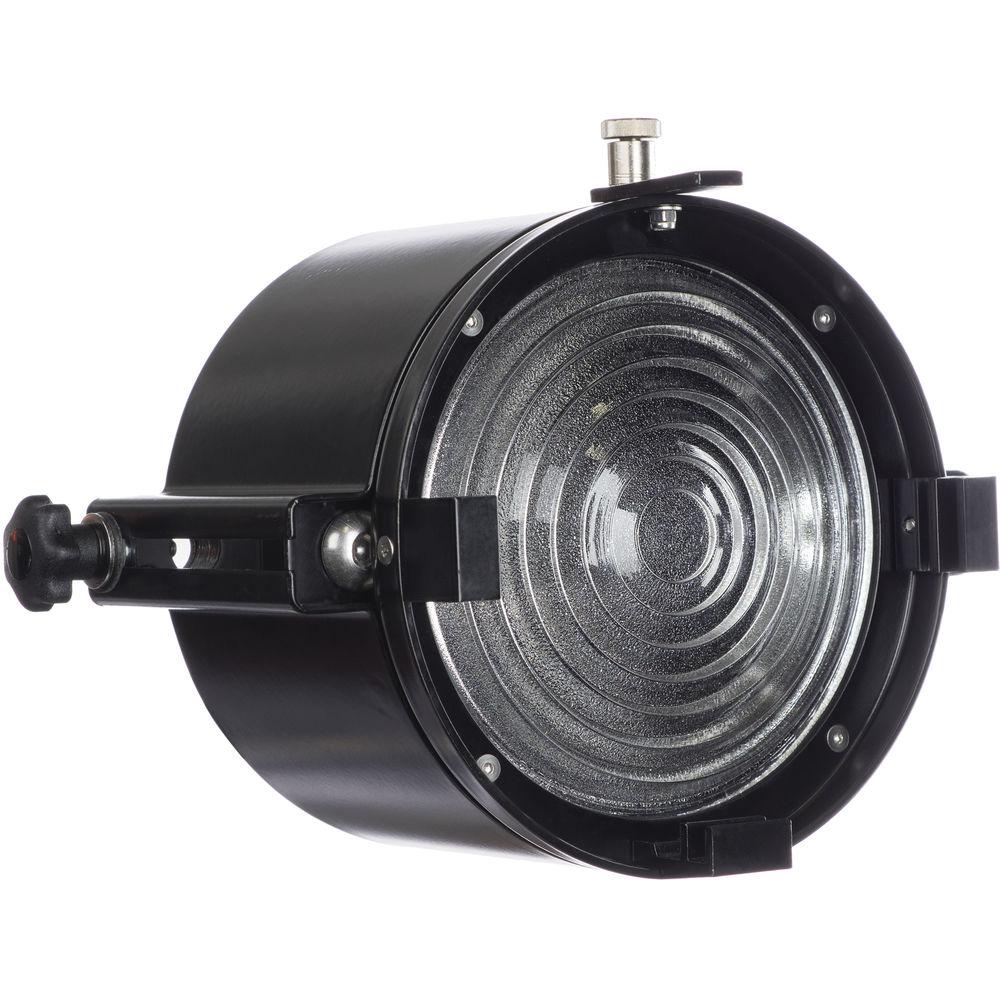

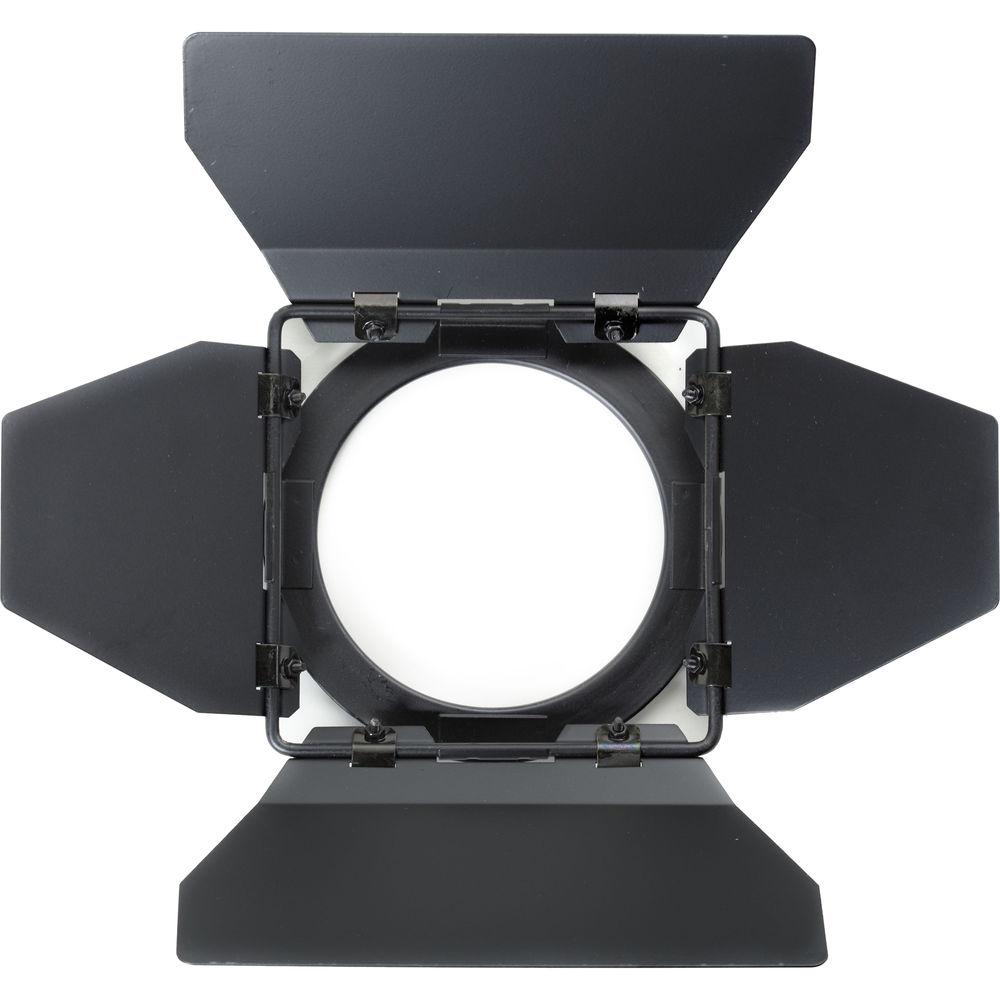

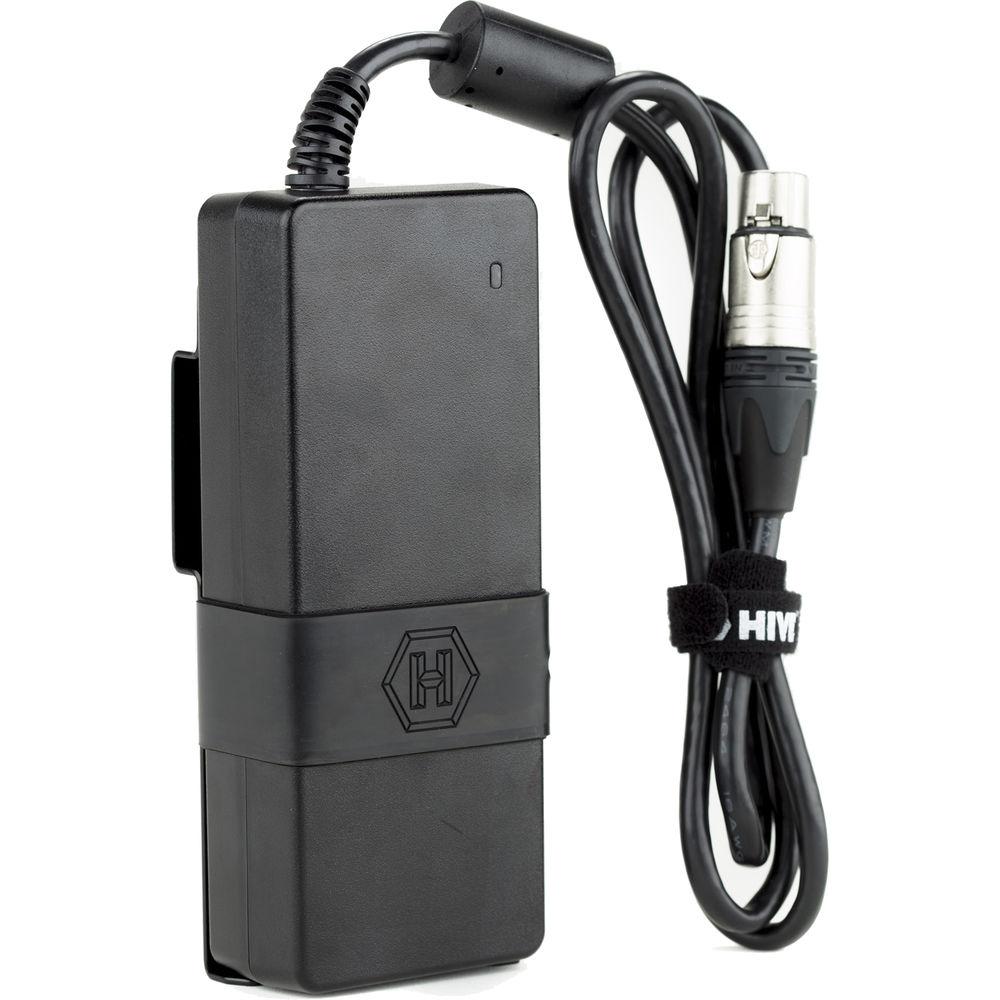

In the Box HIVE LIGHTING Wasp 100-C Studio Adjustable Fresnel LED Light (Black) Wasp 100-C Light Engine Wasp 100-C Universal AC Power Supply Wasp 100-C 4-Leaf Barndoors Adjustable Fresnel Attachment for Wasp 100-C LED Light Yoke with C-Clamp Limited 1-Year Warranty Spec sheet PDF 3.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the HIVE LIGHTING Wasp 100-C Studio Adjustable Fresnel LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHIVE LIGHTING Wasp 100-C Specs | | | Beam Angle | 15 to 50° | | Color Temperature | 1650 to 8000K | | Cooling System | None | | Dimming | Yes, 0 to 100% (Continuous) | | Display | LCD | | Housing Material | Aluminum | | Lumens | 0 | | Photometrics | 1760 fc / 18,945 lux at 2.5' / 0.7 m
440 fc / 4736 lux at 5' / 1.5 m
110 fc / 1184 lux at 10' / 3 m
49 fc / 528 lux at 15' / 4.6 m
28 fc / 301 lux at 20' / 6.1 m | | Fixture Dimensions | 4.0 x 7.5" / 10.2 x 19.1 cm (Including Yoke) | | Fixture Weight | 5 lb / 2.27 kg (Including Yoke) | | | | Power Input Connector | 4-Pin XLR | | DMX Connector | 4-Pin XLR | | | | Reflector Mount | Bowens S-Type | | Lens Diameter | 5" / 12.7 cm | | Lens Type | Fresnel | | | | Fixture Mount | None | | Accessory Mount | None | | | | Yoke Material | Aluminum | | Yoke Type | Hanging | | | | Remote Control Type | DMX, Wi-Fi | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 28 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W | | | | Power Supply Output | 12 VDC, 28 A |
