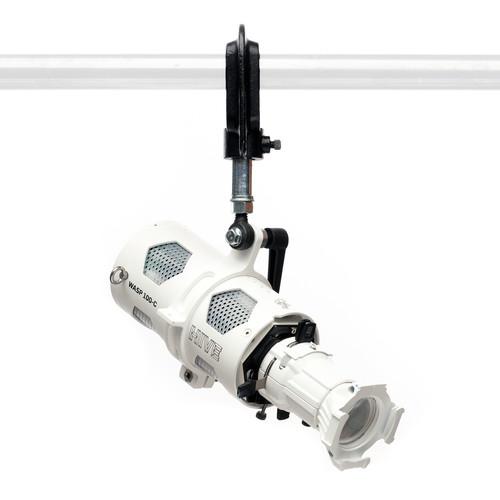

User Manual for HIVE LIGHTING Wasp 100-C Studio Leko Spot Light Click to enlarge the picture
Contents of the user manual for the HIVE LIGHTING Wasp 100-C Studio Leko
- Product category: LED Lights HIVE LIGHTING
- Brand: HIVE LIGHTING
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HIVE LIGHTING LED Lights
|
User manual for the HIVE LIGHTING Wasp 100-C Studio Leko contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HIVE LIGHTING product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HIVE LIGHTING user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HIVE LIGHTING product will considerably shorten its lifespan!
|
Product description The Wasp 100-C Studio Leko Spot Light from Hive is a lightweight, versatile LED source with a white finish and a small form factor that's ideal for theater, events and film and video productions. The light has a tight 19° spot barrel and lens that can be focused to a hard or soft edge for selective lighting. The 100-C has a bracket to hold its power supply and a studio yoke with a C-clamp for hanging overhead on a pipe or grid. The Wasp 100-C Leko also had four built-in shutter blades to shape the beam and a gobo holder to project images and patterns onto a set or stage.Control is the key word in the construction of the 100-C. Hive uses what they call Perfect S.H.O.T controls that's an umbrella term for complete control and adjustment of every aspect of light output. Part of the success of the system is due to the use of 5-chip LED blending. Instead of the traditional 3 colors, Hive uses Red, Amber, Lime, Cyan, and Sapphire for nearly infinite color combinations with a high CRI/TLCI rating of 98 and 97. Color can be adjusted from a very warm amber 1650K to an icy blue 8000K. But control doesn't stop there. There's 360° hue adjustment around the color wheel as well as 0-100% saturation control. The 100-C can also be dimmed from 0-100%. While of course you can make all of these adjustments manually, you can also make them remotely via your smartphone or onboard DMX - an important advantage when the light's mounted overhead. Once you've grown accustomed to the 100-C's features, you'll want to take it everywhere, and thanks to its 100-240 VAC power supply, you can. - Perfect S.H.O.T. Controls
- The 100-C has 0-100% saturation adjustment, 360° hue control, output regulation from 0-100%, and color temperature control from 1650 to 8000K for near infinite combinations to get you your precise balance.
- 5-Chip Color Blending
- The 100-C uses red, amber, lime, cyan and sapphire LEDs instead of the traditional 3-color system to achieve a high CRI (98) and TLCI (97) to render colors faithfully with no output loss or color degradation.
- Control
- The 100-C's functions can be controlled manually (locally) or remotely via your smartphone or DMX.
- Small and Light
- 100-C is 7.5" long and weighs just 5 lb.
In the Box HIVE LIGHTING Wasp 100-C Studio Leko Spot Light (White) Mini Leko Spot Barrel and Lens Wasp 100-C Universal AC Power Supply Power Supply Mounting Bracket for Wasp 100-C LED Light Studio Yoke with Pipe Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HIVE LIGHTING Wasp 100-C Studio Leko Spot Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHIVE LIGHTING Wasp 100-C Specs | | | Beam Angle | 19° | | Color Temperature | 1650 to 8000K | | Color Accuracy Standard | TLCI 97 | | Cooling System | None | | Dimming | Yes, 0 to 100% (Continuous) | | Display | LCD | | Housing Material | Aluminum | | Lumens | 0 | | Fixture Dimensions | Spot: 4.0 x 7.5" / 10.2 x 19.1 cm (Including Yoke) | | Fixture Weight | 5 lb / 2.27 kg (Including Yoke) | | | | Power Input Connector | 4-Pin XLR | | DMX Connector | 4-Pin XLR | | | | Reflector Mount | Bowens S-Type | | | | Fixture Mount | None | | Accessory Mount | None | | | | Remote Control Type | DMX, Wi-Fi | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 28 VDC | | Power Source | AC Adapter, External Battery |
