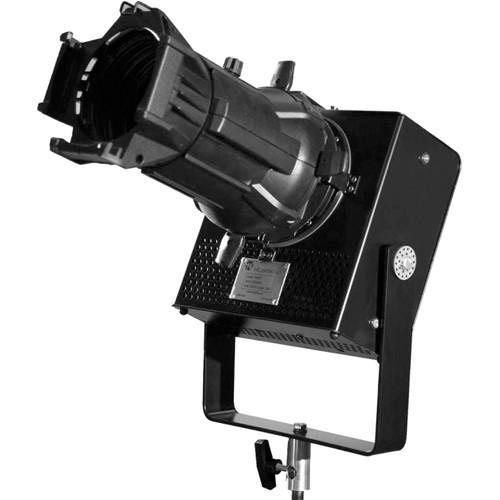

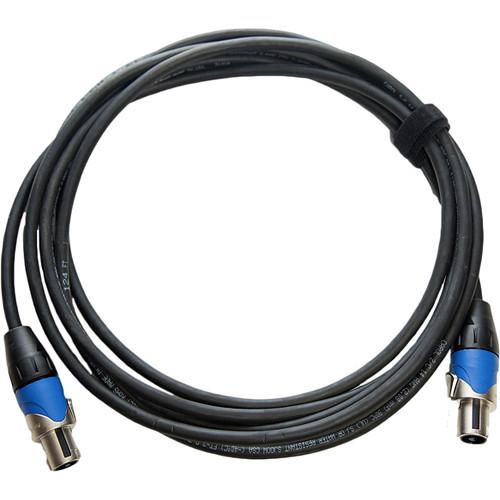

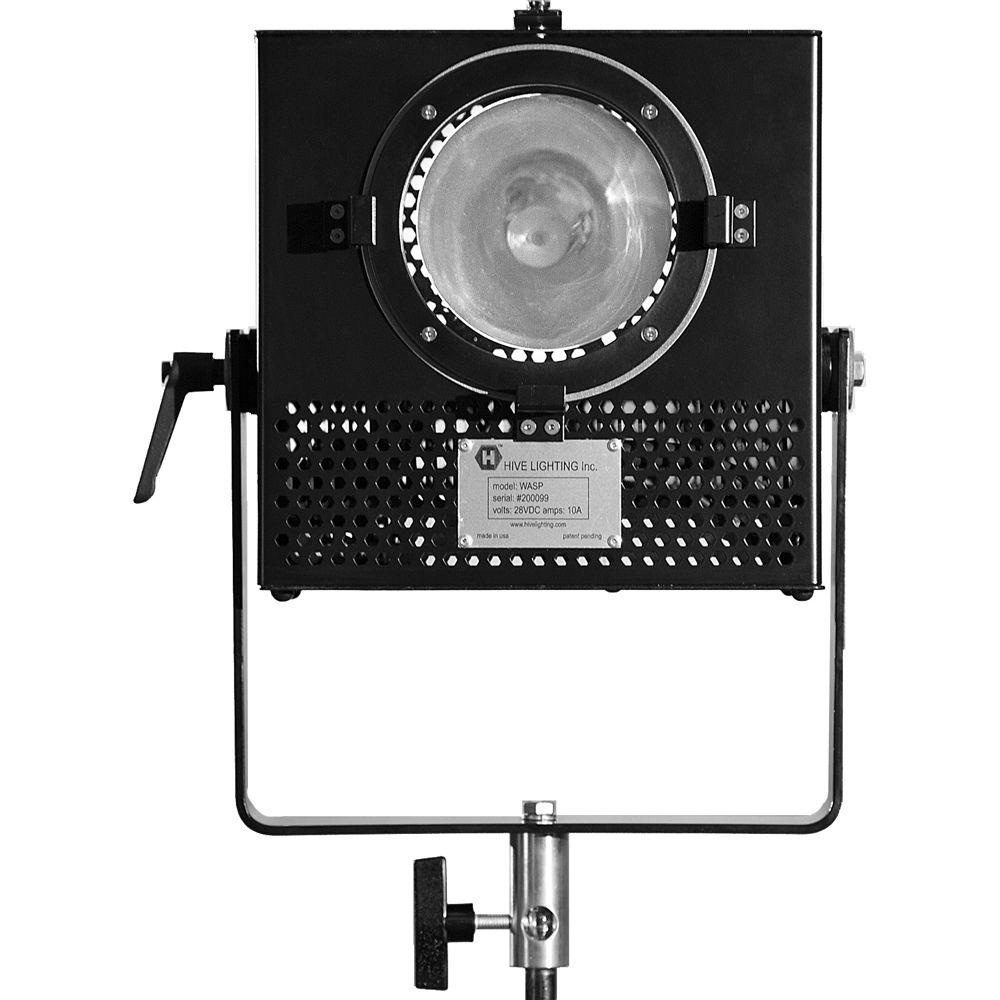

Product description A versatile single light kit, the Wasp 250 Plasma Leko Spot Kit from HIVE LIGHTING pairs one Wasp 250 PAR light head with a 250W plasma bulb, an AC power supply, an AC power cable, a 15' header cable, a four-leaf barndoor set, a five-piece scrim set, a four-piece HDP lens set, an ETC source 4 barrel & lens, and a hard, rolling case for two lights. The Wasp 250 has a full spectrum of 94+ CRI, and has an adjustable daylight color temperature of 4600-7000K. This light is also flicker-free and can be used in a 90-300 VAC or 18-38 VDC power source circuit. The Wasp 250 uses the included single point source 250W plasma bulb. The Wasp can be used as a PAR, a Leko Spot, and in a Maxi kit configuration. It fits four-point and eight-point softboxes, photo umbrellas, traditional glass lenses, and HDP lenses. - Wasp Plasma PAR Light Kit with 15' Header Cable The Wasp Plasma PAR Light utilizes a single plasma bulb to produce a fine 10° spot beam angle with the equivalent output of a 400-4000W HMI, depending on accessory configuration, and can be further controlled using the included four-piece PAR lens set to provide narrow, medium, wide, and super wide beams.It features a CRI of 94 and has a nominal, daylight-balanced, correlated color temperature of 5600K, which can be adjusted from 4600-7000K using an on-board dial. Ideal for both still, movie, and stage applications, this light is also flicker-free, vibration and impact resistant, and the single point source bulb has been tested for a lifespan of 30,000 hours. It requires the separate purchase of a power supply for use.

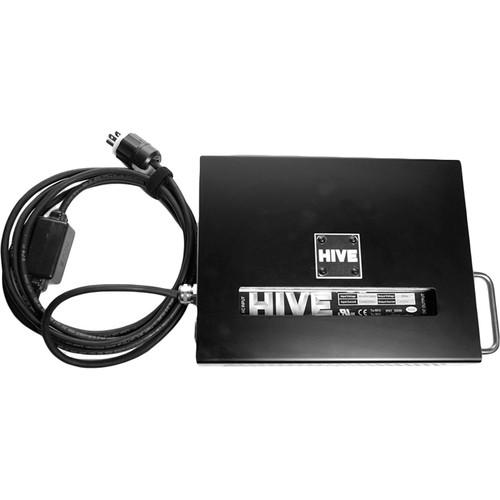

- Bee AC Power Supply (90-300 VAC) This Bee AC Power Supply from Hive Lighting is a multi-voltage, 90-300 VAC power source for Bee fixtures. It is an AC-only supply for one fixture and features an inline on/off switch. UPC: 856211006238

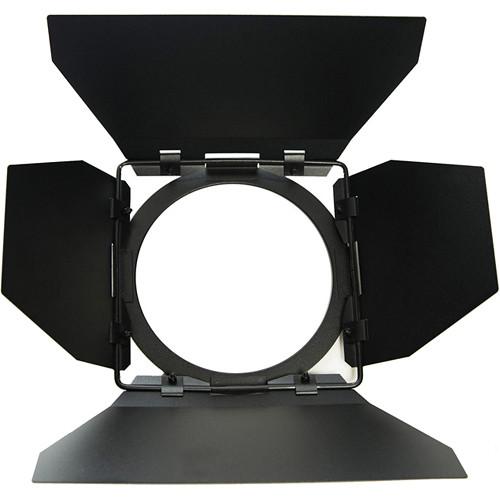

- Wasp 4-Leaf Barndoor Set The Wasp 4-Leaf Barndoor Set by Hive is compatible with all Wasp lighting fixtures; they attach to the front, and are used to restrict and shape the light. Additionally, the set can rotate 360° and accepts grids and filters. UPC: 856211006252

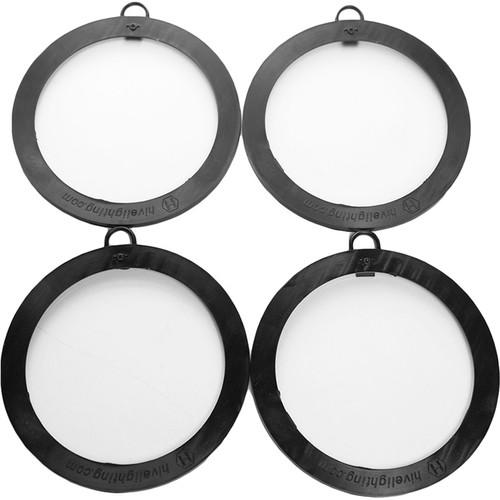

- Wasp PAR HDP 4 Lens Set Designed for the Hive Lighting Wasp Plasma PAR light, the Wasp PAR HDP 4 Lens Set includes narrow, medium, wide, and super wide lenses for controlling the light's beam angle and shape. These lenses are constructed from holographic diffusing polycarbonate (HDP) and are designed to imitate traditional glass PAR lenses, but have 20% higher transmission and are vibration and shatter resistant. UPC: 856211006269

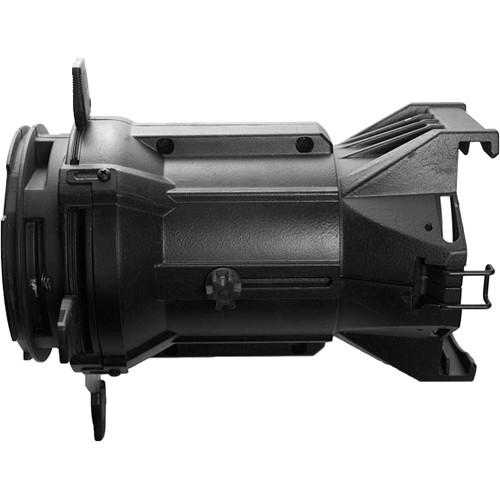

- ETC Source Four Barrel and Lens for Wasp 250 (Refurbished) Create and ellipsoidal or "Leko"-style spotlight such as those found in stage productions by mounting this ETC Source Four Barrel and Lens from Hive Lighting on your Wasp 250. The included lens features a 26° beam angle and optional lenses are available for modifying the look of the spot. Please note that this is a refurbished unit. UPC: 856211006368

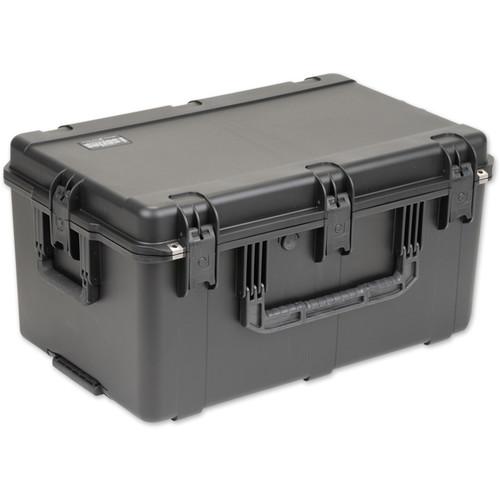

- Wasp Two Light Hard Rolling Case Transport and protect two lights and accessories from your Hive Kit with the black, Two Light Hard Rolling Case from Hive Lighting. The injection molded case with custom-fit foam is designed for Hive Killer and Bumblebee Lighting Kits. The foam inside is cut to hold the above kits but can be removed to suit your needs. This gasketed, waterproof, airtight case is designed to be unbreakable due to its high-strength polypropylene copolymer resin construction. Submersible by design, the Wasp hard case is resistant to corrosion and damage upon impact.
Featuring a continuous hinge molded into the plastic, the case lacks a weak point. The pressure equalization valve will aid in any necessary shipment, as it will release pressure without letting any water into the case. Along with the trigger release latch system, your two light kit will be secure in nearly every kind of transit condition. Additional security is provided by two reinforced steel locking holes preventing any cutting or clipping.
For added convenience when transporting your kit, the Hive Hard Case has a wide set of built-in inline wheels complimented by an injection molded pull handle. To balance a heavy load, utilize either the top snap-down rubber over-molded cushion grip handle or the over-sized double grip carrying handle on the side. If you need to carry the case with another person, it is equipped with grip handles on each end. After setting up your lights on set or location, easily stack your hard cases on top of each other to maximize your production space. - Construction
-
- Ultra high-strength polypropylene copolymer resin
- UV, solvent, corrosion, and fungus resistant
- Complete gasket seal makes these cases watertight
- IP67 rated, automatic pressure equalization valve
- Resistant to corrosion and impact damage
- Continuous molded-in hinge
- Patented "trigger release" TSA Locking Latch system
- Carrying Options
-
- Snap-down rubber over-molded cushion grip handle
- Oversized double-grip carrying handle
- Grip handles on each end for two people to carry
- Injection molded pull handle
- Wide set of wheels

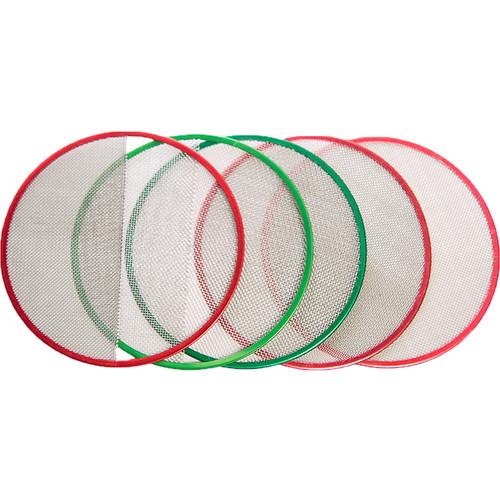

UPC: 856211006344 - 5-Piece Scrim Set for Wasp / Bee Lighting Fixtures
In the Box Bundle Items Wasp Plasma PAR Light Kit with 15' Header Cable sutxscetzbxbtctezvyxvzsscyeadbt Bee AC Power Supply (90-300 VAC) Wasp 4-Leaf Barndoor Set 5-Piece Scrim Set for Wasp / Bee Lighting Fixtures Wasp PAR HDP 4 Lens Set ETC Source Four Barrel and Lens for Wasp 250 (Refurbished) sutxscetzbxbtctezvyxvzsscyeadbt Wasp Two Light Hard Rolling Case sutxscetzbxbtctezvyxvzsscyeadbt
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the HIVE LIGHTING Wasp 250 Plasma Leko Spot Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Wasp Plasma PAR Light Kit with 15' Header Cable
| Light Source | Plasma lamp | | Lamp Life | 30,000 hr (50,000 hr to L70) | | Rating | 276 W | | Flicker Free | Yes, 450 MHz cycle, 225 million fps | | Color Temperature | Nominal daylight: 5600K CCT
Daylight dial: 4600 - 7000K (plus Moonlight EFX) | | Dimming | Yes | | CRI | 94+ | | Photometrics | At 5600K @ 10' (3.0 m)
No lens: 5,000 fc
10° Spot Narrow lens: 4,700 fc
26 x 11° Medium lens: 1,300 fc
58 x 18° Wide lens: 800 fc
58 x 58° Super lens: 391 fc | | Mount | 5/8" (16 mm) TVMP receiver | | Power | 90 - 277 VAC (with Hive AC power supply)
18 - 38 VDC (with Hive AC/DC power supply)
2.3 A @ 120 VAC, 9.8 A @ 28 VDC | | Accessory Size | 6.6 or 6.5" (170 or 165 mm) | | Operating Conditions | Minimum ambient temperature: -31°F (-35°C)
Maximum ambient temperature: 110°F (43°C)
Maximum operating altitude: 30,000' (9,144 m) | | Dimensions | 10.5 x 9.8 x 11" (266 x 248 x 280 mm)
14.5" (368 mm) From pin receiver to yoke mount | | Weight | 11.5 lb (5.2 kg) | | | | Box Dimensions (LxWxH) | 23.779 x 18.504 x 12.52" | - Bee AC Power Supply (90-300 VAC)
| | | Box Dimensions (LxWxH) | 16.0 x 12.0 x 7.0" | - Wasp 4-Leaf Barndoor Set
| Material | Aluminum | | Weight | 5 lb (2.3 kg) | | | | Box Dimensions (LxWxH) | 7.7 x 7.7 x 0.2" | - 5-Piece Scrim Set for Wasp / Bee Lighting Fixtures
| | | Product Type | Light control kit | | | | Compatible Light Unit | HIVE WASP 250, HIVE BEE 250 | | Bag Included | Yes | | | | Kit Components | (5) x scrim | | | | Box Dimensions (LxWxH) | 9.2 x 8.8 x 1.1" | - Wasp PAR HDP 4 Lens Set
| | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 1.0" | - ETC Source Four Barrel and Lens for Wasp 250 (Refurbished)
| Beam Angle | 26° | | Dimensions | 24 x 18 x 12" / 61.0 x 45.7 x 30.5 cm | | Weight | 18 lb / 8.1 kg | | | | Box Dimensions (LxWxH) | 22.5 x 15.3 x 12.0" | - Wasp Two Light Hard Rolling Case
| | | Interior Dimensions | 29 x 18 x 14.5" / 74 x 46 x 37 cm | | Padding | Foam | | | | Closure Type | Latch | | Carry and Transport Options | 5 x Handle | | Casters | 2 | | Material of Construction | Polypropylene, Rubber | | Exterior Dimensions (W x H x D) | 31.5 x 20.5 x 15.7" / 80 x 52 x 40 cm | | Weight | 22 lb / 10 kg |
