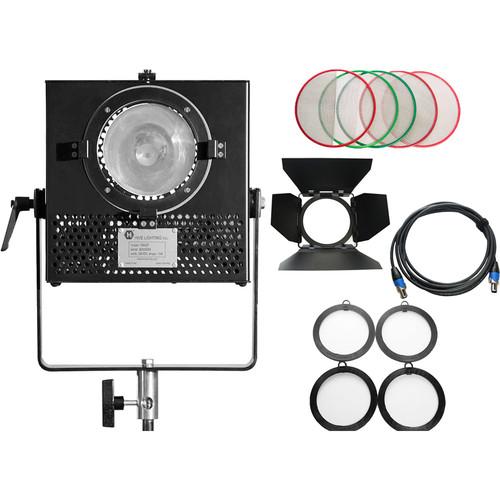

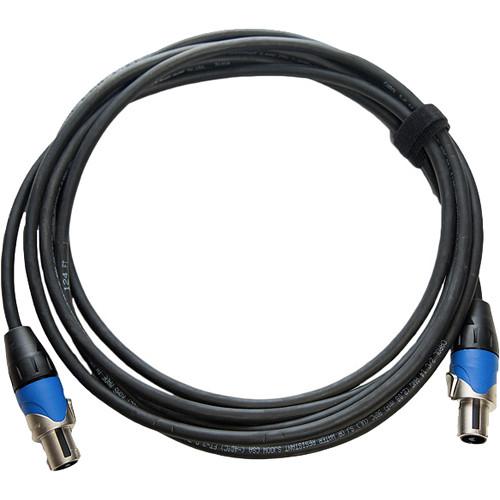

Product description A versatile single light kit characterized by a unique lighting technology, the Wasp Plasma PAR Light Kit with AC Power Supply from HIVE LIGHTING pairs one Wasp PAR light head with a 15' header cable, a multi-voltage 90-300 VAC AC power supply, a four-piece PAR lens set, a five-piece scrim set, and a four-leaf barndoor set.
The Wasp Plasma PAR light utilizes a single plasma bulb to produce a fine 10° spot beam angle with the equivalent output of a 400-4000W HMI, depending on accessory configuration, and can be further controlled through the use of the included four-piece PAR lens set to provide narrow, medium, wide, and super wide beams. It features a CRI of 94 and has a nominal daylight-balanced correlated color temperature of 5600K, which can be adjusted from 4600-7000K using an on-board dial. Ideal for both still, movie, and stage applications, this light is also flicker-free, vibration and impact resistant, and the single point source bulb has been tested for a lifespan of 30,000 hours. - Wasp Plasma PAR Light Kit with 15' Header Cable The Wasp Plasma PAR Light utilizes a single plasma bulb to produce a fine 10° spot beam angle with the equivalent output of a 400-4000W HMI, depending on accessory configuration, and can be further controlled using the included four-piece PAR lens set to provide narrow, medium, wide, and super wide beams.It features a CRI of 94 and has a nominal, daylight-balanced, correlated color temperature of 5600K, which can be adjusted from 4600-7000K using an on-board dial. Ideal for both still, movie, and stage applications, this light is also flicker-free, vibration and impact resistant, and the single point source bulb has been tested for a lifespan of 30,000 hours. It requires the separate purchase of a power supply for use.
- Wasp AC Power Supply (90-300 VAC) This Wasp AC Power Supply from Hive Lighting is a multi-voltage, 90-300 VAC power source for Wasp fixtures. It is an AC-only supply for one fixture and features an inline on/off switch.

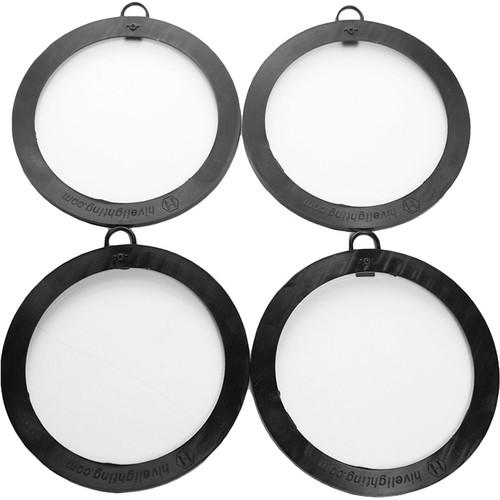

- Wasp PAR HDP 4 Lens Set Designed for the Hive Lighting Wasp Plasma PAR light, the Wasp PAR HDP 4 Lens Set includes narrow, medium, wide, and super wide lenses for controlling the light's beam angle and shape. These lenses are constructed from holographic diffusing polycarbonate (HDP) and are designed to imitate traditional glass PAR lenses, but have 20% higher transmission and are vibration and shatter resistant. UPC: 856211006269

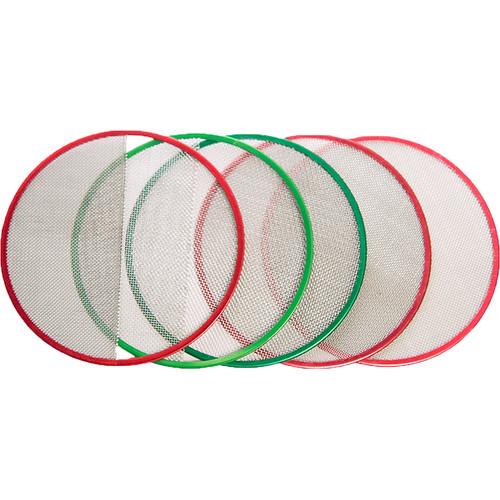

- Wasp 5-Piece Scrim Set This Wasp 5-Piece Scrim Set from Hive Lighting allows you to selectively reduce the light intensity of the Wasp Plasma Light. The kit contains two single scrims, two double scrims, one 1/2 single scrim, one 1/2 double scrim and a scrim bag. Scrim diameter is 6.5". The set also fits the Bee light fixture.

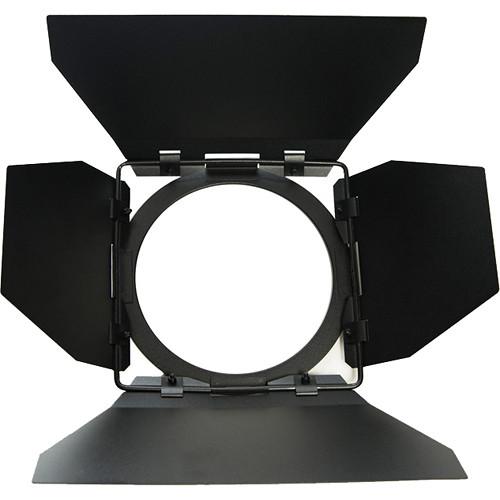

- Wasp 4-Leaf Barndoor Set The Wasp 4-Leaf Barndoor Set by Hive is compatible with all Wasp lighting fixtures; they attach to the front, and are used to restrict and shape the light. Additionally, the set can rotate 360° and accepts grids and filters. UPC: 856211006252
In the Box Bundle Items Wasp Plasma PAR Light Kit with 15' Header Cable cdvqasezxqbwycesqbyybcyuvvqbfrf Wasp AC Power Supply (90-300 VAC) Wasp PAR HDP 4 Lens Set Wasp 5-Piece Scrim Set cdvqasezxqbwycesqbyybcyuvvqbfrf Wasp 4-Leaf Barndoor Set cdvqasezxqbwycesqbyybcyuvvqbfrf Table of Contents
|
Upload User Manual
Have you got an user manual for the HIVE LIGHTING Wasp Plasma PAR Light Kit with AC Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Wasp Plasma PAR Light Kit with 15' Header Cable
| Light Source | Plasma lamp | | Lamp Life | 30,000 hr (50,000 hr to L70) | | Rating | 276 W | | Flicker Free | Yes, 450 MHz cycle, 225 million fps | | Color Temperature | Nominal daylight: 5600K CCT
Daylight dial: 4600 - 7000K (plus Moonlight EFX) | | Dimming | Yes | | CRI | 94+ | | Photometrics | At 5600K @ 10' (3.0 m)
No lens: 5,000 fc
10° Spot Narrow lens: 4,700 fc
26 x 11° Medium lens: 1,300 fc
58 x 18° Wide lens: 800 fc
58 x 58° Super lens: 391 fc | | Mount | 5/8" (16 mm) TVMP receiver | | Power | 90 - 277 VAC (with Hive AC power supply)
18 - 38 VDC (with Hive AC/DC power supply)
2.3 A @ 120 VAC, 9.8 A @ 28 VDC | | Accessory Size | 6.6 or 6.5" (170 or 165 mm) | | Operating Conditions | Minimum ambient temperature: -31°F (-35°C)
Maximum ambient temperature: 110°F (43°C)
Maximum operating altitude: 30,000' (9,144 m) | | Dimensions | 10.5 x 9.8 x 11" (266 x 248 x 280 mm)
14.5" (368 mm) From pin receiver to yoke mount | | Weight | 11.5 lb (5.2 kg) | | | | Box Dimensions (LxWxH) | 23.779 x 18.504 x 12.52" | - Wasp AC Power Supply (90-300 VAC)
- Wasp PAR HDP 4 Lens Set
| | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 1.0" | - Wasp 5-Piece Scrim Set
- Wasp 4-Leaf Barndoor Set
| Material | Aluminum | | Weight | 5 lb (2.3 kg) | | | | Box Dimensions (LxWxH) | 7.7 x 7.7 x 0.2" |
