Product description - Hollyland COSMO 1000PLUS Product Overview

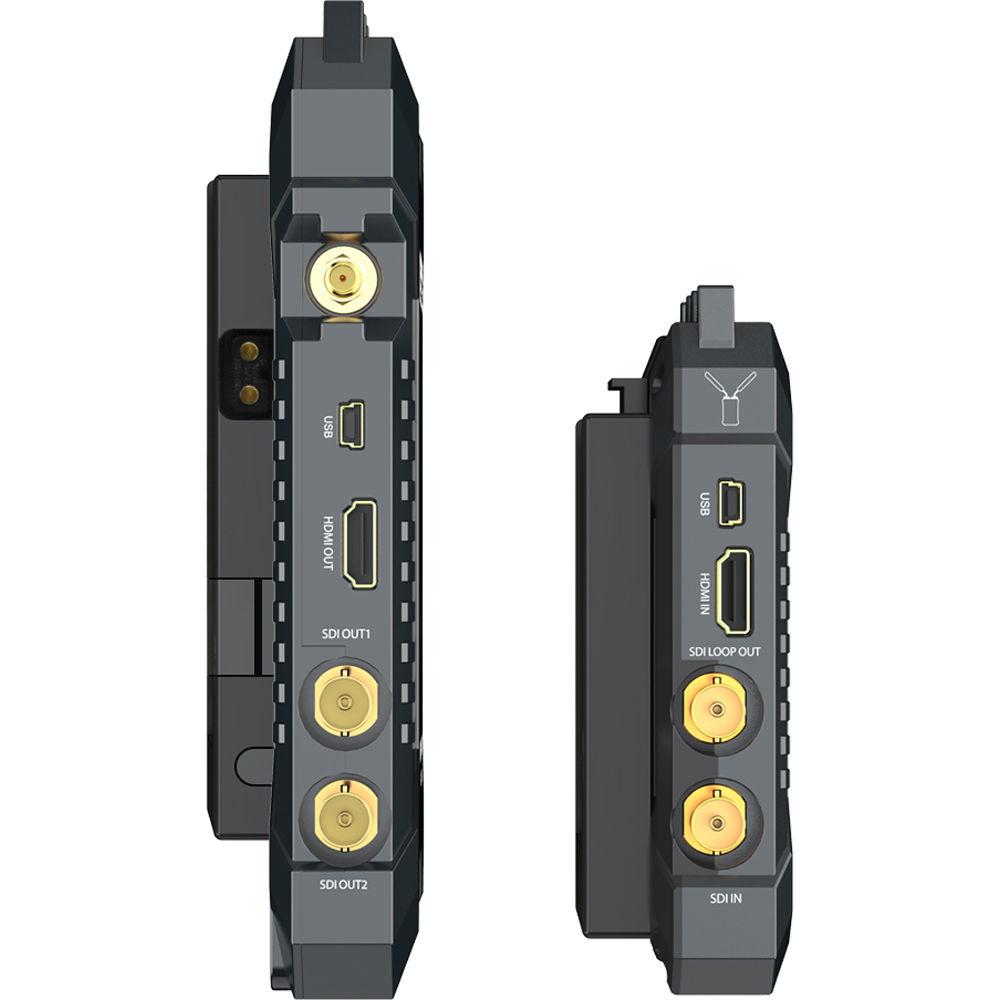

The Hollyland Cosmo 1000Plus allows you to transmit an HDMI/SDI signal up to 1000' line-of-sight to an HDMI or dual SDI outputs. The transmitter/receiver set supports up to 1080p60 signals with a latency of <1 ms. The transmitter offers one HDMI and one SDI input, one 3.5mm stereo audio input, and one SDI loop-through output. The receiver offers two SDI and one HDMI output.
The system operates on the 5.1 to 5.9 GHz frequency band and is encrypted to prevent video leakage—only the matched receiver shows clear images; unmatched units are unable to receive video, even when on the same frequency. The system supports RSSI (received signal strength indicator) and has multi-channel selection, which allows you to choose the cleanest channel for transmission. Both units also feature a bright, easy-to-read OLED display.

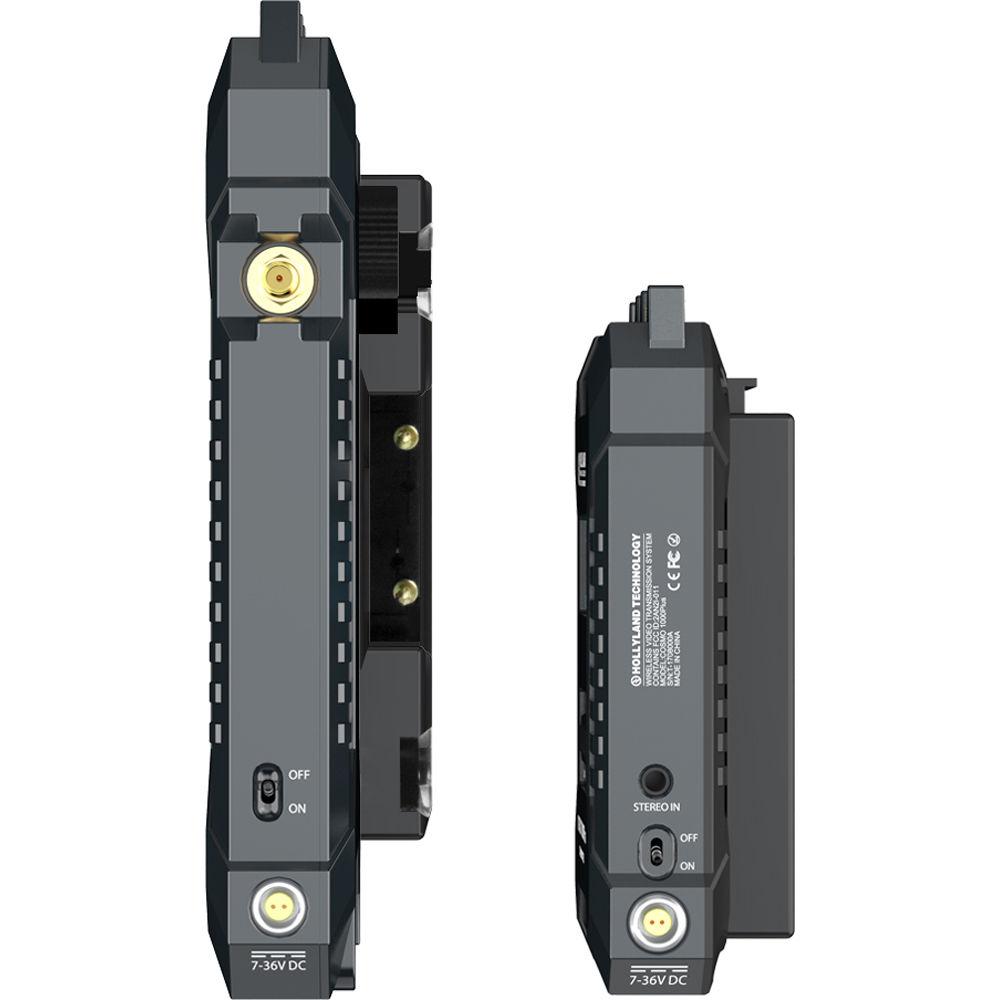

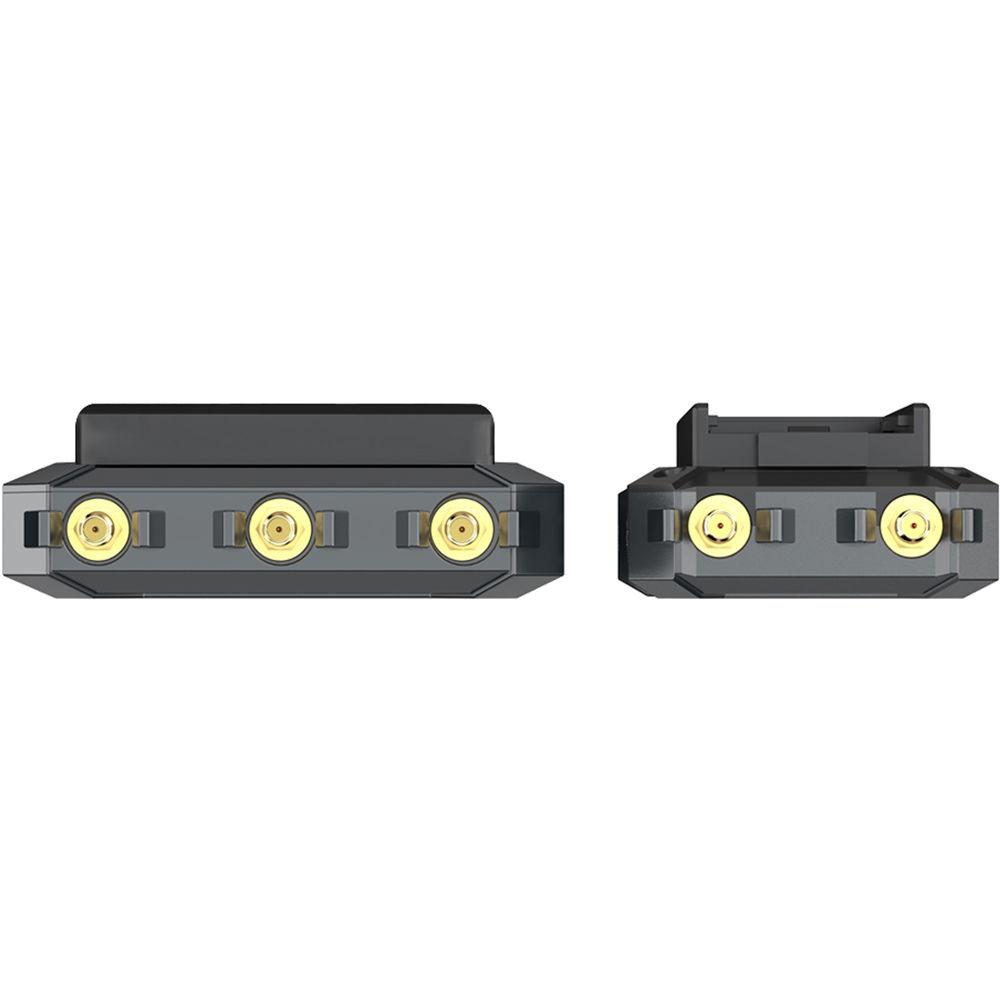

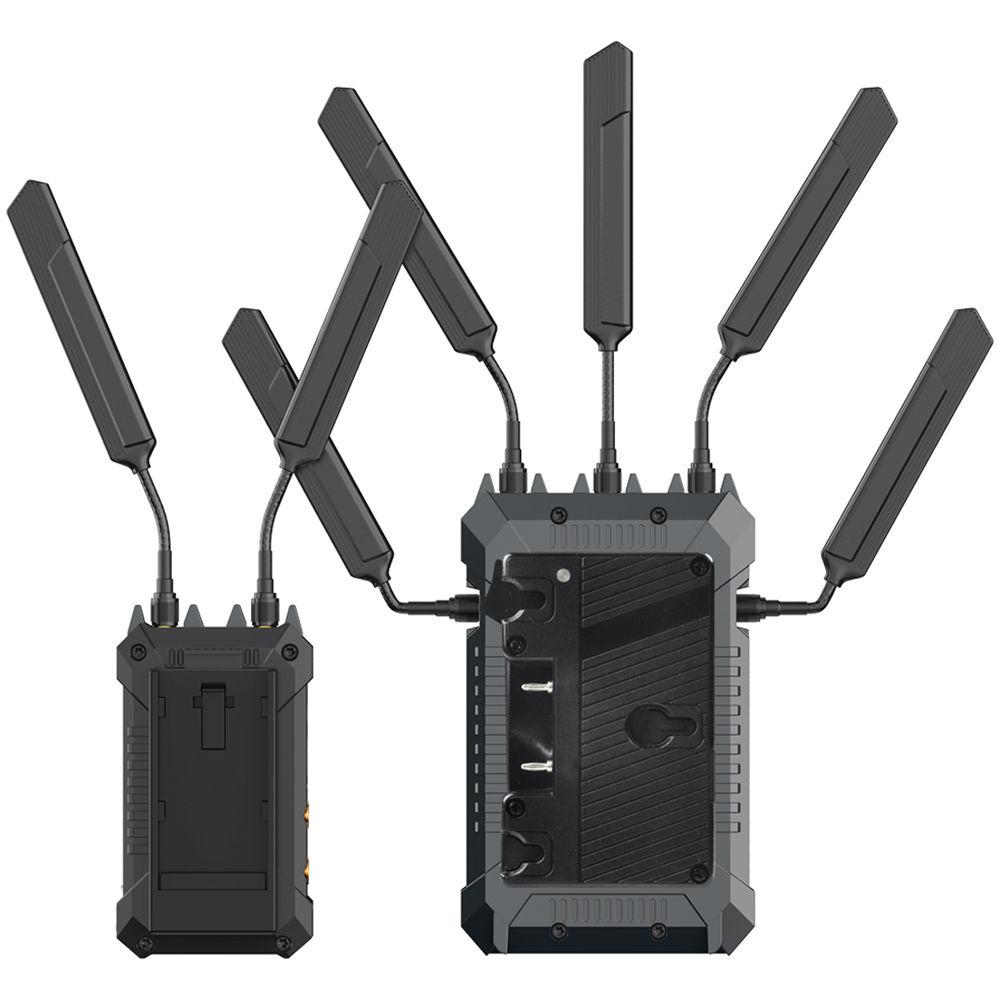

The transmitter is designed to be powered via an L-series battery plate or a 2-pin LEMO connector, and the receiver features a Gold mount battery plate and a 2-pin LEMO connector. Two D-Tap to LEMO cables are included to provide the flexibility to power both units via a cable connection to separately available, compatible batteries. The transmitter uses two antennas and the receiver, five antennas. All seven plus a spare are included, and two mushroom antennas are also supplied as replacements for the transmitter antennas. - Key Features
-
- Transmit up to a 1080p60 HDMI/SDI signal to an HDMI or dual SDI outputs
- 1000' line-of-sight, uncompressed transmission with <1 ms latency
- AES-128 encryption to prevent video leakage; only the matched receiver shows clear images, while unmatched receivers are unable to even when on the same frequency
- RSSI support and multi-channel selection allows you to choose the cleanest channel
- SDI loop-through out
- 3.5mm stereo audio input
- 5.1-5.9 GHz frequency band
- OLED screen
- Smart cooling fan
- Transmitter: 2-pin LEMO power connector and L-series battery plate
- Receiver: 2-pin LEMO connector and Gold mount battery plate
- LEMO to D-Tap and LEMO to AC cables

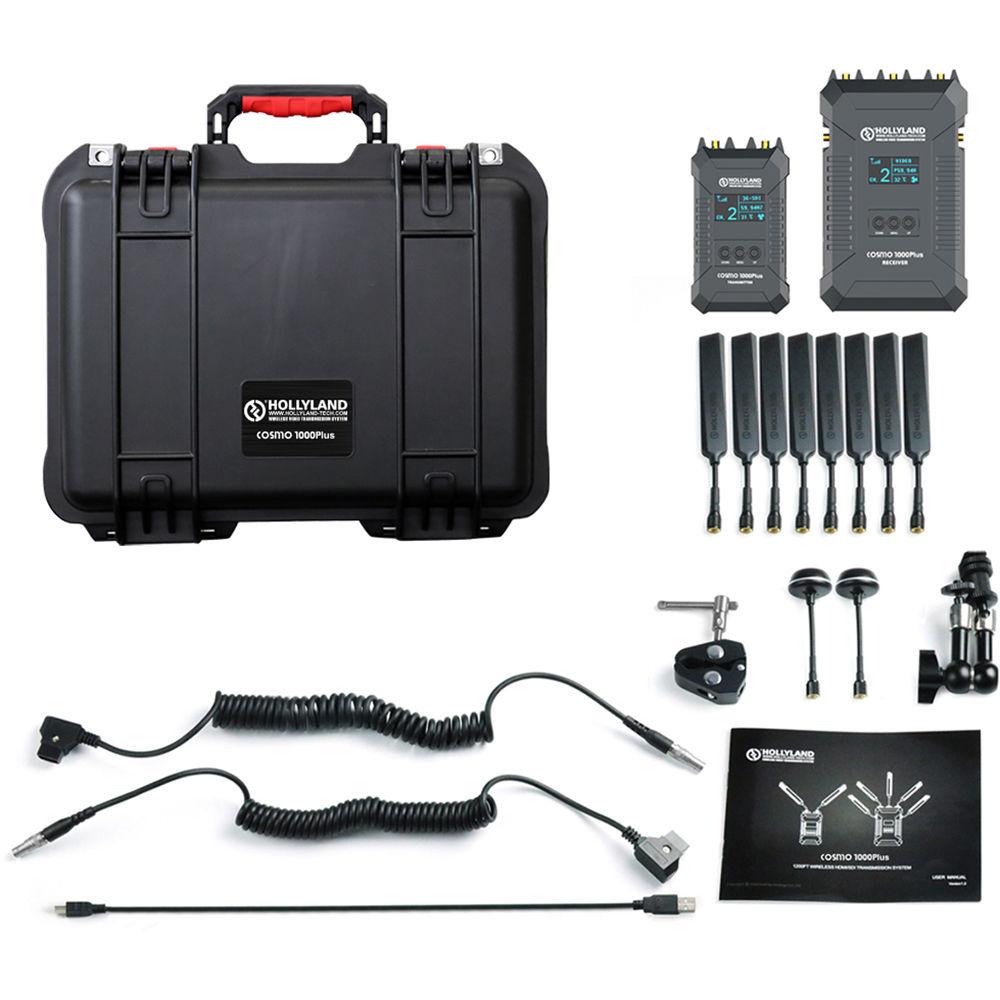

UPC: 767665171468 In the Box Hollyland Cosmo 1000Plus SDI/HDMI Wireless Video Transmission System Cosmo 1000Plus Transmitter Cosmo 1000Plus Receiver 8 x 5 GHz Directional Antennas 2 x Mushroom Antenna Magic Arm Crab Clamp USB Cable 2 x LEMO to D-Tap Cables LEMO to AC Adapter Hard Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hollyland Cosmo 1000Plus SDI HDMI Wireless Video Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHollyland COSMO 1000 Specs | | | Inputs | 1 x BNC SDI
1 x HDMI type A
1 x 3.5 mm Audio
1 x Mini-USB
1 x 2-Pin LEMO (Power) | | Outputs | 1 x BNC SDI Loop Out
2 x RP-SMA Antenna | | Video Input Format | HDMI:
1080p: 60/59.94/50/30/29/97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60
SDI:
3G, HD, and SD-SDI (Auto-Selected)
SMPTE-259/274/292/296/372/424/425 | | Audio Input Format | 2-Channel, HDMI/SDI-Embedded 24-Bit, 48 kHz | | Frequency Band | 5.1 to 5.9 GHz (Configurable with China, North America, Europe, etc.) | | Occupied Bandwidth | 40 MHz | | Modulation Mode | OFDM-16QAM | | Transmission Power | 17 dBm (Maximum) | | Encryption | AES-128 | | Power | Voltage: 7 to 36 VDC
Consumption: < 6 W | | Battery Plate | L-Series | | Compliance | FCC | | Dimensions | 5 x 2.8 x 1" / 12.7 x 7 x 2.5 cm (without Antennas or Battery Plate) | | Weight | 9.2 oz / 260 g | | | | Inputs | 1 x 2-Pin LEMO (Power)
1 x Mini-USB
5 x RP-SMA Antenna | | Outputs | 2 x BNC SDI
1 x HDMI type A | | Video Output Format | HDMI:
1080p: 60/59.94/50/30/29/97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60
SDI:
3G, HD, and SD-SDI (Auto-Selected)
SMPTE-259/274/292/296/372/424/425 | | Audio Output Format | 2-Channel, HDMI/SDI-Embedded 24-Bit, 48 kHz | | Frequency Band | 5.1 to 5.9 GHz (Configurable with China, North America, Europe, etc.) | | Occupied Bandwidth | 40 MHz | | Modulation Mode | OFDM-16QAM | | Sensitivity | -75 dBm | | Encryption | AES-128 | | Battery Plate | Gold Mount | | Power | Voltage: 7 to 36 VDC
Consumption: < 7 W | | Compliance | FCC | | Dimensions | 6.9 x 4.2 x 1" / 17.4 x 10.6 x 2.5 cm (without Antennas or Battery Plate) | | Weight | 21 oz / 590 g | | | | Package Weight | 8.6 lb | | Box Dimensions (LxWxH) | 16.0 x 12.8 x 6.0" |
