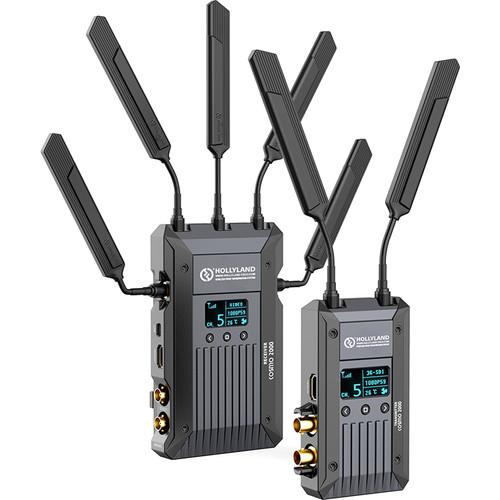

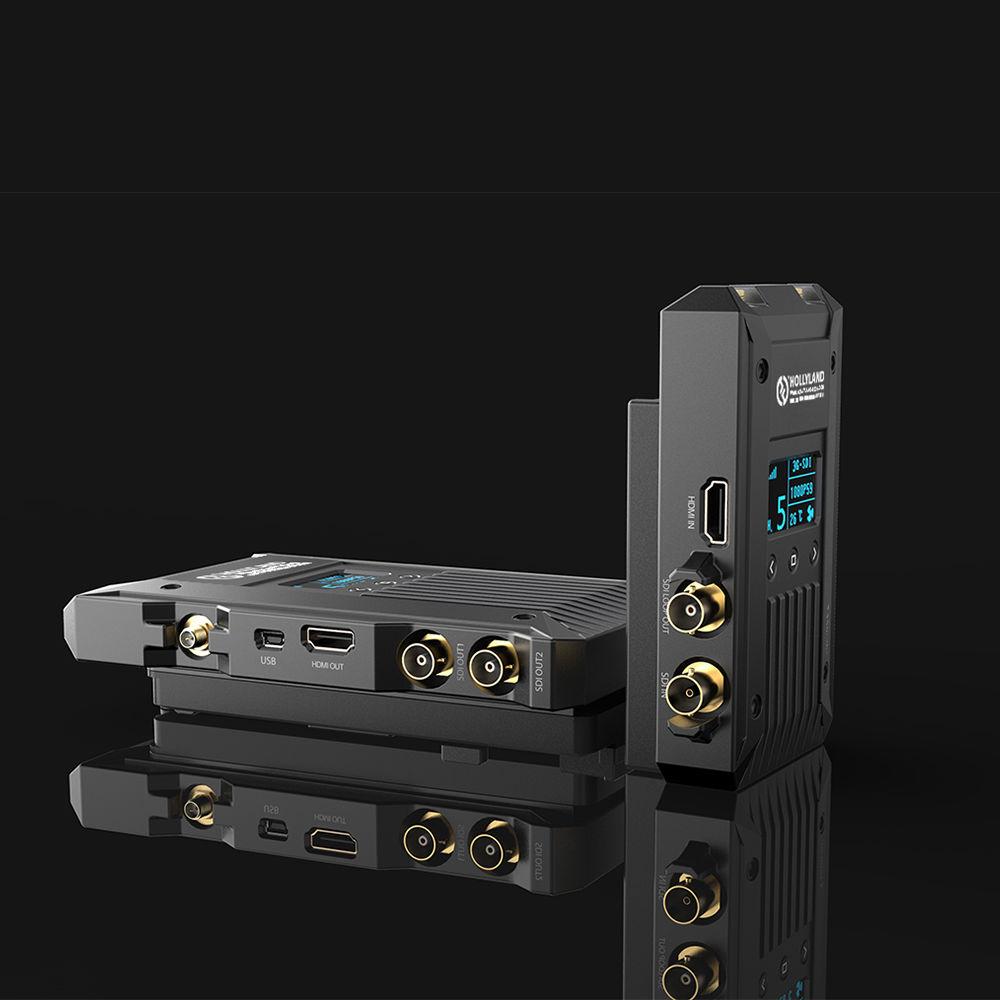

Product description The Hollyland Cosmo 2000 allows you to transmit an HDMI/SDI signal up to 2000' to an HDMI or dual SDI outputs. The transmitter/receiver set supports up to 1080p60 signals with a latency of <1 ms. The transmitter also offers an SDI loop-through output and 3.5mm stereo audio input. The system operates on the 5.1 to 5.9 GHz frequency band and is encrypted to prevent video leakage—only the matched receiver shows clear images; unmatched receivers are unable to, even when on the same frequency. One of the outstanding features of this Cosmo 2000 is a built-in software optimization for use with the ARRI ALEXA Mini. The Cosmo 2000 was designed to successfully handle playback on the ALEXA Mini without waiting. Other features include an OLED screen and a smart cooling fan that automatically kicks in whenever the temperature reaches extreme highs.

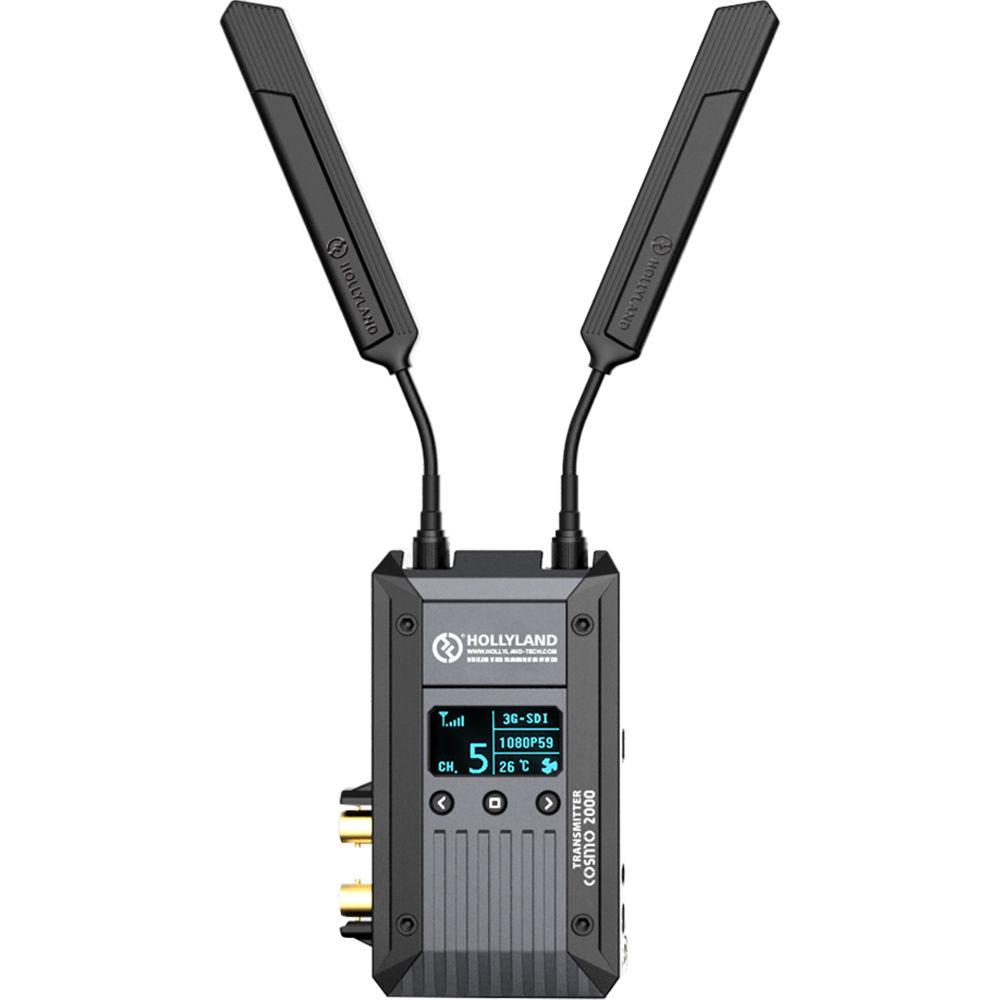

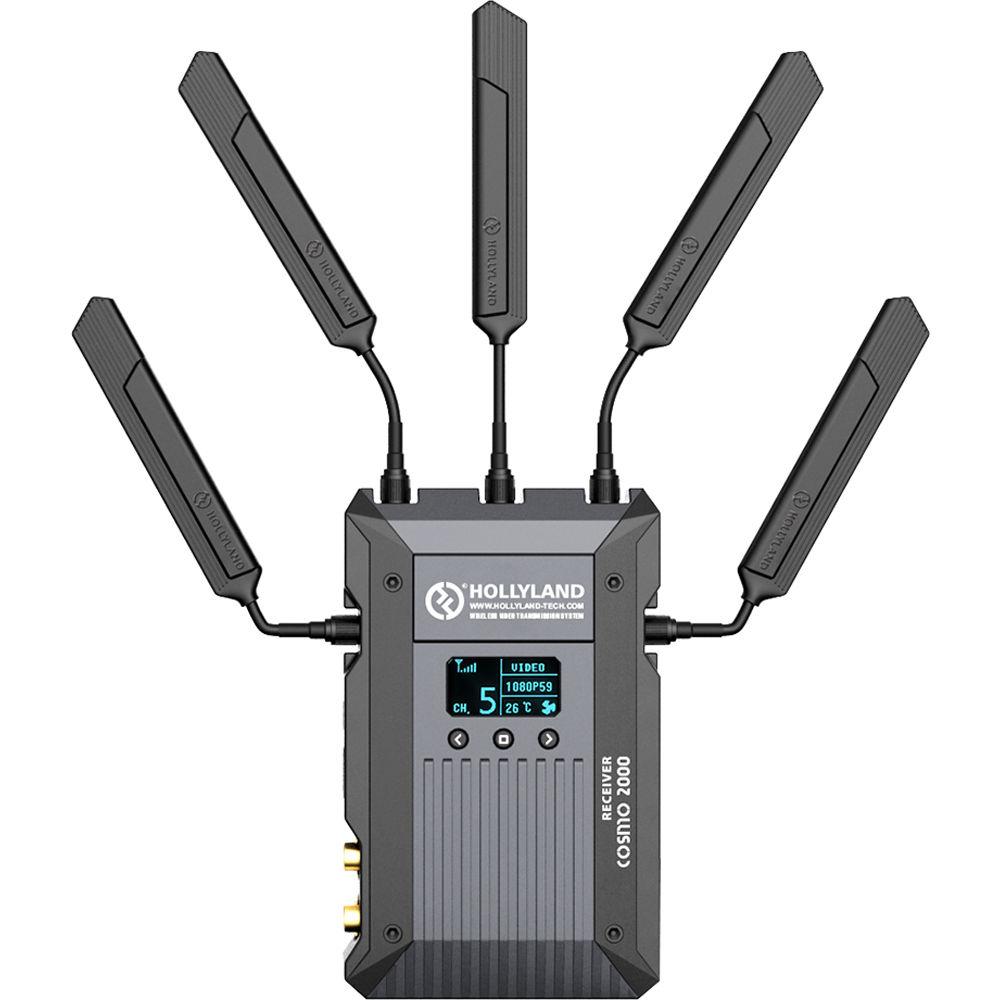

The transmitter is designed to be powered via its 4-pin LEMO connector only, and the receiver features a V-mount battery plate and a 4-pin LEMO connector. Two D-Tap to LEMO cables are included to provide the flexibility to power both units via a cable connection to compatible batteries. The transmitter uses two antennas and the receiver five antennas. All seven plus a spare are included, and two mushroom antennas are also supplied as replacements for the transmitter antennas. - Key Features
-
- Transmit up to a 1080p60 HDMI/SDI signal to an HDMI or dual SDI outputs
- 2000' line-of-sight transmission with <1 ms latency
- Optimized to successfully handle playback on the ALEXA Mini without waiting
- Encrypted to prevent video leakage; only the matched receiver shows clear images, while unmatched receivers are unable to even when on the same frequency
- SDI loop-through out
- 3.5mm stereo audio input
- 5.1-5.9 GHz frequency band
- AES-128 encryption
- OLED screen
- Smart cooling fan
- Transmitter: 4-pin LEMO power connector
- Receiver: V-mount battery plate and 4-pin LEMO connector
- D-Tap to LEMO cables
UPC: 767665171079 In the Box Hollyland Cosmo 2000 HDMI/SDI Wireless Video Transmission System Transmitter Receiver with V-Mount Battery Plate 2 x 5 GHz Transmitter Antenna 5 x 5 GHz Receiver Antenna Spare 5 GHz Antenna 2 x Mushroom Transmitter Antenna Articulating Magic Arm Crab Clamp 2 x D-Tap to 4-Pin LEMO Cable Hard Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hollyland Cosmo 2000 HDMI SDI Wireless Video Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHollyland Cosmo Specs | | | Transmission Range | 2000' / 610 m line-of-sight | | Latency | <1 ms | | Connections | 1 x HDMI type A input
1 x 3G/HD/SD-SDI input
1 x 3G/HD/SD-SDI loop out | | Input Resolution | 1080p: 60/59.94/50/30/29.94/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480p: 60
576p: 50
3G/HD/SD-SDI auto-selected, SMPTE-259/274/292/296/372/424/425 | | Supported Audio | 1 x 3.5 mm stereo input
Embedded 2-channel 24-bit/48 kHz | | Frequency | 5.1-5.9 GHz | | Antenna Support | 2 x RP-SMA male ports | | Modulation | OFDM 16-QAM | | Transmission Power | 18 dBm max | | Bandwidth | 40 MHz | | Encryption | AES-128 encryption | | Display | OLED | | Firmware Upgradable | Mini USB port | | Battery Plate | No battery plate support; 4-pin LEMO power only | | Power Input Connection | 4-pin LEMO female | | Power Input | 7-36 VDC | | Power Consumption | <9 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | Not specified by manufacturer | | Dimensions | 4.6 x 2.7 x 1" / 11.6 x 6.8 x 2.5 cm (not including antennas) | | Weight | 11 oz / 315 g | | | | Transmission Range | 2000' / 610 m line-of-sight | | Latency | <1 ms | | Output | 1 x HDMI type A output
2 x 3G/HD/SD-SDI | | Output Resolution | 1080p: 60/59.94/50/30/29.94/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480p: 60
576p: 50
3G/HD/SD-SDI auto-selected, SMPTE-259/274/292/296/372/424/425 | | Supported Audio | Embedded 2-channel 24-bit/48 kHz | | Frequency | 5.1-5.9 GHz | | Antenna | 5 x RP-SMA male ports | | Modulation | OFDM 16-QAM | | Receiver Sensitivity | -75 dBm | | Bandwidth | 40 MHz | | Encryption | AES-128 encryption | | Display | OLED | | Firmware Upgradable | Mini USB port | | Battery Plate | V-mount | | Power Input Connection | 4-pin LEMO female | | Power Input | 7-36 VDC | | Power Consumption | <8 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | Not specified by manufacturer | | Dimensions | 6.2 x 4 x 1" / 15.8 x 10.2 x 2.5 cm | | Weight | 18.3 oz / 520 g | | | | Package Weight | 9.595 lb | | Box Dimensions (LxWxH) | 16.0 x 13.6 x 6.55" |
