Product description - Hollyland Cosmo 400 Product Video Overview

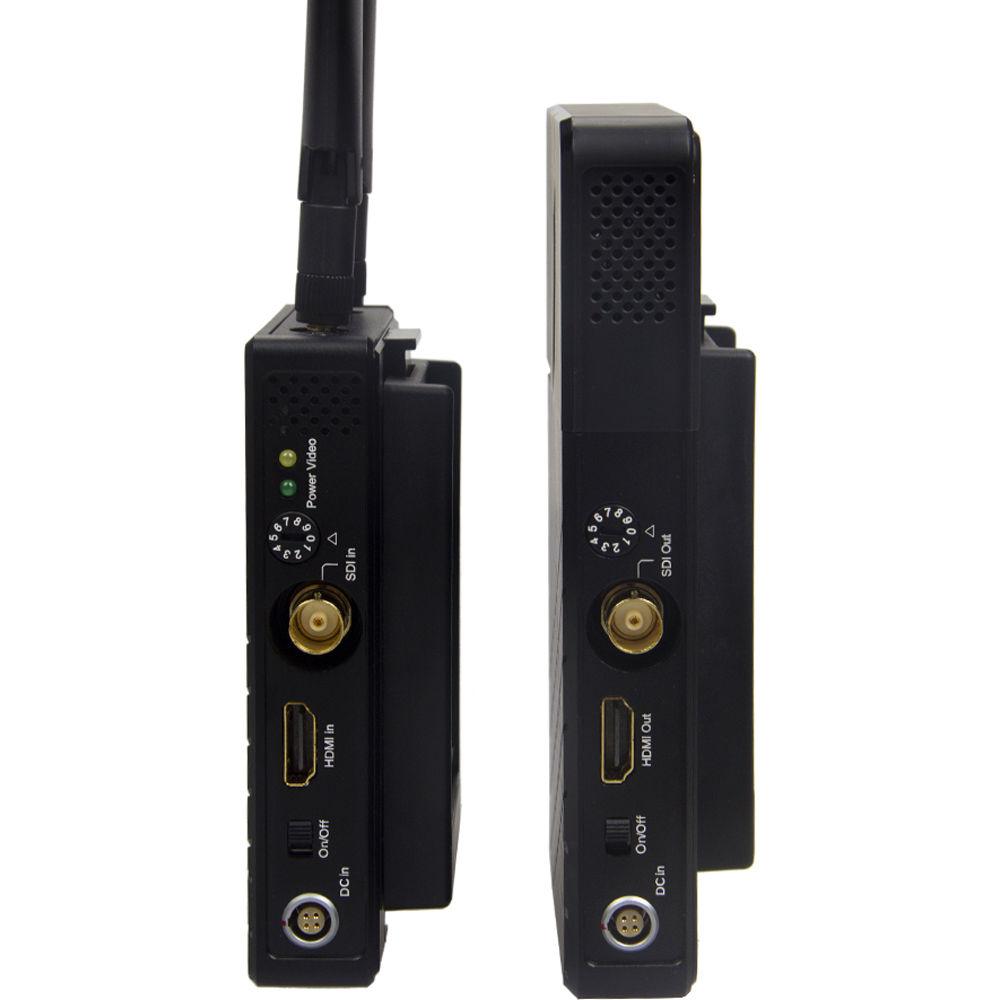

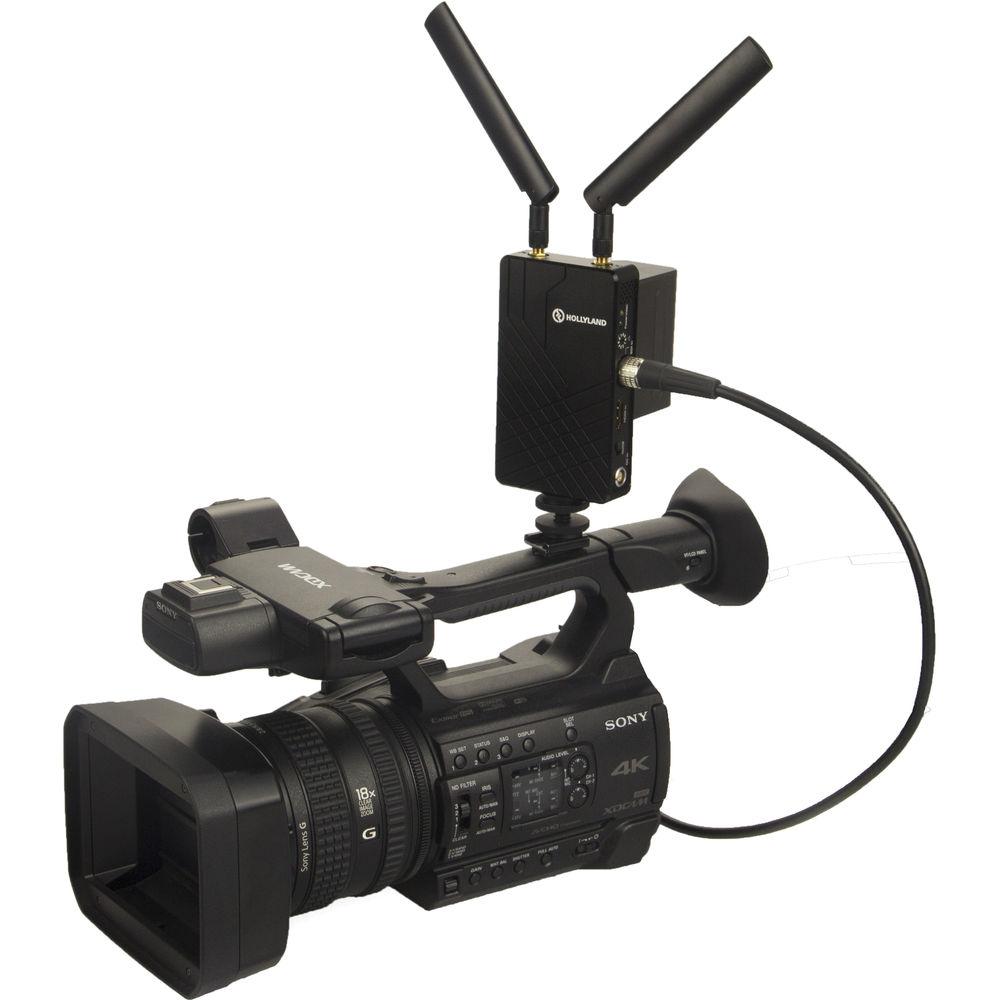

The Hollyland COSMO 400 allows you to transmit up to a 1080p60, 4:2:2 uncompressed HDMI or SDI signal up to 400' line-of-sight with <1 ms latency. The system operates on the 5.1 to 5.9 GHz frequency band and uses AES-128 encryption for secure live delivery of your video. The frequency is selectable by a 10-step selector knob provided on both the transmitter and receiver units, and up to four COSMO 400 transmitter/receiver sets can be used on the same frequency in point-to-point and point-to-multipoint setups.
Both the transmitter and receiver come with L-series battery plates. Additionally, D-Tap to LEMO cables are included for powering both devices off compatible batteries. An articulating arm and a crab clamp are also supplied for mounting the units. The housings are metal and designed to efficiently handle heat to provide you with a robust and reliable system. - Key Features
-
- Transmit up to a 1080p60, 4:2:2 uncompressed HDMI or SDI signal
- 400' line-of-sight transmission with <1 ms latency
- 5.1 to 5.9 GHz frequency band
- 10-step frequency selector knob
- AES-128 encryption
- Up to four transmitter/receiver sets can be used on the same frequency
- Includes L-series battery plates and D-Tap to LEMO cables
- Metal housings

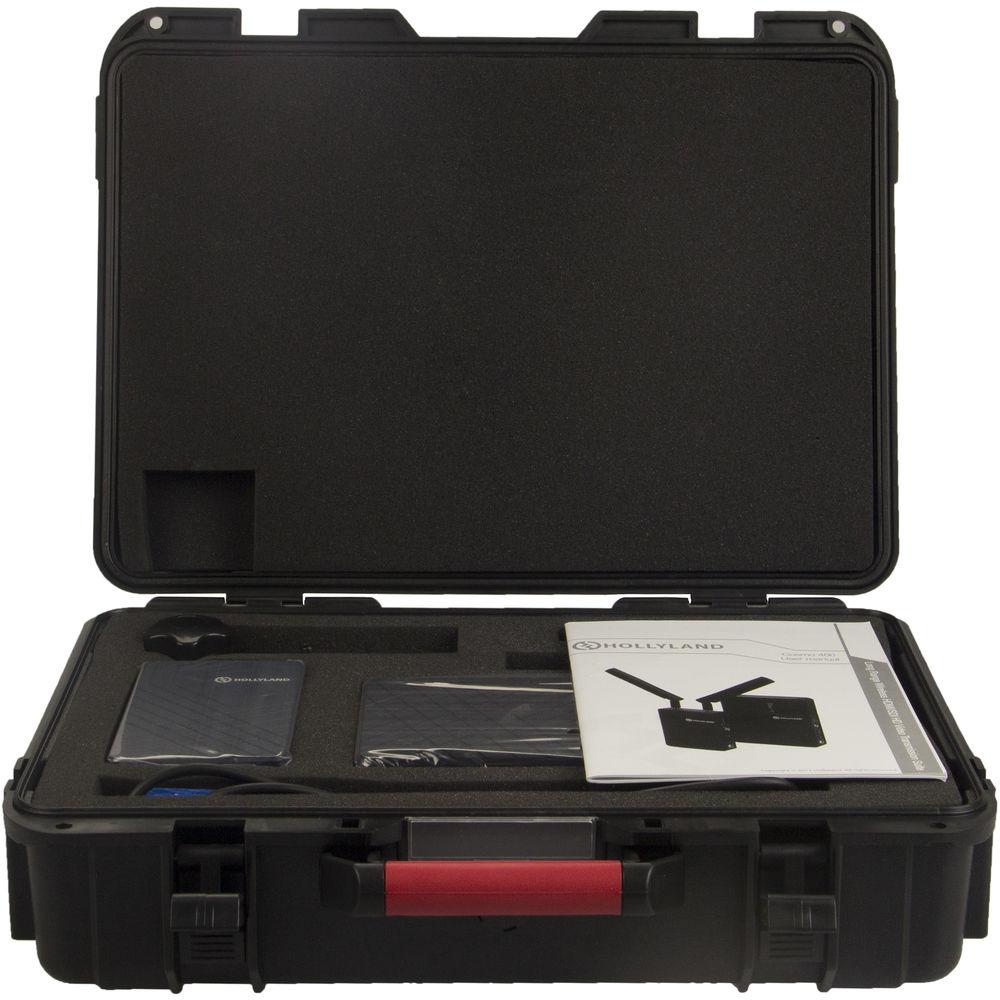

In the Box Hollyland COSMO 400 Wireless HDMI/SDI Transmission System Transmitter with L-Series Battery Plate Receiver with L-Series Battery Plate 2 x 5 GHz Antenna 2 x Mushroom Antenna Articulating Arm (7") Crab Clamp 2 x D-Tap to 4-Pin LEMO Cable 2 x Flat Head Screwdriver Hard Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hollyland COSMO 400 Wireless HDMI SDI Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHollyland Cosmo Specs | | | Transmission Range | 400' / 122 m line-of-sight | | Latency | <1 ms | | Input | 1 x HDMI type A
1 x 3G/HD/SD-SDI | | Input Resolution | 1080p 60/59.94/50/30/29.94/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
625i
525i
3G/HD/SD-SDI auto-selected, SMPTE-259/274/292/296/372/424/425 | | Color Sampling | 4:2:2 | | Supported Audio | Embedded 2-channel 24-bit/48 kHz | | Frequency | 5.1 to 5.9 GHz | | Antenna Support | 2 x RP-SMA male ports | | Modulation | OFDM 16-QAM | | Transmission Power | 18 dBm max | | Bandwidth | 40 MHz | | Encryption | AES-128 encrypted transmission | | ESD Protection |
