Product description - Hollyland Cosmo 600 Wireless Video Outdoor Range Test

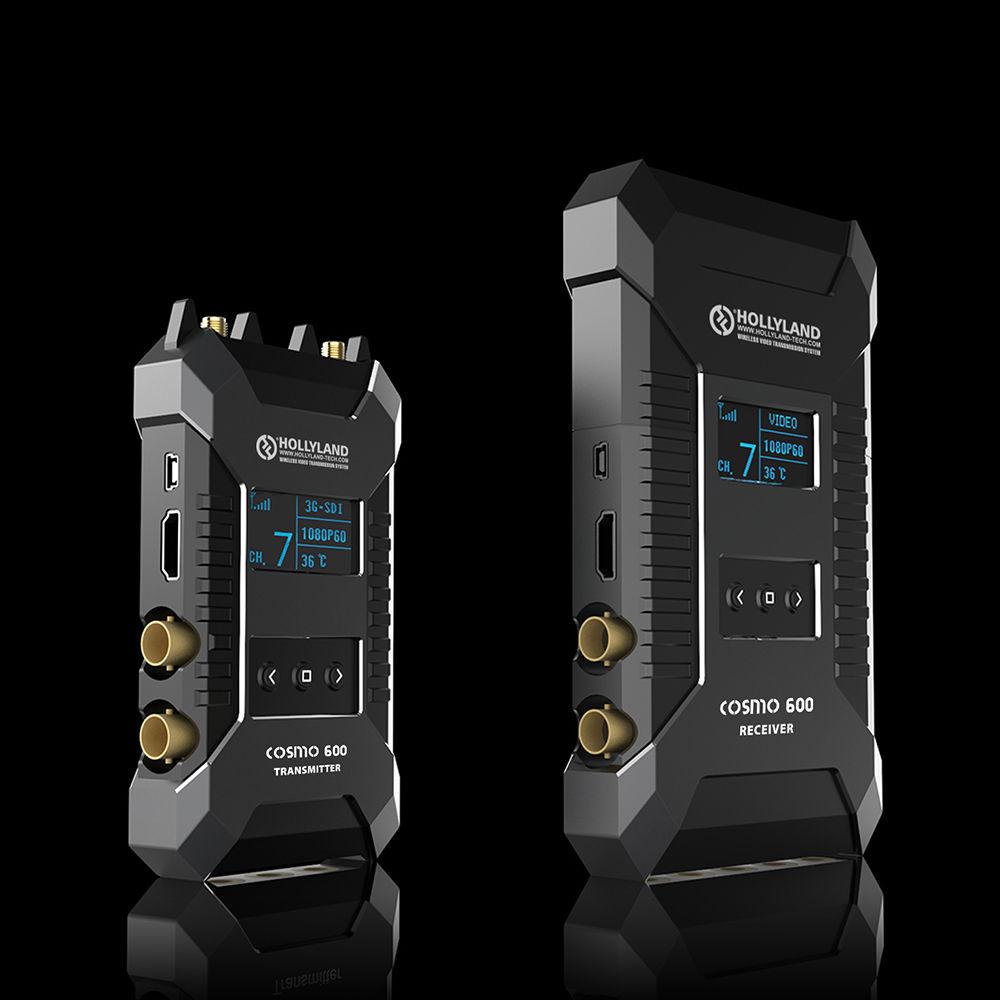

In a lighter, slimmer design than the COSMO 400, the Hollyland COSMO 600 allows you to transmit an HDMI/SDI signal up to 600' to an HDMI or dual SDI outputs. The transmitter/receiver set supports up to 1080p60 signals with a latency of <1 ms. the transmitter also offers an sdi loop out and 3.5mm stereo audio input. system operates on 5.1-5.9 ghz frequency band uses aes-128 encryption for secure live delivery of your video. other features include oled screen both units, timecode, automatic synchronization with camera recording.

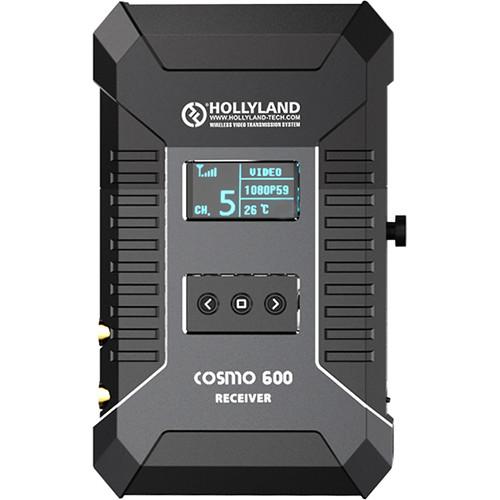

The transmitter comes with an L-series battery plate and the receiver features a V-mount plate. Additionally, D-Tap to LEMO cables are included for powering both devices off compatible batteries. The transmitter uses two antennas while the receiver has a built-in antenna. Three highly flexible antennas that are less disposed to accidental damage are supplied for the transmitter, one as a spare, and two mushroom antennas are also provided as replacements for the standard ones. - Key Features
-
- Transmit up to a 1080p60 HDMI/SDI signal to an HDMI or dual SDI outputs
- 600' line-of-sight transmission with <1 ms latency
- SDI loop out
- 3.5mm stereo audio input
- 5.1-5.9 GHz frequency band
- AES-128 encryption
- OLED screen
- Timecode
- Automatic synchronization with camera recording
- Transmitter: L-series battery plate
- Receiver: V-mount battery plate
- D-Tap to LEMO cables
UPC: 767665171123 In the Box Hollyland COSMO 600 Wireless HDMI/SDI Transmission System Transmitter with L-Series Battery Plate Receiver with V-Mount Battery Plate 2 x 5 GHz Omni-Directional Transmitter Antenna Spare 5 GHz Omni-Directional Transmitter Antenna 2 x Replacement Mushroom Transmitter Antenna 7" Articulating Arm Crab Clamp 2 x D-Tap to 4-Pin LEMO Cable 2 x Flat-Head Screwdriver Hard Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hollyland COSMO 600 Wireless HDMI SDI Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHollyland Cosmo Specs | | | Transmission Range | 600' / 183 m line-of-sight | | Latency | <1 ms | | Connections | 1 x HDMI type A input
1 x 3G/HD/SD-SDI input
1 x 3G/HD/SD-SDI loop out | | Input Resolution | 1080p: 60/59.94/50/30/29.94/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480p: 60
576p: 50
3G/HD/SD-SDI auto-selected, SMPTE-259/274/292/296/372/424/425 | | Supported Audio | 1 x 3.5 mm stereo input
Embedded 2-channel 24-bit/48 KHz | | Frequency | 5.1-5.9 GHz | | Antenna Support | 2 x RP-SMA male ports | | Modulation | OFDM 16QAM | | Transmission Power | 17 dBm max | | Bandwidth | 40 MHz | | Encryption | AES-128 encryption | | Display | OLED | | Firmware Upgradable | Mini USB port | | Battery Plate | L-series | | Power Input Connection | 4-pin LEMO female | | Power Input | 7-36 VDC | | Power Consumption | <6 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | Not specified by manufacturer | | Dimensions | 5 x 2.75 x 1" / 12.7 x 7 x 2.5 cm (not including antennas) | | Weight | 9.2 oz / 260 g | | | | Transmission Range | 600' / 183 m line-of-sight | | Latency | <1 ms | | Output | 1 x HDMI type A output
2 x 3G/HD/SD-SDI | | Output Resolution | 1080p: 60/59.94/50/30/29.94/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480p: 60
576p: 50
3G/HD/SD-SDI auto-selected, SMPTE-259/274/292/296/372/424/425 | | Supported Audio | Embedded 2-channel 24-bit/48 KHz | | Frequency | 5.1-5.9 GHz | | Antenna | Built-in | | Modulation | OFDM 16QAM | | Receiver Sensitivity | -75 dBm | | Bandwidth | 40 MHz | | Encryption | AES-128 encryption | | Display | OLED | | Firmware Upgradable | Mini USB port | | Battery Plate | V-mount | | Power Input Connection | 4-pin LEMO female | | Power Input | 7-36 VDC | | Power Consumption | <8 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | Not specified by manufacturer | | Dimensions | 6.3 x 3.7 x 1" / 15.9 x 9.4 x 2.5 cm | | Weight | 1 lb / 460 g | | | | Package Weight | 8.8 lb | | Box Dimensions (LxWxH) | 15.75 x 12.75 x 6.0" |
