User Manual for Hollyland COSMO 600 Wireless HDMI SDI Transmission System Click to enlarge the picture
Contents of the user manual for the Hollyland COSMO 600 Wireless HDMI SDI
- Product category: Wireless Transmission Systems Hollyland
- Brand: Hollyland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hollyland Wireless Transmission Systems
 |
User manual for the Hollyland COSMO 600 Wireless HDMI SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hollyland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hollyland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hollyland product will considerably shorten its lifespan!
|
Product description In a lighter, slimmer design than the COSMO 400, the Hollyland COSMO 600 allows you to transmit an HDMI/SDI signal up to 600' to an HDMI or dual SDI outputs. The transmitter/receiver set supports up to 1080p60 signals with a latency of <1 ms. The transmitter also offers an SDI loop-through out and 3.5mm stereo audio input. The system operates on the 5.1 to 5.9 GHz frequency band and uses AES-128 encryption for secure live delivery of your video. Other features include an OLED screen on both units, timecode, and automatic synchronization with camera recording.
The transmitter and receiver both feature an L-series battery plate. Additionally, D-Tap to LEMO cables are included for powering both devices off compatible batteries. The transmitter uses two antennas while the receiver has a built-in antenna. Three highly flexible antennas that are less disposed to accidental damage are supplied for the transmitter, one as a spare, and two mushroom antennas are also provided as replacements for the standard ones. - Key Features
-
- Transmit up to a 1080p60 HDMI/SDI signal to an HDMI or dual SDI outputs
- 600' line-of-sight transmission with <1 ms latency
- SDI loop-through out
- 3.5mm stereo audio input
- 5.1-5.9 GHz frequency band
- AES-128 encryption
- OLED screen
- Timecode
- Automatic synchronization with camera recording
- L-series battery plates
- D-Tap to LEMO cables

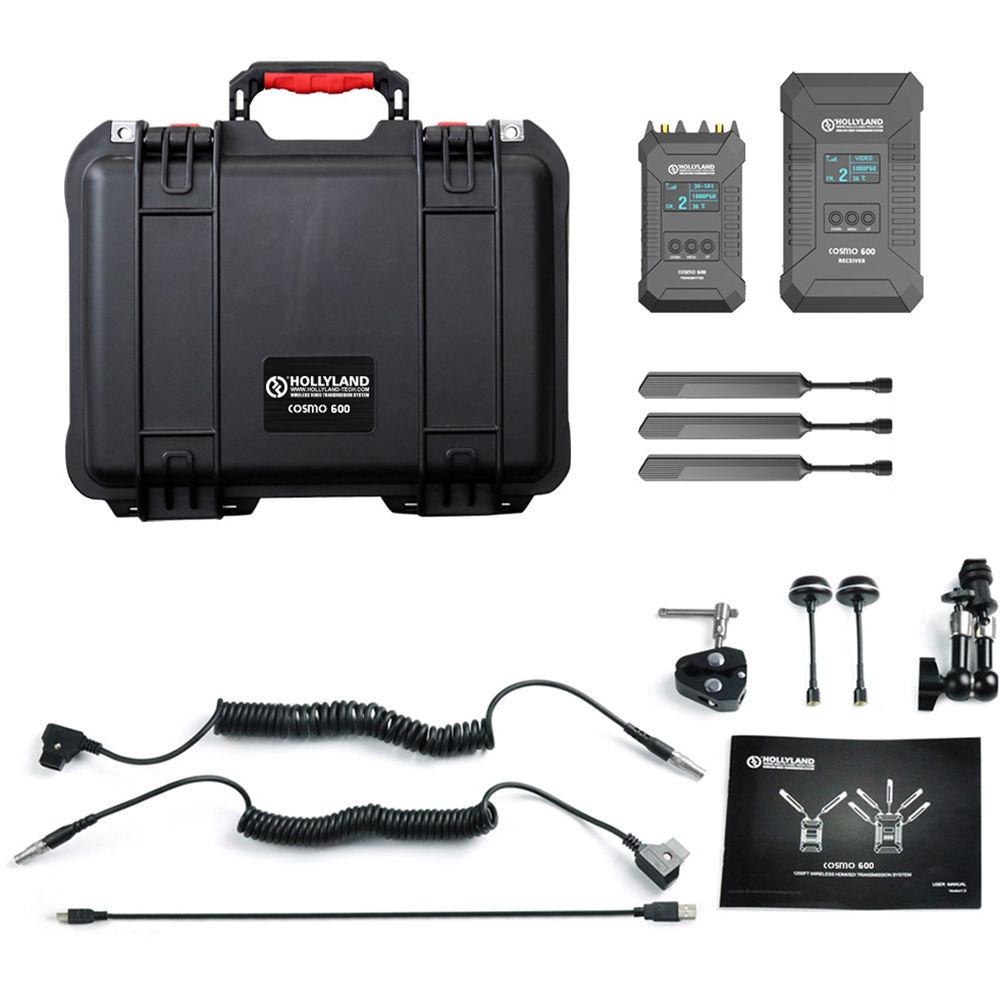

UPC: 767665171505 In the Box Hollyland COSMO 600 Wireless HDMI/SDI Transmission System (L-Series) Transmitter with L-Series Battery Plate Receiver with L-Series Battery Plate 2 x 5 GHz Omnidirectional Transmitter Antenna Spare 5 GHz Omnidirectional Transmitter Antenna 2 x Replacement Mushroom Transmitter Antenna 7" Articulating Arm Crab Clamp 2 x D-Tap to 4-Pin LEMO Cable 2 x Flat Head Screwdriver Hard Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hollyland COSMO 600 Wireless HDMI SDI Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

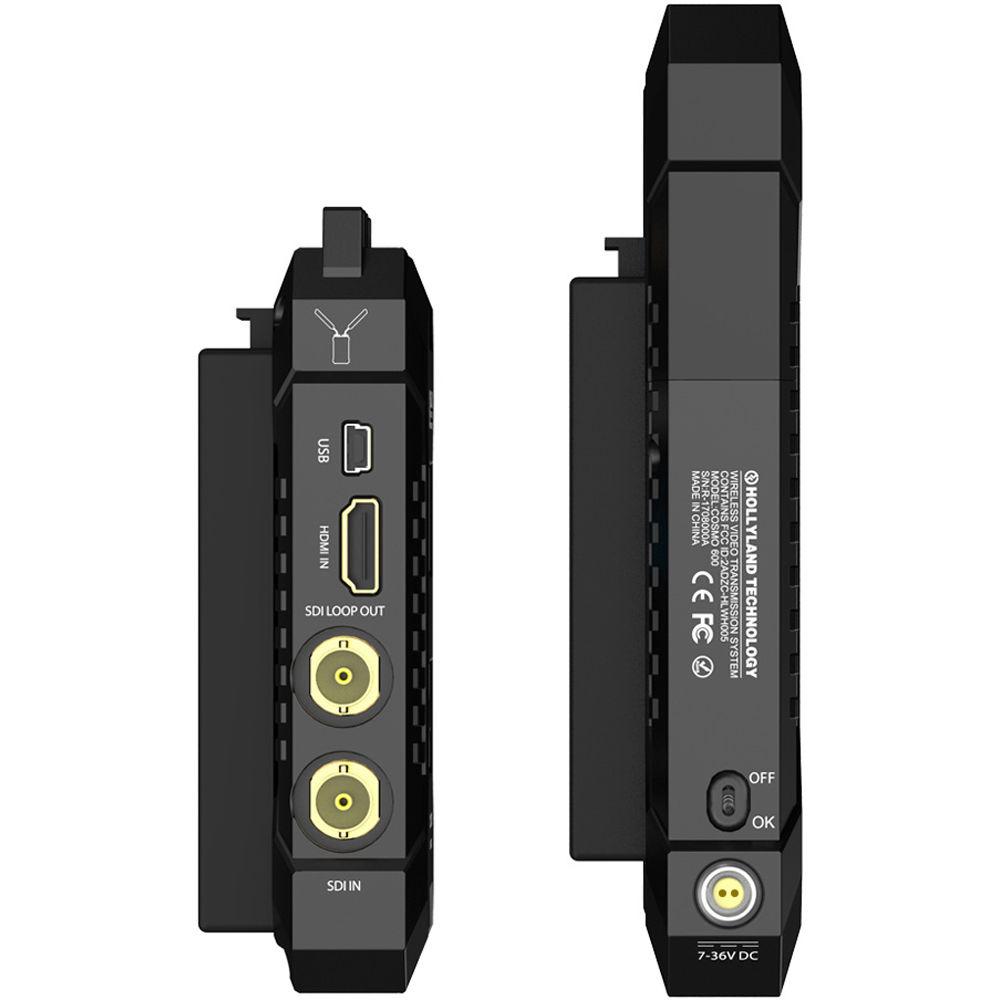

Technical parametersHollyland Cosmo Specs | | | Transmission Range | 600' / 183 m Line-of-Sight | | Latency | <1 ms | | Connections | 1 x HDMI Type A Input
1 x 3G/HD/SD-SDI Input
1 x 3G/HD/SD-SDI Loop-Through Out | | Input Resolution | 1080p: 60/59.94/50/30/29.94/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480p: 60
576p: 50
3G/HD/SD-SDI Auto-Selected, SMPTE-259/274/292/296/372/424/425 | | Supported Audio | 1 x 3.5 mm Stereo Input

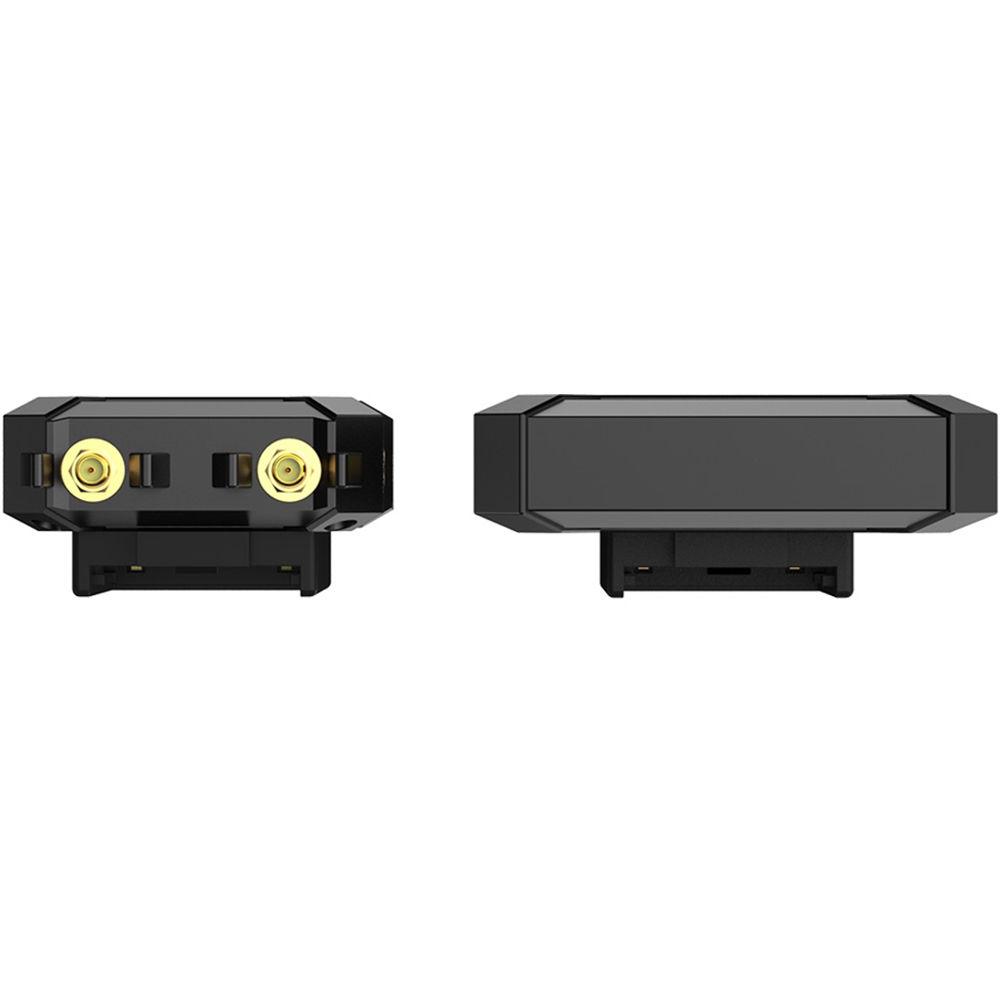

Embedded 2-Channel 24-Bit/48 kHz | | Frequency | 5.1-5.9 GHz | | Antenna Support | 2 x RP-SMA Male Ports | | Modulation | OFDM 16QAM | | Transmission Power | 17 dBm Max | | Bandwidth | 40 MHz | | Encryption | AES-128 Encryption | | Display | OLED | | Firmware Upgradable | Mini-USB Port | | Battery Plate | L-Series | | Power Input Connection | 4-Pin LEMO, Female | | Power Input | 7-36 VDC | | Power Consumption | <6 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | Not Specified by Manufacturer | | Dimensions | 5 x 2.75 x 1" / 12.7 x 7 x 2.5 cm (Not Including Antennas) | | Weight | 9.2 oz / 260 g | | | | Transmission Range | 600' / 183 m Line-of-Sight | | Latency | <1 ms | | Output | 1 x HDMI Type A Output

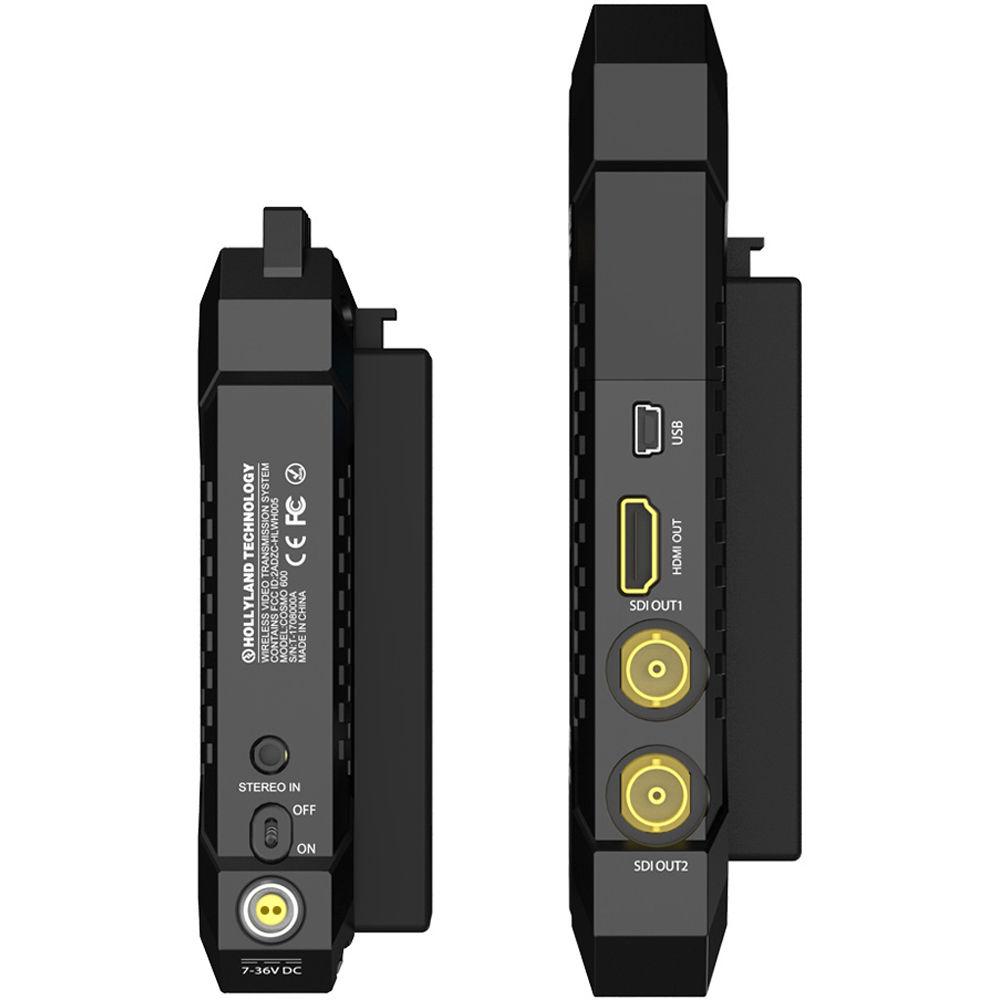

2 x 3G/HD/SD-SDI | | Output Resolution | 1080p: 60/59.94/50/30/29.94/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480p: 60
576p: 50
3G/HD/SD-SDI Auto-Selected, SMPTE-259/274/292/296/372/424/425 | | Supported Audio | Embedded 2-Channel 24-Bit/48 kHz | | Frequency | 5.1-5.9 GHz | | Antenna | Built In | | Modulation | OFDM 16QAM | | Receiver Sensitivity | -75 dBm | | Bandwidth | 40 MHz | | Encryption | AES-128 Encryption | | Display | OLED | | Firmware Upgradable | Mini-USB Port | | Battery Plate | L-Series | | Power Input Connection | 4-Pin LEMO, Female | | Power Input | 7-36 VDC | | Power Consumption | <8 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | Not Specified by Manufacturer | | Dimensions | 6.3 x 3.7 x 1" / 15.9 x 9.4 x 2.5 cm | | Weight | 1 lb / 460 g | | | | Package Weight | 9.8 lb | | Box Dimensions (LxWxH) | 16.0 x 12.75 x 6.0" |
