User Manual for Holophone H3 5.1 Surround Sound Recording Microphone Click to enlarge the picture
Contents of the user manual for the Holophone H3 5.1 Surround Sound Recording
- Product category: Stereo & Specialty Microphones Holophone
- Brand: Holophone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Holophone Stereo & Specialty Microphones
 |
User manual for the Holophone H3 5.1 Surround Sound Recording contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Holophone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Holophone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Holophone product will considerably shorten its lifespan!
|

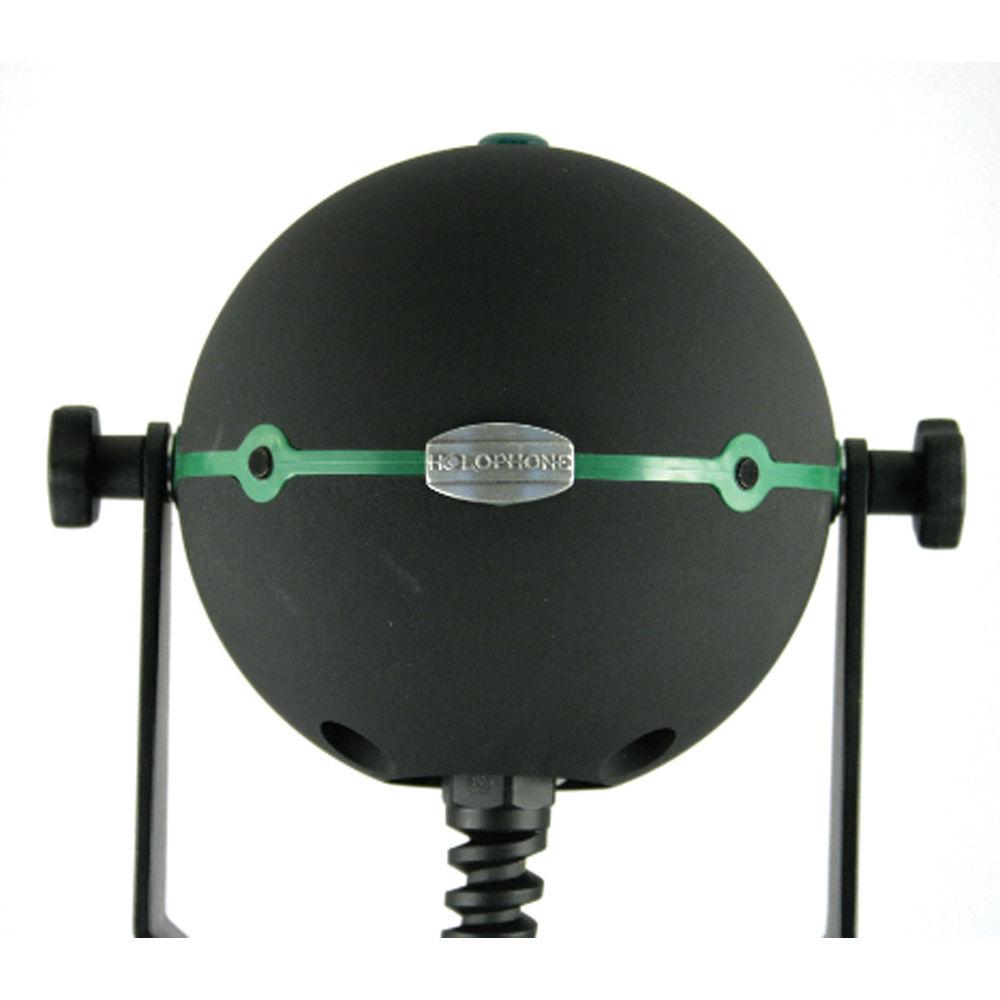

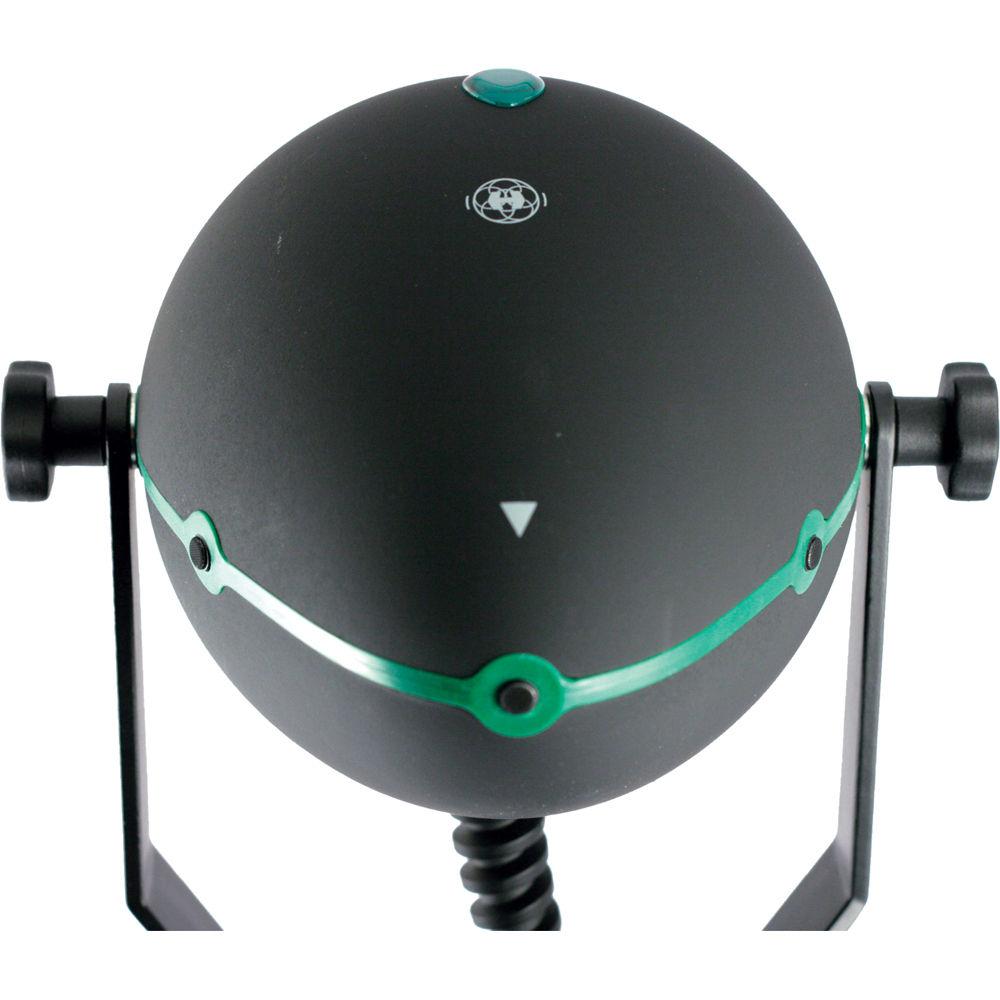

Product description The Holophone H3 5.1 Surround Sound Recording Microphone captures audio in complete surround for broadcast, audio for film, video recording and sound design applications. The microphone system is designed to provide an easy, point-and-shoot method of recording surround audio and eliminates the guesswork out of positioning, technique, preliminary mixing, etc. The elliptical microphone head emulates the shape of the human head and the behavior associated with human hearing.Six miniature microphone elements are built into the head for true 5.1 capturing. A cable with six XLR microphone connectors is included and connects to any eight channel field recording system, mixer, etc. The H3 is more than ideal for field audio and studio applications, while the six discrete channels make final mixing and encoding relatively easy. - Captures In 5.1 Surround
- Six miniature microphone elements are built into the head for 5.1 surround capturing.
- Elliptical Microphone Head
- The elliptical microphone head emulates the shape of the human head and the behavior associated with human hearing.
- Six Discrete Output Channels
- A cable with six XLR microphone connectors is included and connects to any multichannel field recording system, mixer, etc.
In the Box Holophone H3 5.1 Surround Sound Recording Microphone Holder for Hanging and Stand Placement Six Channel XLR Cable 15' (5m) Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Holophone H3 5.1 Surround Sound Recording Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHolophone H3 Specs | Transducer | Condenser | | Polar Pattern | Multi-directional | | Frequency Response | 20Hz - 20kHz x5 Microphone Elements
20Hz - 110Hz x1 Microphone Element | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | Typ. 23dB(A) | | Maximum Input Sound Level | 134dB SPL | | Power Requirements | Phantom 48v x6 | | Output Impedance | 30 - 40 ohms | | Output Connectors | XLR-3M Type x6 | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions (LxDiameter) | 7.5 x 5.7" (190.5 x 144.78mm) | | Weight | 3 lbs | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 21.75 x 16.6 x 8.6" |
