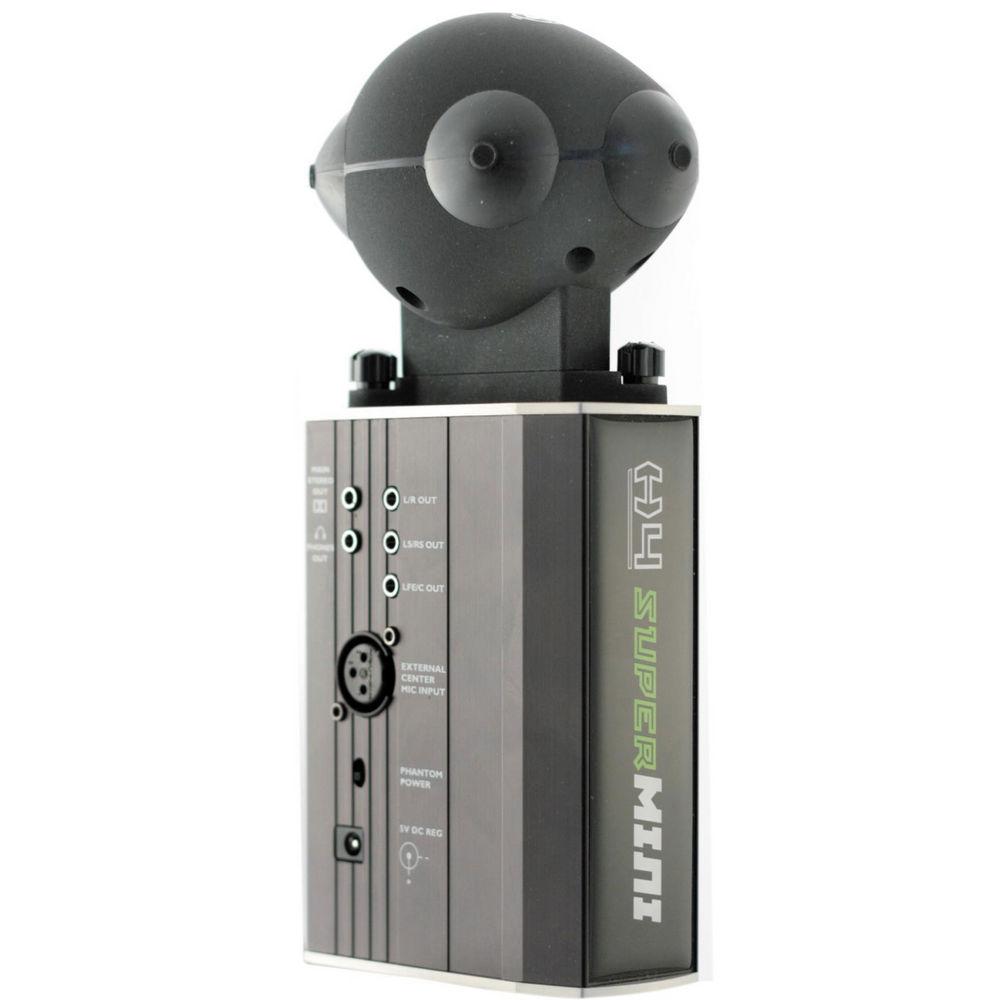

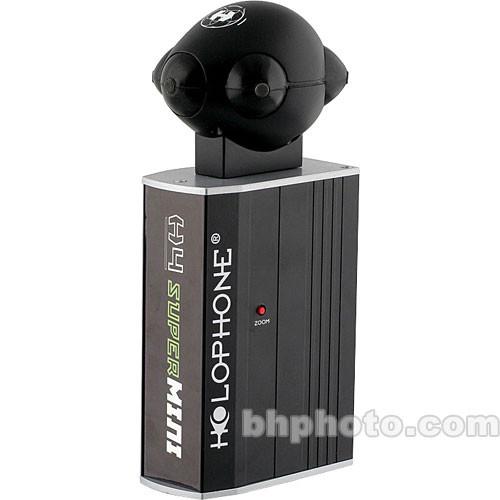

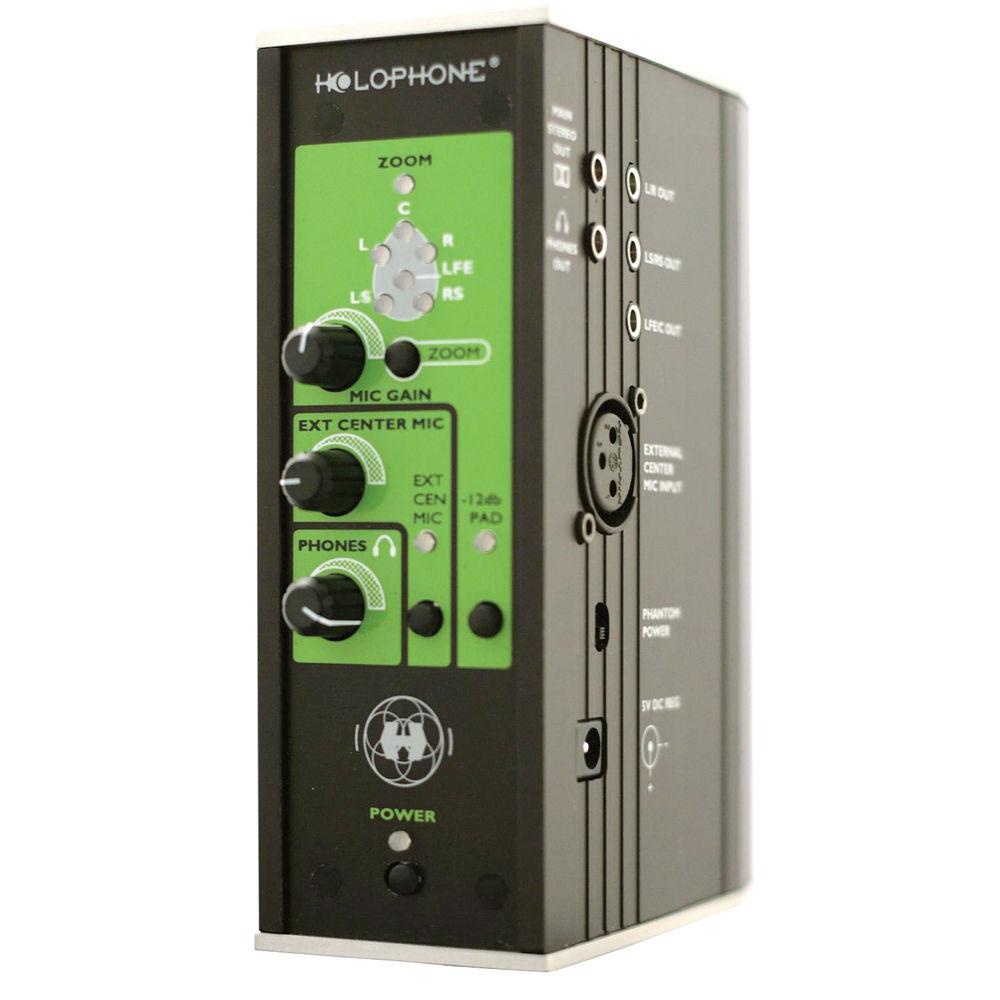

Product description The H4 SuperMINI 5.1 Surround Sound Microphone from Holophone is a camera-mountable microphone designed to achieve professional 5.1 surround audio capturing and monitoring. It offers an integrated multichannel preamplifier, virtual surround headphone monitor and matrix surround encoder in a compact package; mountable on any professional-quality video camera.The microphone capsule features six elements that are can send signal to a matrix encoded, stereo analog output. Six line-level outputs (L, R, C, LFE, LS, RS) provide a pre-encoded alternative for isolating surround signal to discrete tracks on multitrack recorders, external surround processors, mixers, etc. Virtual Surround Monitoring provides a virtual 3-D representation of surround encoded audio signal on standard stereo headphones.A center-channel input connection may be used for connecting a mono microphone, such as a shotgun or lavalier microphone, to enhance sonic opportunity options. The Holophone H4 SuperMINI is a powerful tool that brings surround sound recording, encoding, and monitoring capabilities into the hands of video camera operators. - 5.1 Surround Capturing and Encoding
- The H4 SuperMINI features six capsules that send audio signal to a surround matrix encoded, stereo analog output. Six line-level outputs (L, R, C, LFE, LS, RS) are provided for isolating surround signal to discrete tracks on multitrack recorders, external surround processors, mixers, etc.
- Virtual Surround Monitoring
- Virtual Surround Monitoring provides a virtual 3-D representation of surround-encoded audio signal on standard stereo headphones.
- Dolby Pro-Logic II
- Encoded LT/RT matrix output is compatible with Dolby Pro-Logic II and all similar 5.1 channel stereo matrix decoding schemes.
- Center Channel Input
- A center-channel input connection may be used for connecting a mono microphone, such as a shotgun or lavalier microphone, to enhance sonic opportunity options.
- Zoom
- A zoom button increases the forward bias of the pick-up pattern.
- Battery Power
- This powerful microphone system is completely portable and operates on only four AA batteries for up to five hours.
In the Box Holophone H4 SuperMINI 5.1 Surround Sound Microphone Battery Recharger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Holophone H4 SuperMINI 5.1 Surround Sound Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHolophone H4 SuperMINI Specs | Transducer | 6 x Condenser | | Output Connections | Two-Channel Matrix Output: Stereo 1/8" / 3.5 mm mini
Six-Channel Output: 3 x Stereo 1/8" / 3.5 mm mini
Headphone Output: Stereo 1/8" / 3.5 mm mini | | Input Connections | Ext Mic Input: XLR female +4 dB balanced | | Polar Pattern | Multi-directional pick-up pattern | | Frequency Response | 5 x Mic Elements (L, R, C, LS, RS): 20 Hz - 20 kHz
1 x Mic Element (LFE): 20 Hz - 100 Hz | | Sensitivity | -35 +/- 4 dB | | Signal to Noise Ratio | More than 64 dB | | Max Input Sound Level (SPL) | 130 dB | | Impedance | Less than 2.2 kOhms | | Phantom Power | Ext. Mic in: +48 V
H4 SuperMINI: AA batteries x4 (5 hours) | | Attenuation / Gain | Pad: -15 dB | | Battery Requirements | 4 x AA batteries | | Battery Life | > 5 hours | | Dimensions (HxWxD) | 8 x 2 x 1" / 20 x 5 x 2.5 cm | | Weight | 1 lb / 800 g | | | | Package Weight | 7.65 lb | | Box Dimensions (LxWxH) | 13.1 x 11.6 x 7.7" |
