User Manual for Honeywell 18 2 Stranded Overall Shielded CM CL2 Cable Click to enlarge the picture
Contents of the user manual for the Honeywell 18 2 Stranded Overall Shielded
- Product category: Multi-Conductor Cables Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Multi-Conductor Cables
|
User manual for the Honeywell 18 2 Stranded Overall Shielded contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|

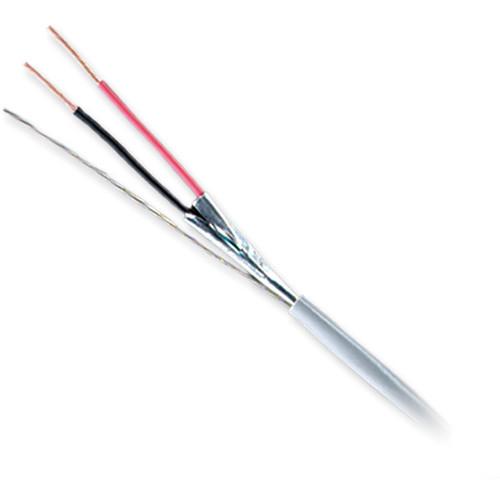

Product description The gray 18/2 Stranded Overall Shielded CM/CL2 Cable from Honeywell can be used with alarms, intercoms, speakers, and other low-voltage circuits that are power limited. This multi-conductor cable comes packaged on a reel and is 1000.0' (304.8m) long. - Countdown or sequential footage markings
UPC: 619172006545 In the Box Honeywell 18/2 Stranded Overall Shielded CM/CL2 Cable (Gray, 1000' Reel) Limited 36-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell 18 2 Stranded Overall Shielded CM CL2 Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 1214-10-09 Specs | Conductor | 18 AWG 19/0.0092" stranded bare copper | | Insulation | Polypropylene | | Insulation Thickness | 0.006" (0.152 mm) nominal | | Colors | Insulation: Black, red | | Diameter | Insulation: 0.058 nominal | | Lay Length | 1.75" (44.45 mm) nominal | | Drain Wire | 24 AWG 7/32 tinned copper | | Shield | 0.001" thick aluminum/mylar | | Jacket | PVC | | Thickness | Jacket: 0.015" (0.381 mm) nominal | | Outside Diameter | 0.154" (3.911 mm) nominal | | Temperature Rating | -4 to 140°F (-20 to 60°C) | | Operating Voltage | 300 V maximum | | Capacitance | 35 pf/ft nominal | | Impedance | 42 Ω maximum | | DC Resistance | 6.5 Ω/M' at 20°C | | Rating | Flame: UL 1685 Vertical Tray | | Standards | UL Standards 13 & 444; NEC Articles 725 & 800 | | Weight | 20 lb per MFT (9 kg per MFT) | | | | Package Weight | 19.9 lb | | Box Dimensions (LxWxH) | 12.6 x 12.4 x 7.8" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
