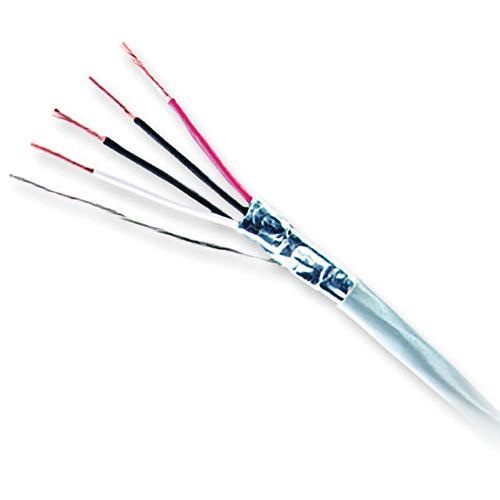

Product description The white, 1000' Genesis Series 18 AWG Overall Shielded Multi-Conductor Cable from Honeywell comes packaged in a pull box. This cable offers a gauge size of 18 AWG. It is shielded and features a general-purpose jacketing material. Applications for this cable include control cables (for Lutron and Crestron systems), alarms, intercoms, speakers, and other low-voltage circuits that are power limited. It is specifically designed to meet the Lutron cable standards. - Countdown or sequential footage markings
- PVC with Nylon Insulation (THHN)
In the Box Honeywell 18 AWG Overall Shielded Multi-Conductor Cable (White, 1000' Pull Box) Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell 18 AWG Overall Shielded Multi-Conductor Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 1214-11-01 Specs | Conductor | 18 AWG 19/0.0092" Stranded Bare Copper | | Insulation Material | Polypropylene | | Insulation Thickness | 0.006" (0.152 mm) nominal | | Insulation O.D. | 0.058" (1.473 mm) nominal | | Lay Length | 1.75" (44.45 mm) nominal | | Drain Wire | 24 AWG 7/32 tinned copper | | Shield | 0.001" (0.025 mm) thick aluminum/mylar | | Jacket | PVC | | Thickness | Jacket: 0.015" (0.381 mm) nominal | | Outside Diameter | 0.154" (3.911 mm) nominal | | Temperature Rating | -4 to 140°F (-20 to 60°C) | | Operating Voltage | 300 V maximum | | Capacitance | 35 pF/ft nominal | | Impedance | 42 Ω nominal | | DC Resistance | 6.5 Ω/m at 20°C | | Rating | Flame: UL 1685 vertical tray | | Standards | UL Standards 13 & 444; NEC Articles 725 & 800 | | Cable Length | 1000.0' (304.8 m) | | Weight | 20 lb per MFT (9 kg per MFT) |
