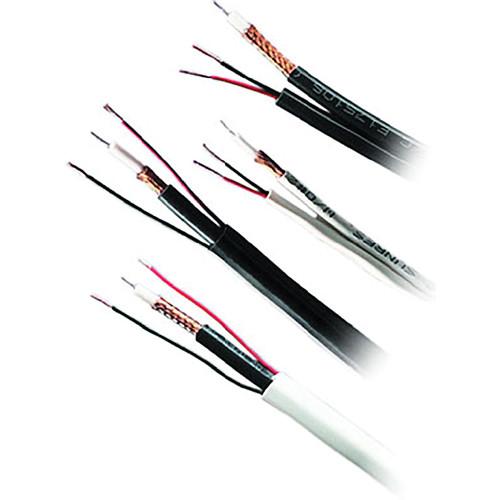

User Manual for Honeywell 50131001 95% BC Braid Shield 18 2 Stranded Siamese CL2 Cable Click to enlarge the picture
Contents of the user manual for the Honeywell 50131001 95% BC Braid Shield
- Product category: Bulk Video Cables Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Bulk Video Cables
|
User manual for the Honeywell 50131001 95% BC Braid Shield contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The white 50131001 95% BC Braid Shield + 18/2 Stranded Siamese CL2 Cable from Honeywell can be used with alarms, intercoms, speakers, and other low-voltage circuits that are power limited. This cable comes packaged on a reel and is 1000.0' (304.8m) long. UPC: 619172049276 In the Box Honeywell 50131001 95% BC Braid Shield + 18/2 Stranded Siamese CL2 Cable (White) Limited 36-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell 50131001 95% BC Braid Shield 18 2 Stranded Siamese CL2 Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 5013-10-01 Specs | | | Conductor | 2 to 18 AWG 19/.0092 stranded bare copper | | Insulation | 18 AWG 2/C | | Type | Polypropylene | | Thickness | 0.006" (0.152 mm) nominal | | Diameter | 0.058" (1.473 mm) nominal | | Lay Length | 2.25" (57.15 mm) nominal | | Stranding | 0.005" (0.127 mm) nominal bare copper | | Coverage | 95% nominal | | Jacket | 18 AWG 2/C | | Type | PVC | | Thickness | 0.020" (0.508 mm) nominal | | Diameter | 0.156" (3.962 mm) nominal | | Overall Diameter | 0.420 x 0.245" (10.668 x 6.223 mm) nominal | | | | Voltage Rating | 300 V | | Temperature Rating | -4 to 167°F (-20 to 75°C) | | Capacitance | 17 pf/ft nominal | | Impedance | 75 Ω nominal | | Resistance | Conductor: 10.9 Ω /M' at 68°F (20°C)
Shield: 2.6 Ω/M' at 68°F (20°C) | | Attenuation | 0.2 at 1 MHz, 5.9 at 400 MHz, 10.8 at 1,000 MHz | | Rating | Flame: UL 1685 Vertical Tray | | | | Package Weight | 48.55 lb | | Box Dimensions (LxWxH) | 14.5 x 12.992 x 9.685" |
