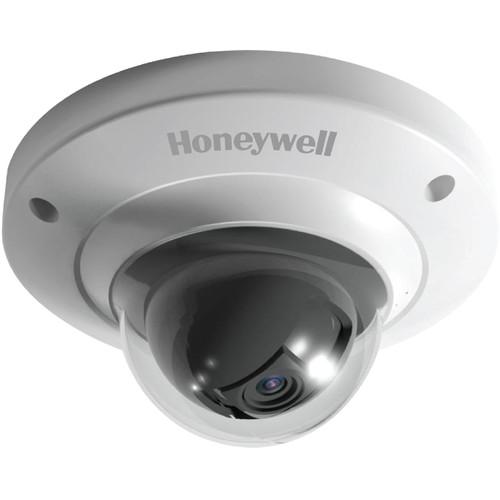

User Manual for Honeywell 5MP Network Fisheye Dome Camera with 1.42mm Lens Click to enlarge the picture
Contents of the user manual for the Honeywell 5MP Network Fisheye Dome Camera
- Product category: Wired IP Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired IP Cameras
|
User manual for the Honeywell 5MP Network Fisheye Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The white 5MP Network Fisheye Dome Camera from Honeywell utilizes a 1/3" progressive scan CMOS sensor and a 1.42mm lens to capture video at a resolution up to 5MP. It supports H.264 and MJPEG compression formats with dual stream support. The true Day/Night feature provides vivid color images by day and clear B&W images at night. It saves on storage and bandwidth use with the H.264 codec. The camera supports up to 64GB microSDXC card for onboard storage.
The camera can be configured to automatically detect and respond to events such as motion, network failure, and camera tampering. The automated responses include sending a notification through email or HTTP, sending a still image of the event through email or FTP, and recording a video clip of the event to a configured microSDXC card (sold separately). The camera can be retrofitted on many existing DVR/NVR installations without requiring additional storage. - Digital WDR (DWDR) ensures glare-free images
- Security features include individual signed certificates and data encryption
- Built-in PoE (Power over Ethernet 802.3af) eliminates the need for a separate power supply and associated wiring
- Remote configuration through web client or from the NVR
- Global language support with 12 languages for all QIGs, and 2 languages for the web GUI
- Horizontal angle of view: 185°
- Image dewarping and embedded PTZ controls for full monitoring of the entire 360° fisheye view
UPC: 886618248733 In the Box Honeywell 5MP Network Fisheye Dome Camera with 1.42mm Lens Security Screwdriver Mounting Hardware Water-Resistant Joint for Network Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell 5MP Network Fisheye Dome Camera with 1.42mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HFD5PR1 Specs | | | Video Standard | NTSC/PAL | | Image Sensor | 5 MP 1/3" progressive CMOS | | Number of Pixels | H x V: 2592 x 1944 | | Minimum Illumination | Color: 0.01 lux
B&W: 0.001 lux at f/2.6 | | S/N Ratio | >50 dB | | Electronic Shutter Speed | Auto, Manual
1/3(4) to 1/100,000 sec | | Day/Night | Auto (Electronic)/Color/B&W | | Backlight Compensation | BLC/HLC/DWDR | | Wide Dynamic Range | Digital WDR (DWDR) | | White Balance | Auto/Manual | | Gain Control | Auto/Manual | | Noise Reduction | 3D-DNR | | Privacy Masking | Up to 4 areas | | Audio | Two-way
1 x channel input
1 x channel output
Built-in mic | | Alarm Input / Output | 1 x channel input
1 x channel output | | Ethernet | RJ45 (10/100Base-T) | | | | Focal Length | 1.42mm | | Type | Fixed fisheye lens | | Aperture | f/2.6 | | Horizontal Angle of View | 185° | | | | Video Compression Format | H.265/H.264/MJPEG
Bit rate control (CBR and VBR) | | Resolution | 4:3
5 MP (2560 x 1920) / 3 MP (2048 x 1520) / UXGA (1600 x 1200) / 1.3 MP (1280 x 960)
Others
720p (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240) | | Frame Rate | Main Stream
5 MP (3072 x 2048) at 1-12 fps, UXGA (1600 x 1200) at up to 25/30 fps
Second Stream
D1/CIF up to 25/30 fps | | Audio Compression | G.711a/G.711u | | Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, Bonjour, DNS, DDNS, IEEE 802.1x, QoS, NTP, IP filter | | User Access | 20 users maximum | | Supported Web Browsers | Internet Explorer (11.0+) | | Supported OS | Windows 7 32/64-bit | | Local Storage | Up to 64 GB microSDXC card (not included) | | Functions | Event trigger recording, Continuous and scheduled recording, Automatic recording when network fails | | Languages Supported | English, Japanese | | | | Power Supply | PoE (802.3af) Class 0/12 VDC | | Power Consumption | 6 W maximum | | Operating Temperature | -22 to 104°F / -30 to 40°C | | Relative Humidity | Less than 95%, non-condensing | | Regulatory Compliance | Emissions: FCC Part 15B, EN55032
Immunity: EN50130-4, EN55024
Safety: EU: EN60950-1, North America UL listed to UL/CSA 60950-1
RoHS: EN50581 (2012) | | Dimensions | 4.3 x 2.1" / 11 x 5.4 cm | | Weight | 8.8 oz / 250 g |
