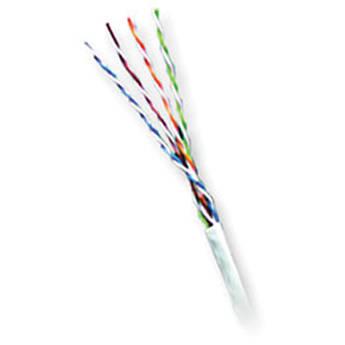

User Manual for Honeywell 6330-11-01 Genesis 4-Pair Cat 5e UTP Cable Click to enlarge the picture
Contents of the user manual for the Honeywell 6330-11-01 Genesis 4-Pair Cat 5e
- Product category: Bulk Ethernet Cables Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Bulk Ethernet Cables
|
User manual for the Honeywell 6330-11-01 Genesis 4-Pair Cat 5e contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The 1000', white 6330-11-01 Genesis 4-Pair Cat 5e UTP Cable from Honeywell is a 4-pair category 5e Unshielded Twisted Pair (UTP) cable and is general communication UL 1685 rated ETL (or UL) listed. This cable has 24 AWG solid bare copper conductors, polyethylene or polypropylene insulation, sunlight-resistant RoHS compliant PVC jacket, a ripcord, and 1000 - 0 (descending) footage marking. It is UL (or ETL) Verified to TIA/EIA-568 category 5e and sweep tested to 350 MHz. UPC: 886618110337 Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell 6330-11-01 Genesis 4-Pair Cat 5e UTP Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 6330-11-01 Specs | Cable Length | 1000.0' (304.8 m) | | Pairs | 4 | | AWG | 24 | | Stranding | Solid | | Conductor Material | Bare copper | | Conductor Color Code and Pair | Blue and White/Blue: 1
Orange and White/Orange: 2
Green and White/Green: 3
Brown and White/Brown: 4 | | Electrical Characteristics | DC Resistance:
Nominal Value: 7.6 Ω/323.0' (100.0 m)
Maximum Value: 9.38 Ω/323.0' (100.0 m)
Resistance Unbalance:
Nominal Value: 1.5%
Maximum Value: 5.0%
Capacitance:
Nominal Value: 4.9 nF/323.0' (100.0 m)
Maximum Value: 5.6 nF/323.0' (100.0 m)
Capacitance Unbalance:
Nominal Value: 50.0 pF/323.0' (100.0 m)
Maximum Value: 330.0 pF/323.0' (100.0 m)
Velocity of Propagation:
Nominal Value: 69.0%
Maximum Value: NA
Propagation Delay:
Nominal Value: 515.0 ns/323.0' (100.0 m)
Maximum Value: 570.0 ns/323.0' (100.0 m)
Delay Skew:
Nominal Value: 15.0 ns/323.0' (100.0 m)
Maximum Value: 45.0 ns/323.0' (100.0 m) | | Jacket Type | PVC (sunlight-resistant RoHS compliant) | | Insulation Type | HDPE or PP | | Testing | Sweep tested to 350 MHz | | Jacket Diameter | 0.2" (5.0 mm) | | Voltage Rating | 300 V | | Ripcord | Yes | | Temperature Rating | -4 to +167°F (-20 to +75°C) | | Agency Listing | CM | | Compliance | RoHS | | | | Package Weight | 20.2 lb | | Box Dimensions (LxWxH) | 13.937 x 13.622 x 8.504" |
