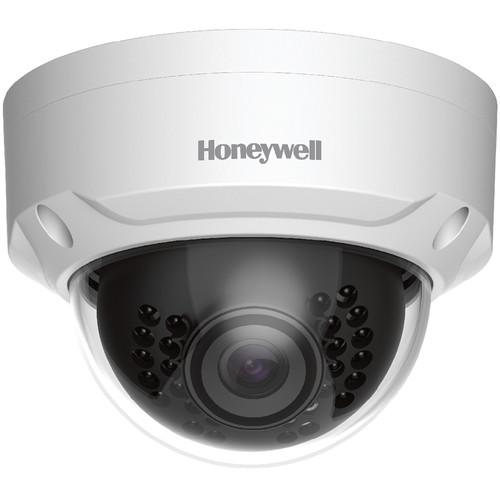

User Manual for Honeywell 8MP Outdoor Network Mini Dome Camera with 4mm Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Honeywell 8MP Outdoor Network Mini Dome
- Product category: Wired IP Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired IP Cameras
|
User manual for the Honeywell 8MP Outdoor Network Mini Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The white 8MP 4K Network Mini Dome Camera from Honeywell utilizes a 1/2.5" progressive scan CMOS sensor and a 4mm lens to capture video at a resolution up to 8MP. It supports H.264, H.265, and MJPEG compression formats with triple streaming. The true Day/Night feature provides color images by day and clear B&W images at night. The low-light performance with 3D noise reduction saves storage and bandwidth by using the H.265 codec. The camera supports up to 128GB microSDXC card for on-board storage. With the IP66-rated weather-resistant and IK10-rated vandal-resistant housing, it is suitable for outdoor applications.
The camera can be configured to automatically detect and respond to events such as motion in the scene, alarm inputs, network failure, and/or camera tampering. Automated responses include sending a notification through email or HTTP, sending a still image of the event through email or FTP, and recording a video clip of the event to a microSDXC card (sold separately). The camera can be retrofitted for use in many existing DVR/NVR installations without requiring additional storage. - Digital WDR (DWDR) ensures glare-free images
- IR LEDs provide up to 100' of illumination in dim light or at night
- Smart IR technology provides even distribution of IR
- Security features include individual signed certificates and data encryption
- Built-in PoE (Power over Ethernet 802.3af) eliminates the need for a separate power supply and associated wiring
- ONVIF Profile S- and G-compliant
- Supports open API software integration
- Corridor mode viewing capability
- Global language support with 12 languages for all QIGs, and 2 languages for the web GUI
UPC: 886618248702 In the Box Honeywell 8MP Outdoor Network Mini Dome Camera with 4mm Lens and Night Vision Security Screw Driver (Allen Key) Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell 8MP Outdoor Network Mini Dome Camera with 4mm Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell H4D8PR1 Specs | | | Video Standard | NTSC/PAL | | Image Sensor | 8 MP 1/2.5" progressive CMOS | | Number of Pixels | H x V: 3840 x 2160 | | Minimum Illumination | Color: 0.1 lux
B&W: 0 lux at f/1.6 (with IR LEDs On) | | S/N Ratio | >42 dB | | Electronic Shutter Speed | Auto, Manual
1/100,000 to 1/3(4) sec | | IR Distance | Up to 100' (30 m) (depending on scene reflectance) | | Day/Night | Auto (ICR) / Color / B&W | | Backlight Compensation | BLC/HLC/DWDR | | Wide Dynamic Range | Digital WDR (DWDR) | | White Balance | Auto / Manual / Natural / Street Lamp / Outdoor / Regional Custom | | Gain Control | Auto/Manual | | Noise Reduction | 3D-DNR | | Privacy Masking | Up to 4 areas | | Audio | Two way, line In/Out | | Alarm Input / Output | 1 x input
1 x output | | Ethernet | RJ45 (10/100Base-T) | | | | Focal Length | 4mm | | Type | Fixed | | Aperture | f/1.6 | | Angle of View | Horizontal: 88°
Vertical: 48° | | | | Video Compression Format | H.265/H.264/MJPEG
Bit rate control (CBR and VBR) | | Resolution | 16:9
8 MP (3840 x 2160) / WQHD (2560 x 1440) / 3 MP (2304 x 1296) / 1080p (1920 x 1080) / 720p (1280 x 720)
4:3
1.3 MP (1280 x 960)
Others
6 MP (3072 x 2048) / 4 MP (2688 x 1520) / XGA (1280 x 1024) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240) | | Frame Rate | Main Stream
8 MP (3840 x 2160) at 1-15 fps, 6 MP (3072 x 2048) at 1-20 fps, 4 MP (2688 x 1520) / WQHD (2560 x 1440) at 1-25 fps, 3 MP (2304 x 1296) or lower resolution at 1-25/30 fps
Second Stream
D1/CIF up to 25/30 fps
Third Stream
720p/D1 up to 25/30 fps | | Audio Compression | G.726/G.711a/G.711u/AAC | | Audio Streaming | Full duplex, simplex | | Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, Bonjour, DNS, DDNS, IEEE 802.1x, QoS, NTP, IP Filter, Multicast, ONVIF | | ONVIF Conformance | Profile S and G | | User Access | 20 users maximum | | Supported Web Browsers | Internet Explorer (11.0+) | | Supported OS | Windows 7 32/64-bit | | Security | Multiple user access levels with enhanced password policy, IP filtering, IEEE 802.1x, Strong digest authentication for access permission, Force to HTTPS with secure protocol TLS1.2 only, and encrypted algorithm AES-256, SSH/Telnet closed | | Local Storage | Up to 128 GB microSDXC card (not included) | | Functions | Event trigger recording, Continuous and scheduled recording, Automatic recording when network fails | | Languages Supported | English, Japanese | | | | Power Supply | PoE (802.3af) Class 0/12 VDC | | Power Consumption | 6.7 W maximum (IR LEDs on) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Relative Humidity | Less than 95%, non-condensing | | IP Rating | IP66 | | Vandal Resistance | IK10 | | Regulatory Compliance | Emissions: FCC Part 15B, EN55032
Immunity: EN50130-4, EN55024
Safety: EU: EN60950-1, North America UL listed to UL/CSA 60950-1
RoHS: EN50581 (2012) | | Dimensions | 4.3 x 3.2" / 11 x 81 cm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 1.205 lb | | Box Dimensions (LxWxH) | 5.5 x 5.4 x 4.6" |
