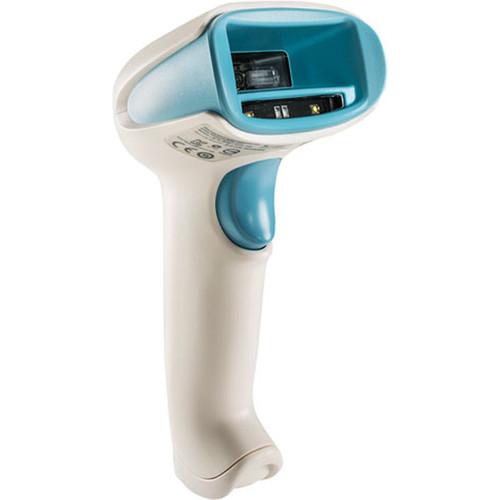

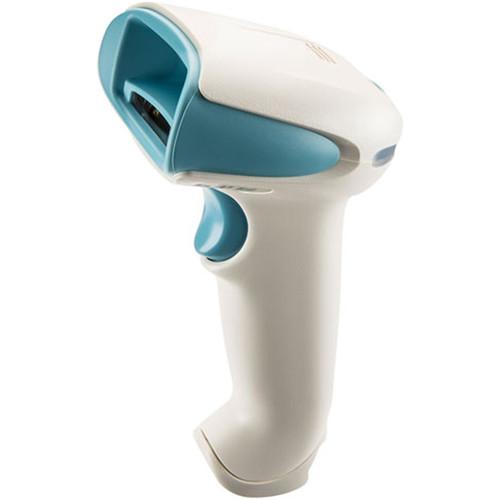

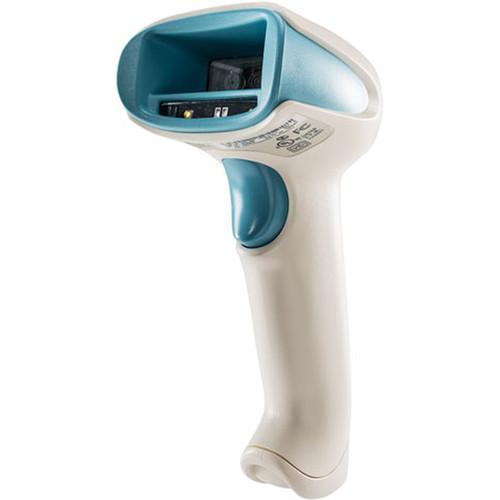

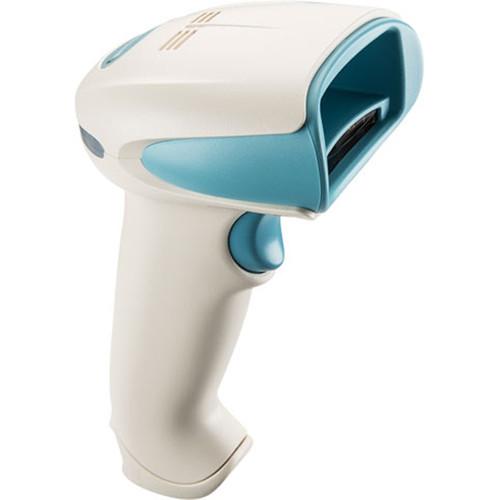

User Manual for Honeywell Enhanced Xenon 1902h Wireless Area-Imaging Healthcare Scanner Click to enlarge the picture
Contents of the user manual for the Honeywell Enhanced Xenon 1902h Wireless Area-Imaging
- Product category: Barcode Scanners Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Barcode Scanners
 |
User manual for the Honeywell Enhanced Xenon 1902h Wireless Area-Imaging contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description Adding numerous features specifically designed for healthcare organizations, the Enhanced Xenon 1902h Wireless Area-Imaging Healthcare Scanner from Honeywell will be a great choice to speed up many medical administration workflows. The 1902h comes equipped with Bluetooth v2.1 for wireless connection to the included base. It is also of the highest quality when it comes to scanning as well with sixth-generation Adaptus area-imaging technology for accurately and quickly reading 1D, PDF, and 2D barcodes, including high-density, low contrast, translucent, and damaged ones. Tie this in with ColorFusion and you will now have excellent capabilities on both black & white and color barcodes, which are becoming more popular in healthcare.
For improved patient comfort, the 1902h offers a Patient Do-Not-Disturb mode which disables audio feedback and activates more video options for ensuring scans are performed accurately. Also a Scan Lamp mode is available to provide white illumination for a workstation so you don't need to turn on the room lights. The body is designed to hold up to the environment with a disinfectant-ready IP41-rated housing and it can withstand multiple 6' drops to concrete. It features a rechargeable 2400mAh lithium-ion battery for completely wireless operation and the included base has USB, keyboard wedge, RS232, and RS485 interfaces. - Color imaging sensor with resolution of 838 x 640
- Field of view of 41.4° horizontally and 32.2° vertically
- Bluetooth v2.1 has range of 33' (10m)
- Flexible radio power management limits radio power output to minimize interference with other devices
- Decode Zone
- Code 39 (5 mil): 0-3.6" (0-9.1cm)
Code 39 (20 mil): 0.4-8.4" (1.0-21.3cm)
UPC (13 mil): 0.4-5.9" (1.0-15.0cm)
QR Code (20 mil): 0.4-6.8" (1.0-17.3cm)
PDF417 (6.7 mil): 0-3.8" (0-9.7cm)
Data Matrix (10 mil): 0-4.2" (0-10.7cm)
Code 39 (Resolution 1D): 3 mil (0.076mm)
Data Matrix (Resolution 2D): 5 mil (0.127mm) In the Box Honeywell Enhanced Xenon 1902h Wireless Area-Imaging Healthcare Scanner Charger/Communication Base USB Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Enhanced Xenon 1902h Wireless Area-Imaging Healthcare Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 1902h Specs | Sensor Resolution | 838 x 640 color | | Field of View | Horizontal: 41.4°
Vertical: 32.2° | | Motion Tolerances | Up to 240 in/sec (610 cm/sec) for 13 mil UPC at optimal focus | | Pitch | ±45° | | Skew | ±65° | | Print Contrast | 20% minimum reflectance difference | | Bar-Code Types | 1D, PDF, 2D, Postal, and OCR symbologies | | Interfaces | Scanner: Bluetooth v2.1 (2.4-2.5 GHz Adaptive Frequency Hopping)
Base: USB
Keyboard wedge
RS232 RRL
IBM 46xx (RS485) | | Wireless Range | Up to 33' (10 m) with line of sight | | Data Rate | Up to 1 Mbps | | Sealing | IP41
Disinfectant ready | | Drop Resistance | Scanner: Withstands multiple 6' (1.8 m) drops to concrete
Base: Withstands multiple 3.3' (1 m) drops to concrete | | Ambient Light Immunity | Total darkness to 9,290 fc (100,000 lux) | | Battery | 2,400 mAh Li-ion | | Battery Life | Up to 50,000 scans per charge
~14 hours | | Operating Conditions | Scanner
Temperature: 32 to 122°F (0 to 50°C)
Humidity: 0 to 95%, relative non-condensing
Base
Charging Temperature: 41 to 104°F (5 to 40°C)
Non-Charging Temperature: 32 to 122°F (0 to 50°C)
Humidity: 0 to 95%, relative non-condensing | | Storage Conditions | Scanner
Temperature (90 Days): -4 to 95°F (-20 to 35°C)
Temperature (1 Year): -4 to 68°F (-20 to 20°C)
Humidity: 0 to 95%, relative non-condensing
Base
Temperature: -40 to 158°F (-40 to 70°C)
Humidity: 0 to 95%, relative non-condensing | | Dimensions | Scanner: 4.1 x 2.8 x 6.3" (104 x 71 x 160 mm)
Base: 5.2 x 4 x 3.2" (132 x 102 x 81 mm) | | Weight | Scanner: 7.5 oz (214 g)
Base: 6.3 oz (179 g) |
