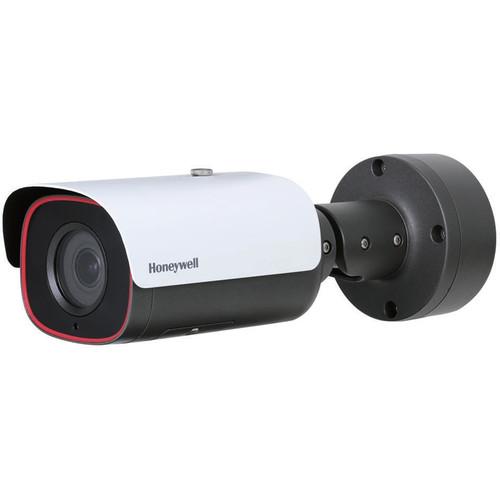

User Manual for Honeywell equIP 2MP Outdoor Network Bullet Camera with 2.7-12mm Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Honeywell equIP 2MP Outdoor Network Bullet
- Product category: Wired IP Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired IP Cameras
|
User manual for the Honeywell equIP 2MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The equIP 2MP Outdoor Network Bullet Camera from Honeywell utilizes a 1/2.7" CMOS sensor and a 2.7-12mm MFZ lens to capture video at a resolution up to 1920 x 1080 at 25-30 fps. It supports H.264, H.264H, H.264B, and MJPEG video compression formats. The true Day/Night feature provides vivid color images by day and clear black-and-white images at night. With four integrated IR LEDs, this camera can capture images in complete darkness to a range of 195'. The camera can be powered via a 12 VDC power supply and PoE, simplifying installation and minimizing cable runs. - True day/night provides vivid color images by day and clear black-and-white images at night with ICR
- Wide dynamic range of 120 dB
- Low-light performance with 3D noise reduction
- Ultra low-light technology can capture high quality color images in low-light environments
- Smart IR technology provides even distribution of IR
- Waterproof (IP67) and IK10 vandal-resistant camera housing
- ONVIF-compliant, Profile S and G
- Security features include individual signed certificates and data encryption
- This camera can be retrofitted on many existing DVR/NVR installations without requiring additional storage
- Remote configuration, motorized zoom adjustments, and auto focus through web client or from the NVR
- Supports up to 128GB microSDHC (Class 10) card for local video storage when network is interrupted
- Corridor mode viewing capability
- H.264, H.264H, H.264B, and MJPEG video compression supported
- 24VAC 12W maximum and PoE 10.5W typical power consumption
UPC: 886618232978 In the Box Honeywell equIP 2MP Outdoor Network Bullet Camera with 2.7-12mm Lens and Night Vision Security Screw Driver Mounting Screws Mounting Template Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell equIP 2MP Outdoor Network Bullet Camera with 2.7-12mm Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HBW2GR1 Specs | | | Sensor | 2 MP 1/2.7" CMOS | | Focal Length | 2.7 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.4x | | Lens Field of View | Horizontal: 34 to 99° | | Day/Night | True | | Minimum Illumination | Color: 0.01 Lux
B&W: 0 Lux | | Shutter Speed | 1/10000 to 1/3 Seconds | | | | Streaming Resolution | 1920 x 1080 at 25/30 fps
1280 x 1024 at 25/30 fps
1280 x 960 at 25/30 fps
1280 x 720 at 25/30 fps
704 x 576 at 25 fps
704 x 480 at 30 fps
352 x 288 at 25/30 fps
352 x 240 at 25/30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NFS, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S/G | | Event Trigger | Yes | | Event Action | Recording, Notification | | Built-In Installation Aids | PoE | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x Power | | IR Range | 195' / 59.44 m | | Video Management Software | Open API | | Supported Languages | Arabic
Czech
Dutch
English
French
German
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Turkish | | Certifications | CSA, UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 12 W (With Heater) | | Material of Construction | Aluminum | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 10 to 100% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
