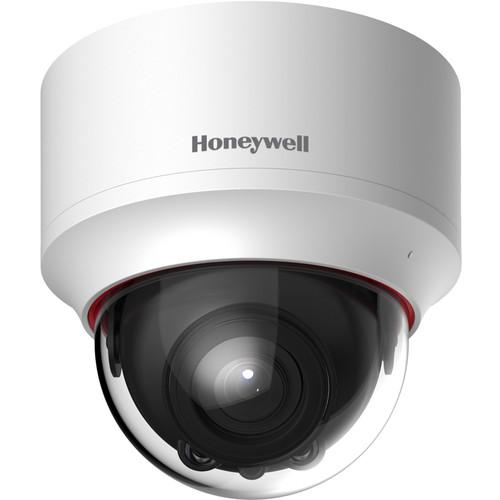

User Manual for Honeywell equIP H3W2GR1V 2MP Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Honeywell equIP H3W2GR1V 2MP Network Dome
- Product category: Wired IP Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired IP Cameras
|
User manual for the Honeywell equIP H3W2GR1V 2MP Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The equIP H3W2GR1V Network Dome Camera from Honeywell is a 1/2.8" 2MP sensor dome camera that captures video at resolutions up to 1920 x 1080 at 60 fps. It features three IR LEDs for night vision of up to 65'. This camera has a 2.7-13.5mm motorized focus/zoom lens with an aperture of f/1.6. It can record in a 110 x 53° to 30 x 18° field of view. This camera has an audio input and output with a built-in microphone and a microSD card slot that supports up to 128GB umicroSDXC cards. It can be powered via PoE or a power supply (available separately). - 120 dB true wide dynamic range ensures glare-free images
- True day/night provides vivid color images by day and clear black-and-white images at night with ICR
- Low-light performance with 3D noise reduction
- Onboard video analytics event
- H.265+, H.265, H.264 and MJPEG codec, triple stream support
- Smart IR technology provides even distribution of IR
- Individual signed certificates and data encryption security features
- Can be retrofitted on many existing DVR/NVR installations without requiring additional storage
- Remote configuration, motorized zoom adjustments and auto focus through web client or from the NVR
- Corridor mode viewing capability
- Motion detection, video tampering, face detection, SD card error, SD card capacity warning, audio detection, object abandoned, object missing, tripwire, and intrusion
- Built-in PoE eliminates separate power supply and associated wiring
- 24 VAC/12 VDC inputs where PoE power is unavailable
UPC: 886618262142 In the Box Honeywell equIP H3W2GR1V 2MP Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell equIP H3W2GR1V 2MP Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell H3W2GR1V Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 2.7 to 13.5mm | | Maximum Aperture | f/1.6 | | Zoom | Optical: 5x | | Lens Field of View | Horizontal: 110 to 32°
Vertical: 59 to 19° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.001 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | | | Streaming Resolution | 1920 x 1080 at 50/60 fps | | Supported Video Compression | H.264, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.726 | | Built-In Mic | Yes | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile Q, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF | | Analytics | Motion Detection, Video Tampering, Face Detection, SD Card Error, SD Card Capacity Warning, Audio Detection, Object Abandoned, Object Missing, Tripwire, Intrusion | | Event Trigger | Yes | | Event Action | Recording, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows 7, 10 | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 2 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 65.62' / 20 m | | Supported Languages | Arabic
Czech
Dutch
English
French
German
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Turkish | | Certifications | CSA, EN 50130-4, FCC (Part 15 Class A), IEC60950-1, RCM, UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | 11 W | | Material of Construction | Plastic | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | Dimensions |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
