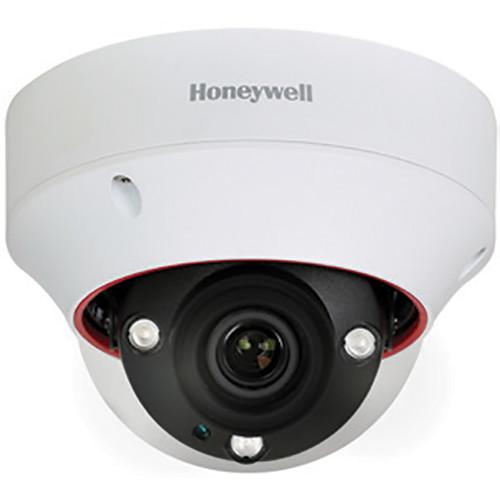

User Manual for Honeywell equIP Series 2MP Outdoor Network Mini Dome Camera with Night Vision & 2.7-12mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Honeywell equIP Series 2MP Outdoor Network
- Product category: Wired IP Cameras Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Wired IP Cameras
|
User manual for the Honeywell equIP Series 2MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The white equIP Series 2MP Outdoor Network Mini Dome Camera from Honeywell features a 1/2.7" progressive scan CMOS sensor and 2.7-12mm motorized focus/zoom lens for capturing videos at a maximum resolution of 1920 x 1080. Enclosed in an IP67- and IK10-rated housing, it can be used for both indoor and outdoor applications. The day/night camera provides 24-hour surveillance thanks to an IR cut filter and built-in IR LEDs with a range of up to 150'. It makes use of Ultra Low Light technology for capturing high-quality color images under low lighting conditions. The camera can be configured to automatically detect and respond to events such as motion in the scene, alarm inputs, network failure, and/or camera tampering. It can trigger automated responses such as sending a notification through email, FTP, and/ or HTTP, sending a still image of the event through email and/or FTP, and recording a video clip of the event to a microSDHC card. In addition, setup can be done through a web client or from an NVR. - True WDR up to 140 dB for glare-free images
- True day/night provides color images by day and black-and-white images at night with ICR
- 3D noise reduction for improved low-light performance
- H.264 and MJPEG codec with triple-stream support
- 2.7-12mm motorized focus/zoom varifocal lens
- Smart IR technology provides even distribution of IR
- IP67-rated weather-resistant and IK10-rated vandal-resistant housing
- Working temperature of -40 to 140°F
- Security features include individual signed certificates and data encryption
- Camera can be retrofitted for existing DVR/NVR installations without requiring additional storage
- Built-in PoE eliminates the need for a separate power supply and associated wiring
- 24 VAC/12 VDC inputs where PoE power is unavailable
- Remote configuration, motorized zoom adjustments, and auto focus through web client or from a NVR
- Accepts microSDHC (Class 10) cards up to 128GB for local video storage when network is interrupted (card sold separately)
UPC: 886618233043 In the Box Honeywell equIP Series 2MP Outdoor Network Mini Dome Camera with Night Vision & 2.7-12mm Varifocal Lens Security Screw Driver 4S Mount Adapter Rubber Gasket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell equIP Series 2MP Outdoor Network Mini Dome Camera with Night Vision & 2.7-12mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell equIP Specs | | | Video Standard | NTSC/PAL | | Scanning System | Progressive scan | | Image Sensor | 1/2.7" 2 MP progressive CMOS | | Effective Pixels (H x V) | 1920 x 1080 | | Minimum Illumination | Color: 0.01 lux at f/1.4
B&W: 0 lux with IR LEDs | | S/N Ratio | 50 dB or more | | Electronic Shutter Speed | Auto, Manual, 1/3(4) to 1/10,000 sec | | IR Range | Up to 150' (50 m), depending on scene reflectance | | Day/Night | Auto (ICR)/Color/B&W | | Backlight Compensation | BLC/HLC | | Wide Dynamic Range | 120 dB | | White Balance | Auto/Manual | | Gain Control | Auto/Manual | | Noise Reduction | 3D-DNR | | Privacy Masking | Up to 4 areas | | Lens | 2.7-12mm, MFZ, f/1.4 | | Horizontal Angle of View | 99 to 34° | | Two-Way Audio | Line in/out | | | | Video Compression | H.264/H.264H/H.264B/MJPEG | | Resolution | 1080p (1920 x 1080) / SXGA (1280 x 1024) / 1.3 MP (1280 x 960) / 720p (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240) | | Frame Rates | Main Stream
PAL
1 to 25 fps 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 704 x 576
NTSC
1 to 30 fps 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 704 x 576
Sub Stream
PAL
1 to 25 fps 704 x 576, 352 x 288)
NTSC
1 to 30 fps 704 x 480, 352 x 240
Triple Stream
PAL
1280 x 720: 1 to 14 fps, 704 x 576: 1 to 25 fps, 352 x 288: 1 to 25 fps | | Audio Compression | G.711a/G.711u/AAC | | Audio Streaming | Dual channel | | Ethernet | RJ45 (10/100Base-T) | | Protocols | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, QoS, SNMP v2c/v3, LDAP (Client), NFS, RTCP, Bonjour | | Maximum User Access | 20 users | | Languages Supported | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish | | | | Input Voltage | 12 VDC +/-10%, 24 VAC +/-10%, PoE IEEE 802.3af | | Frequency | 50/60 Hz | | Power Consumption | 24 VAC: 12 W maximum (zoom/focus/IRs/heater active)
Typical 10.5 W, PoE (802.3af) Class 0 | | | | Temperature | -40 to 140°F (-40 to 60°C) | | Relative Humidity | 10 to 100%, condensing | | Ingress Protection | IP67 | | Vandal Resistance | IK10 | | | | Emissions | FCC Part 15, CE (EN 55022)
Complies with RCM (AS/NZS) | | Immunity | CE (EN 50130-4) | | Safety | North America UL Listed to UL/CSA 60950-1, CE (EN 60950-1)
North America UL Listed to UL/CSA 60950-22, CE (EN 60950-22) | | | | Construction | Die-cast aluminum housing with powder coating | | Storage | Up to 128 GB microSDHC card Class 10 (card not included) | | Dimensions | 6.2
