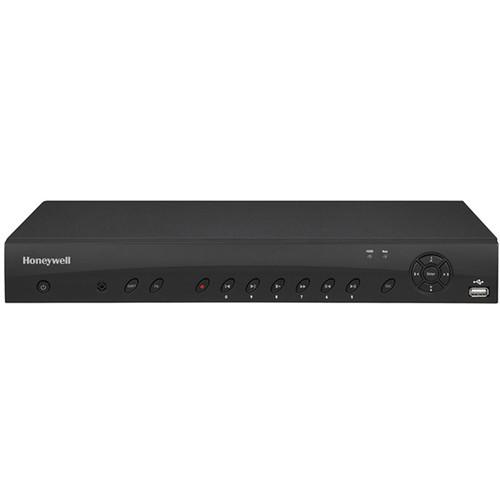

Product description Stream and record up to 16 video channels with the Focus 16-Channel 12MP PoE NVR from Honeywell at resolutions of up to 4K UHD. Equipped with two HDD ports, each supporting an HDD of up to 8TB, the NVR can be configured to have up to 16TB of internal storage (4TB HDD pre-installed). External storage options include PCs via Internet connection, network servers, and USB storage devices. Network bandwidth is optimized while ensuring high-quality recording and playback using H.265, H.264, MJPEG, or MPEG-4 compression. An integrated PoE switch powers up to 16 IP cameras directly via their network connection.
The NVR enables simultaneous playback of up to 16 channels via its VGA and HDMI ports, supporting resolutions of up to 3840 x 2160 depending on the number of channels being displayed and the video output being used. Up to 16 channels can be recorded simultaneously with a maximum incoming bandwidth of 320 Mbps. Internet connectivity enables remote monitoring via PCs, as well as from iOS and Android devices. The NVR is equipped with RCA connectors for bidirectional audio and with an RS-232 serial port for PC & keyboard communication. - High decoding capability for Ultra HD 4K viewing and recording
- Simultaneous view of up to 16 channels with synchronized real-time playback on your monitor
- Fisheye dewarping via local and remote user interfaces
- Remote monitoring via mobile apps for iOS and Android devices (apps available separately)
- Password-protected access to NVR's video and network setup
- Allows concealing up to four areas of a scene from viewing and recording
- External storage of video clips and snapshots on client's PC, external network storage servers such as FTP sites, and USB memory devices
- Quick wizard and PoE support for fast setup
- Simple remote configuration and firmware updating through the Honeywell Viewer web client and the Config tool
- Email, FTP, and/or HTTP notifications
- Enables recording of video clips of events for distribution
- Supports uploading still images at the time of the event through email and/or FTP
- Configurable to automatically detect and respond to motion in the scene, alarm inputs, and network failure or tampering
- Supports visual or auditory notifications (flashing light, bell, or siren)
UPC: 886618250903 In the Box Honeywell Focus 16-Channel 12MP PoE NVR with 4TB HDD Mouse Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Focus 16-Channel 12MP PoE NVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell HEN16144 Specs | | | Main Processor | Quad-core embedded processor | | Operating System | Linux, embedded | | | | IP Camera Inputs | 16 x channels | | Audio Input/Output | 1 x RCA, 1-channel input
1 x RCA, 1-channel output | | Two-Way Audio | Supported | | | | Interface | 1 x HDMI (up to 3840 x 2160)
1 x VGA | | Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Display Split | 1, 4, 8, 9, 16 | | OSD | Camera title, time, video loss, camera lock, motion detection, recording | | Fisheye Dewarp Mode | Supported in local and web-user interfaces | | | | Compression | H.265, H.264, MJPEG, MPEG-4 | | Resolution | 12 MP (4000 x 3000), 8 MP (3840 x 2160), 6 MP (3072 x 2048), 5 MP (2560 x 1920), 4 MP (2560 x 1440), 3 MP (2048 x 1520), 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 576 / 704 x 480), CIF (352 x 288 / 352 x 240) | | Frame Rate | 1-15 fps (12 MP and 8 MP)
1-25/30 fps (all other resolutions) | | Bit Rate | 320 Mbps total recording
16 kbps to 20 Mbps per channel Actual bit rate is scene and motion dependent with H.264 stream. | | Recording Mode | Schedule (regular/continuous, motion detection, alarm)
Manual
Stop | | Recording Intervals | 1 to 120 minutes (60 minutes default)
Pre-Event: 1 to 30 seconds
Post-Event: 10 to 300 seconds | | | | Trigger Events | Recording, PTZ, tour, alarm, video push, email, FTP, snapshot, buzzer | | Video Detection | Motion detection, 396 (22 x 18) zones
Video loss
Camera blank | | Alarm Input | 4 x channels | | Relay Output | 2 x channels | | | | Internal HDD | 2 x SATA ports, up to 16 TB (8 TB each)
4 TB pre-installed | | | | Sync Playback | 1, 4, 8, 16 (maximum 4-channel at 8 MP, 8-channel at 4 MP, or 16-channel at 1080p) | | Search Modes | Time/date, alarm, motion detection (MD), exact search (accurate to a second), smart search | | Playback Functions | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom | | Backup Modes | Compatibility: USB device, network, internal SATA burner | | | | Ethernet | 1 x RJ45 port (10/100/1000 Mbps) | | PoE | 16 x ports (802.3af/at) | | Supported Protocols | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, alarm server, IP search, P2P | | Maximum Number of Users | 128 | | Network Throughput | Input: 320 Mbps
Output: 320 Mbps | | Supported Mobile Devices | iPhone, iPad, Android | | | | USB Ports | 1 x USB 3.0 port, rear panel
1 x USB 2.0, front panel | | RS-232 | 1 x port for PC communications and keyboard | | | | Power Supply | Single, 100-240 VAC, 50/60 Hz | | Power Consumption | 14.5 W max (without HDDs)
PoE: 25.5 W for single port (130 W total) | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Relative Humidity | 10-90%, non-condensing | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | | | Emissions | FCC part 15 B, EN55032: 2012 +AC: 2013, EN61000-3-2: 2014, EN61000-3-3: 2013 | | Immunity | EN50130-4: 2011+A1: 2014
EN55024: 2010+A1: 2015 | | Safety | EU: EN60950-1
North America UL listed to UL/CSA 60950-1 | | RoHS | EN50581: 2012 | | | | Dimensions | 14.8 x 12.9 x 2.1" (37.5 x 32.7 x 5.3 cm) | | Weight | 6 lb (2.7 kg), without HDDs | | | | Package Weight | 10.775 lb | | Box Dimensions (LxWxH) | 17.6 x 16.6 x 6.7" |
