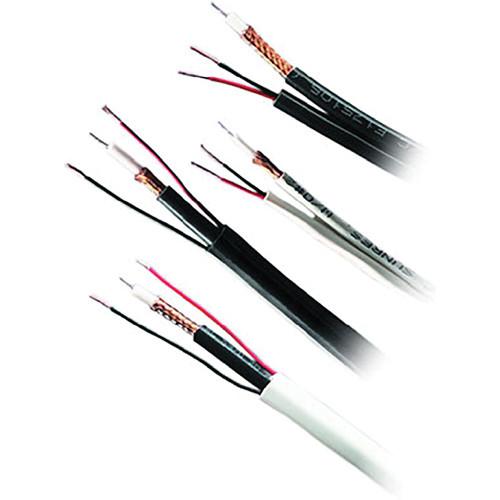

User Manual for Honeywell Genesis 500' Stranded Siamese Braid Shielded CCTV Coaxial Cable Click to enlarge the picture
Contents of the user manual for the Honeywell Genesis 500' Stranded Siamese Braid
- Product category: Bulk Video Cables Honeywell
- Brand: Honeywell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Honeywell Bulk Video Cables
|
User manual for the Honeywell Genesis 500' Stranded Siamese Braid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Honeywell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Honeywell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Honeywell product will considerably shorten its lifespan!
|
Product description The black Genesis 500' Stranded Siamese Braid Shielded CCTV Coaxial Cable from Honeywell ensures efficient performance in high-end home theater installations incorporating HDTV and digital video. The shielding protects signal transmission from EMI and RFI interference. - Good signal strength for low frequency applications such as CCTV
- Recommended for satellite dishes to power Low Noise Blocks (LNB)
- Shielding protects signal transmission from low frequency interference
- Countdown footage markings
- Insulation Color: Black & red
- Meets UL13 & 444, NEC Article 820 standards
UPC: 619172093996 In the Box Honeywell Genesis 500' Stranded Siamese Braid Shielded CCTV Coaxial Cable (Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Honeywell Genesis 500' Stranded Siamese Braid Shielded CCTV Coaxial Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHoneywell 6508-61-08 Specs | | | Type | RG59/U + 18/2 Siamese | | Conductor | 2 x 18 AWG 19/0.0092 Stranded Bare Copper | | Braided Shield | Copper Clad Aluminum: 15% copper by area; DC conductivity 64.4% minimum IAGS
Braid: 0.005" nominal, copper clad aluminum | | Insulation Material | Polyethylene | | Insulation Thickness | 0.006" (0.152 mm) nominal | | Insulation O.D. | 0.058" (1.473 mm) nominal | | Lay Length | 2.25" (57.15 mm) nominal | | Coverage | 95% nominal | | Jacket Type | PVC | | Jacket | Thickness: 0.018" (0.457 mm) nominal | | Jacket OD | 0.175" (4.445 mm) nominal | | Overall Diameter | 0.240 x 0.425" (6.096 x 10.795 mm) nominal | | | | Voltage Rating | 300 V | | Temperature Rating | -4 to 167°F (-20 to 75°C) | | Capacitance | 16.5 pF/ft nominal | | Impedance | 75 Ω nominal | | Resistance | Braid: 9.0 Ω /Mft at 68°F (20°C) | | Attenuation | 0.86 dB/100' at 1 MHz, 5.1 dB/100' at 400 MHz, 8.12 dB/100' at 1000 MHz | | Rating | Flame: UL Vertical Tray | | | | Package Weight | 25.25 lb | | Box Dimensions (LxWxH) | 12.9 x 12.7 x 11.4" |
